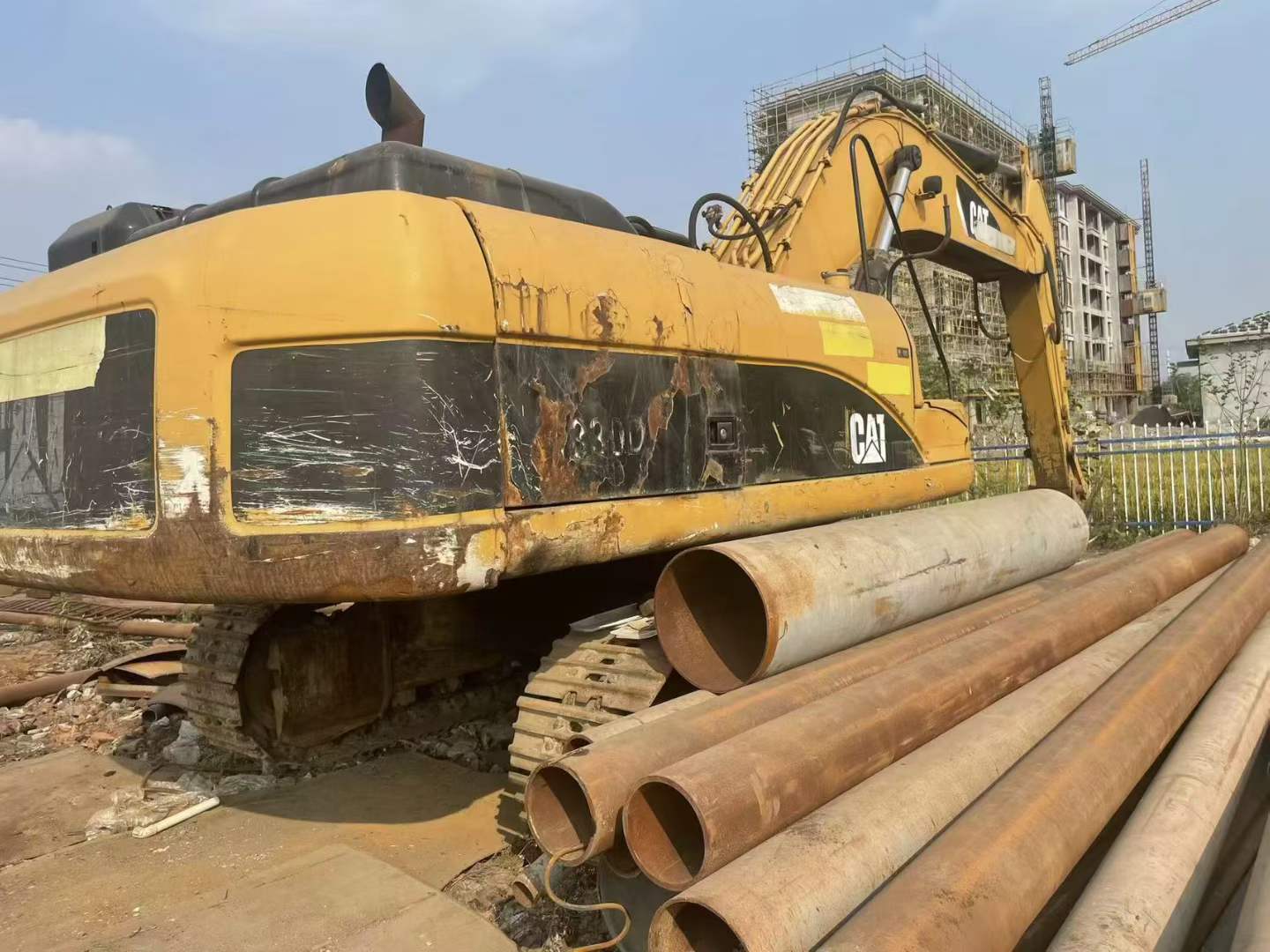

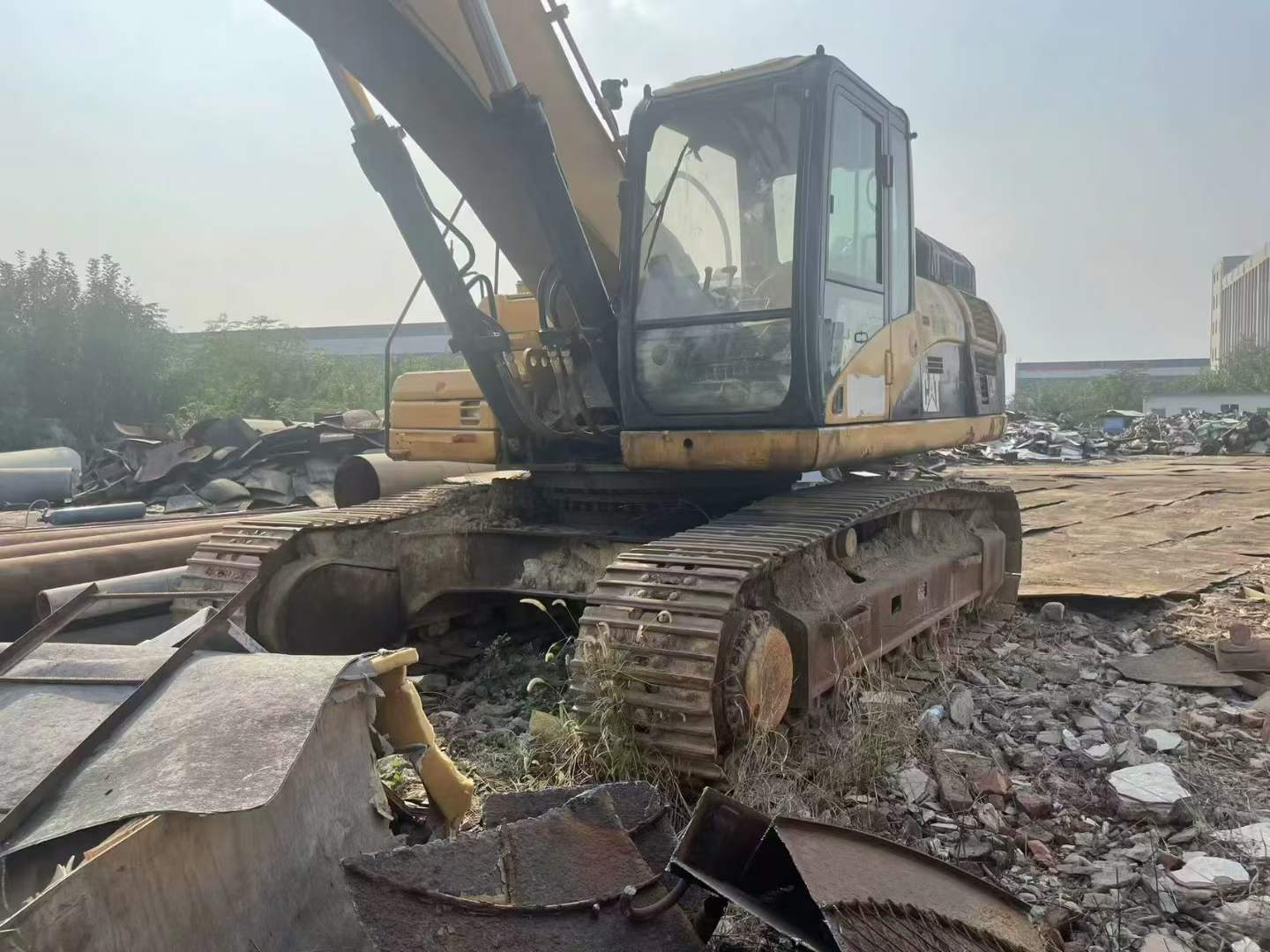

2016 Caterpillar 330B
Product Description
Strengthen your fleet with this 2016 Caterpillar 330B excavator, currently located in Kunming, Yunnan. Built for contractors managing multiple jobsites, this 30-ton workhorse delivers consistent performance when your primary machines are deployed elsewhere. Powered by a reliable Caterpillar 3306TA engine producing 165.5 kW at 1800 rpm, it combines turbocharged efficiency with water-cooled durability across demanding applications.
- Operating weight: 32,420 kg with 1.5 m³ backhoe bucket capacity
- Maximum digging depth of 8,080 mm and reach extending to 11,620 mm
- 6,500 mm boom and 3,900 mm arm configuration for versatile excavation tasks
- Hydraulic system capacity of 400 L with 480 L/min main pump flow
- Compact transport dimensions: 11,080 mm length × 3,340 mm width
- Travel speed of 4.6 km/h for efficient repositioning between work zones
Joint venture manufacturing ensures parts availability and service support. Add proven capacity to your equipment roster without disrupting ongoing projects. Contact Fair Trade Machinery for detailed inspection reports and shipping solutions worldwide.
| Specifications | Value |
|---|---|
| No. | 1024303 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 32420 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

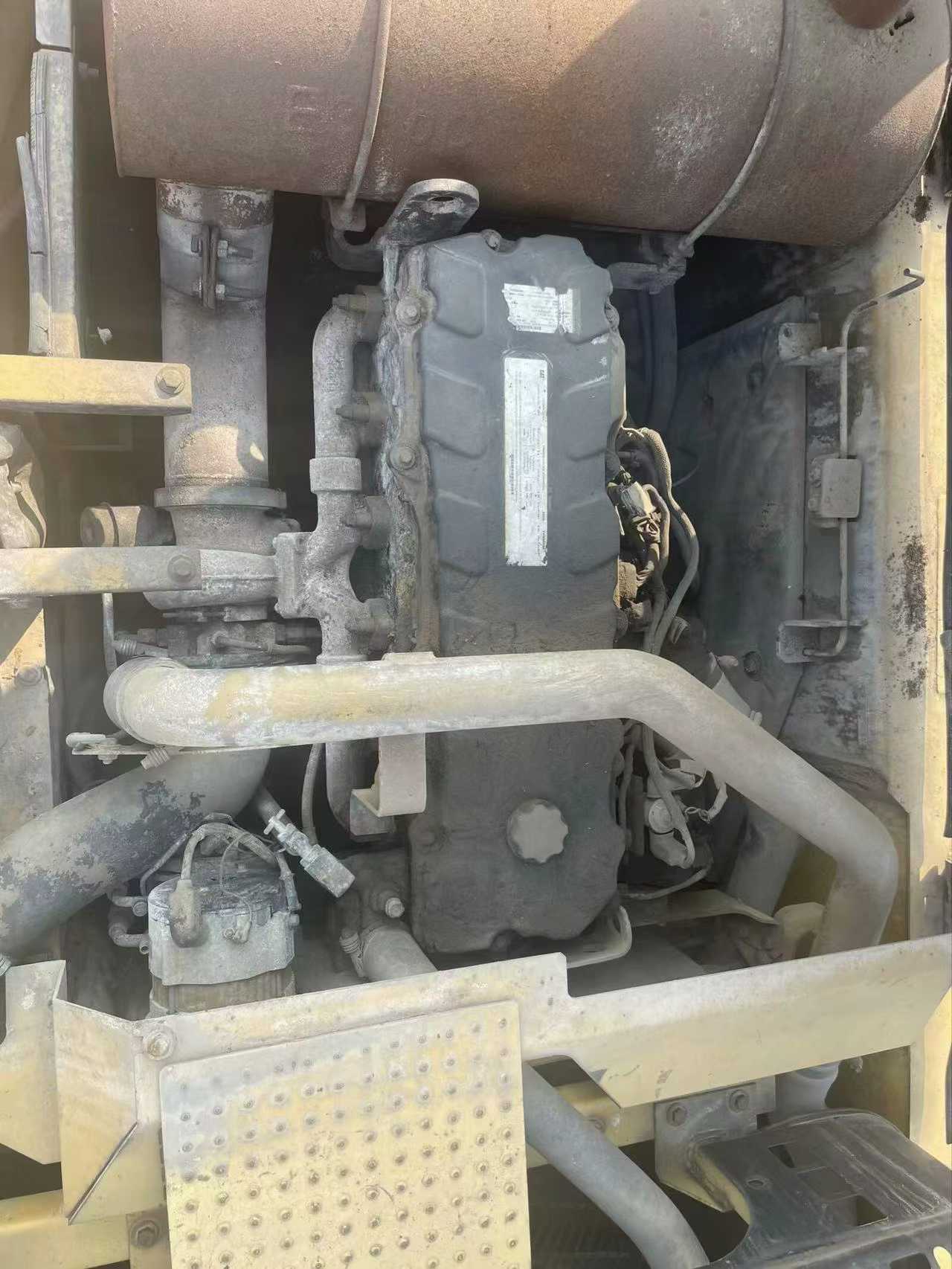

| Engine type | Caterpillar 3306TA |
| Rated power (kw/rpm) | 165.5/1800 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.5 |
| Working form | Turbocharging; after-cooling |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 480 |
| Fuel Tank (L) | 560 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 45 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 11080 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3610 |
| Full cab height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1260 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 8080 |
| Maximum excavation height (mm) | 10770 (Cutting) |
| Maximum unloading height (mm) | 7600 |
| Maximum vertical digging depth (mm) | 7230 |
| Maximum excavation radius of stop surface (mm) | 11620 |
| Travel speed (km/h) | 4.6 |
Overview
No.1024303
Brand Name：
CaterpillarModel Number：
330BYear：
2016
Location：
Yunnan China
