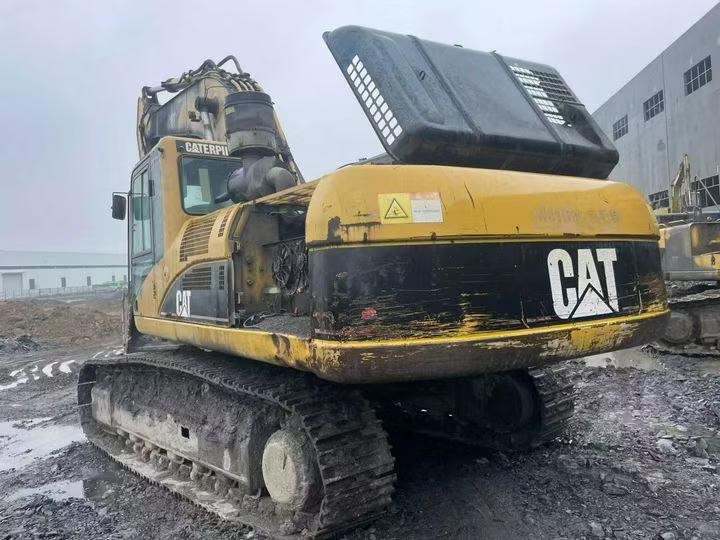

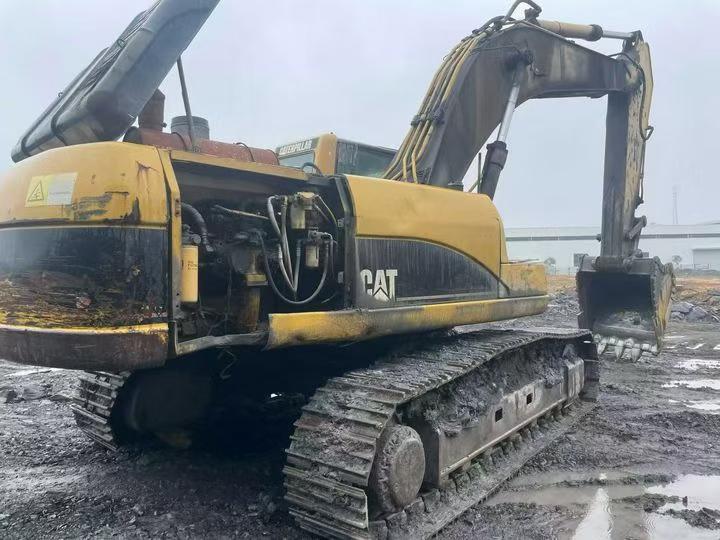

2016 Caterpillar 330B
Product Description
Built to withstand the toughest conditions, this 2016 Caterpillar 330B excavator continues to prove why it remains a workhorse on job sites worldwide. Operating at 30 tons with a robust 32,420 kg working weight, this machine delivers consistent performance through its powerful Caterpillar 3306TA engine, generating 165.5 kW at 1800 rpm. With over seven years of proven reliability, this model demonstrates exceptional durability that only genuine Caterpillar engineering can provide.

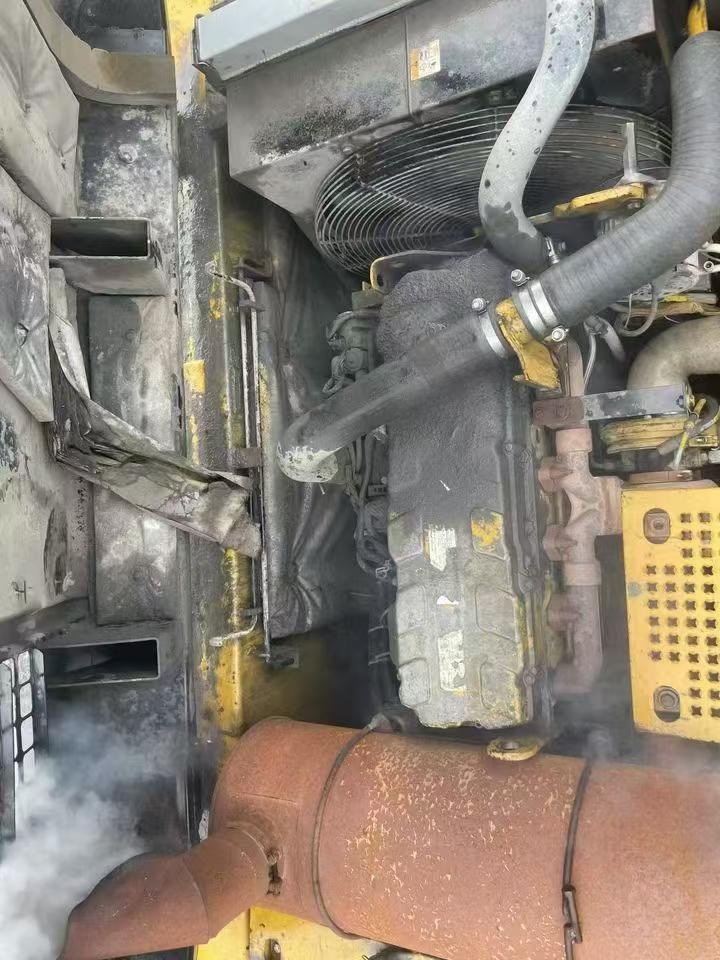

- Engine: Caterpillar 3306TA, 6-cylinder turbocharged and after-cooled, 10.5L displacement
- Performance: 1.5 m³ bucket capacity, 8,080 mm maximum digging depth, 11,620 mm maximum excavation radius
- Hydraulics: 480 L/min main pump flow, 34.3 Mpa main overflow pressure, 400L hydraulic system capacity
- Reach: 6,500 mm boom length, 3,900 mm rod length, 10,770 mm maximum excavation height
- Location: Wenzhou, Zhejiang Province, China
Water-cooled reliability meets field-tested endurance in this joint venture manufactured unit, ready for immediate deployment in demanding excavation operations.
| Specifications | Value |
|---|---|
| No. | 1027451 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 32420 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar 3306TA |
| Rated power (kw/rpm) | 165.5/1800 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.5 |
| Working form | Turbocharging; after-cooling |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 480 |
| Fuel Tank (L) | 560 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 45 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 11080 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3610 |
| Full cab height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1260 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 8080 |
| Maximum excavation height (mm) | 10770 (Cutting) |
| Maximum unloading height (mm) | 7600 |
| Maximum vertical digging depth (mm) | 7230 |
| Maximum excavation radius of stop surface (mm) | 11620 |
| Travel speed (km/h) | 4.6 |
