2016 Caterpillar 330B
Product Description
Built for high-output excavation and heavy-duty earthmoving, this 2016 Caterpillar 330B delivers 165.5 kW of proven power across demanding worksites. With a 30-ton operating weight and 1.5 m³ bucket capacity, this machine tackles deep foundation work, mass excavation, and site preparation with consistent performance. Maximum digging depth reaches 8,080 mm while excavation radius extends to 11,620 mm, providing exceptional reach for trenching, grading, and loading operations.

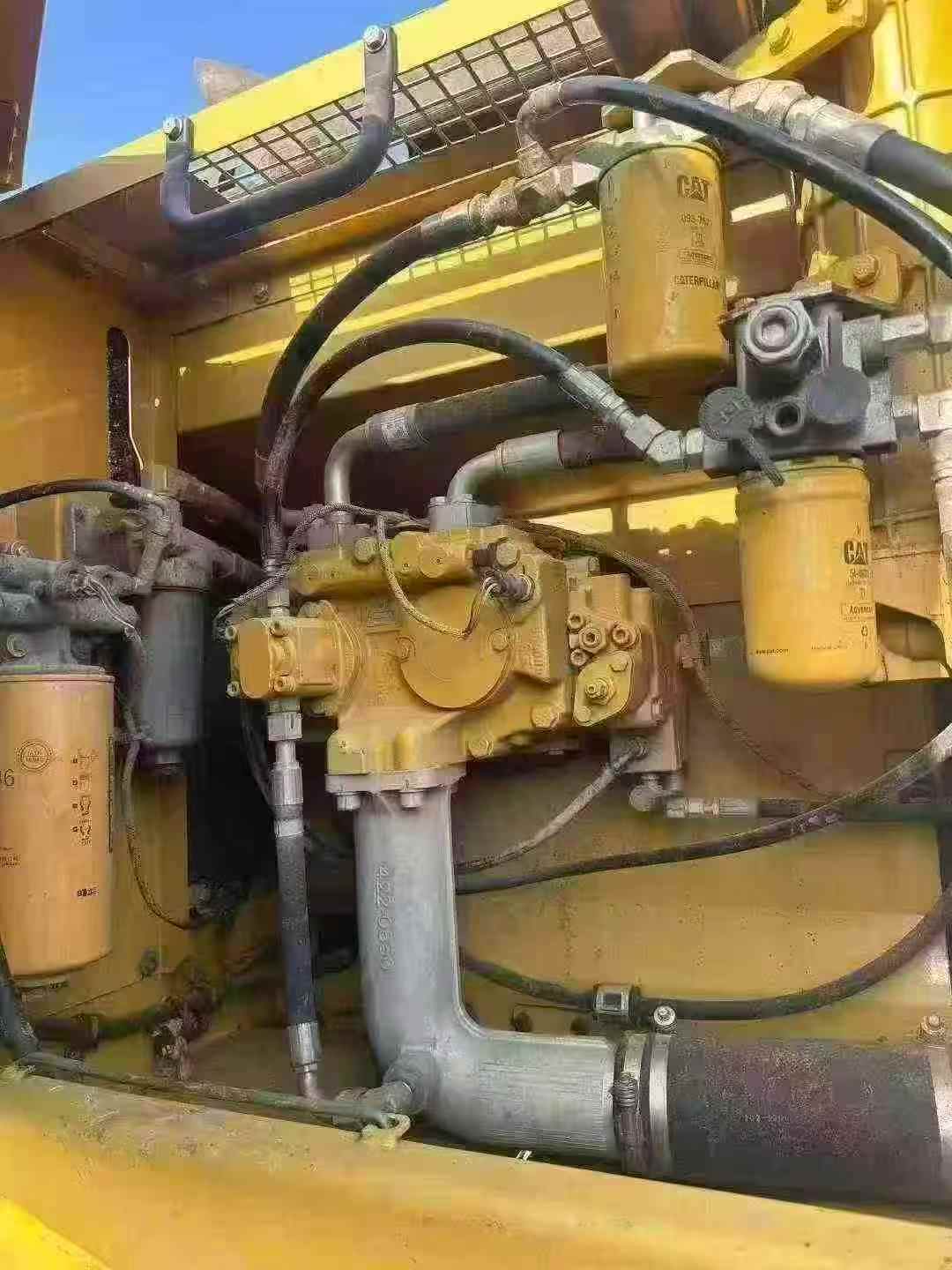

Powered by the reliable Caterpillar 3306TA turbocharged engine with aftercooling, this excavator combines a 480 l/min hydraulic flow with 34.3 MPa system pressure for responsive digging force and smooth cycle times. Water-cooled 6-cylinder design ensures thermal stability during extended shifts. Currently located in Hebei, this unit arrives site-ready with functional cab systems, 600 mm track plates for ground flotation, and a 560-liter fuel capacity supporting full-day productivity.
- 6,500 mm boom and 3,900 mm stick configuration for versatile digging geometry
- 400-liter hydraulic reservoir maintaining consistent system performance
- 3,500 mm rear swing radius enabling operation in confined areas
- Transport dimensions
| Specifications | Value |
|---|---|
| No. | 1030120 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 32420 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

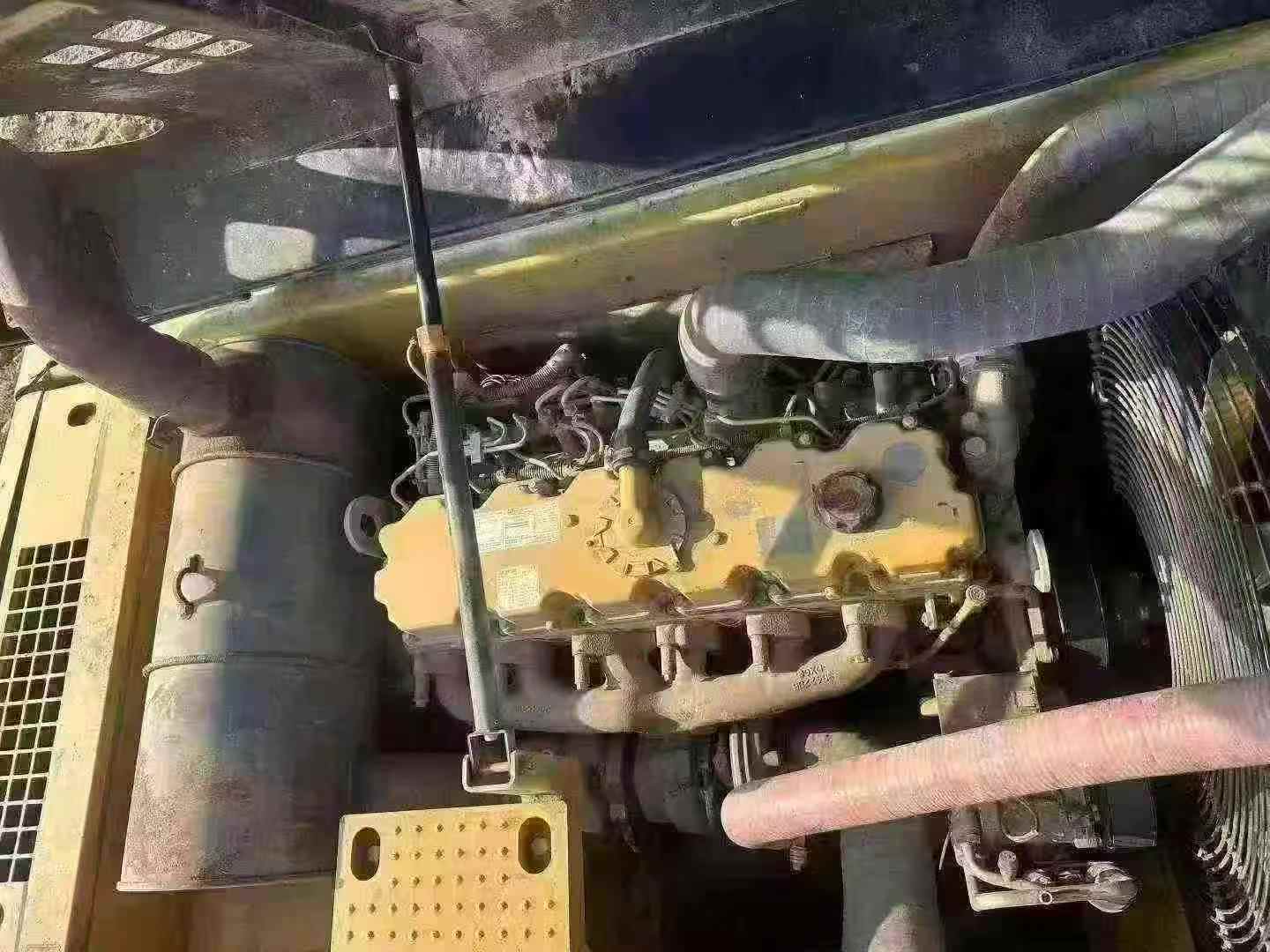

| Engine type | Caterpillar 3306TA |
| Rated power (kw/rpm) | 165.5/1800 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.5 |
| Working form | Turbocharging; after-cooling |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 480 |
| Fuel Tank (L) | 560 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 45 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 11080 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3610 |
| Full cab height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1260 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 8080 |
| Maximum excavation height (mm) | 10770 (Cutting) |
| Maximum unloading height (mm) | 7600 |
| Maximum vertical digging depth (mm) | 7230 |
| Maximum excavation radius of stop surface (mm) | 11620 |
| Travel speed (km/h) | 4.6 |
Overview
No.1030120
Brand Name：
CaterpillarModel Number：
330BYear：
2016
Location：
Hebei China
Pub Date：
