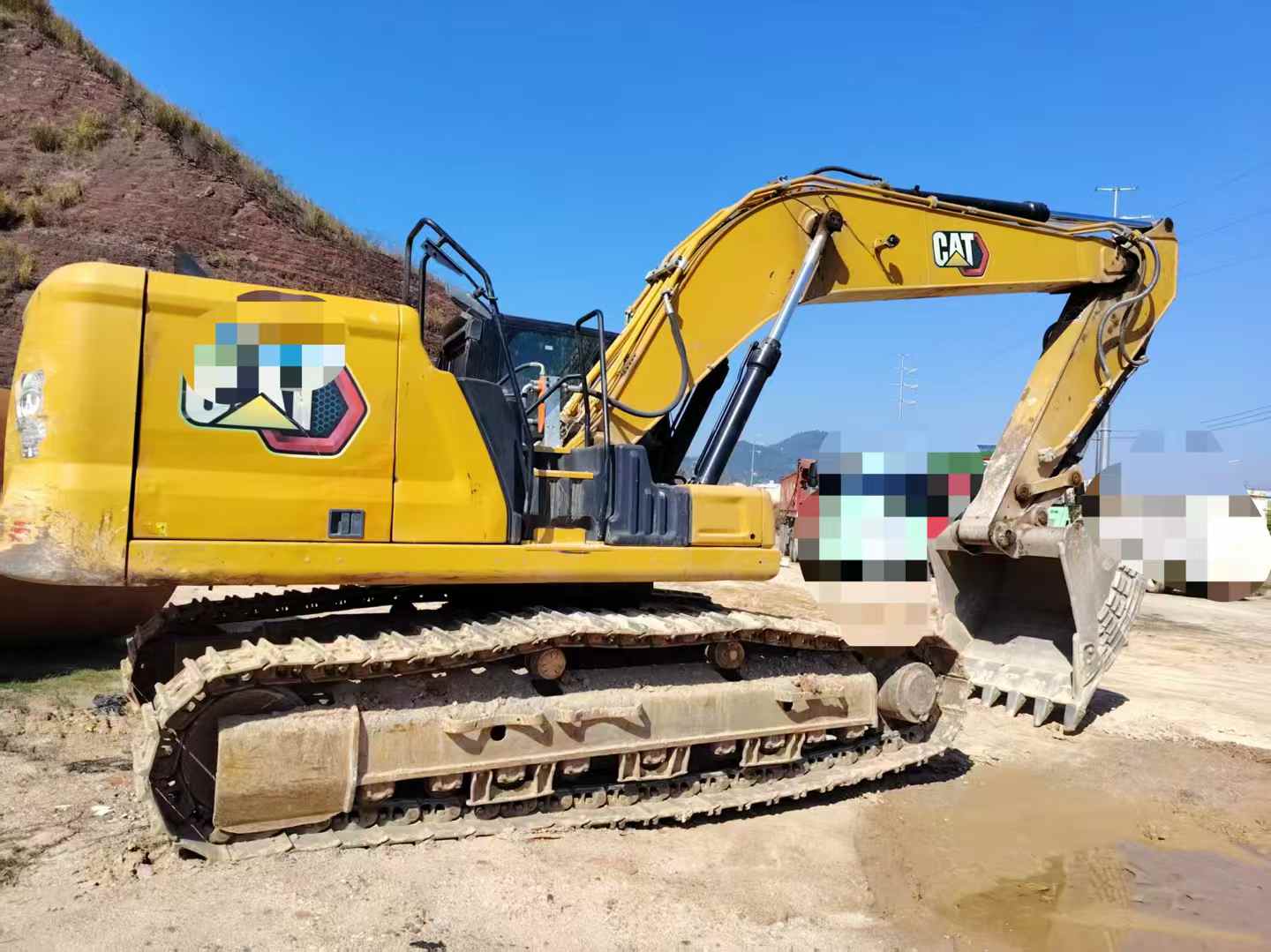

2016 Caterpillar 330B
Product Description
Built for high-output earthmoving and excavation, this 2016 Caterpillar 330B delivers 165.5 kW of reliable power through its proven 3306TA engine. With a 32,420 kg operating weight and 1.5 m³ bucket capacity, this 30-ton excavator tackles deep foundation work, mass excavation, and heavy demolition with authority. Maximum digging depth reaches 8,080 mm while the 11,620 mm excavation radius provides exceptional site coverage from a single setup.
Key specifications for immediate deployment:

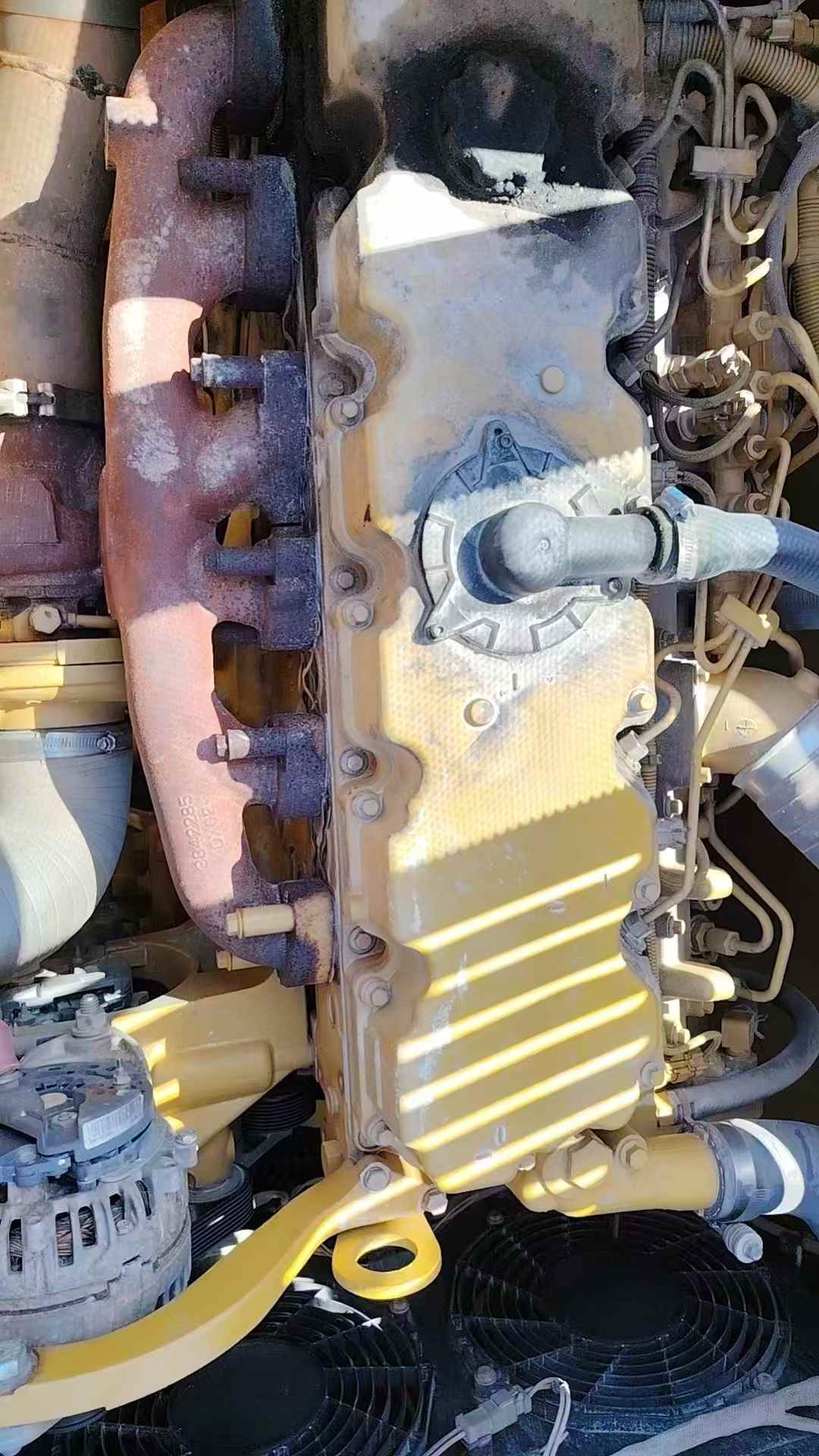

- Caterpillar 3306TA turbocharged, after-cooled engine (165.5 kW @ 1,800 rpm)
- 480 L/min hydraulic flow at 34.3 MPa for responsive cycle times
- 6,500 mm boom and 3,900 mm stick configuration optimized for versatility
- 10,770 mm maximum dig height for loading high-sided haul trucks
- 560 L fuel capacity supports extended operating shifts
- Water-cooled 6-cylinder engine with 10.5 L displacement
Currently located in Ganzhou, Jiangxi. This machine arrives site-ready with proven Caterpillar engineering backing every component. Ideal for contractors requiring dependable performance in excavation, grading, and material handling operations.
| Specifications | Value |
|---|---|
| No. | 1030290 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 32420 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar 3306TA |
| Rated power (kw/rpm) | 165.5/1800 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.5 |
| Working form | Turbocharging; after-cooling |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 480 |
| Fuel Tank (L) | 560 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 45 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 11080 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3610 |
| Full cab height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1260 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 8080 |
| Maximum excavation height (mm) | 10770 (Cutting) |
| Maximum unloading height (mm) | 7600 |
| Maximum vertical digging depth (mm) | 7230 |
| Maximum excavation radius of stop surface (mm) | 11620 |
| Travel speed (km/h) | 4.6 |
Overview
No.1030290
Brand Name：
CaterpillarModel Number：
330BYear：
2016
Location：
Jiangxi China
Pub Date：
