2016 Caterpillar 330B







Product Description

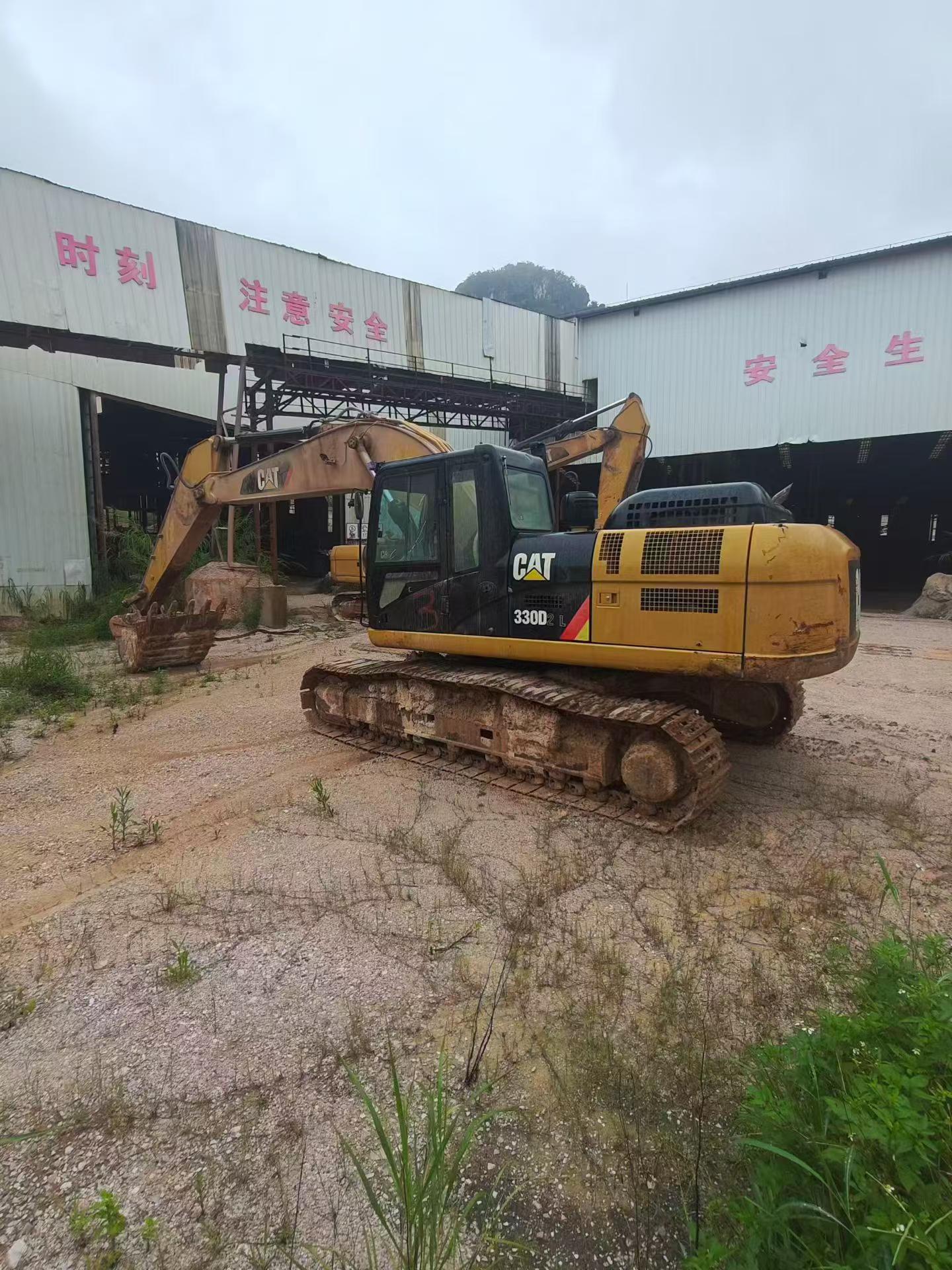

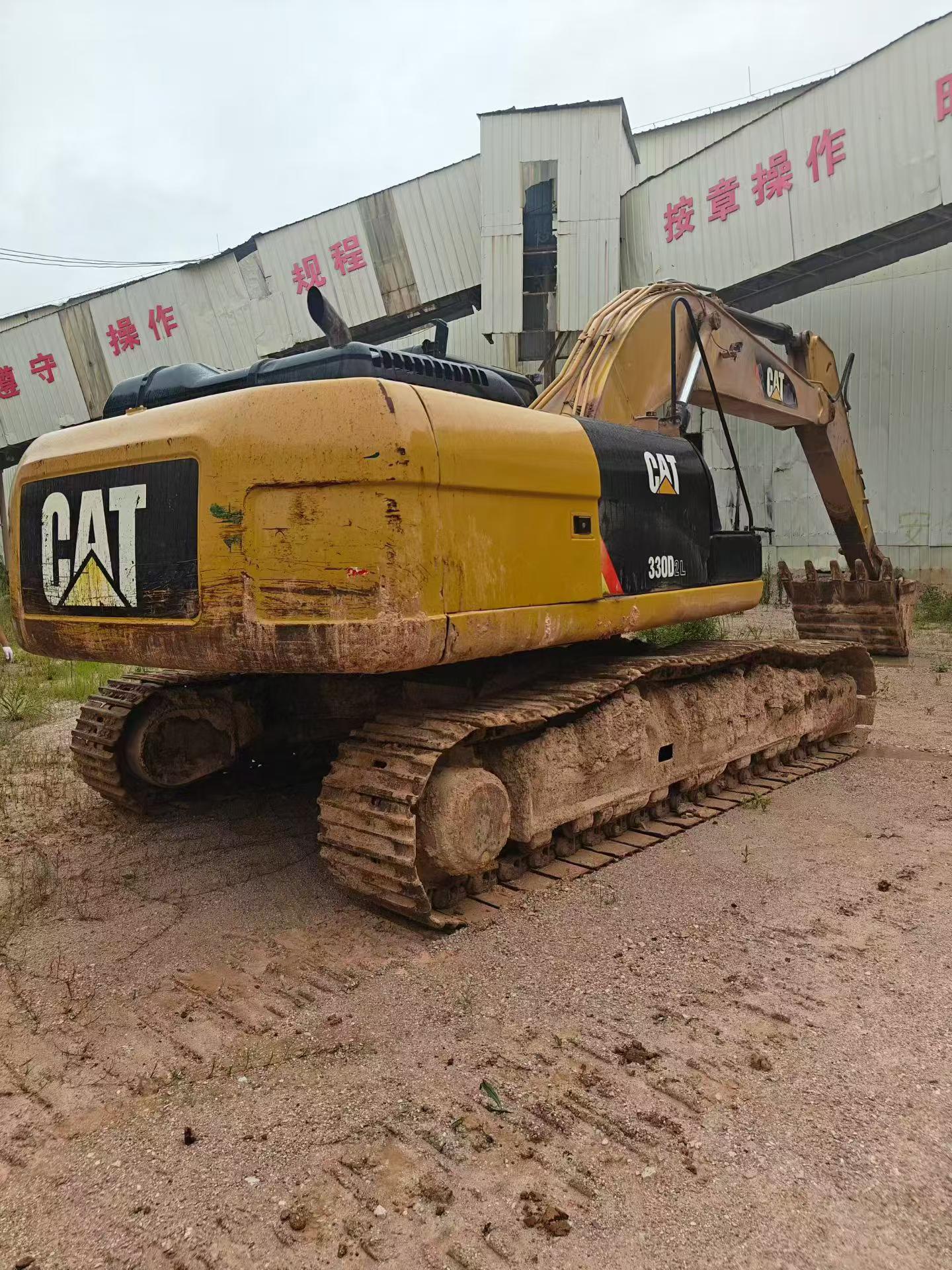

FairTradeMachinery presents a package deal of two Caterpillar 330DL hydraulic excavators from 2016 and 2017, currently located in Hunan, China. These machines represent Caterpillar's proven D-Series engineering, designed for heavy-duty excavation, earthmoving, and construction applications. The CAT 330DL is renowned for its robust hydraulic system, reliable performance, and operator comfort in demanding job sites.
- Year: 2016/2017 models
- Model: Caterpillar 330DL
- Configuration: Two-unit package deal
- Location: Hunan Province, China
- Category: Tracked hydraulic excavator
- Application: Excavation, earthmoving, heavy construction
This package offer provides an excellent opportunity for contractors and operators looking to expand their fleet with dependable Caterpillar machinery. Both units are available for immediate inspection. Contact FairTradeMachinery for detailed specifications, current condition reports, and export arrangements.
| Specifications | Value |
|---|---|
| No. | 1094184 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 32420 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

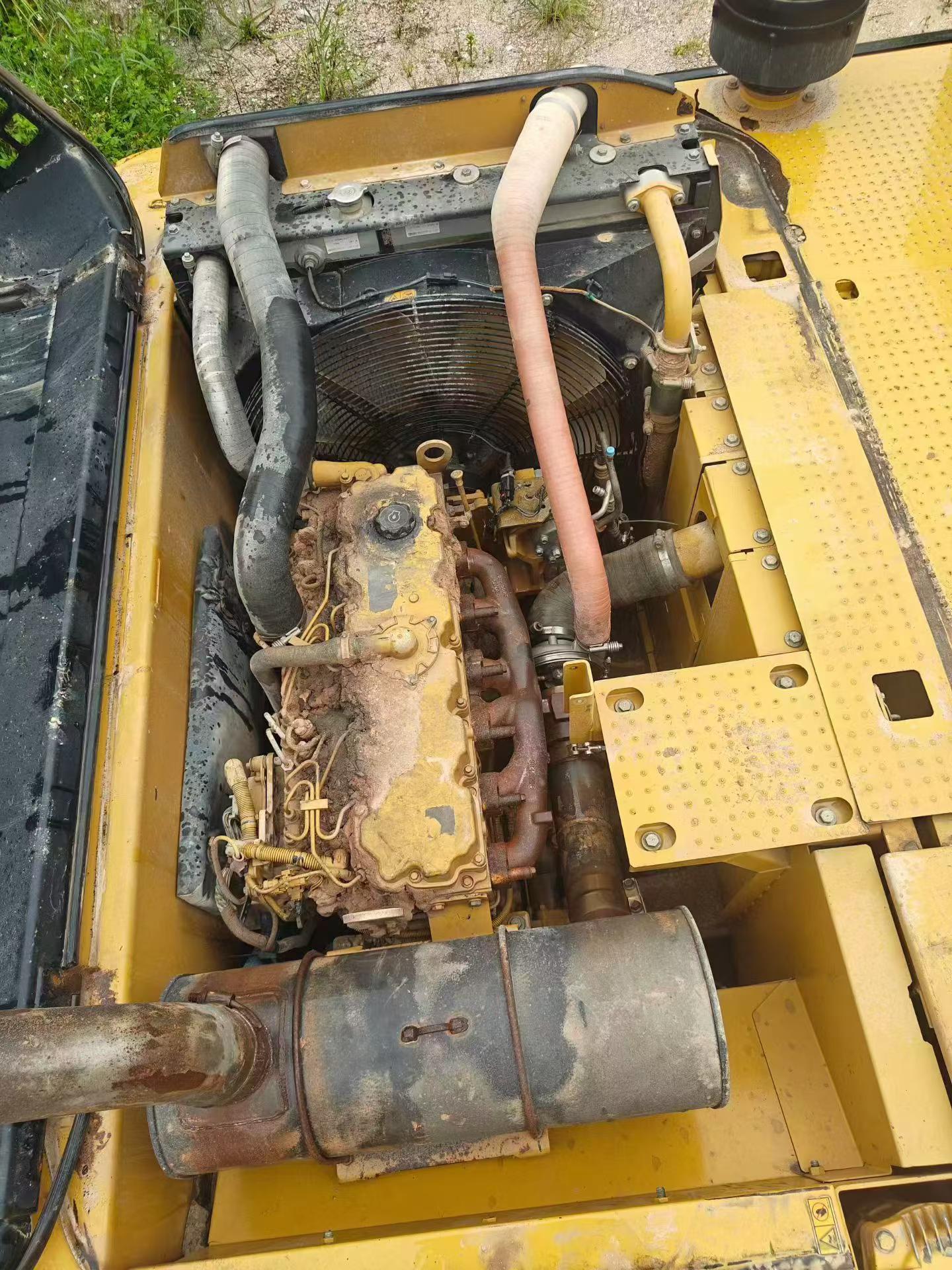

| Engine type | Caterpillar 3306TA |
| Rated power (kw/rpm) | 165.5/1800 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.5 |
| Working form | Turbocharging; after-cooling |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 480 |
| Fuel Tank (L) | 560 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 45 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 11080 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3610 |
| Full cab height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1260 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 8080 |
| Maximum excavation height (mm) | 10770 (Cutting) |
| Maximum unloading height (mm) | 7600 |
| Maximum vertical digging depth (mm) | 7230 |
| Maximum excavation radius of stop surface (mm) | 11620 |
| Travel speed (km/h) | 4.6 |
