2017 Caterpillar 330B
Product Description
Built for demanding excavation and heavy-duty earthmoving, this 2017 Caterpillar 330B delivers 165.5 kW of power through its proven 3306TA engine. With a 32,420 kg operating weight and 1.5 m³ bucket capacity, this machine tackles deep foundation work, site preparation, and demolition with confidence. Maximum digging depth reaches 8,080 mm, while the 11,620 mm excavation radius covers substantial work areas without repositioning.
Key performance specifications include:

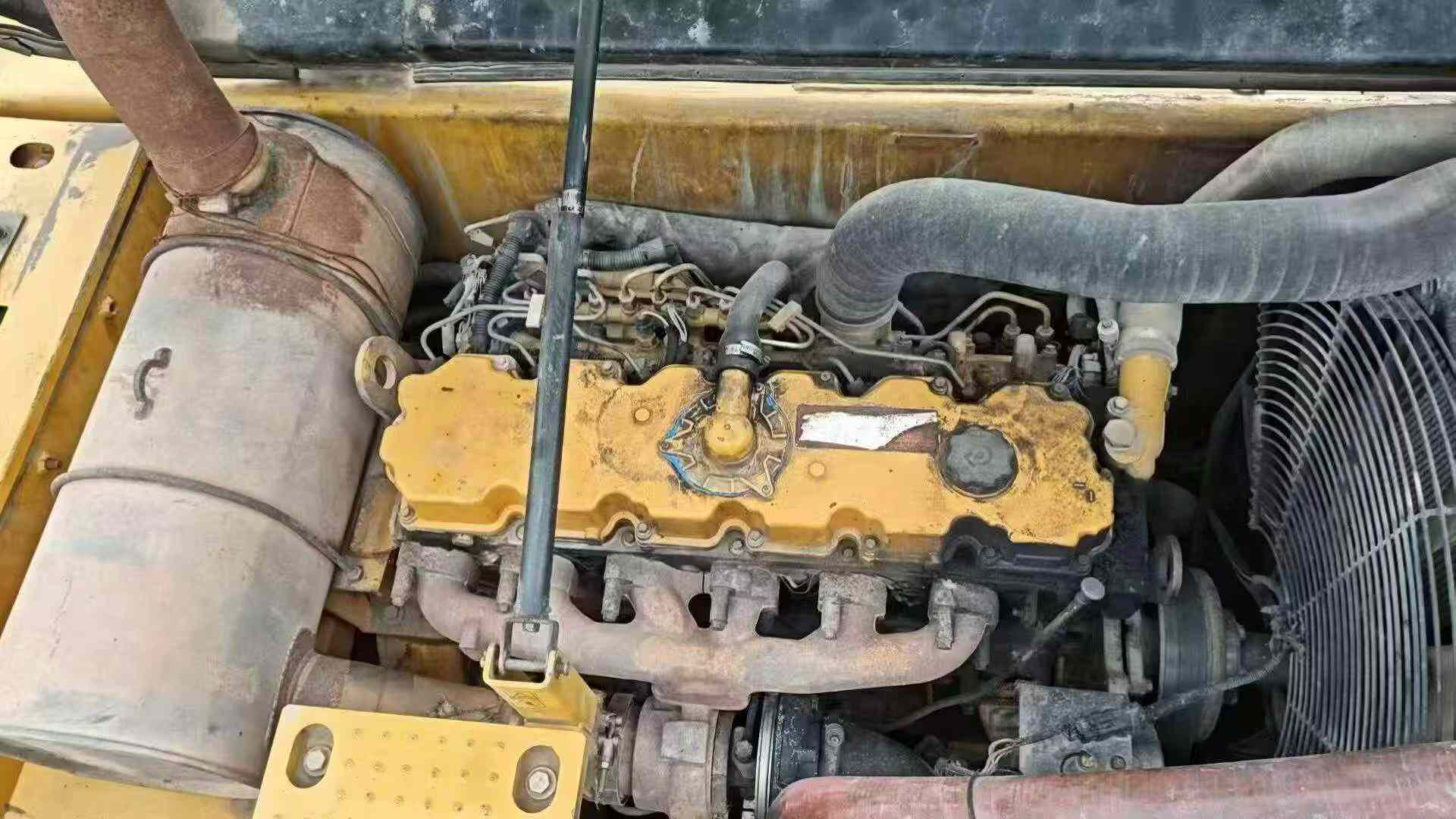

- Caterpillar 3306TA turbocharged, aftercooled engine with water cooling
- 480 L/min hydraulic flow at 34.3 Mpa for responsive cycle times
- 6,500 mm boom and 3,900 mm arm configuration for versatile reach
- 560 L fuel capacity supports extended operating shifts
- 600 mm track plates provide stable ground contact and low ground pressure
Currently located in Luzhou, Sichuan, this excavator arrives site-ready with fully functional hydraulics, undercarriage, and powertrain. Engineered for productivity in quarries, construction sites, and infrastructure projects, the 330B combines proven Caterpillar durability with the performance specifications your operation demands.
| Specifications | Value |
|---|---|
| No. | 1024515 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 32420 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar 3306TA |
| Rated power (kw/rpm) | 165.5/1800 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.5 |
| Working form | Turbocharging; after-cooling |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 480 |
| Fuel Tank (L) | 560 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 45 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 11080 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3610 |
| Full cab height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1260 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 8080 |
| Maximum excavation height (mm) | 10770 (Cutting) |
| Maximum unloading height (mm) | 7600 |
| Maximum vertical digging depth (mm) | 7230 |
| Maximum excavation radius of stop surface (mm) | 11620 |
| Travel speed (km/h) | 4.6 |
Overview
No.1024515
Brand Name：
CaterpillarModel Number：
330BYear：
2017
Location：
Sichuan China
Pub Date：
