2017 Caterpillar 330B
Product Description
Built to endure the toughest job sites, this 2017 Caterpillar 330B excavator delivers proven performance with a track record that speaks for itself. Operating at 30 tons with a robust 32,420 kg working weight, this machine combines the legendary durability of Caterpillar engineering with a powerful 3306TA engine producing 165.5 kW at 1800 rpm. Featuring a 1.5 m³ backhoe bucket, 6500 mm boom, and 3900 mm rod, it tackles demanding excavation tasks with precision and reliability.
- Maximum Digging Depth: 8080 mm for deep foundation work
- Excavation Reach: 11,620 mm maximum radius
- Hydraulic Power: 480 L/min main pump flow with 34.3 Mpa pressure

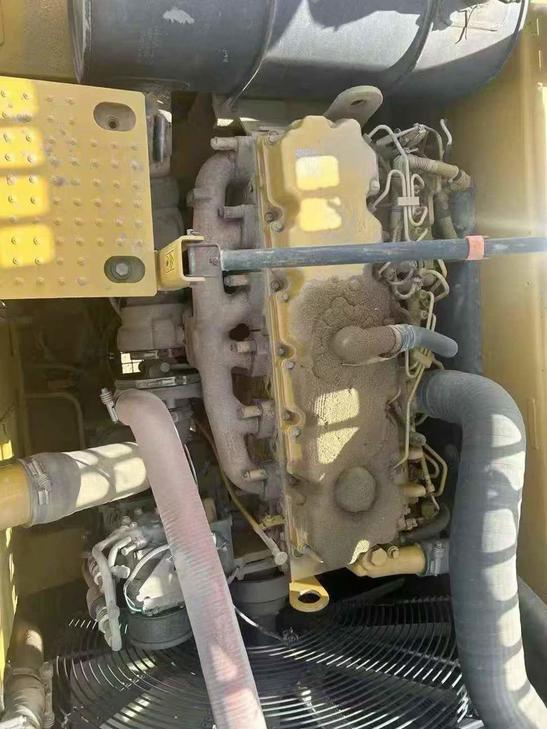

- Engine: Water-cooled 6-cylinder turbocharged with after-cooling (10.5 L displacement)
- Fuel Capacity: 560 L tank for extended operation
- Location: Xuzhou, Jiangsu, China
Years of field-proven operation demonstrate this workhorse's exceptional build quality and long-term value for contractors seeking dependable heavy equipment.
| Specifications | Value |
|---|---|
| No. | 1027528 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 32420 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar 3306TA |
| Rated power (kw/rpm) | 165.5/1800 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.5 |
| Working form | Turbocharging; after-cooling |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 480 |
| Fuel Tank (L) | 560 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 45 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 11080 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3610 |
| Full cab height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1260 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 8080 |
| Maximum excavation height (mm) | 10770 (Cutting) |
| Maximum unloading height (mm) | 7600 |
| Maximum vertical digging depth (mm) | 7230 |
| Maximum excavation radius of stop surface (mm) | 11620 |
| Travel speed (km/h) | 4.6 |
