2017 Caterpillar 330B
Product Description
Engineered for maximum productivity, this 2017 Caterpillar 330B excavator delivers 165.5 kW of reliable power through its proven 3306TA engine. Operating at 1800 rpm with turbocharged and after-cooled efficiency, the 10.5L six-cylinder powerplant drives a high-capacity hydraulic system rated at 34.3 Mpa with 480 l/min flow—ensuring precise control across all functions. The 30-ton machine features a 1.5 m³ backhoe bucket configuration optimized for demanding excavation work.
- Maximum digging depth: 8,080 mm with 11,620 mm reach at ground level
- Vertical wall capability: 7,230 mm for foundation and utility work
- 6,500 mm boom and 3,900 mm arm provide versatile working geometry
- Water-cooled engine with 560L fuel capacity for extended operation
- 400L hydraulic reservoir maintains consistent performance under load
- 3,500 mm rear swing radius enables work in confined spaces
Currently located in Kunming, Yunnan, this joint venture/import model represents Caterpillar's commitment to durable construction equipment. Complete with factory specifications and ready for immediate deployment in mining, infrastructure, or heavy civil projects.
| Specifications | Value |
|---|---|
| No. | 1027705 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 32420 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

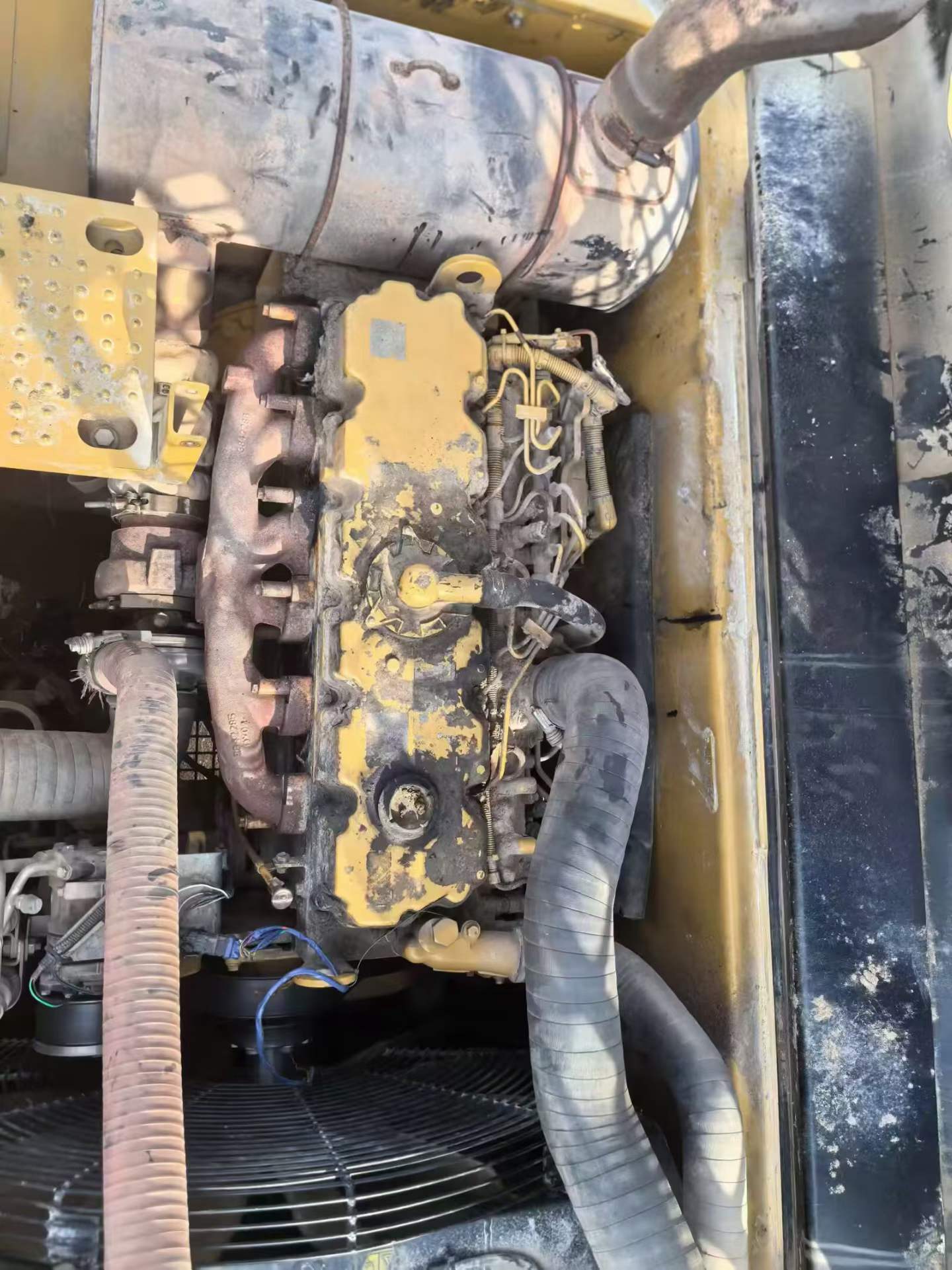

| Engine type | Caterpillar 3306TA |
| Rated power (kw/rpm) | 165.5/1800 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.5 |
| Working form | Turbocharging; after-cooling |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 480 |
| Fuel Tank (L) | 560 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 45 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 11080 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3610 |
| Full cab height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1260 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 8080 |
| Maximum excavation height (mm) | 10770 (Cutting) |
| Maximum unloading height (mm) | 7600 |
| Maximum vertical digging depth (mm) | 7230 |
| Maximum excavation radius of stop surface (mm) | 11620 |
| Travel speed (km/h) | 4.6 |
