2017 Caterpillar 330B
Product Description

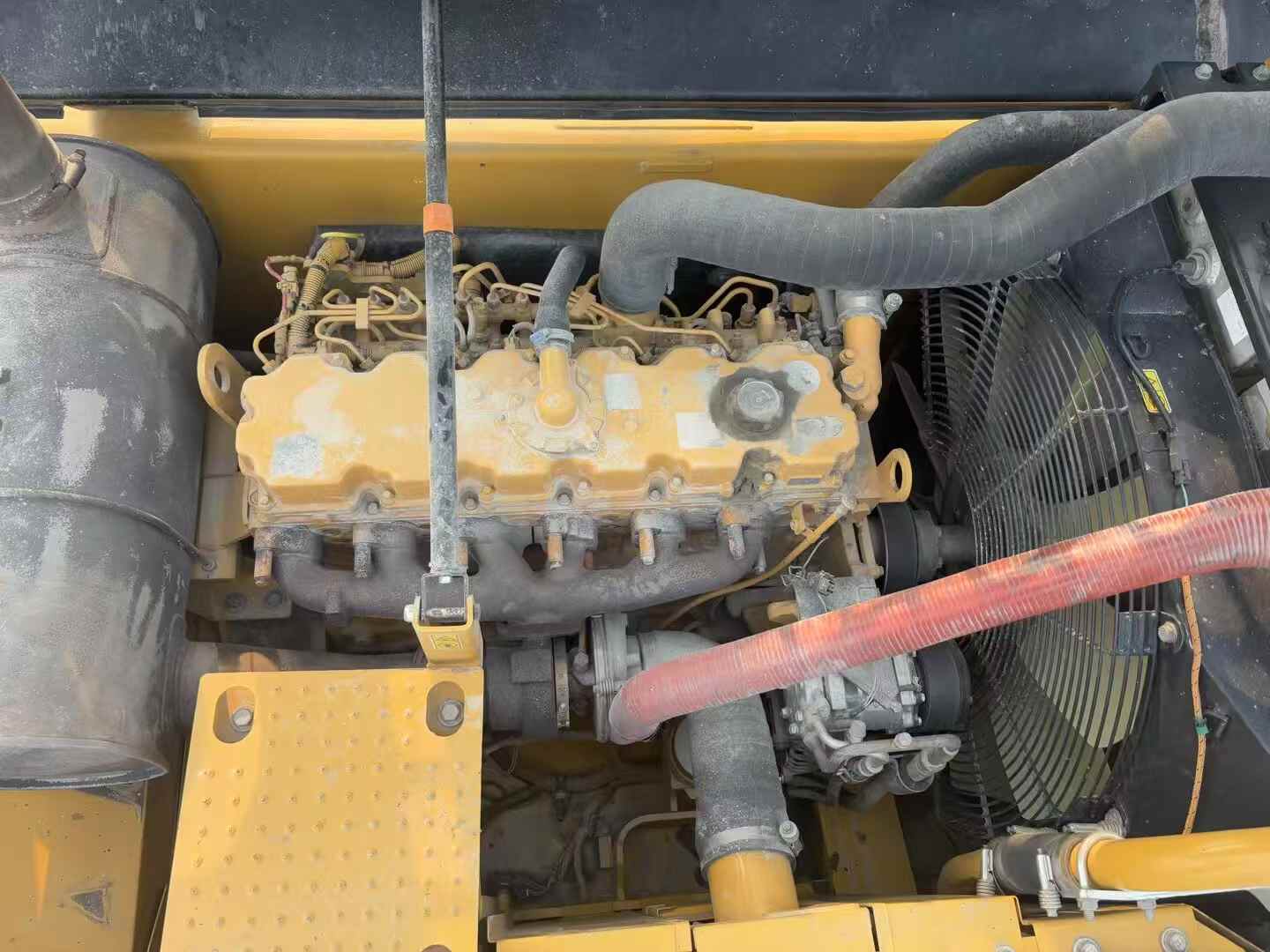

Maximize your return on investment with this 2017 Caterpillar 330B excavator—a proven workhorse delivering premium performance at a fraction of new equipment costs. Powered by a robust Caterpillar 3306TA engine generating 165.5kW at 1800rpm, this 30-ton machine combines turbocharged efficiency with water-cooled reliability across six cylinders and 10.5L displacement. Operating from our Xuzhou, Jiangsu facility, this joint venture model offers exceptional value for contractors seeking enterprise-grade capability without the premium price tag.
- Maximum Reach: 11,620mm excavation radius with 8,080mm digging depth
- Hydraulic Power: 480L/min main pump flow at 34.3MPa for consistent performance
- Production Capacity: 1.5m³ bucket with 6,500mm boom and 3,900mm arm configuration
- Operating Efficiency: 560L fuel capacity supporting extended work cycles
- Transport Dimensions: 11,080mm × 3,340mm × 3,610mm for streamlined logistics
Backed by Caterpillar's engineering excellence and maintained to rigorous standards, this 330B represents smart capital allocation for operations demanding reliable productiv
| Specifications | Value |
|---|---|
| No. | 1031416 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 32420 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar 3306TA |
| Rated power (kw/rpm) | 165.5/1800 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.5 |
| Working form | Turbocharging; after-cooling |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 480 |
| Fuel Tank (L) | 560 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 45 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 11080 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3610 |
| Full cab height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1260 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 8080 |
| Maximum excavation height (mm) | 10770 (Cutting) |
| Maximum unloading height (mm) | 7600 |
| Maximum vertical digging depth (mm) | 7230 |
| Maximum excavation radius of stop surface (mm) | 11620 |
| Travel speed (km/h) | 4.6 |
Overview
No.1031416
Brand Name：
CaterpillarModel Number：
330BYear：
2017
Location：
Jiangsu China
Pub Date：
