2018 Caterpillar 330B
Product Description
Engineered for high-volume earthmoving operations, this 2018 Caterpillar 330B delivers 165.5 kW of reliable power through its proven 3306TA turbocharged and aftercooled engine. With a 32,420 kg operating weight and 1.5 m³ bucket capacity, this 30-ton excavator handles demanding excavation tasks with industrial-grade precision. The hydraulic system operates at 34.3 Mpa with a 480 l/min main pump flow, ensuring responsive control across a maximum digging depth of 8,080 mm and an impressive 11,620 mm excavation radius.

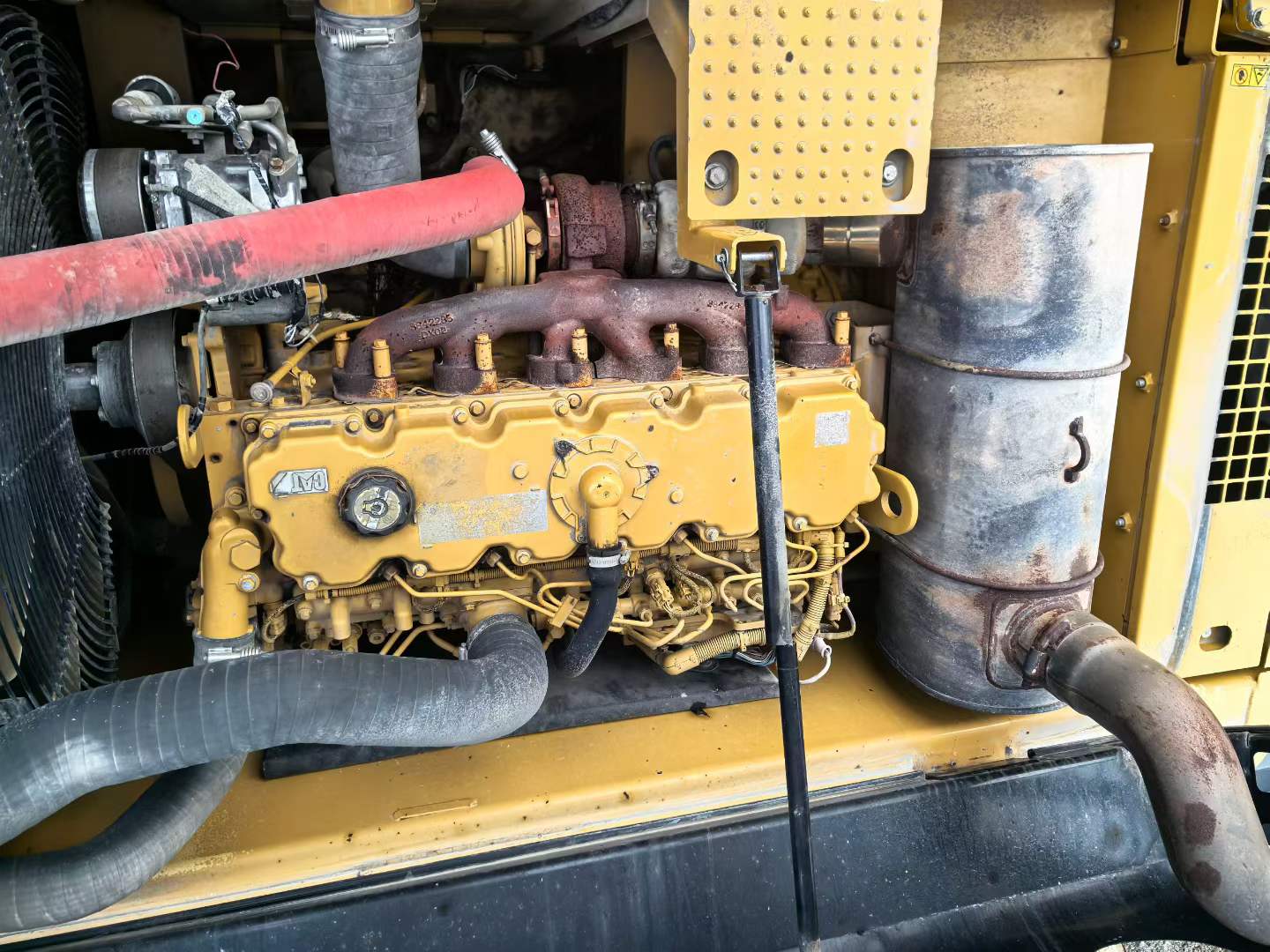

- Power: Caterpillar 3306TA engine, 165.5 kW @ 1800 rpm, 6-cylinder, 10.5L displacement

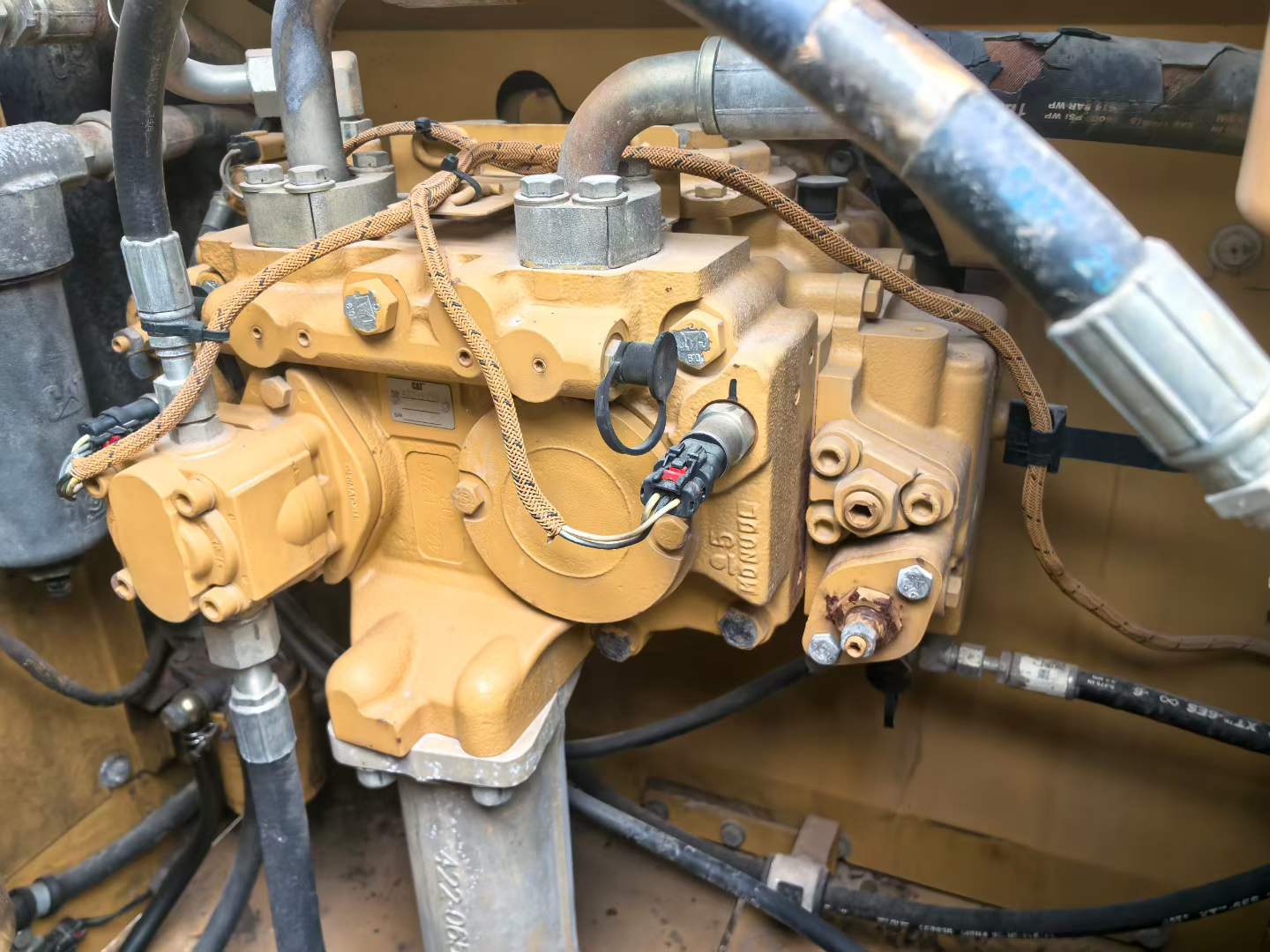

- Hydraulics: 34.3 Mpa system pressure, 480 l/min flow rate, 400L tank capacity
- Reach: 6,500 mm boom, 3,900 mm arm, 10,770 mm max dig height
- Undercarriage: 4,040 mm track ground length, 600 mm track plates, 2,590 mm gauge
- Capacity: 560L fuel tank, water-cooled system for extended operation
Currently located in Shanghai, this joint venture-manufactured unit represents Caterpillar's commitment to durable construction equipment built for international markets.
| Specifications | Value |
|---|---|
| No. | 1030117 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 32420 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar 3306TA |
| Rated power (kw/rpm) | 165.5/1800 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.5 |
| Working form | Turbocharging; after-cooling |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 480 |
| Fuel Tank (L) | 560 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 45 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 11080 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3610 |
| Full cab height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1260 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 8080 |
| Maximum excavation height (mm) | 10770 (Cutting) |
| Maximum unloading height (mm) | 7600 |
| Maximum vertical digging depth (mm) | 7230 |
| Maximum excavation radius of stop surface (mm) | 11620 |
| Travel speed (km/h) | 4.6 |
Overview
No.1030117
Brand Name：
CaterpillarModel Number：
330BYear：
2018
Location：
Shanghai China
Pub Date：
