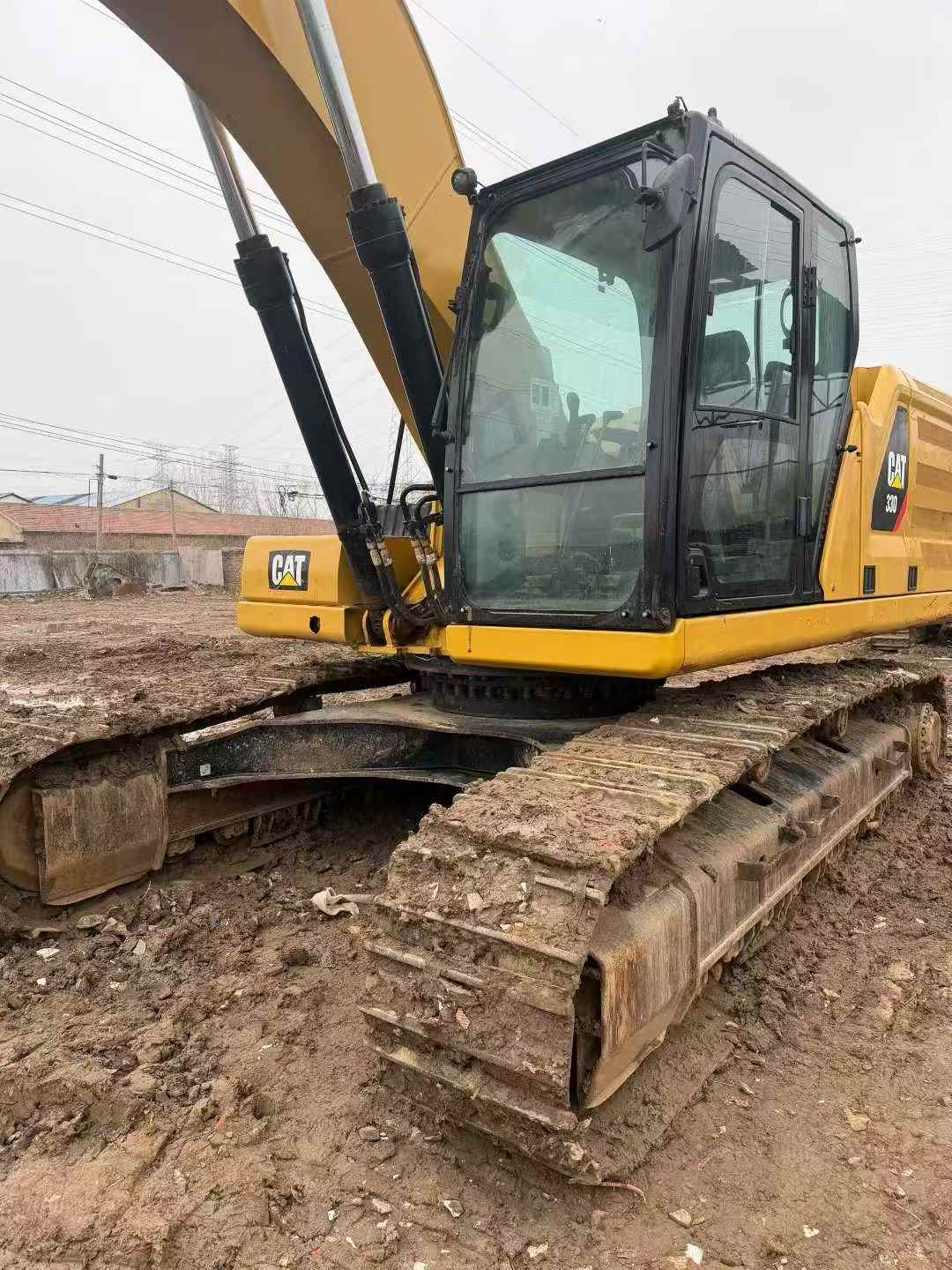

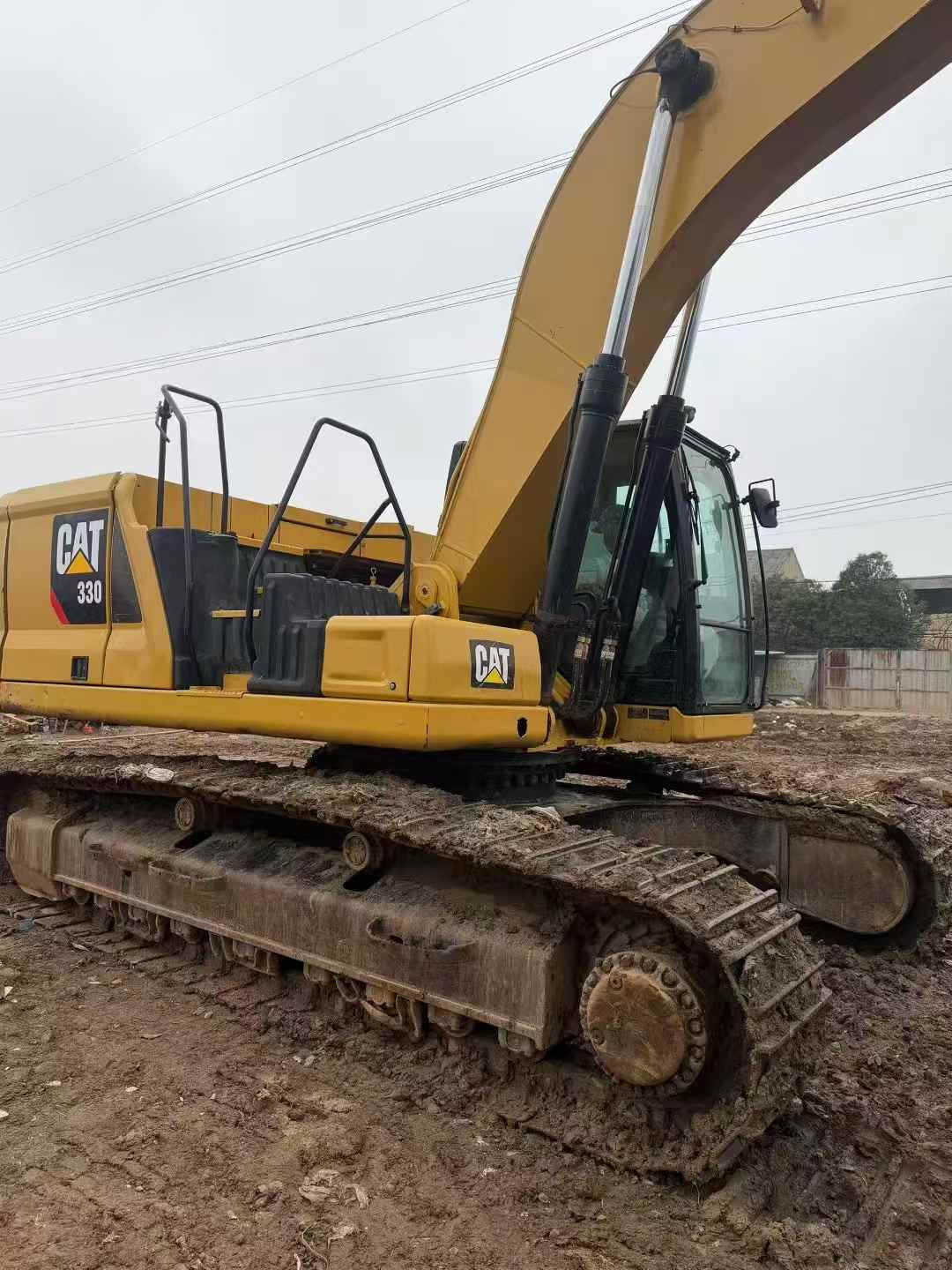

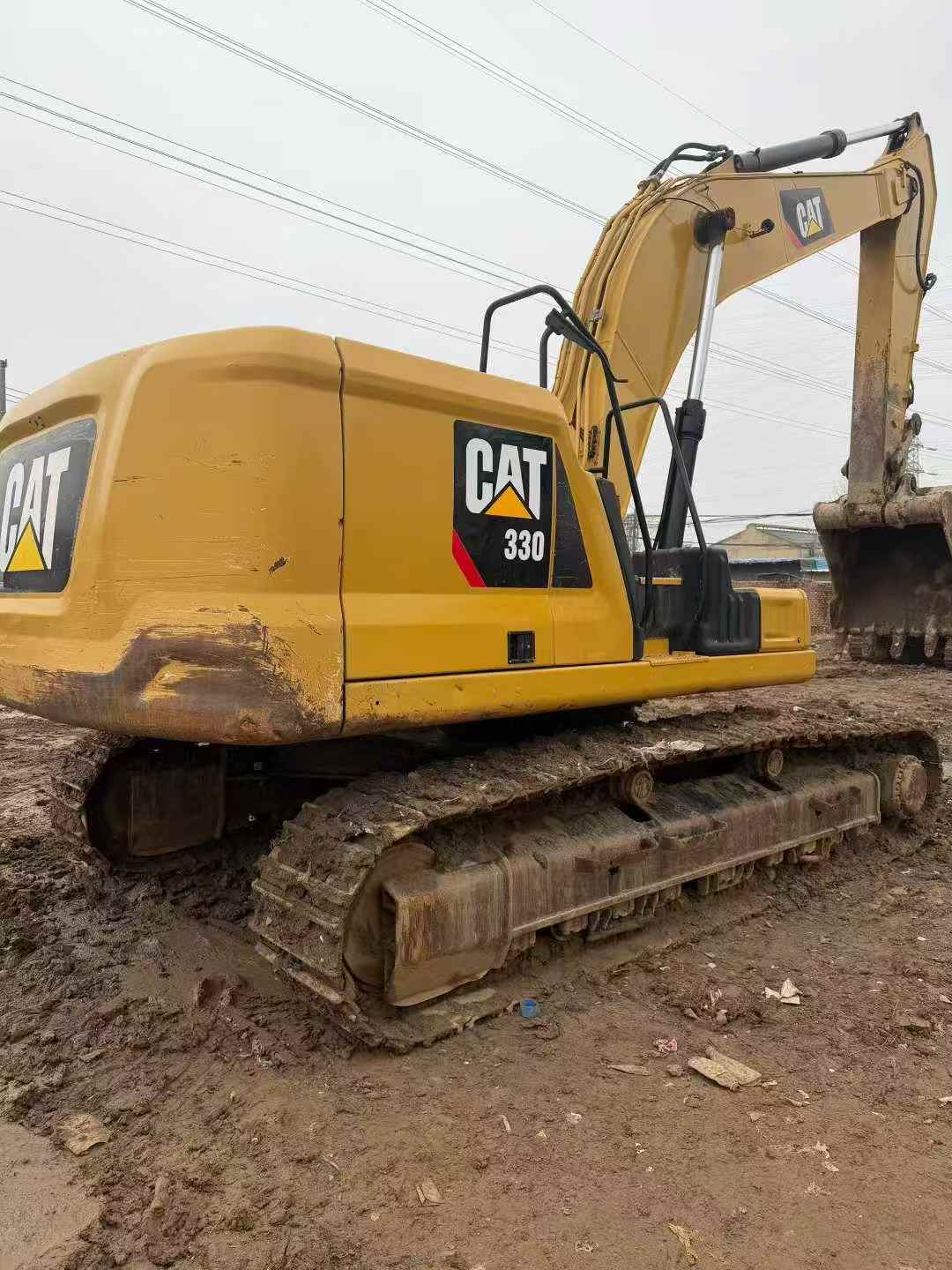

2019 Caterpillar 330B
Product Description

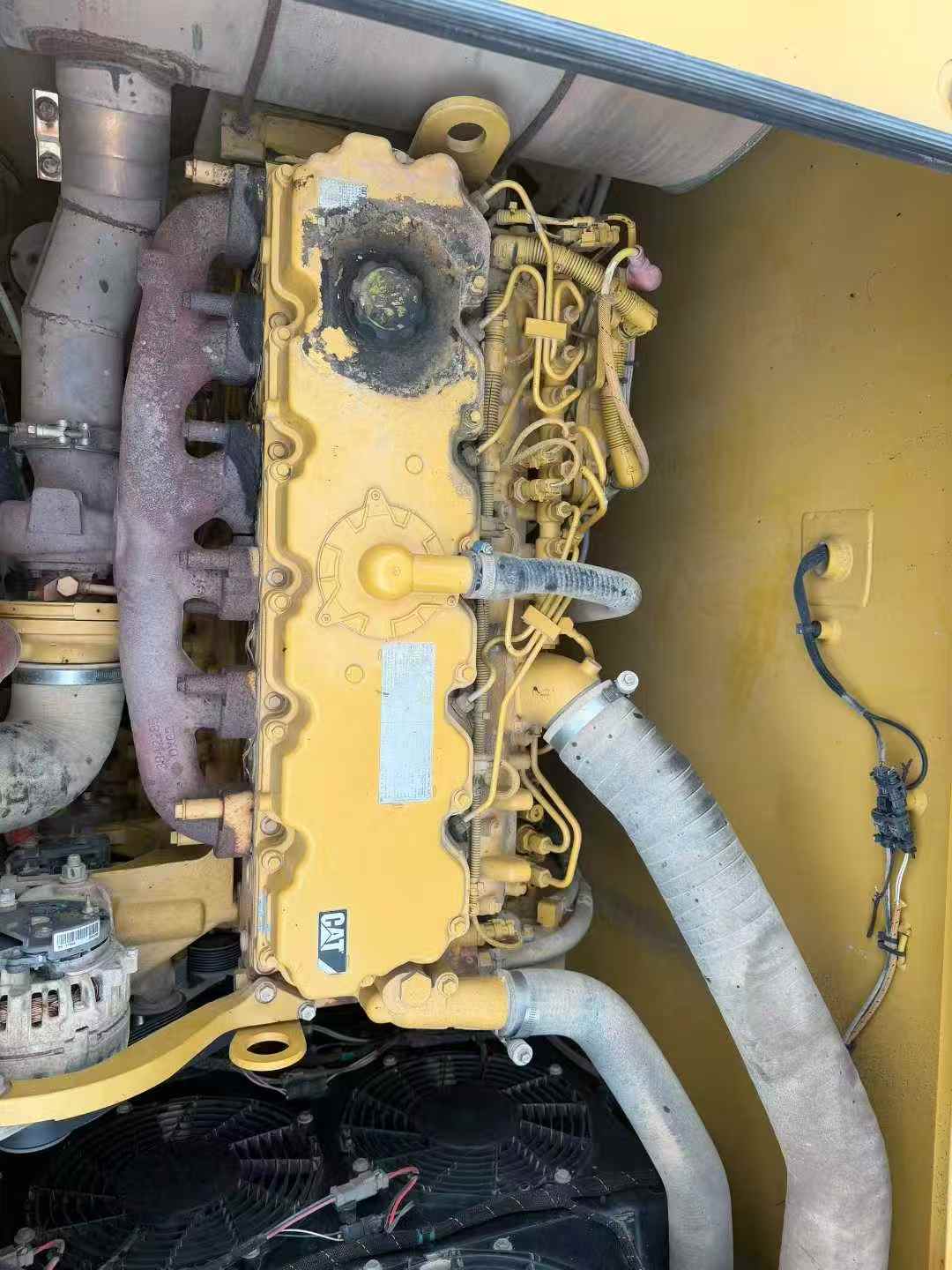

Built for demanding excavation work, this 2019 Caterpillar 330B delivers 30 tons of operational power with exceptional operator-focused engineering. Powered by a reliable Caterpillar 3306TA engine producing 165.5kW at 1800rpm, this machine combines turbocharged, after-cooled performance with proven water-cooled efficiency across six cylinders and 10.5L displacement.

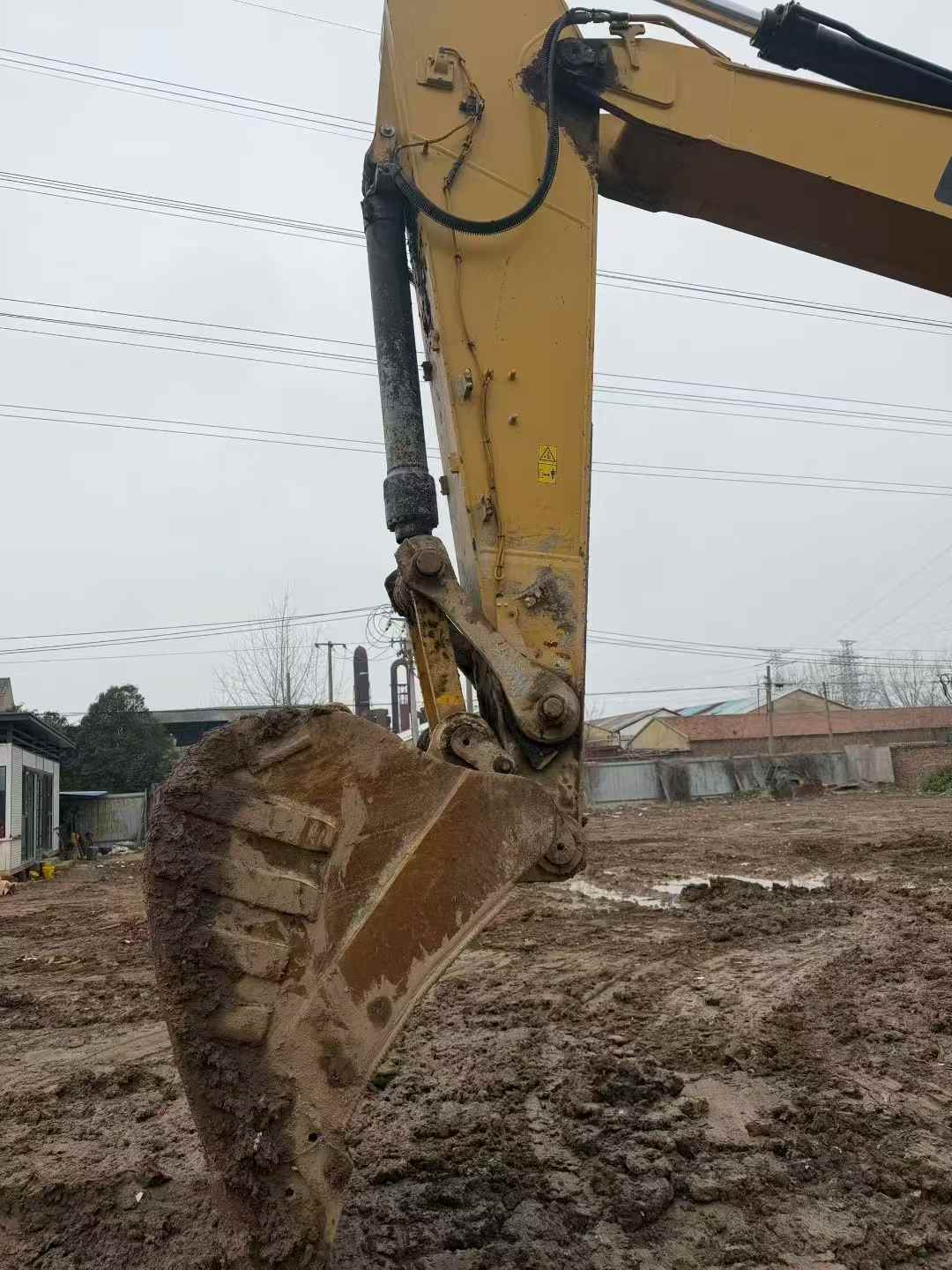

Operators benefit from superior visibility and control in the spacious cab, positioned 3150mm high for commanding site awareness. Precision handling comes standard with a 34.3MPa main overflow system and 480L/min hydraulic flow, enabling smooth operation of the 1.5m³ backhoe bucket through a 6500mm boom and 3900mm arm configuration. Maximum digging depth reaches 8080mm, while the 11620mm excavation radius covers extensive work zones.
Stability remains uncompromised with a 32,420kg working weight distributed across a 4040mm track ground length and 600mm track plates. The 3500mm rear turning radius and 2590mm track gauge ensure balanced performance on varied terrain. Currently located in Xuzhou, Jiangsu, this joint venture-manufactured excavator represents dependable Caterpillar quality for professional operations.
| Specifications | Value |
|---|---|
| No. | 1023408 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 32420 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar 3306TA |
| Rated power (kw/rpm) | 165.5/1800 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.5 |
| Working form | Turbocharging; after-cooling |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 480 |
| Fuel Tank (L) | 560 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 45 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 11080 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3610 |
| Full cab height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1260 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 8080 |
| Maximum excavation height (mm) | 10770 (Cutting) |
| Maximum unloading height (mm) | 7600 |
| Maximum vertical digging depth (mm) | 7230 |
| Maximum excavation radius of stop surface (mm) | 11620 |
| Travel speed (km/h) | 4.6 |
Overview
No.1023408
Brand Name：
CaterpillarModel Number：
330BYear：
2019
Location：
Jiangsu China
Pub Date：
