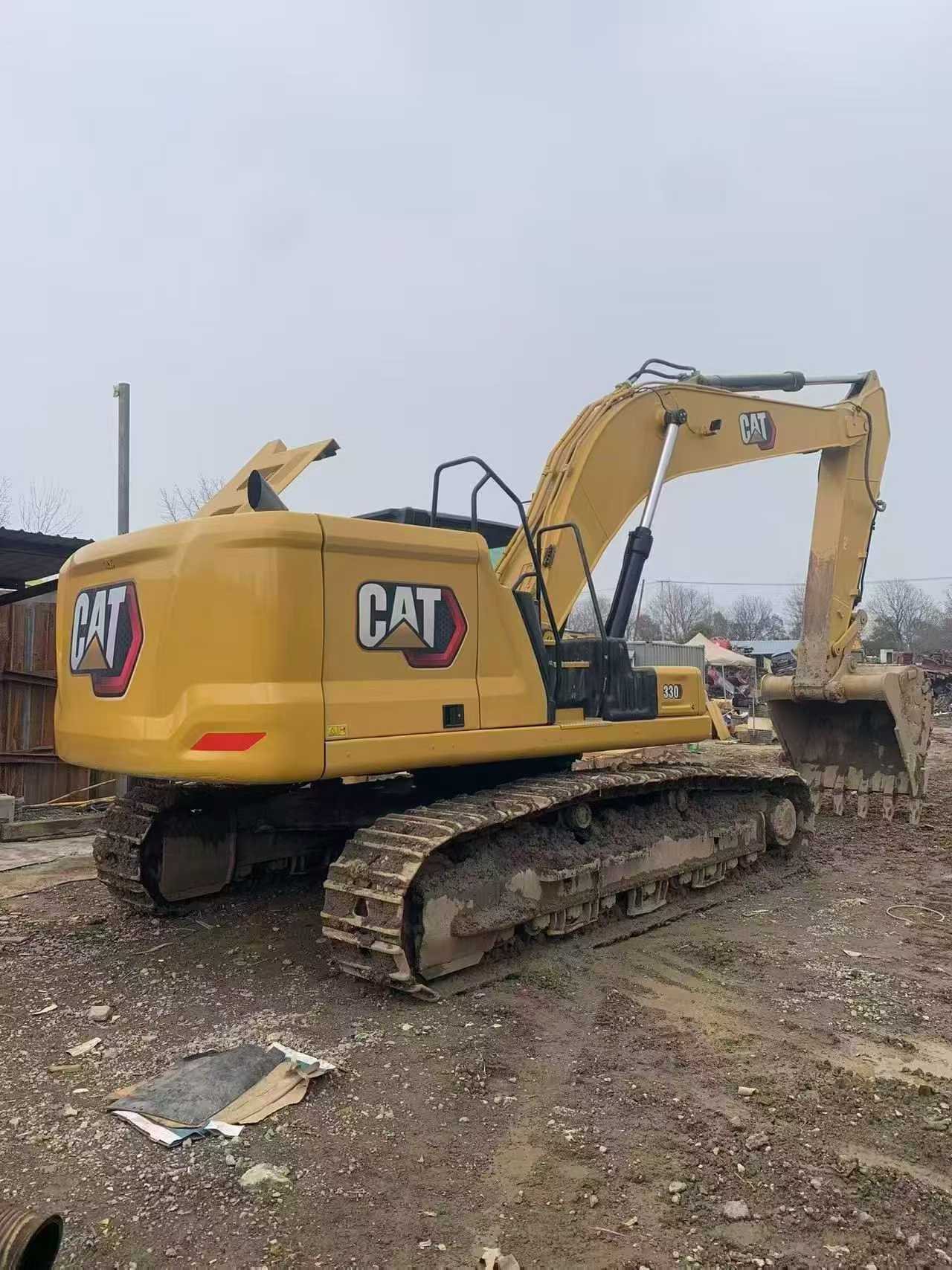

2019 Caterpillar 330B
Product Description
Built for heavy-duty excavation and grading work, this 2019 Caterpillar 330B delivers 165.5 kW of reliable power through its proven 3306TA engine. With a 32,420 kg working weight and 1.5 m³ bucket capacity, this 30-ton machine handles demanding site operations including deep foundation work, mass earthmoving, and demolition projects. Maximum digging depth reaches 8,080 mm while excavation radius extends to 11,620 mm, providing exceptional reach for loading trucks and shaping slopes.

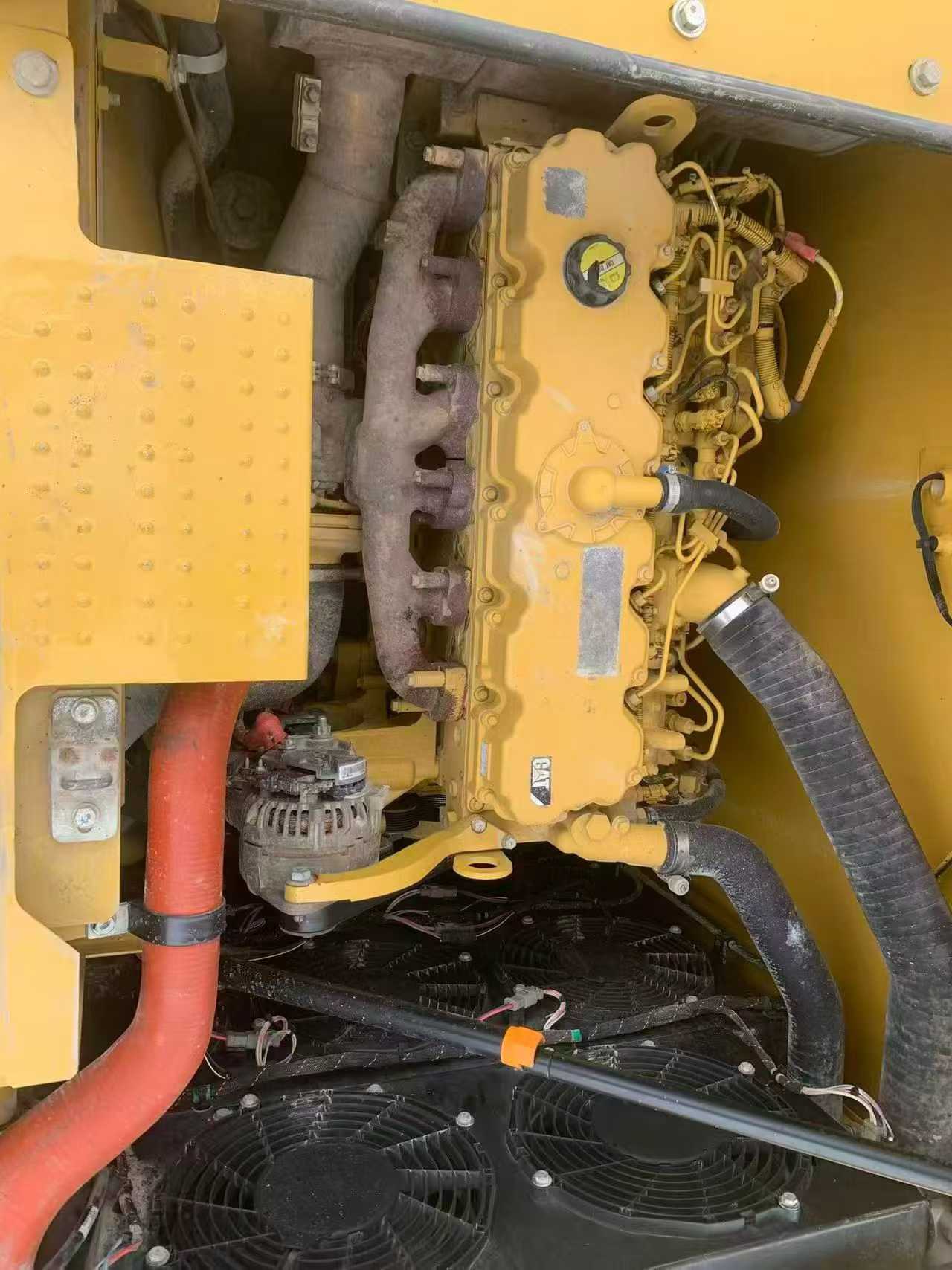

- Caterpillar 3306TA turbocharged, after-cooled engine: 165.5 kW at 1,800 rpm
- Deep digging capability: 8,080 mm depth, 11,620 mm reach

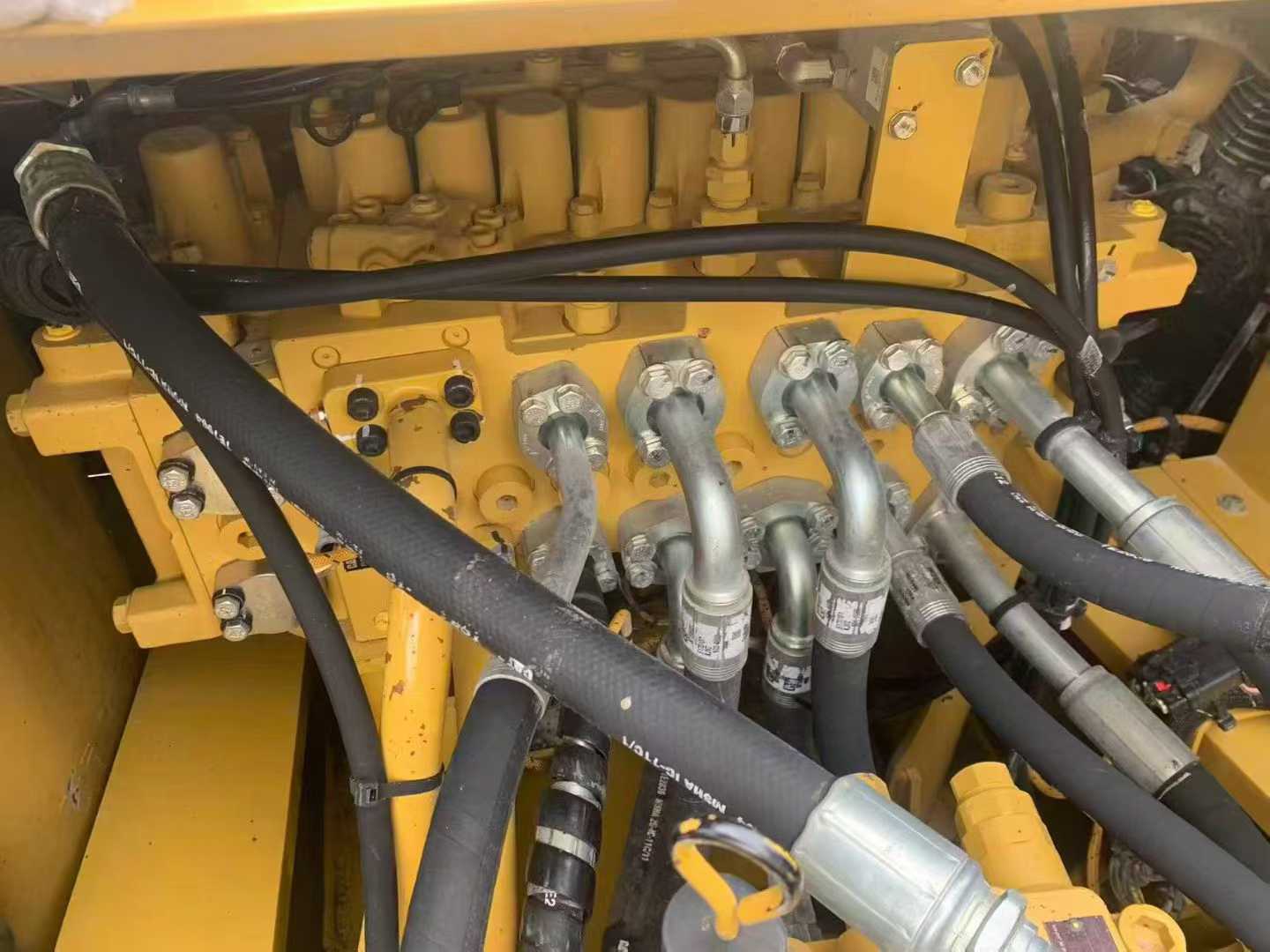

- High-capacity hydraulics: 480 L/min main pump flow at 34.3 MPa
- 6,500 mm boom and 3,900 mm arm for versatile positioning
- Water-cooled 6-cylinder diesel with 10.5 L displacement
- 560 L fuel tank for extended operation between refills
- Currently located in Xuzhou, Jiangsu—ready for immediate deployment
This joint venture/import model combines proven Caterpillar engineering with field-tested durability. Site-ready condition with complete hydraulic system and operational cab. Ideal for contractors requiring dependable performance on excavation, land
| Specifications | Value |
|---|---|
| No. | 1025540 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 32420 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar 3306TA |
| Rated power (kw/rpm) | 165.5/1800 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.5 |
| Working form | Turbocharging; after-cooling |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 480 |
| Fuel Tank (L) | 560 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 45 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 11080 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3610 |
| Full cab height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1260 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 8080 |
| Maximum excavation height (mm) | 10770 (Cutting) |
| Maximum unloading height (mm) | 7600 |
| Maximum vertical digging depth (mm) | 7230 |
| Maximum excavation radius of stop surface (mm) | 11620 |
| Travel speed (km/h) | 4.6 |
Overview
No.1025540
Brand Name：
CaterpillarModel Number：
330BYear：
2019
Location：
Jiangsu China
Pub Date：
