2019 Caterpillar 330B
Product Description

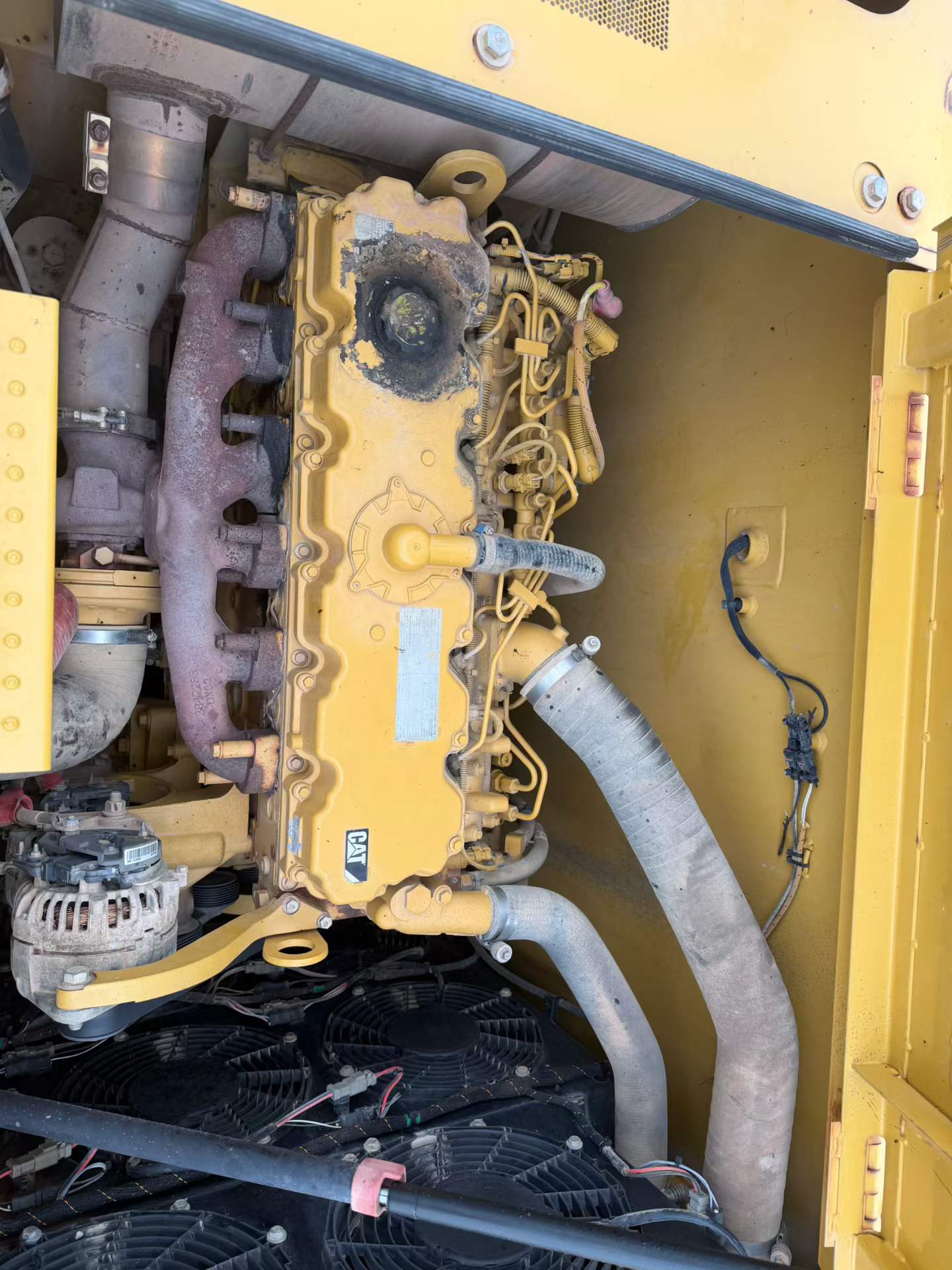

Engineered for maximum productivity, this 2019 Caterpillar 330B delivers exceptional performance through proven hydraulic technology and robust design. Powered by the reliable Caterpillar 3306TA turbocharged, after-cooled engine generating 165.5 kW at 1800 rpm, this 30-ton excavator combines a 10.5L displacement with water-cooling efficiency for sustained operation in demanding conditions.

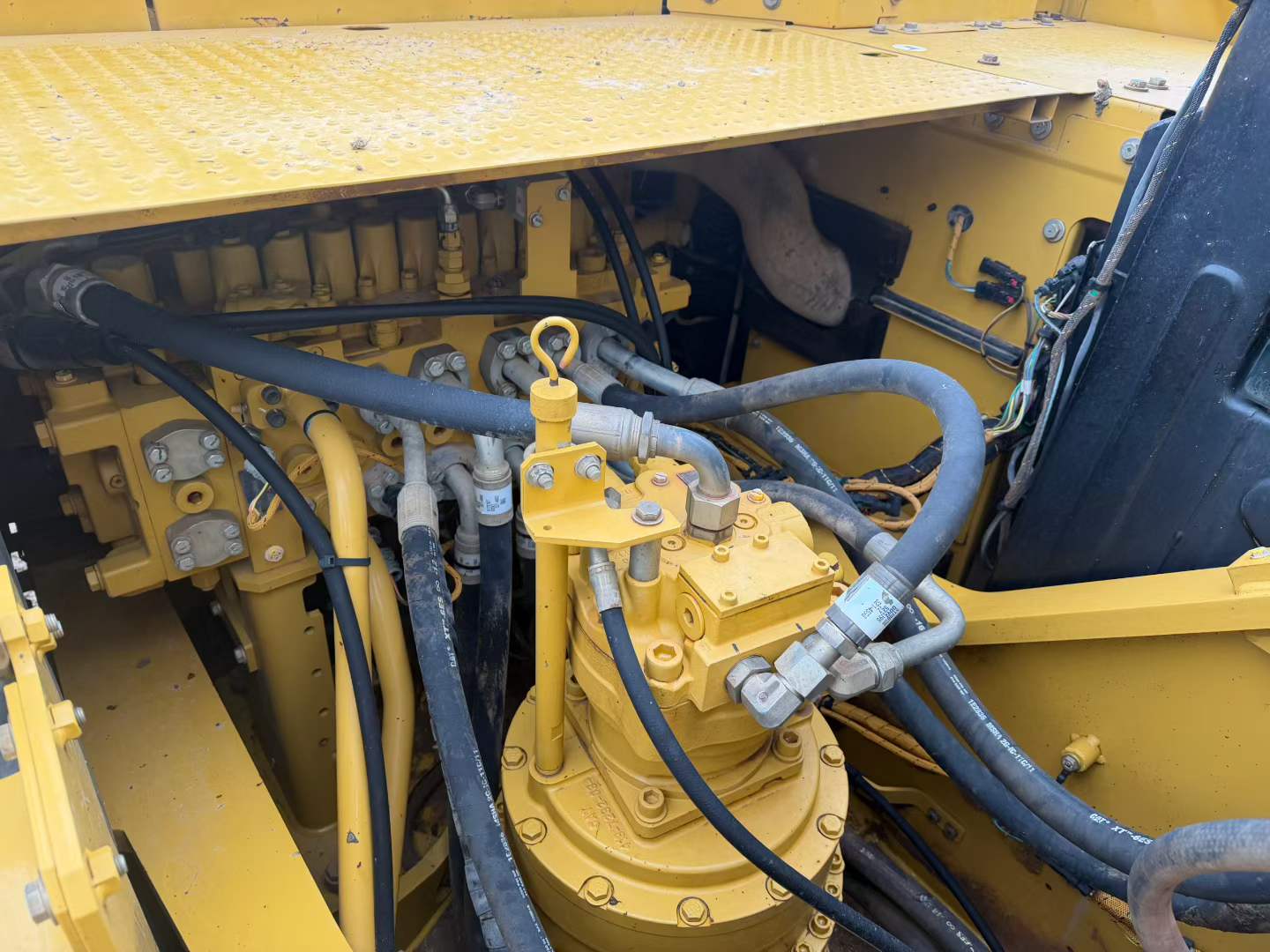

Hydraulic superiority defines this model's capabilities. With a main pump flow of 480 l/min and system pressure set at 34.3 Mpa, operators achieve precise control across all functions. A generous 1.5 m³ backhoe bucket paired with a 6500mm boom and 3900mm stick provides an impressive maximum digging depth of 8080mm and excavation radius reaching 11620mm from stop surface.
- Operating weight: 32,420 kg with 400L hydraulic capacity
- Maximum excavation height: 10,770mm
- 560L fuel tank for extended runtime
- Track gauge: 2590mm for enhanced stability
- Currently located in Xuzhou, Jiangsu
Built to joint venture/import manufacturing standards, this Cat 330B represents time-tested engineering backed by Caterpillar's reputation for durability and serviceability in heavy construction applicat
| Specifications | Value |
|---|---|
| No. | 1025843 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 32420 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar 3306TA |
| Rated power (kw/rpm) | 165.5/1800 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.5 |
| Working form | Turbocharging; after-cooling |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 480 |
| Fuel Tank (L) | 560 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 45 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 11080 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3610 |
| Full cab height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1260 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 8080 |
| Maximum excavation height (mm) | 10770 (Cutting) |
| Maximum unloading height (mm) | 7600 |
| Maximum vertical digging depth (mm) | 7230 |
| Maximum excavation radius of stop surface (mm) | 11620 |
| Travel speed (km/h) | 4.6 |
