2019 Caterpillar 330B
Product Description
With a robust 30-ton working weight and a powerful Caterpillar 3306TA engine, this 2019 Caterpillar 330B excavator delivers reliable performance. Located in 广东深圳, it features a 1.5 m³ bucket capacity and a 6500 mm boom length, ensuring efficient material handling. The 6-cylinder, water-cooled engine with turbocharging and after-cooling provides 165.5 kW of power at 1800 rpm, making it suitable for demanding tasks.
- Enjoy enhanced stability with a 3190 mm total track width and a 1260 mm counterweight ground clearance.

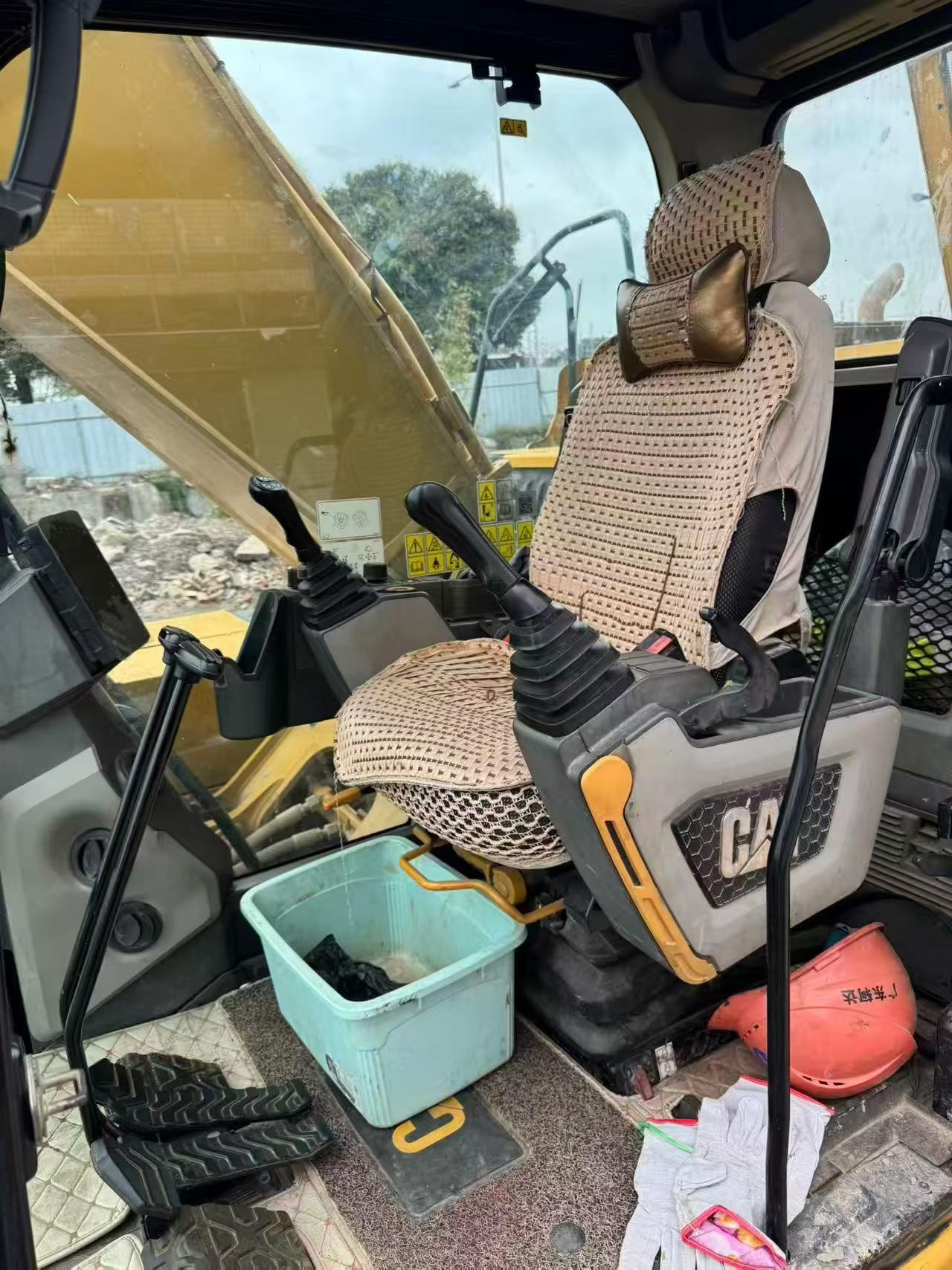

- Experience superior visibility from the full cab, which stands at 3150 mm high, providing a clear view of the work area.
- Operate with precision and control, thanks to the 480 l/min main pump flow and a 34.3 Mpa main overflow set pressure.
This machine is designed for operators who prioritize comfort and efficiency, offering a 560 L fuel tank for extended operation and a travel speed of 4.6 km/h for easy maneuvering on-site.
| Specifications | Value |
|---|---|
| No. | 1029484 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 32420 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar 3306TA |
| Rated power (kw/rpm) | 165.5/1800 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.5 |
| Working form | Turbocharging; after-cooling |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 480 |
| Fuel Tank (L) | 560 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 45 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 11080 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3610 |
| Full cab height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1260 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 8080 |
| Maximum excavation height (mm) | 10770 (Cutting) |
| Maximum unloading height (mm) | 7600 |
| Maximum vertical digging depth (mm) | 7230 |
| Maximum excavation radius of stop surface (mm) | 11620 |
| Travel speed (km/h) | 4.6 |
