2019 Caterpillar 330B
Product Description
Expand your fleet capacity with this 2019 Caterpillar 330B excavator, currently positioned in Jiangsu and ready for immediate deployment. Operating at 30 tons with a robust 32,420 kg working weight, this machine delivers consistent performance across demanding job sites. Powered by the proven Caterpillar 3306TA engine producing 165.5 kW at 1800 rpm, it combines turbocharging with after-cooling for reliable output in extended operations.

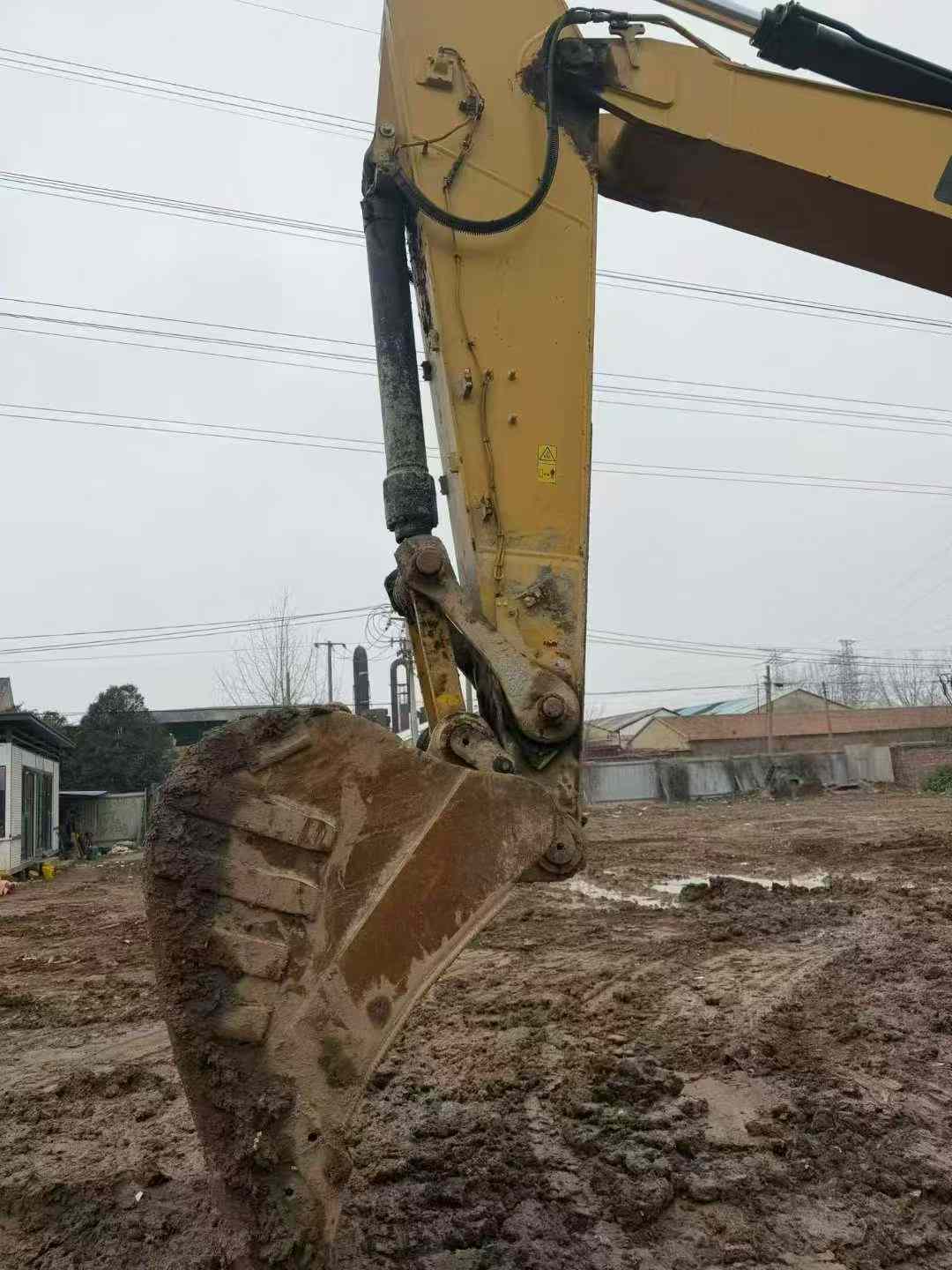

Built for versatility, this unit features a 1.5 m³ backhoe bucket, 6,500 mm boom, and 3,900 mm stick configuration. Maximum digging depth reaches 8,080 mm, while the 11,620 mm excavation radius covers substantial working areas. Water-cooled 6-cylinder engine with 10.5L displacement ensures thermal stability during multi-shift schedules.
- Main pump flow: 480 L/min for responsive hydraulic performance
- 560L fuel capacity supports full-day operations
- 3,500 mm rear turning radius enables confined-space maneuverability
- Transport dimensions: 11,080 mm (L) × 3,340 mm (W) × 3,610 mm (H)
Ideal as a backup unit or fleet expansion asset for contractors managing multiple projects simultaneously. Joint venture manufacturing ensures parts availability a
| Specifications | Value |
|---|---|
| No. | 1030068 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 32420 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar 3306TA |
| Rated power (kw/rpm) | 165.5/1800 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.5 |
| Working form | Turbocharging; after-cooling |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 480 |
| Fuel Tank (L) | 560 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 45 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 11080 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3610 |
| Full cab height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1260 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 8080 |
| Maximum excavation height (mm) | 10770 (Cutting) |
| Maximum unloading height (mm) | 7600 |
| Maximum vertical digging depth (mm) | 7230 |
| Maximum excavation radius of stop surface (mm) | 11620 |
| Travel speed (km/h) | 4.6 |
