2020 Caterpillar 330B
Product Description

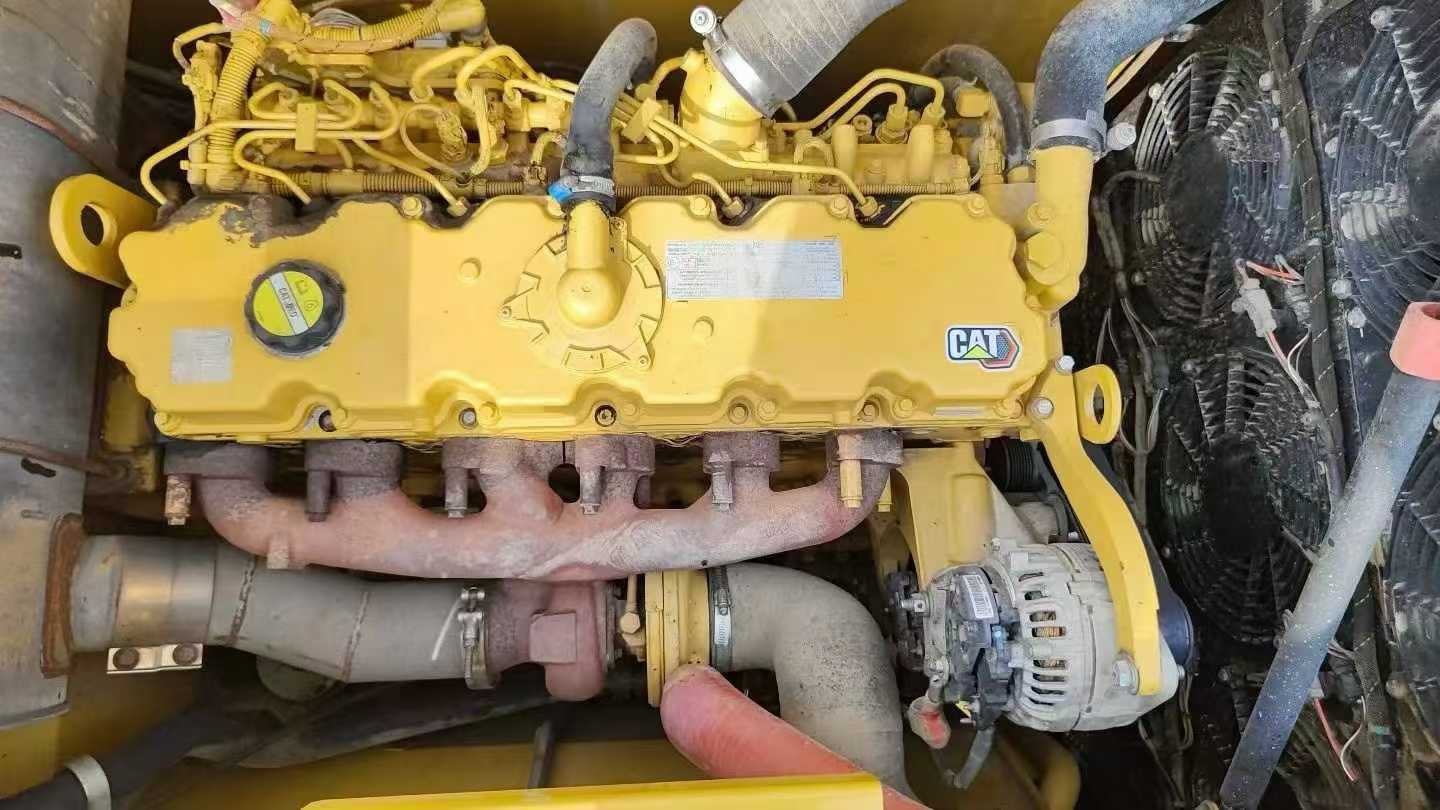

With a working weight of 32,420 kg and a bucket capacity of 1.5 m³, this 2020 Caterpillar 330B excavator offers robust performance for demanding tasks. Located in Jiangsu Xuzhou, it features a 6-cylinder, 10.5L displacement Caterpillar 3306TA engine, delivering 165.5 kW at 1800 rpm. The water-cooled, turbocharged, and after-cooled engine ensures reliable operation under various conditions.
- Boasting a boom length of 6500 mm and a rod length of 3900 mm, it provides excellent reach and digging depth.

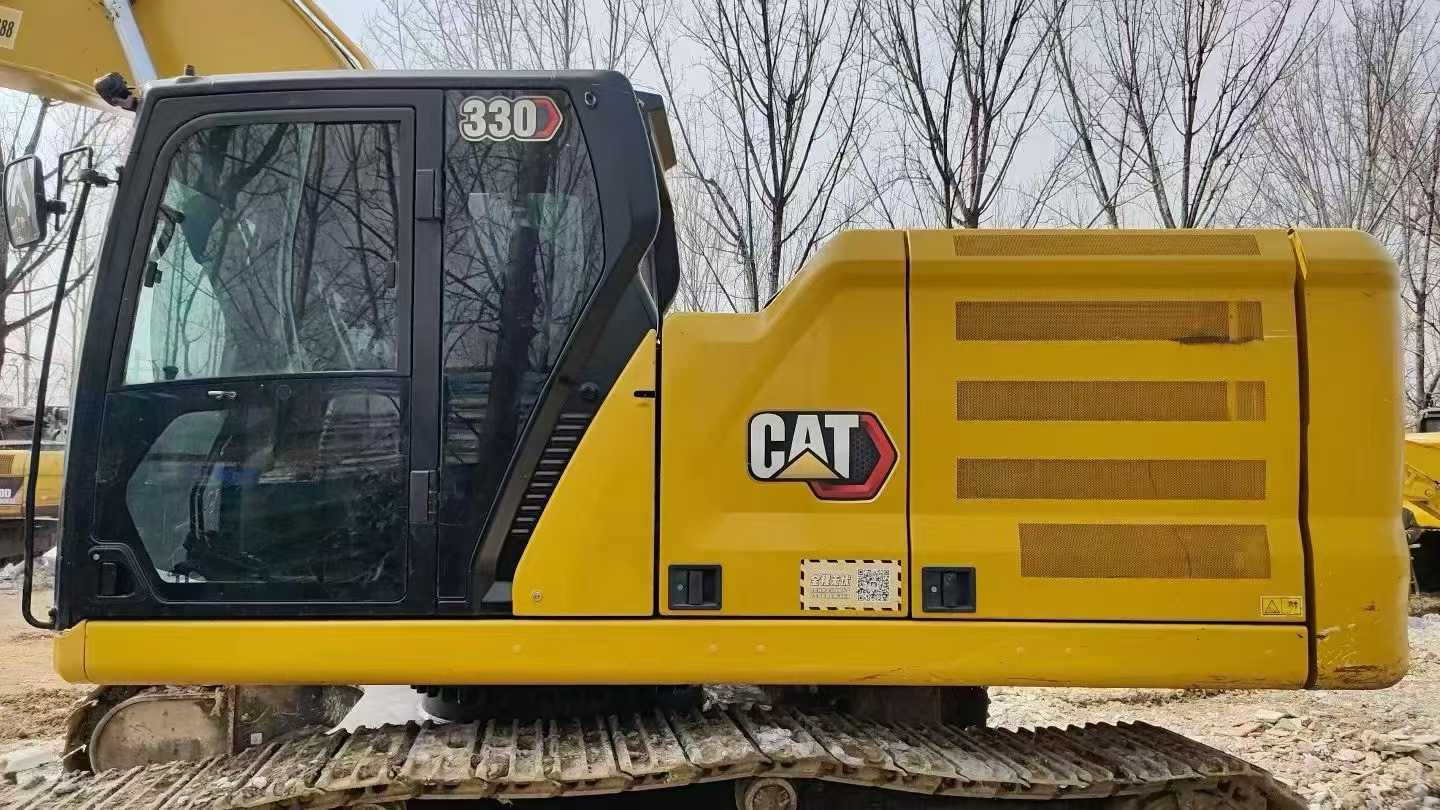

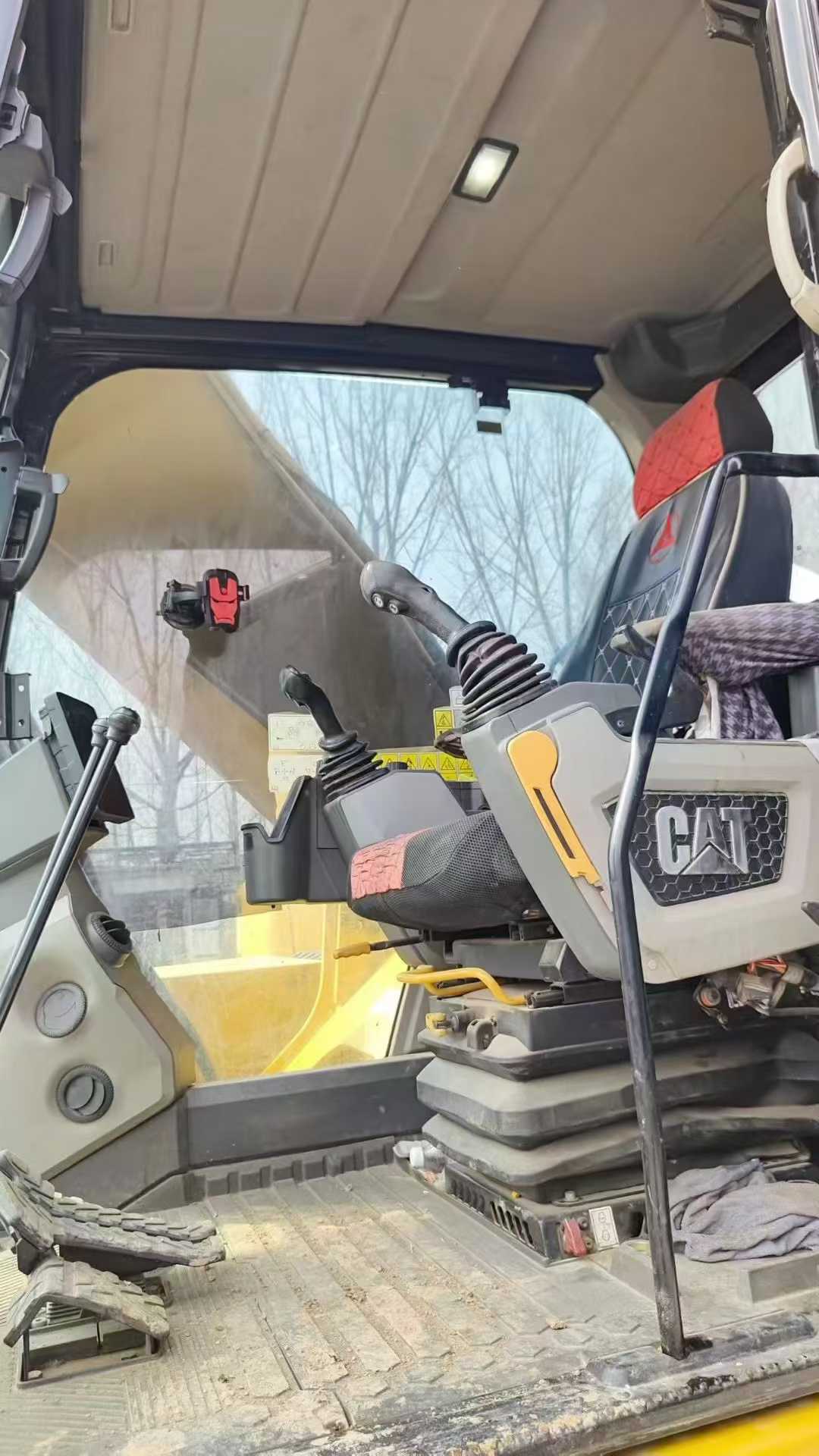

- The full cab height of 3150 mm and well-designed cabin offer superior visibility, enhancing operator safety and efficiency.
- Equipped with a backhoe bucket, the 330B delivers precise control and stability, ideal for a range of construction and excavation projects.
- Travel speed of 4.6 km/h and a track gauge of 2590 mm ensure smooth and stable movement on uneven terrains.
| Specifications | Value |
|---|---|
| No. | 1020247 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 32420 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar 3306TA |
| Rated power (kw/rpm) | 165.5/1800 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.5 |
| Working form | Turbocharging; after-cooling |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 480 |
| Fuel Tank (L) | 560 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 45 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 11080 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3610 |
| Full cab height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1260 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 8080 |
| Maximum excavation height (mm) | 10770 (Cutting) |
| Maximum unloading height (mm) | 7600 |
| Maximum vertical digging depth (mm) | 7230 |
| Maximum excavation radius of stop surface (mm) | 11620 |
| Travel speed (km/h) | 4.6 |
see more
Overview
No.1020247
Brand Name：
CaterpillarModel Number：
330BYear：
2020
Location：
Jiangsu China
Pub Date：
