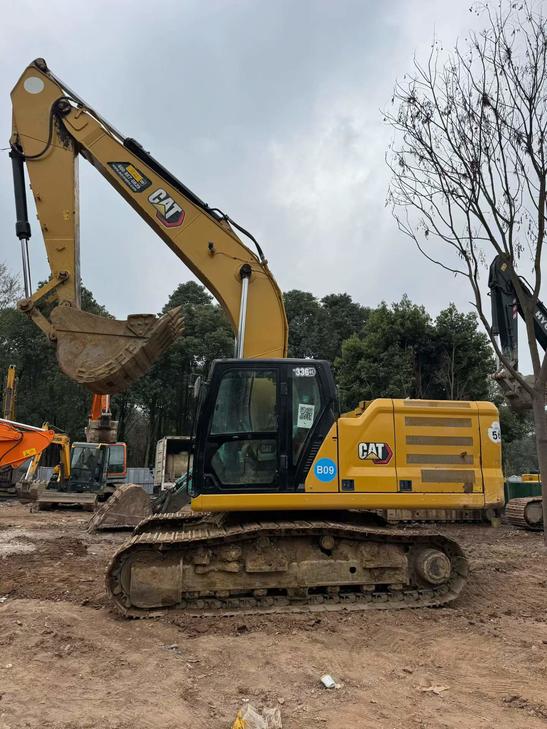

2020 Caterpillar 330B
Product Description
With a robust 30-ton working weight and a 1.5 m³ bucket capacity, this 2020 Caterpillar 330B excavator is primed for immediate deployment in your most demanding projects. Located in 四川, it stands ready to tackle digging, grading, and demolition tasks with precision and power. Equipped with a Caterpillar 3306TA engine, delivering 165.5 kW at 1800 rpm, this machine ensures reliable performance under various conditions. Its 6500 mm boom and 3900 mm rod provide an impressive reach, enabling maximum digging depths of 8080 mm and excavation heights up to 10770 mm. The water-cooled, turbocharged, and after-cooled engine, along with a 480 l/min main pump, guarantees efficient operation. This site-ready excavator also features a full cab height of 3150 mm, ensuring operator comfort and visibility. Ready to work, this Caterpillar 330B is your go-to solution for high-performance, versatile heavy machinery.
| Specifications | Value |
|---|---|
| No. | 1020935 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 32420 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar 3306TA |
| Rated power (kw/rpm) | 165.5/1800 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.5 |
| Working form | Turbocharging; after-cooling |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 480 |
| Fuel Tank (L) | 560 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 45 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 11080 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3610 |
| Full cab height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1260 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 8080 |
| Maximum excavation height (mm) | 10770 (Cutting) |
| Maximum unloading height (mm) | 7600 |
| Maximum vertical digging depth (mm) | 7230 |
| Maximum excavation radius of stop surface (mm) | 11620 |
| Travel speed (km/h) | 4.6 |
Overview
No.1020935
Brand Name：
CaterpillarModel Number：
330BYear：
2020
Location：
Sichuan China
