2020 Caterpillar 330B
Product Description
Built for operators who demand precision and power, this 2020 Caterpillar 330B delivers exceptional performance across demanding jobsites. With a 30-ton operating weight and 165.5 kW Caterpillar 3306TA engine, this excavator combines robust digging capability with refined control. The spacious cab provides commanding visibility across the 11,620mm maximum excavation radius, while water-cooled turbocharging ensures consistent power delivery throughout extended shifts.
- Maximum digging depth of 8,080mm with 1.5m³ backhoe bucket capacity

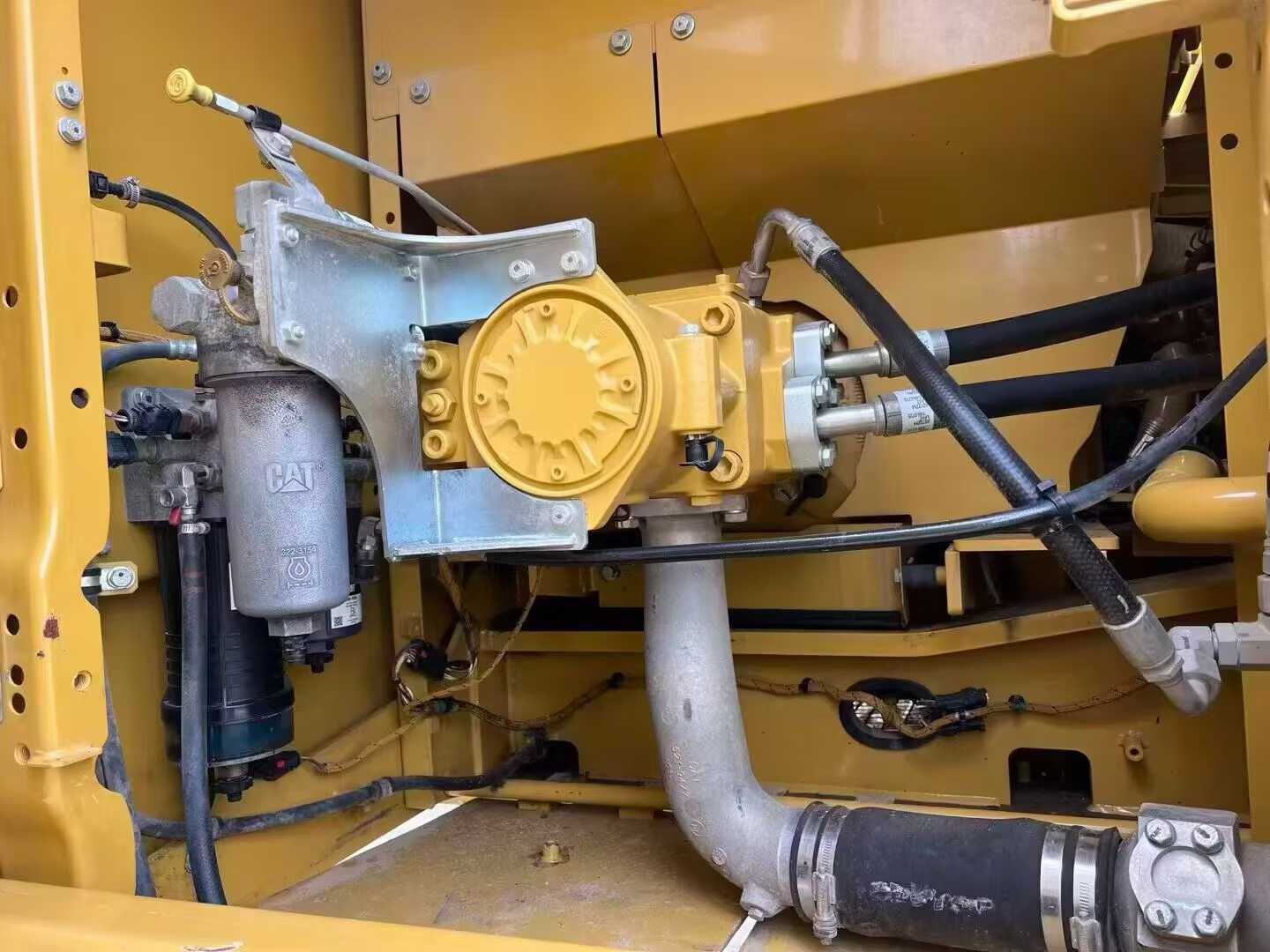

- Advanced hydraulic system: 480 L/min main pump flow at 34.3 Mpa pressure
- Stable 2,590mm track gauge with 600mm-wide track plates for superior ground contact
- 6,500mm boom and 3,900mm arm configuration optimized for versatility
- Compact 3,500mm rear swing radius enables work in confined areas
- Currently located in Heyuan, Guangdong—ready for immediate deployment

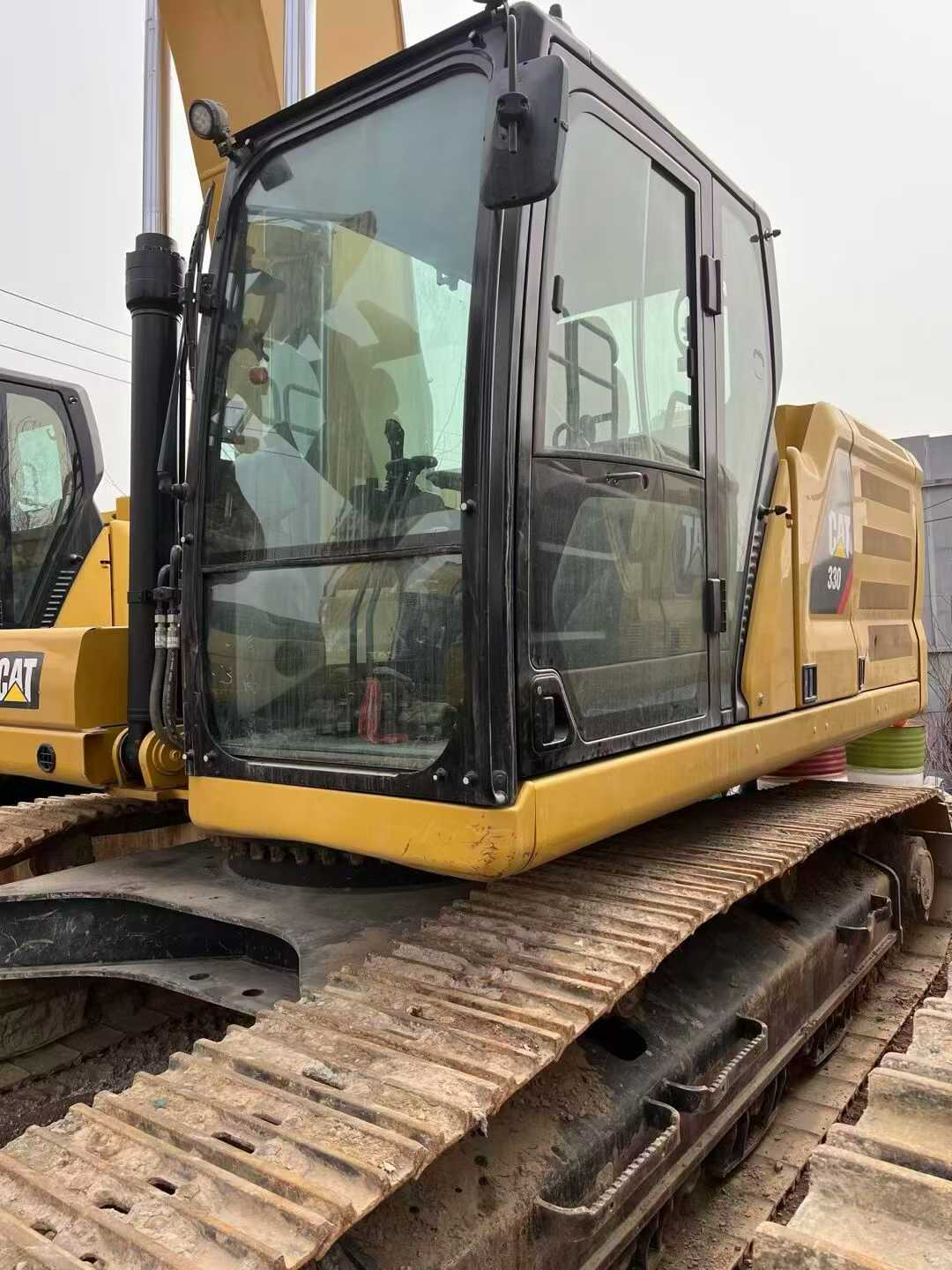

Operator-focused design features include excellent sightlines from the 3,150mm full cab height and intuitive hydraulic controls that respond precisely to input. This joint venture/import unit represents proven Caterpillar engineering at an accessible price point fo
| Specifications | Value |
|---|---|
| No. | 1024219 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 32420 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

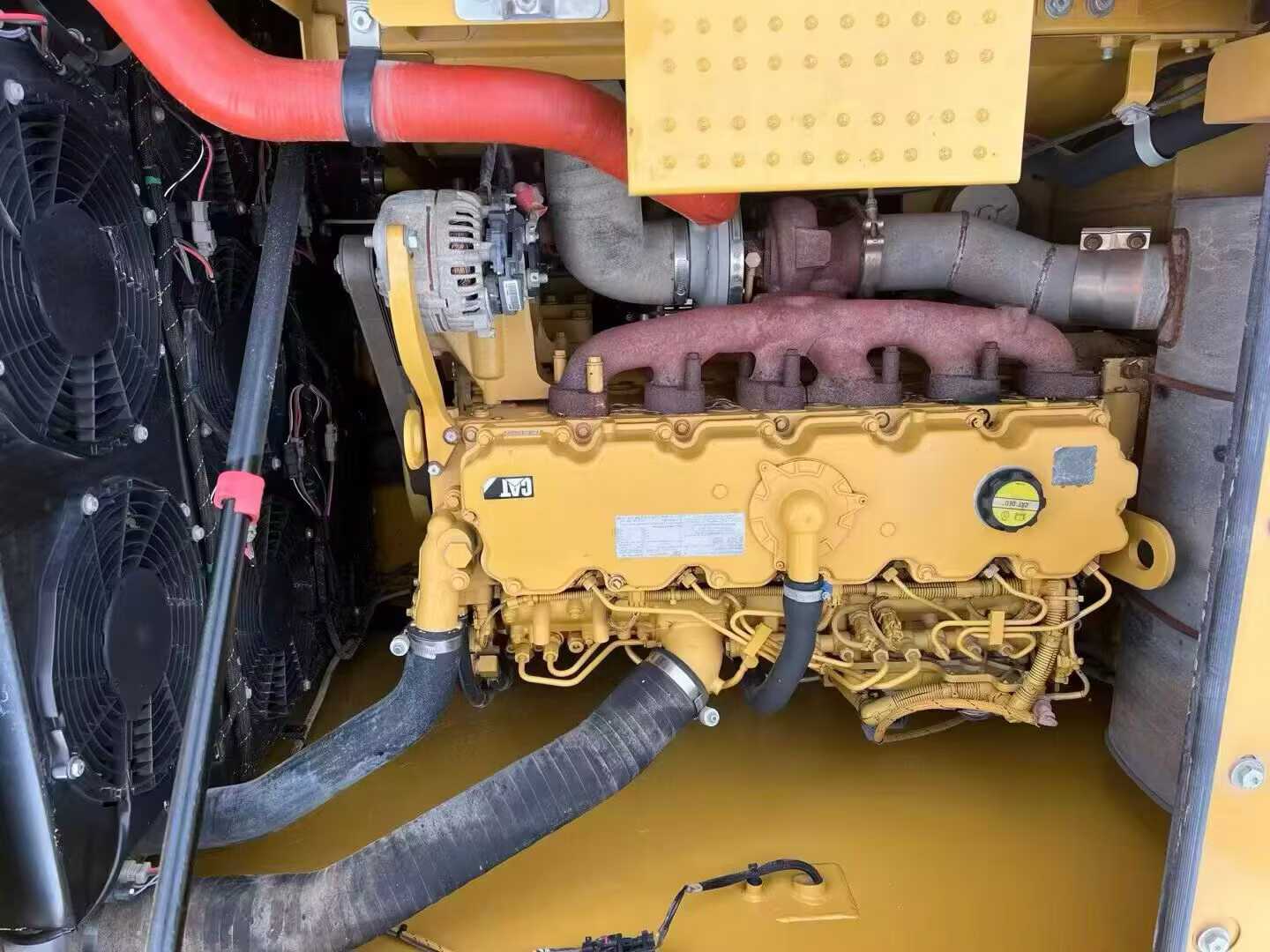

| Engine type | Caterpillar 3306TA |
| Rated power (kw/rpm) | 165.5/1800 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.5 |
| Working form | Turbocharging; after-cooling |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 480 |
| Fuel Tank (L) | 560 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 45 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 11080 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3610 |
| Full cab height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1260 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 8080 |
| Maximum excavation height (mm) | 10770 (Cutting) |
| Maximum unloading height (mm) | 7600 |
| Maximum vertical digging depth (mm) | 7230 |
| Maximum excavation radius of stop surface (mm) | 11620 |
| Travel speed (km/h) | 4.6 |
