2020 Caterpillar 330B
Product Description
Investing in proven machinery doesn't mean compromising on performance. This 2020 Caterpillar 330B excavator delivers 30-ton capacity and 165.5kW of power at a fraction of new equipment costs. Powered by the reliable Caterpillar 3306TA turbocharged, water-cooled engine with 10.5L displacement, this machine handles demanding excavation work with professional-grade efficiency.
Built for serious earthmoving operations, the 330B offers:
- Maximum digging depth of 8,080mm and excavation radius of 11,620mm
- 1.5m³ bucket capacity with 6,500mm boom and 3,900mm arm configuration
- 480 L/min hydraulic flow at 34.3 MPa for responsive operation
- 32,420kg operating weight for superior stability and productivity
- 600mm track plates providing excellent ground contact and mobility
Currently located in Xuzhou, Jiangsu, this joint venture/imported unit represents smart capital allocation for contractors seeking CAT reliability without new equipment premiums. Six-cylinder performance, proven hydraulics, and comprehensive specifications make this 330B a cost-effective solution for high-volume excavation projects.
| Specifications | Value |
|---|---|
| No. | 1026034 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 32420 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

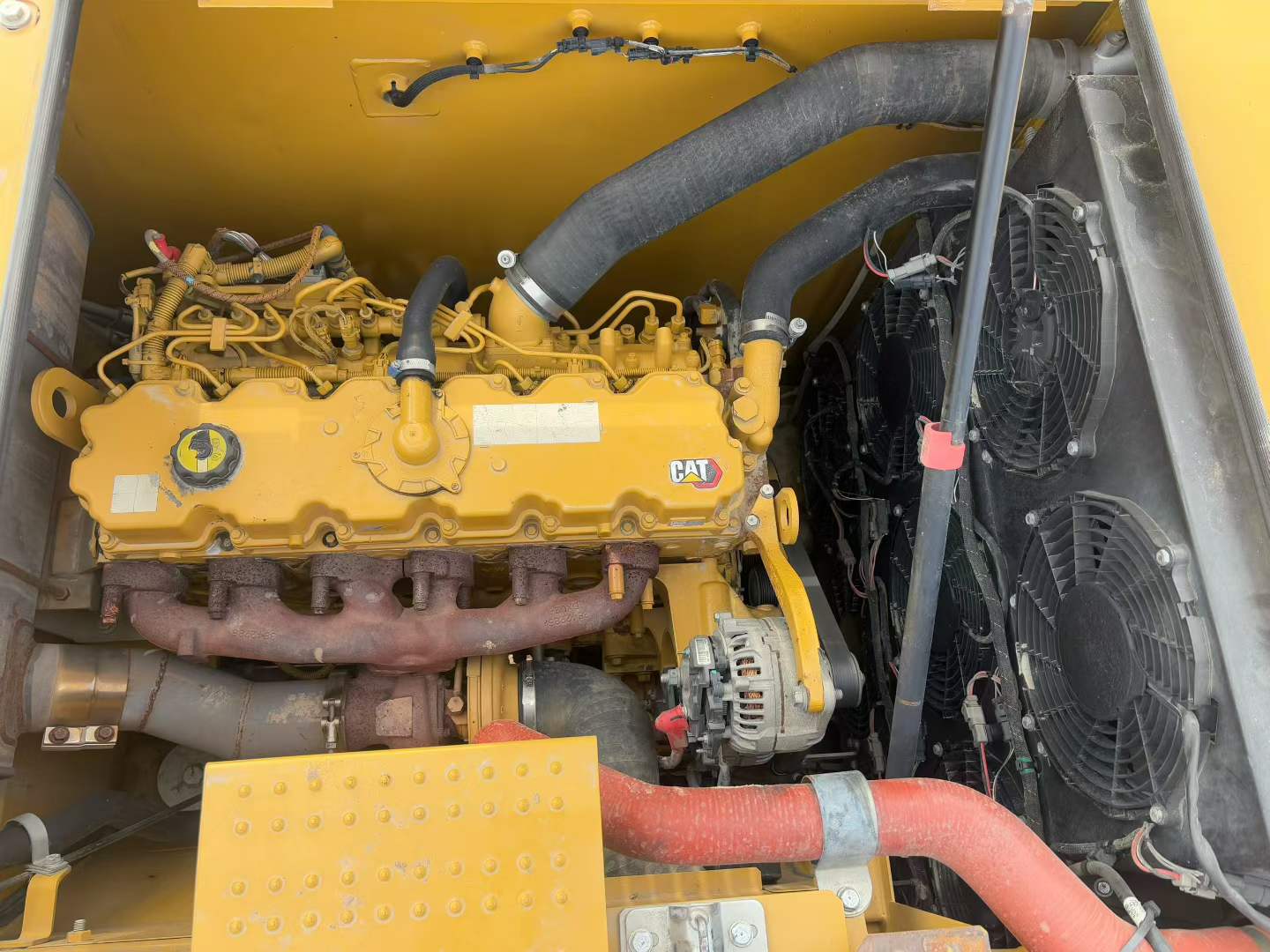

| Engine type | Caterpillar 3306TA |
| Rated power (kw/rpm) | 165.5/1800 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.5 |
| Working form | Turbocharging; after-cooling |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 480 |
| Fuel Tank (L) | 560 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 45 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 11080 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3610 |
| Full cab height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1260 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 8080 |
| Maximum excavation height (mm) | 10770 (Cutting) |
| Maximum unloading height (mm) | 7600 |
| Maximum vertical digging depth (mm) | 7230 |
| Maximum excavation radius of stop surface (mm) | 11620 |
| Travel speed (km/h) | 4.6 |
Overview
No.1026034
Brand Name：
CaterpillarModel Number：
330BYear：
2020
Location：
Jiangsu China
Pub Date：
