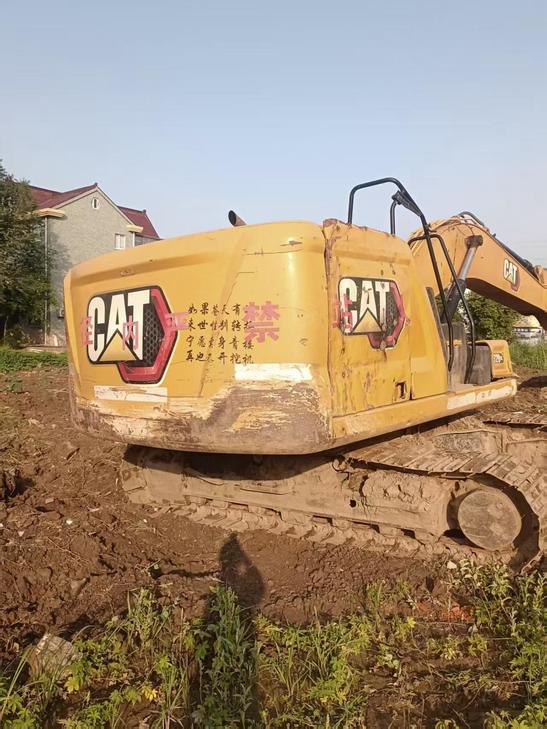

2020 Caterpillar 330B
Product Description
Built for demanding excavation work, this 2020 Caterpillar 330B delivers proven 30-ton class performance at a fraction of new equipment cost. Powered by the robust Caterpillar 3306TA six-cylinder turbocharged, after-cooled engine producing 165.5 kW at 1,800 RPM, it brings industrial-grade reliability to every jobsite. Available now from Guangdong, China, this machine represents a sharp investment for contractors and fleet operators seeking maximum output without the premium price tag of new iron.
- Engine: Caterpillar 3306TA | 6-cylinder | 10.5L displacement | Water-cooled
- Rated Power: 165.5 kW / 1,800 RPM
- Operating Weight: 32,420 kg
- Bucket Capacity: 1.5 m³ backhoe bucket
- Maximum Digging Depth: 8,080 mm
- Maximum Excavation Radius: 11,620 mm
- Maximum Excavation Height: 10,770 mm
- Hydraulic System: 480 L/min max pump flow | 34.3 MPa system pressure
- Travel Speed: 4.6 km/h
- Track Width: 600 mm plates | 3,190 mm total track width
- Fuel Tank Capacity: 560 L
- Transport Dimensions: 11,080 mm (L) × 3,340 mm (W) × 3,610 mm (H)
Solid hydraulics, a field-proven powertrain, and full working dimensions make this 330B a high-performance asset ready to move dirt from day one — at a cost that protects your bottom line.
| Specifications | Value |
|---|---|
| No. | 1080536 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 32420 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar 3306TA |
| Rated power (kw/rpm) | 165.5/1800 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.5 |
| Working form | Turbocharging; after-cooling |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 480 |
| Fuel Tank (L) | 560 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 45 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 11080 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3610 |
| Full cab height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1260 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 8080 |
| Maximum excavation height (mm) | 10770 (Cutting) |
| Maximum unloading height (mm) | 7600 |
| Maximum vertical digging depth (mm) | 7230 |
| Maximum excavation radius of stop surface (mm) | 11620 |
| Travel speed (km/h) | 4.6 |
Overview
No.1080536
Brand Name：
CaterpillarModel Number：
330BYear：
2020
Location：
Guangdong China
Pub Date：
