2021 Caterpillar 330B
Product Description
Built for operators who demand precision and power, this 2021 Caterpillar 330B excavator delivers reliable performance across demanding jobsites. With a 30-ton operating weight and 165.5 kW Caterpillar 3306TA engine, this machine combines robust hydraulic flow with intelligent design for extended productivity in excavation, loading, and material handling applications.
- Spacious cab design offers enhanced visibility and ergonomic controls for reduced operator fatigue during long shifts
- Turbo-charged, water-cooled 6-cylinder engine provides consistent power output at 1800 rpm
- 1.5 m³ backhoe bucket capacity with 8080 mm maximum digging depth handles high-volume earthmoving tasks
- 34.3 MPa hydraulic system with 480 l/min main pump flow ensures responsive control and smooth operation
- 11620 mm maximum excavation radius and 3500 mm rear turning radius optimize maneuverability in confined spaces
- Wide 600 mm track plates and 2590 mm track gauge deliver superior stability on uneven terrain
Currently located in Liuzhou, Guangxi, this joint venture-manufactured excavator represents proven Caterpillar engineering backed by comprehensive service support worldwide.
| Specifications | Value |
|---|---|
| No. | 1026359 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 32420 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

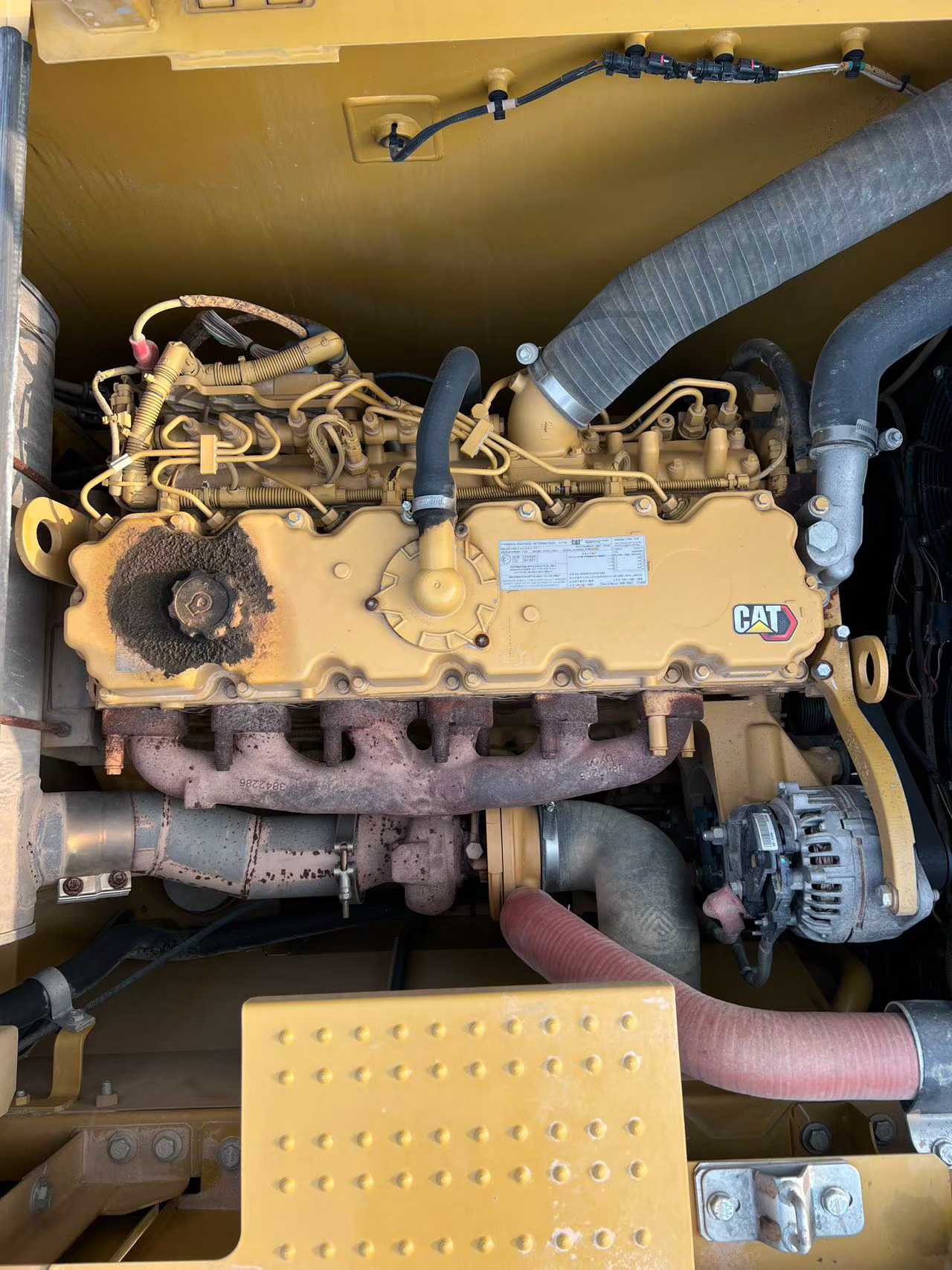

| Engine type | Caterpillar 3306TA |
| Rated power (kw/rpm) | 165.5/1800 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.5 |
| Working form | Turbocharging; after-cooling |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 480 |
| Fuel Tank (L) | 560 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 45 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 11080 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3610 |
| Full cab height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1260 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 8080 |
| Maximum excavation height (mm) | 10770 (Cutting) |
| Maximum unloading height (mm) | 7600 |
| Maximum vertical digging depth (mm) | 7230 |
| Maximum excavation radius of stop surface (mm) | 11620 |
| Travel speed (km/h) | 4.6 |
see more
Overview
No.1026359
Brand Name：
CaterpillarModel Number：
330BYear：
2021
Location：
Guangxi China
