2021 Caterpillar 330B
Product Description
Built in 2021, this Caterpillar 330B excavator delivers proven performance backed by the industry's most trusted name in heavy equipment. Operating at 30 tons with a robust 165.5kW Caterpillar 3306TA turbocharged, water-cooled engine, this machine handles demanding excavation tasks with confidence. Currently located in Kunming, Yunnan, it features a 1.5m³ backhoe bucket, 8,080mm maximum digging depth, and an impressive 11,620mm excavation radius—ideal for large-scale earthmoving and construction projects.
Caterpillar ownership means long-term value protection. Parts availability remains unmatched globally, minimizing downtime and reducing operational costs. Joint venture manufacturing ensures quality construction, while Cat's exceptional resale value protects your investment for years ahead. The 3306TA engine's proven reliability, combined with a high-capacity 480 l/min hydraulic system, guarantees consistent productivity across diverse job sites.
- 30-ton operating weight with 32,420kg working capacity
- Caterpillar 3306TA turbocharged engine: 165.5kW @ 1800 rpm
- Maximum digging depth: 8,080mm | Reach: 11,620mm
- 560L fuel capacity for extended operation
- Global parts network ensure
| Specifications | Value |
|---|---|
| No. | 1028614 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 32420 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

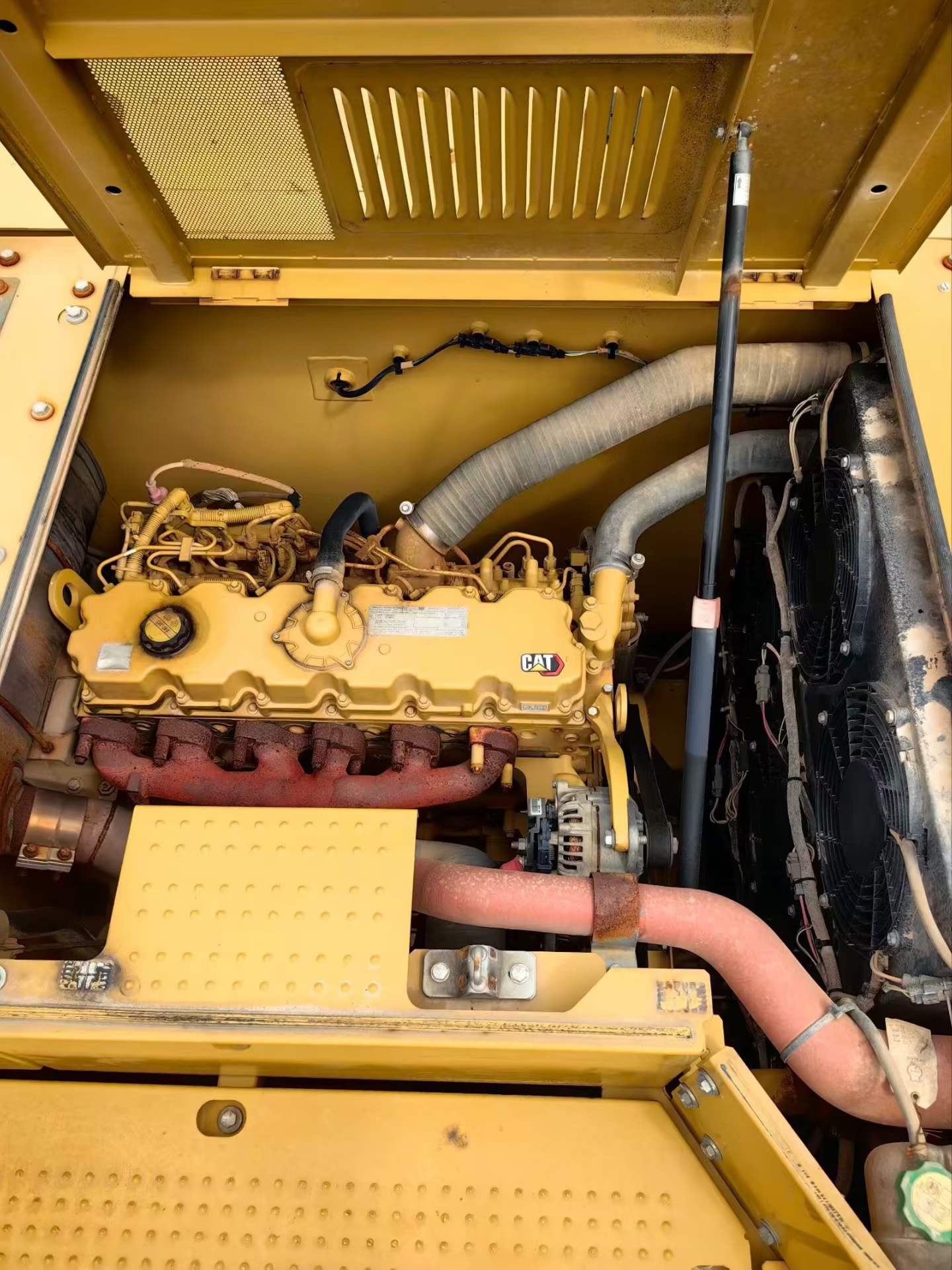

| Engine type | Caterpillar 3306TA |
| Rated power (kw/rpm) | 165.5/1800 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.5 |
| Working form | Turbocharging; after-cooling |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 480 |
| Fuel Tank (L) | 560 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 45 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 11080 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3610 |
| Full cab height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1260 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 8080 |
| Maximum excavation height (mm) | 10770 (Cutting) |
| Maximum unloading height (mm) | 7600 |
| Maximum vertical digging depth (mm) | 7230 |
| Maximum excavation radius of stop surface (mm) | 11620 |
| Travel speed (km/h) | 4.6 |
