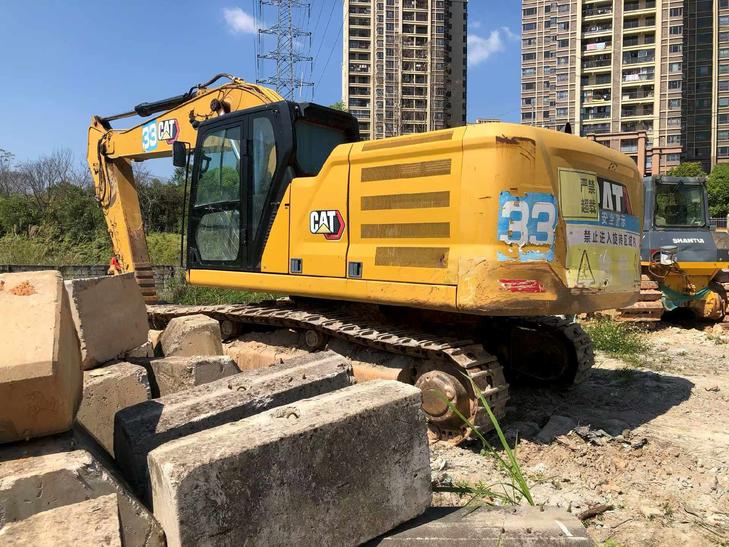

2021 Caterpillar 330B
Product Description
Built to endure the toughest jobsites, this 2021 Caterpillar 330B excavator delivers proven performance with a 30-ton operating capacity and robust Caterpillar 3306TA engine generating 165.5kW at 1800rpm. Water-cooled with turbocharging and after-cooling technology, this machine combines the reliability of joint venture manufacturing with specifications that define heavy-duty excavation. With a 1.5m³ backhoe bucket, 8080mm maximum digging depth, and 11620mm excavation radius, this workhorse handles large-scale earthmoving operations with consistent efficiency.
- Operating Weight: 32,420kg with 1260mm counterweight clearance
- Hydraulic Power: 480L/min main pump flow at 34.3MPa pressure
- Reach Configuration: 6500mm boom, 3900mm arm for versatile working range
- Fuel Capacity: 560L tank supports extended operation cycles
- Track System: 600mm plates, 4040mm ground length for superior stability
- Maximum Reach: 10770mm cutting height, 7600mm dump height
- Location: Shenzhen, Guangdong—ready for immediate deployment
Engineered for longevity, this 330B
| Specifications | Value |
|---|---|
| No. | 1032799 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 32420 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar 3306TA |
| Rated power (kw/rpm) | 165.5/1800 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.5 |
| Working form | Turbocharging; after-cooling |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 480 |
| Fuel Tank (L) | 560 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 45 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 11080 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3610 |
| Full cab height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1260 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 8080 |
| Maximum excavation height (mm) | 10770 (Cutting) |
| Maximum unloading height (mm) | 7600 |
| Maximum vertical digging depth (mm) | 7230 |
| Maximum excavation radius of stop surface (mm) | 11620 |
| Travel speed (km/h) | 4.6 |
see more
Overview
No.1032799
Brand Name：
CaterpillarModel Number：
330BYear：
2021
Location：
Guangdong China
