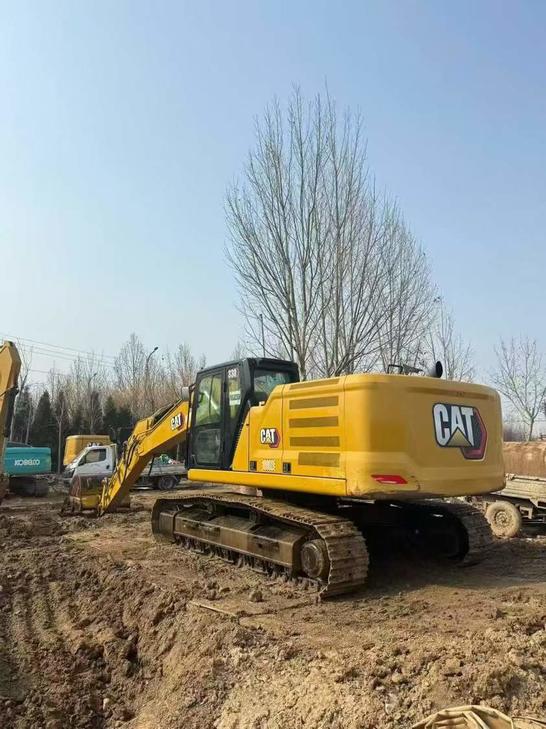

2022 Caterpillar 330B
Product Description
Available now from our Xuzhou, Jiangsu facility, this 2022 Caterpillar 330B excavator delivers 30-ton performance without factory wait times. Powered by a Caterpillar 3306TA engine producing 165.5kW at 1800rpm, this machine combines a 1.5m³ backhoe bucket with a 6500mm boom and 3900mm arm for maximum versatility across demanding jobsites. Water-cooled turbocharging with after-cooling ensures consistent power delivery through its 10.5L, 6-cylinder engine.
Fast deployment means your project stays on schedule. With an 11620mm maximum excavation radius and 8080mm digging depth, this joint venture-manufactured excavator handles large-scale earthmoving operations efficiently. The 480 l/min main pump flow and 34.3 Mpa system pressure provide responsive hydraulic control, while the 560L fuel tank extends operating intervals.
- Operating weight: 32,420kg with robust undercarriage
- Transport dimensions: 11080mm × 3340mm × 3610mm
- Maximum digging height: 10,770mm
- Travel speed: 4.6 km/h for efficient repositioning
- Ready for immediate shipment from Xuzhou
Skip the lead times. Secure proven Caterpillar reliability and deploy to your site immediately.
| Specifications | Value |
|---|---|
| No. | 1021487 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 32420 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar 3306TA |
| Rated power (kw/rpm) | 165.5/1800 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.5 |
| Working form | Turbocharging; after-cooling |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 480 |
| Fuel Tank (L) | 560 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 45 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 11080 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3610 |
| Full cab height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1260 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 8080 |
| Maximum excavation height (mm) | 10770 (Cutting) |
| Maximum unloading height (mm) | 7600 |
| Maximum vertical digging depth (mm) | 7230 |
| Maximum excavation radius of stop surface (mm) | 11620 |
| Travel speed (km/h) | 4.6 |
Overview
No.1021487
Brand Name：
CaterpillarModel Number：
330BYear：
2022
Location：
Jiangsu China
Pub Date：
