2022 Caterpillar 330B
Product Description
Built for demanding excavation work, this 2022 Caterpillar 330B delivers 165.5 kW of turbocharged, aftercooled power through its proven 3306TA engine. Operating at 30 tons with a 1.5 m³ backhoe bucket, this machine tackles deep foundation work with an 8,080 mm maximum digging depth and reaches 11,620 mm excavation radius from a stable platform. Currently located in Xuzhou, Jiangsu, it arrives site-ready for immediate deployment on grading, trenching, or demolition projects.

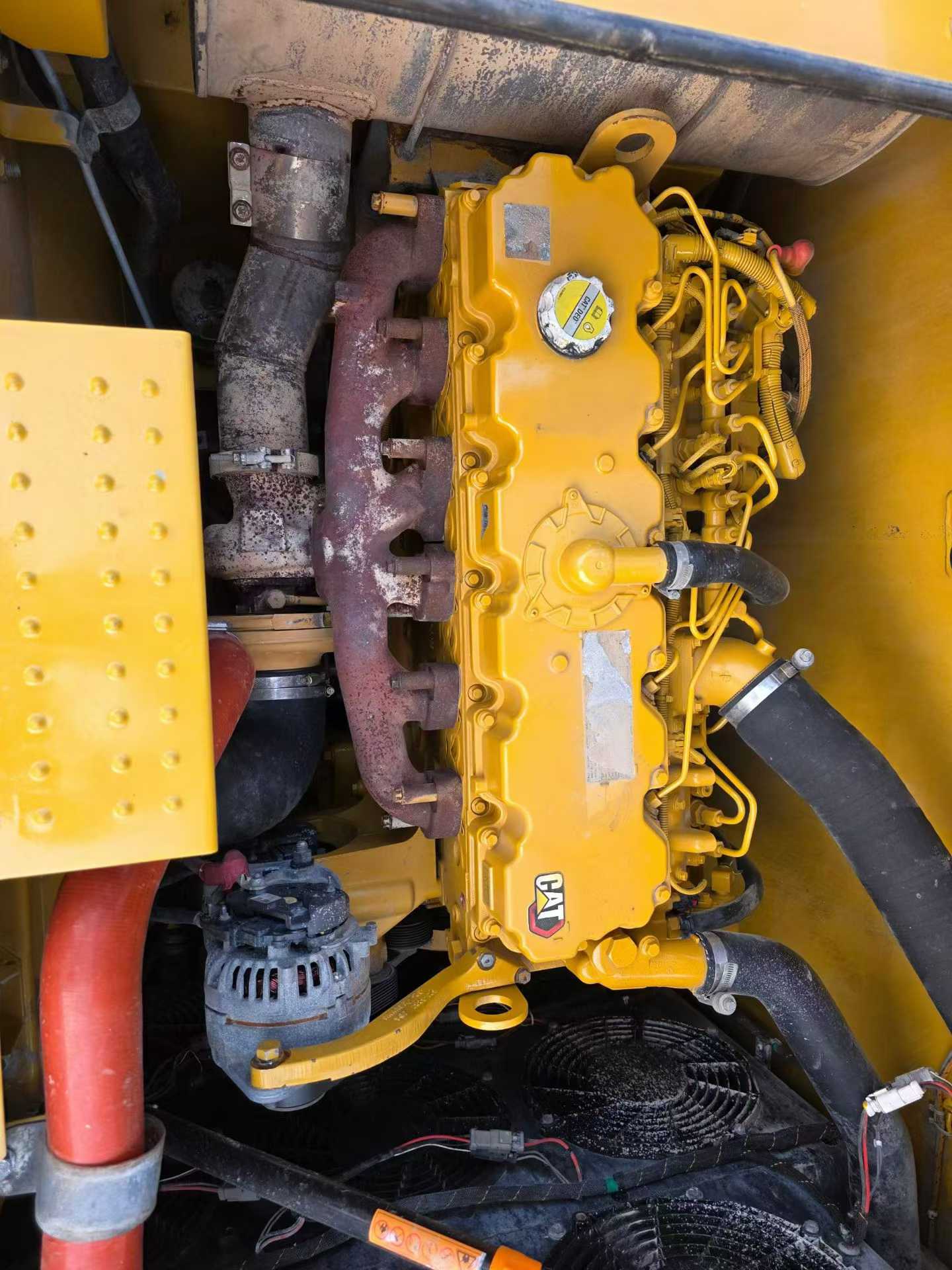

- Power System: Caterpillar 3306TA engine, 6-cylinder, 10.5L displacement, water-cooled with turbocharging
- Hydraulic Performance: 480 l/min main pump flow at 34.3 MPa, 400L system capacity
- Reach Specifications: 6,500 mm boom, 3,900 mm stick, 10,770 mm max cutting height
- Undercarriage: 4,040 mm track ground length, 600 mm track plates, 2,590 mm gauge width
- Transport Dimensions: 11,080 mm length × 3,340 mm width × 3,610 mm height
- Operational Capacity: 560L fuel tank, 4.6 km/h travel speed, 3,500 mm rear turning radius
| Specifications | Value |
|---|---|
| No. | 1030289 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 32420 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar 3306TA |
| Rated power (kw/rpm) | 165.5/1800 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.5 |
| Working form | Turbocharging; after-cooling |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 480 |
| Fuel Tank (L) | 560 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 45 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 11080 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3610 |
| Full cab height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1260 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 8080 |
| Maximum excavation height (mm) | 10770 (Cutting) |
| Maximum unloading height (mm) | 7600 |
| Maximum vertical digging depth (mm) | 7230 |
| Maximum excavation radius of stop surface (mm) | 11620 |
| Travel speed (km/h) | 4.6 |
see more
Overview
No.1030289
Brand Name：
CaterpillarModel Number：
330BYear：
2022
Location：
Jiangsu China
Pub Date：
