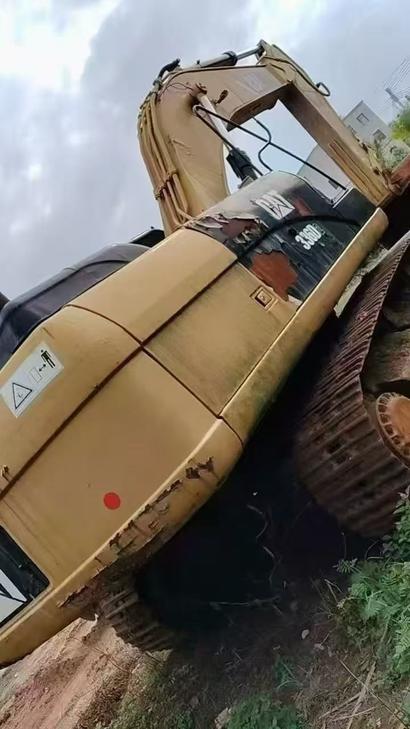

2020 Caterpillar 330C
Product Description
Built for serious excavation work, this 2020 Caterpillar 330C is primed and ready for immediate deployment on your job site. Powered by a Caterpillar C9 engine producing 182 kW and backed by a 560 L/min main pump flow rate, this 30-ton machine delivers consistent hydraulic force across demanding digging, grading, and demolition cycles without compromise.
Currently located in Guangdong, China, this unit is positioned for efficient export or domestic deployment across key markets.
- Engine: Caterpillar C9 | 6-cylinder | 8.8L displacement | 182 kW rated power
- Bucket: Backhoe configuration | 1.7 m³ capacity
- Working Weight: 35,108 kg
- Maximum Excavation Radius: 11,631 mm
- Maximum Excavation Height: 8,117 mm
- Maximum Digging Depth: 7,340 mm
- Main System Pressure: 34.3 MPa
- Fuel Tank Capacity: 617 L
- Track Plate Width: 864 mm | Ground Contact Length: 4,039 mm
- Travel Speed: Up to 5.0 km/h
From deep foundation cuts to heavy demolition clearing, this Caterpillar 330C brings proven Cat reliability and raw digging capacity to any project demanding a dependable, work-ready machine.
| Specifications | Value |
|---|---|
| No. | 1082288 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 35108 |
| Bucket capacity (m³) | 1.7 |
| Country of origin | USA, Japan, Belgium, Brazil, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar C9 |
| Rated power (kw/rpm) | 182 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.8 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 560 |
| Fuel Tank (L) | 617 |
| Hydraulic System (L) | 174 |
| Total transport length (mm) | 11201 |
| Total transport width (mm) | 3429 |
| Total transport height (mm) | 3734 |
| Minimum ground clearance (mm) | 488 |
| Back end turning radius (mm) | 3505 |
| Track gauge (mm) | 2591 |
| Track plate width (mm) | 864 |
| Total track width (mm) | 3429 |
| Track ground length (mm) | 4039 |
| Maximum excavation height (mm) | 8117 |
| Maximum unloading height (mm) | 7644 |
| Maximum vertical digging depth (mm) | 7340 |
| Maximum excavation radius of stop surface (mm) | 11631 |
| Travel speed (km/h) | 5.0 (Max) |
Overview
No.1082288
Brand Name：
CaterpillarModel Number：
330CYear：
2020
Location：
Guangdong China
Pub Date：
