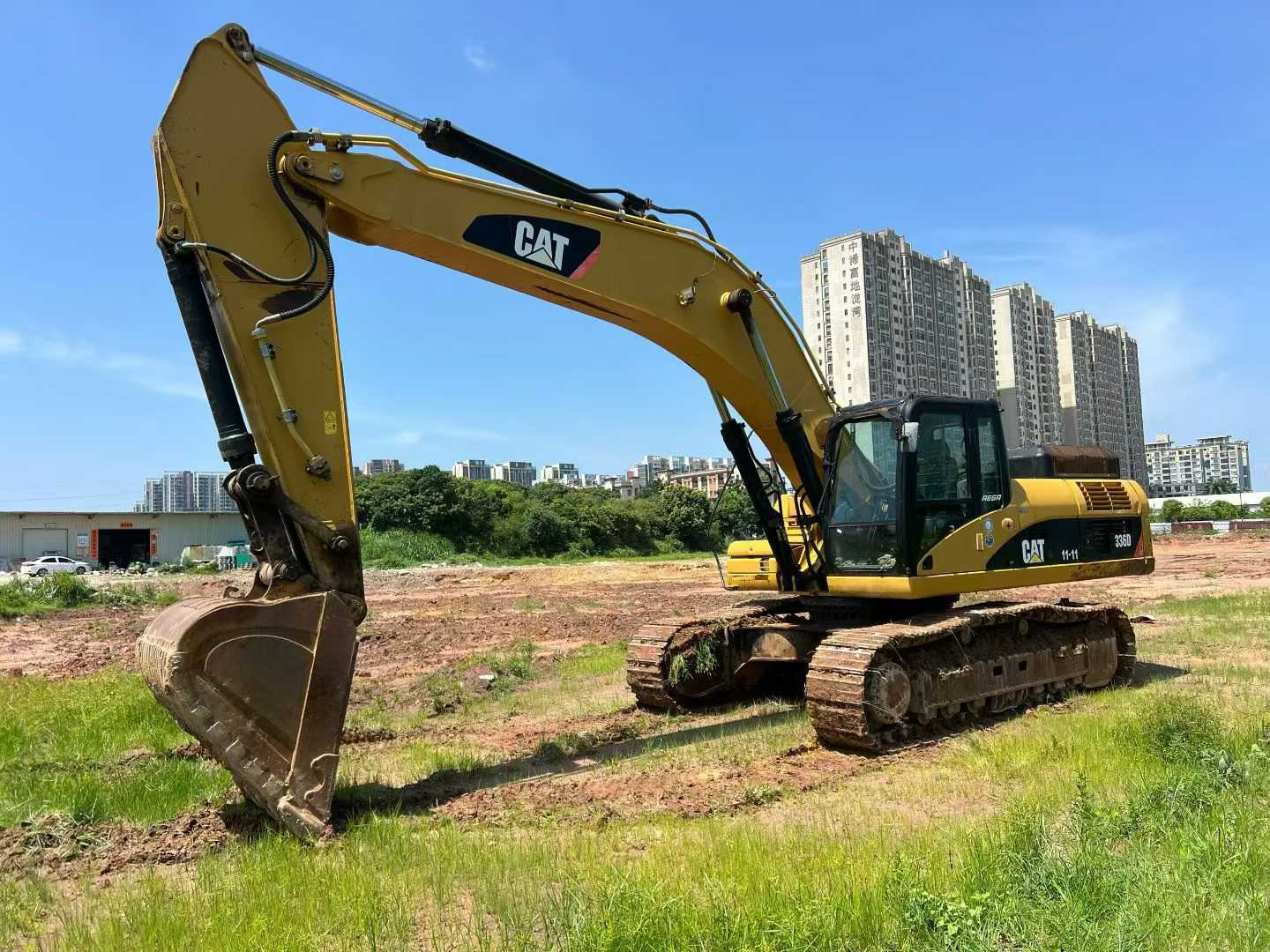

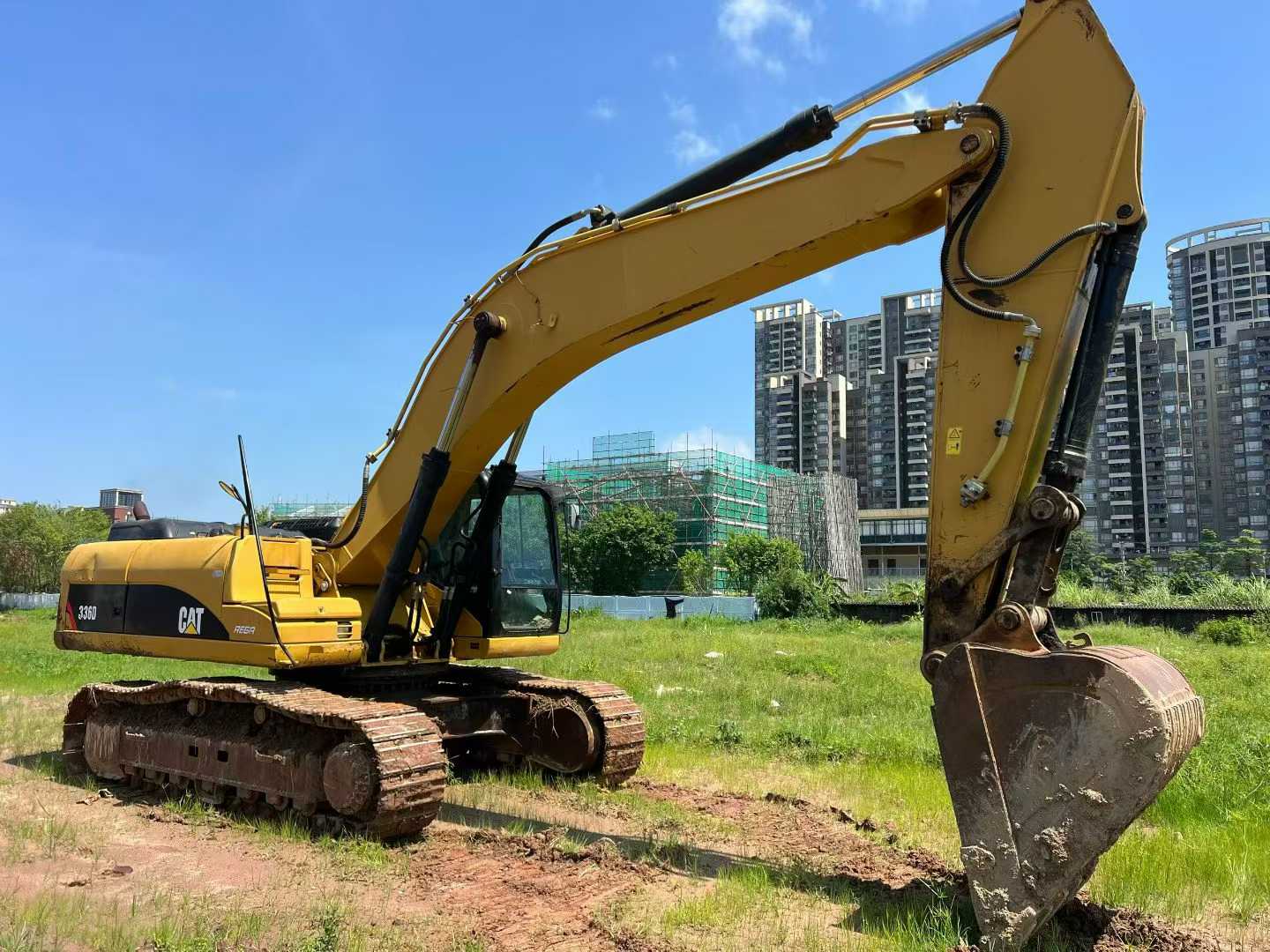

2016 Caterpillar 336D
Product Description
Engineered with Caterpillar's advanced hydraulic system, this 2016 336D delivers exceptional digging force and cycle times that define productivity in heavy excavation. Powered by a robust Cat C9 ACERT engine, the machine generates reliable performance while meeting stringent emission standards through proven technology.

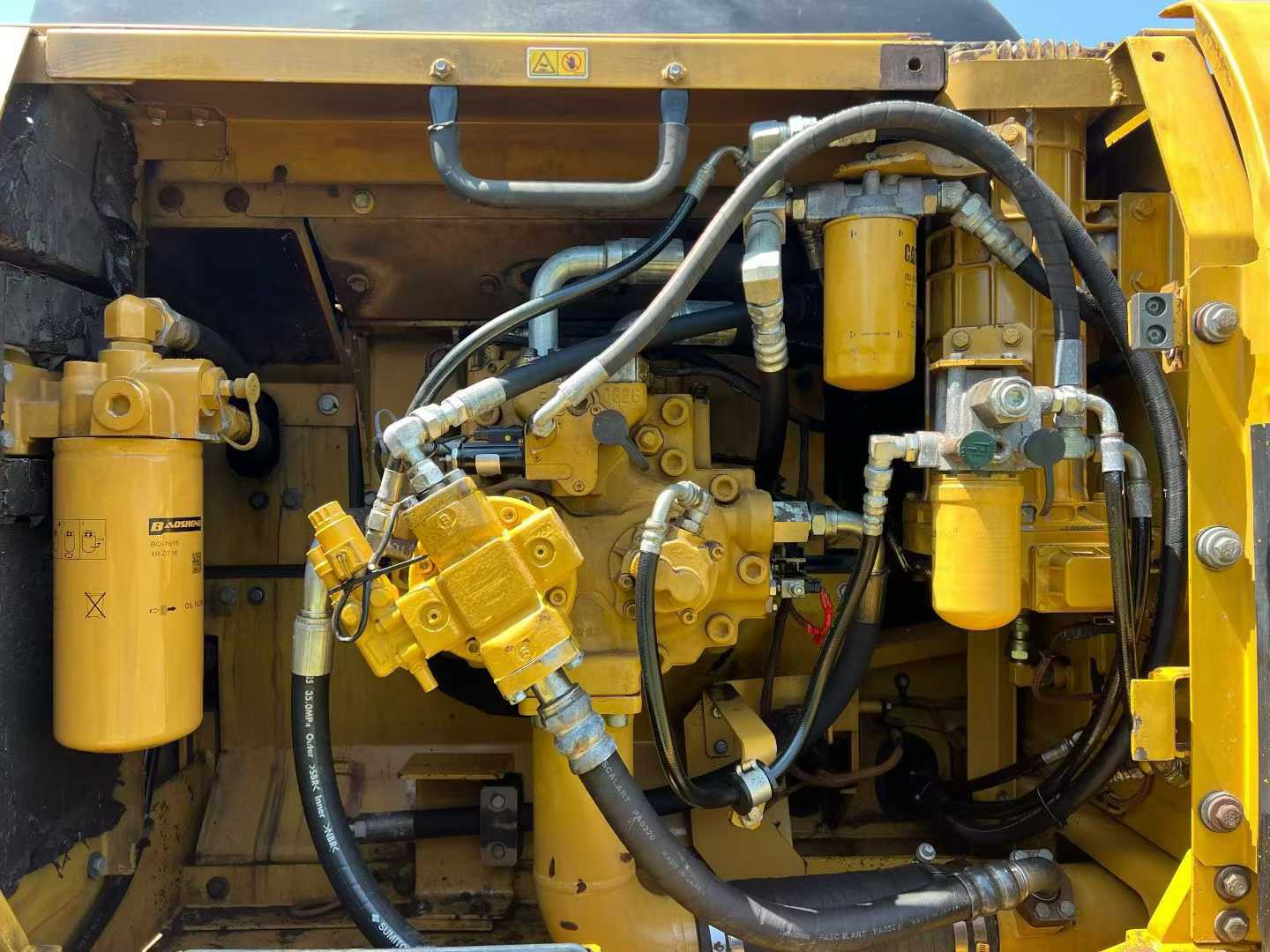

Precision hydraulics provide:
- Superior breakout force for demanding ground conditions
- Responsive control across all operational ranges
- Fuel-efficient power management systems
- Extended component life through intelligent load sensing

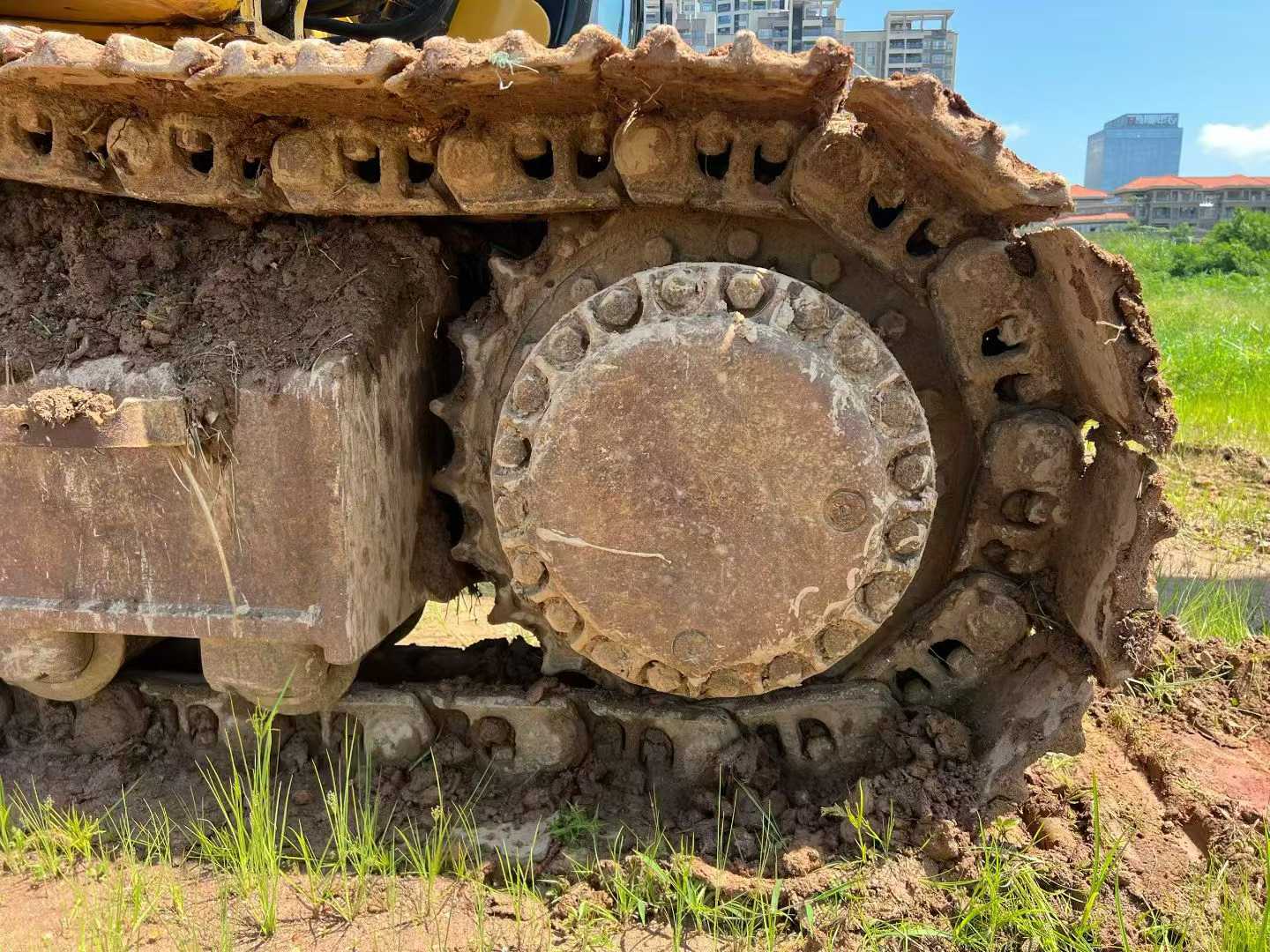

Currently located in Huizhou, Guangdong, this 336D hydraulic excavator represents Caterpillar's commitment to durability and operational efficiency. Built on a reinforced undercarriage with sealed track systems, it maintains stability across challenging terrain. Cat's proprietary hydraulic architecture ensures consistent performance under continuous duty cycles, making it suitable for infrastructure projects, mining operations, and large-scale earthmoving applications.
Available for immediate inspection through Fair Trade Machinery's global network.
| Specifications | Value |
|---|---|
| No. | 1019850 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 33750 |
| Bucket capacity (m³) | 1.4 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3200 |
| Country of origin | Japan/Xuzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

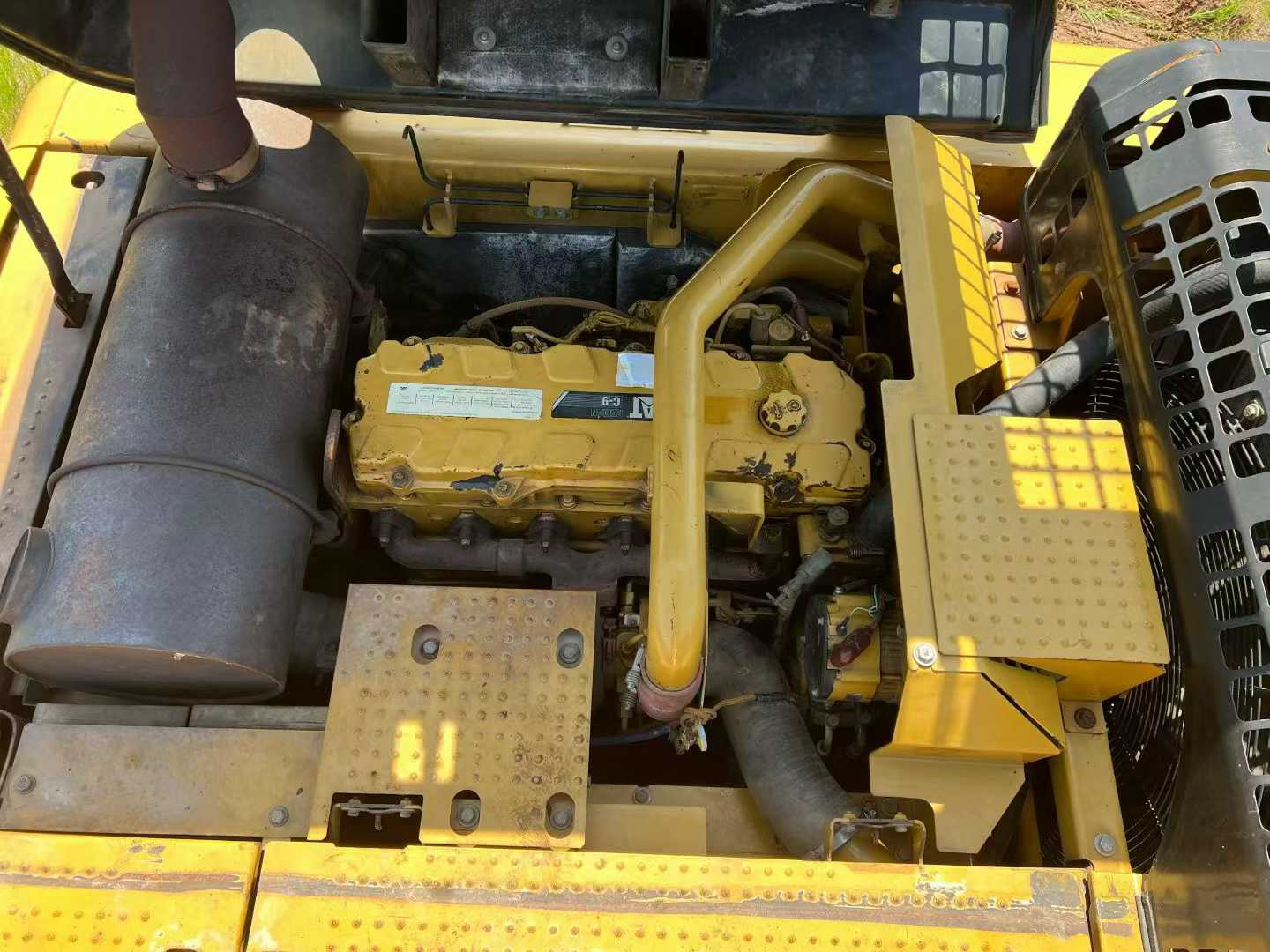

| Engine type | C9ACERT |
| Rated power (kw/rpm) | 200/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 110 x 127 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.8 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 222 |
| Rod digging force (kN) | 146 |
| Travel speed (km/h) | March 5th |
| Main overflow set pressure (Mpa) | 3.5 |
| Maximum flow of main pump (l/min) | 280 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.8 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.5 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 x 1151 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170 x 1738 |
| Boom cylinders - Number × diameter × stroke (mm) | 150 x 1440 |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 175 |
| Engine Oil changes (L) | 40 |
| Coolant (L) | 40 |
| Hydraulic System (L) | 410(including fuel tank) |
| Total transport length (mm) | 11150 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3340 |
| Full cab height (mm) | 3140 |
| Counterweight ground clearance (mm) | 1220 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | 4590 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3610 |
| Maximum digging depth (mm) | 7390 |
| Maximum excavation height (mm) | 10240 |
| Maximum unloading height (mm) | 7200 |
| Maximum vertical digging depth (mm) | 5830 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10920 |
| Maximum effective digging depth (mm) | 7230 |
Overview
No.1019850
Brand Name：
CaterpillarModel Number：
336DYear：
2016
Location：
Guangdong China
Pub Date：
