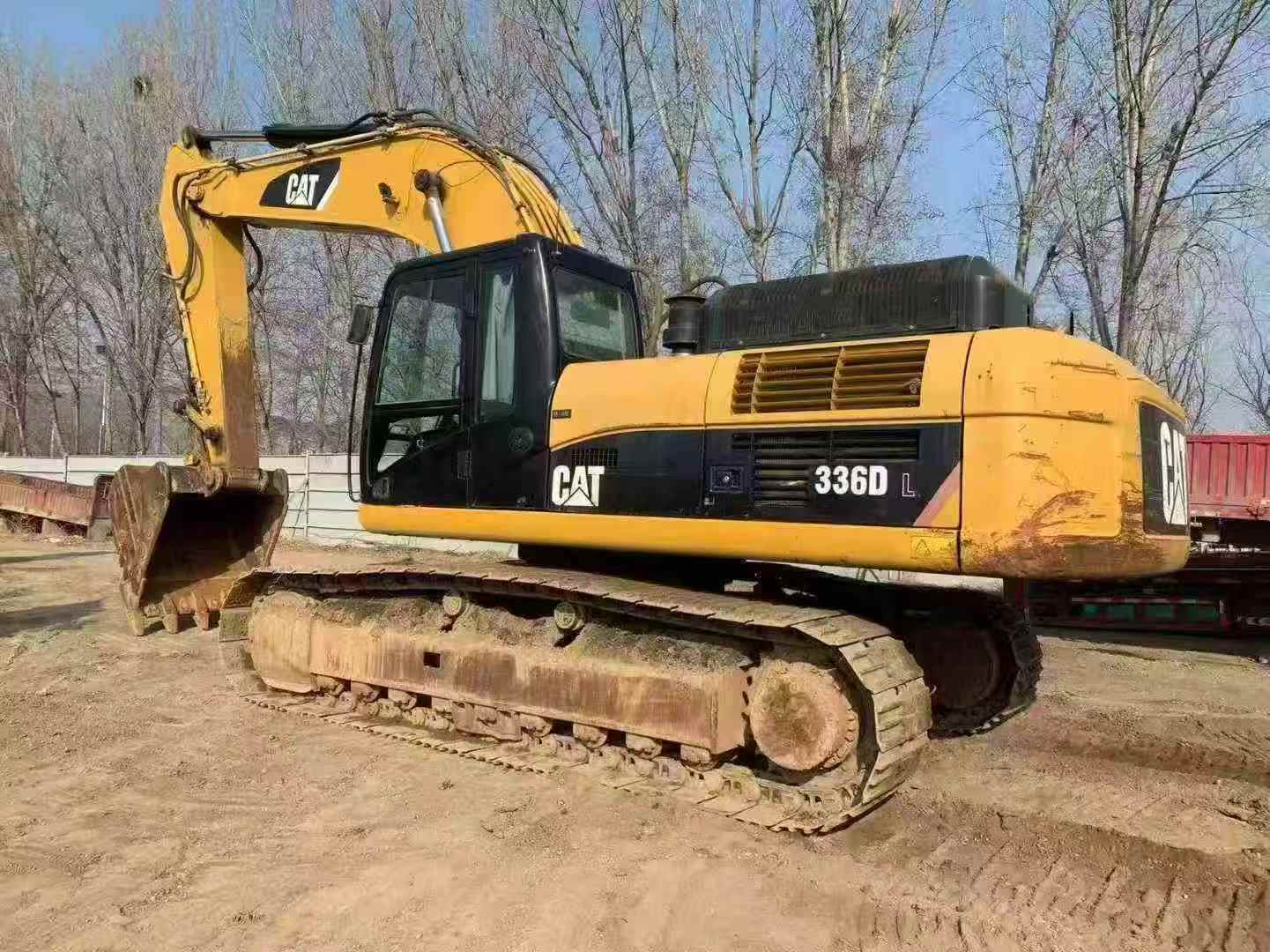

2012 Caterpillar 336DL
Product Description
Featuring a powerful C9 ACERT engine, this 2012 Caterpillar 336DL excavator delivers 200 kW at 1900 rpm, ensuring robust performance. With a working weight of 35,020 kg and a bucket capacity of 1.5 m³, it is designed for heavy-duty tasks. Located in 江苏, this machine offers exceptional stability and handling, making it ideal for challenging terrains. The 6-cylinder engine, coupled with a water-cooling system, ensures reliable operation even under demanding conditions.
- Enhanced visibility from the full cab height of 3140 mm provides operators with a clear view of the work area, improving safety and efficiency.
- The ergonomic design of the cabin ensures comfort during long hours of operation, reducing operator fatigue.
- With a maximum digging depth of 7390 mm and a maximum unloading height of 7200 mm, this excavator handles a wide range of excavation and loading tasks with precision.

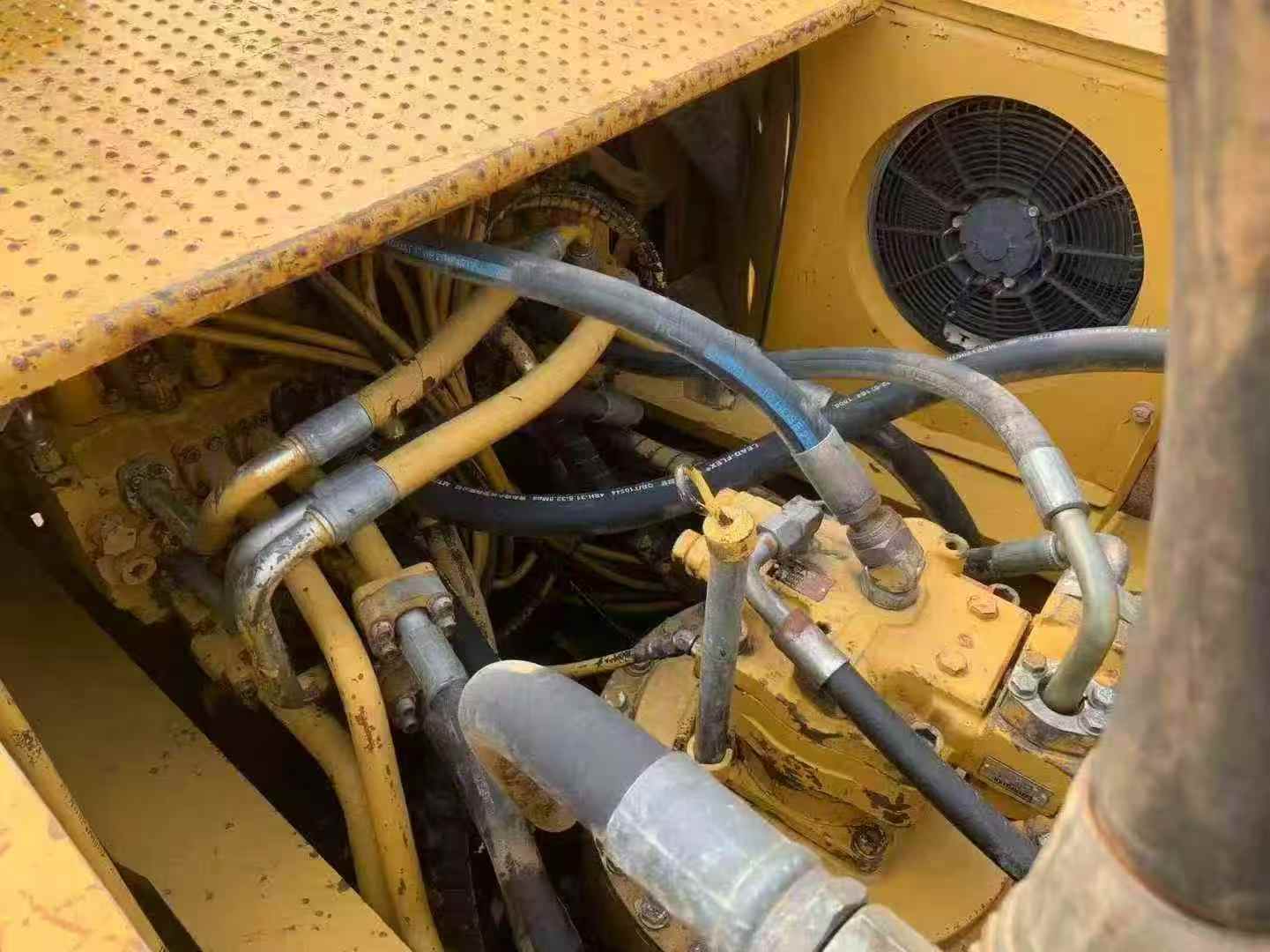

- Its robust hydraulic system, with a main pump flow of 280 l/min, supports smooth and efficient operations, enhancing productivity on the job site.
| Specifications | Value |
|---|---|
| No. | 1029551 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 35020 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3200 |
| Country of origin | Japan/Xuzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

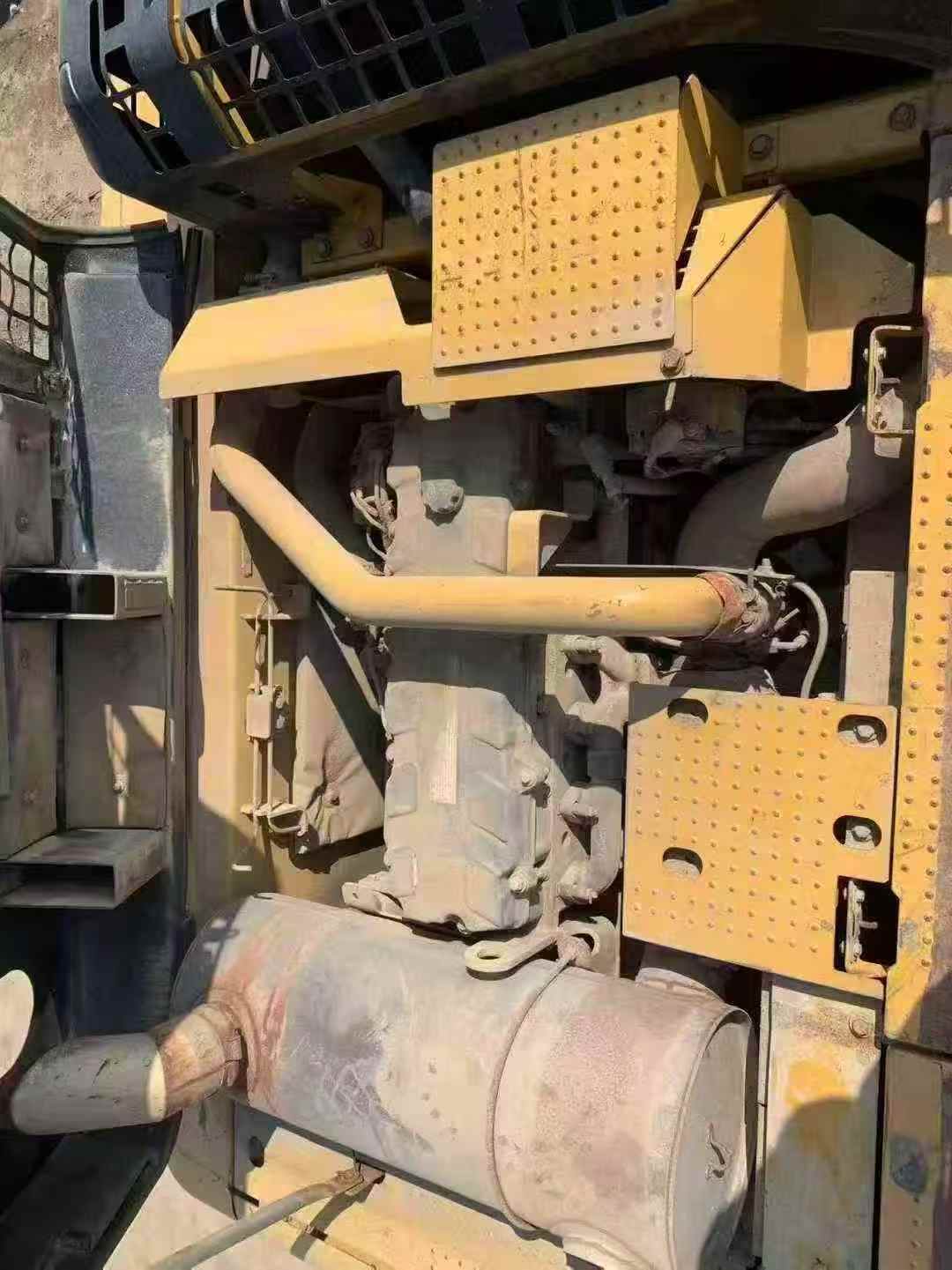

| Engine type | C9ACERT |
| Rated power (kw/rpm) | 200/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 110 x 127 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.8 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 222 |
| Rod digging force (kN) | 146 |
| Travel speed (km/h) | March 5th |
| Main overflow set pressure (Mpa) | 3.5 |
| Maximum flow of main pump (l/min) | 280 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.8 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.5 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 x 1151 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170 x 1738 |
| Boom cylinders - Number × diameter × stroke (mm) | 150 x 1440 |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 175 |
| Engine Oil changes (L) | 40 |
| Coolant (L) | 40 |
| Hydraulic System (L) | 410(including fuel tank) |
| Total transport length (mm) | 11150 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3340 |
| Full cab height (mm) | 3140 |
| Counterweight ground clearance (mm) | 1220 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 3500 |

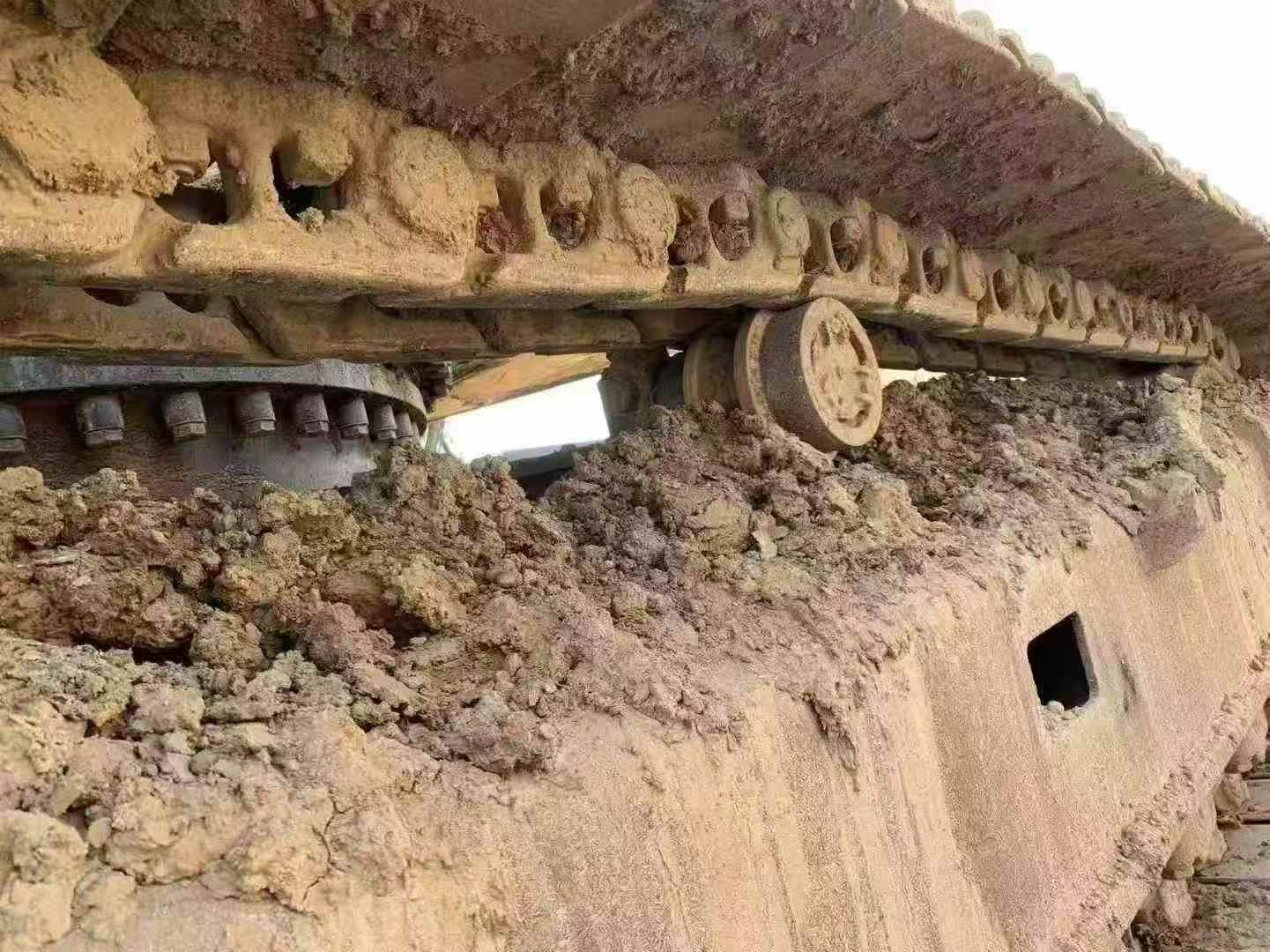

| Total track length (mm) | 5020 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 700 |
| Total track width (mm) | 3290 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 7390 |
| Maximum excavation height (mm) | 10240 |
| Maximum unloading height (mm) | 7200 |
| Maximum vertical digging depth (mm) | 5830 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10920 |
| Maximum effective digging depth (mm) | 7230 |
see more
Overview
No.1029551
Brand Name：
CaterpillarModel Number：
336DLYear：
2012
Location：
Jiangsu China
Pub Date：
