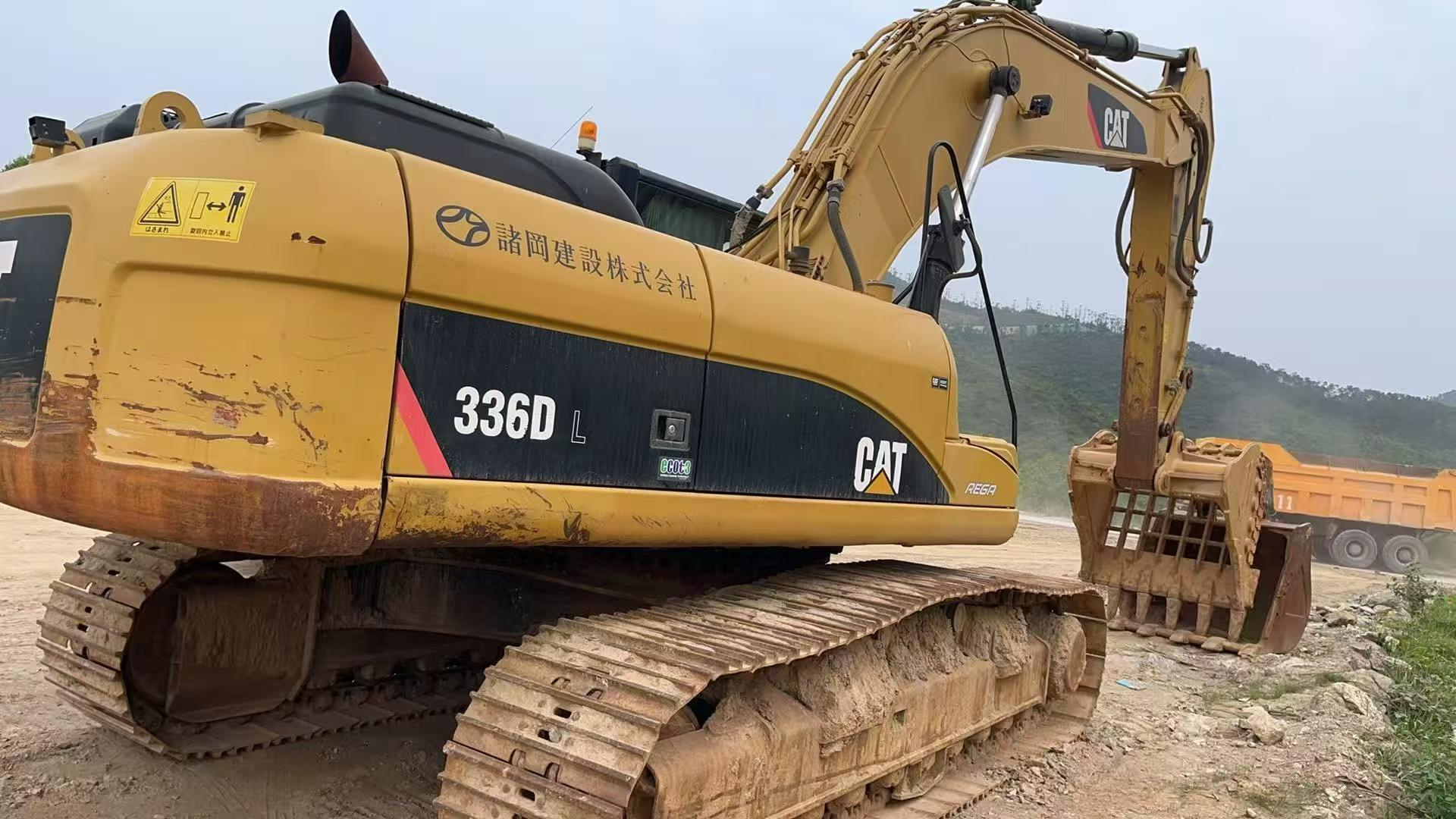

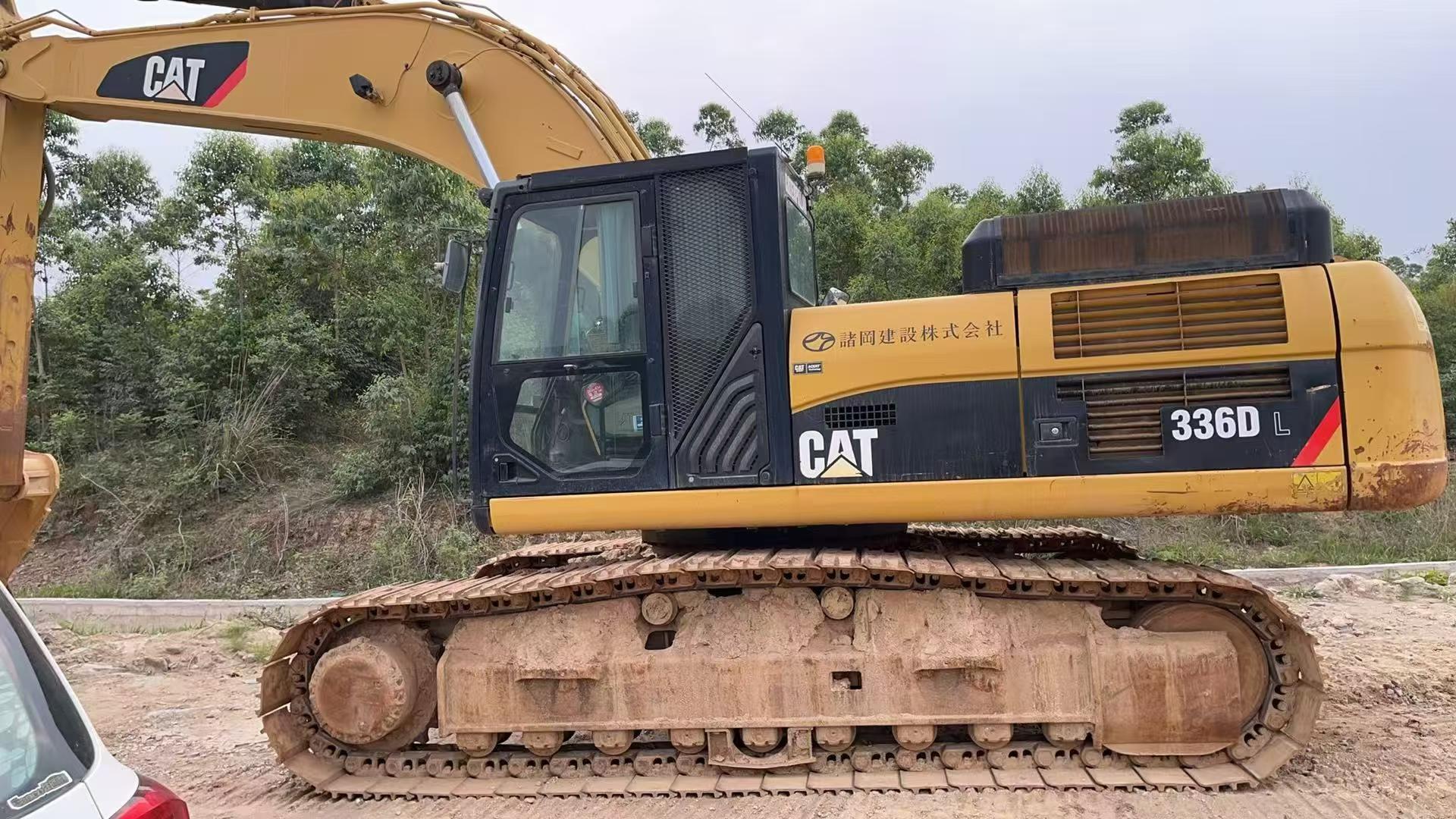

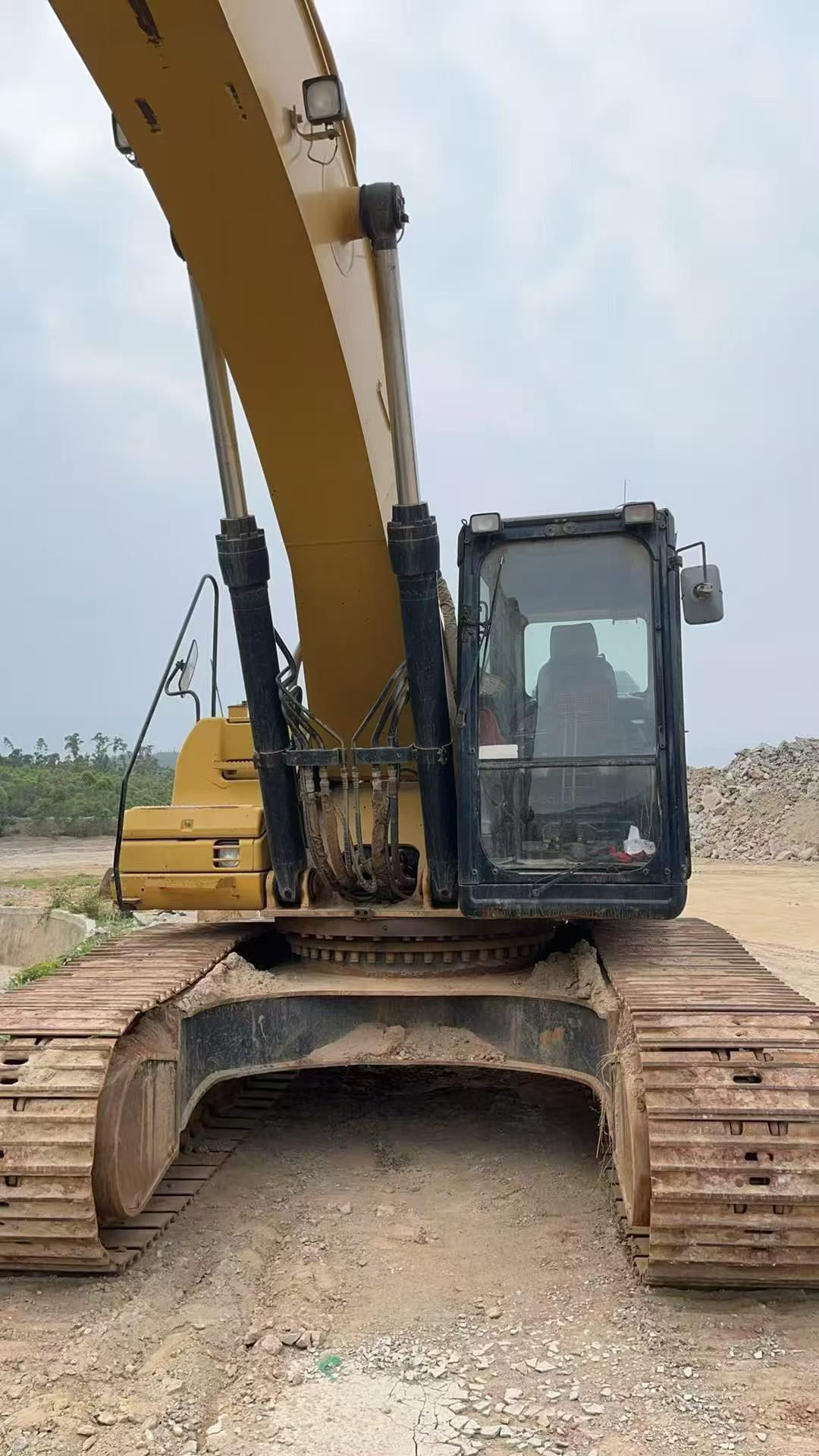

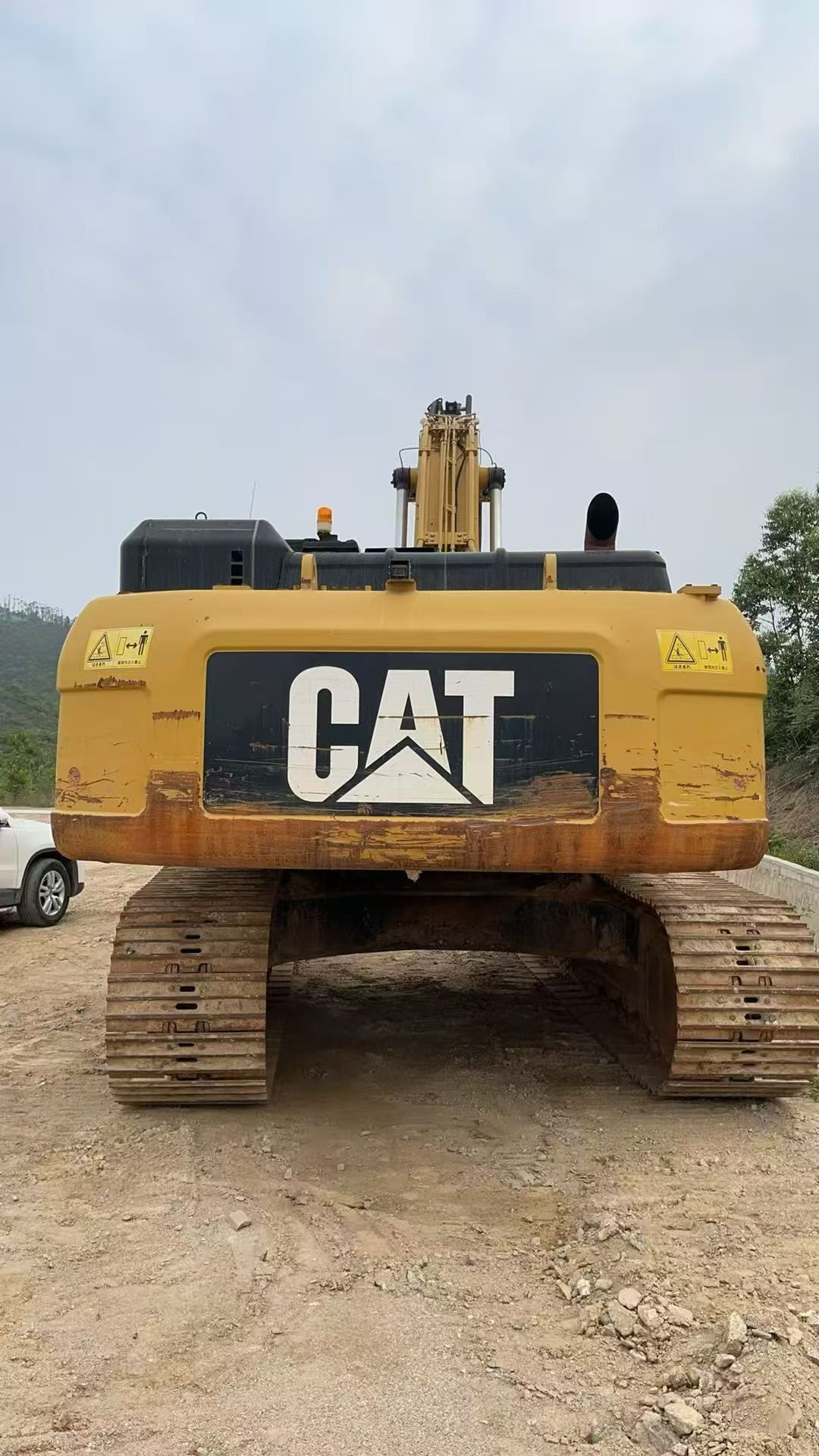

Name: Used Excavators 2016 Caterpillar 336DL
Brand: Caterpillar
SKU: USED-1049484
Availability: InStock
Rating: 4.8 (44 reviews)

Sany

Caterpillar

XCMG

Hitachi

Komatsu

Doosan

Kobelco

Hyundai

Volvo

Sumitomo

Kato

Case

Yanmar

JohnDeere

Liebherr

Expand your operational capacity with this 2016 Caterpillar 336DL hydraulic excavator, a proven 36-ton workhorse engineered for demanding job sites. Powered by the reliable C9 ACERT engine delivering 200 kW at 1900 rpm, this machine provides consistent performance when your primary equipment needs support or when multiple projects demand simultaneous attention. Currently positioned in Hunan, this unit features a 1.5 m³ bucket capacity, 7,390 mm maximum digging depth, and 10,920 mm excavation radius—specifications that match your existing fleet standards without compromise.

<ul>

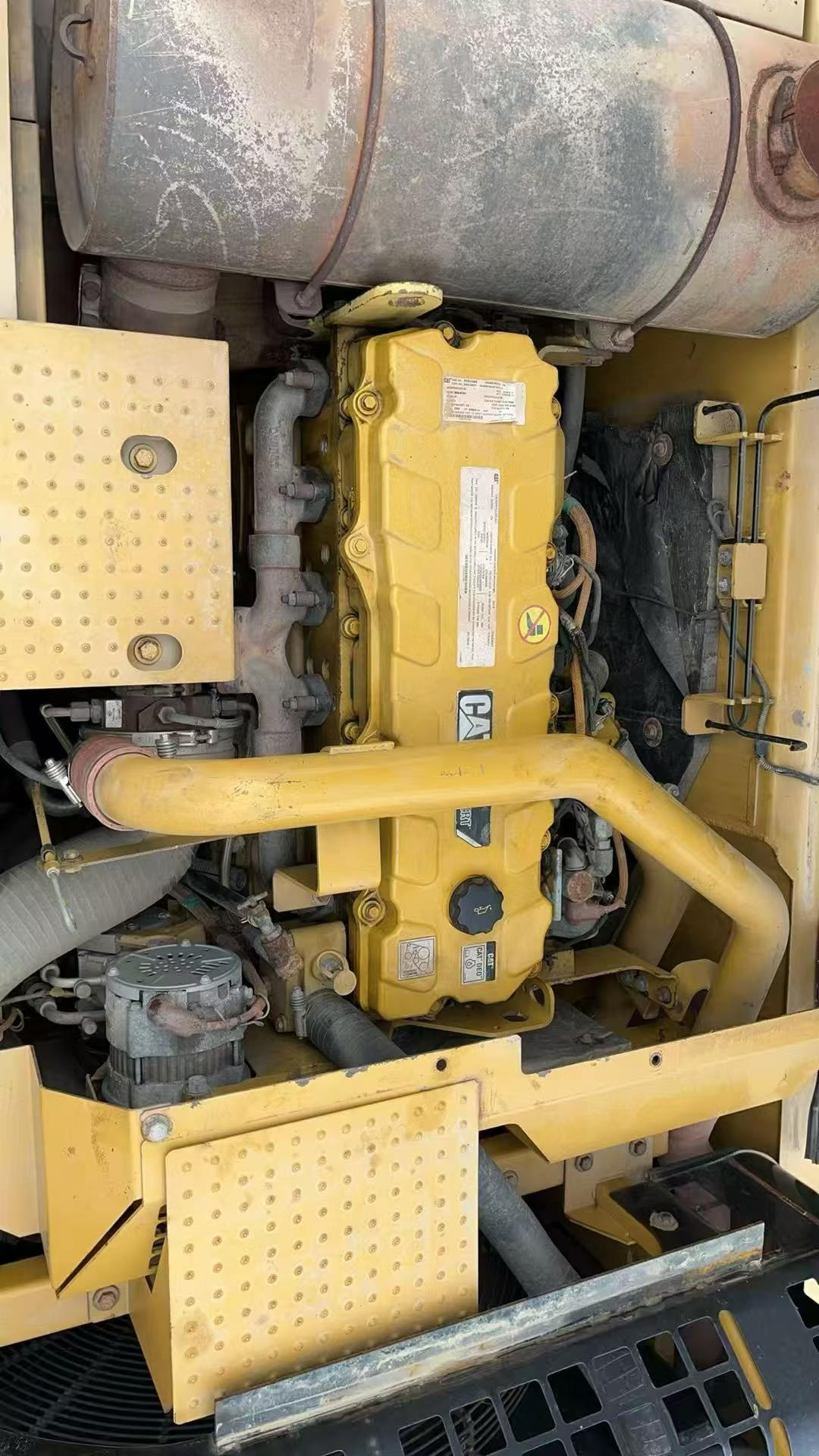

<li>Water-cooled 6-cylinder engine with 8.8L displacement for extended duty cycles</li>

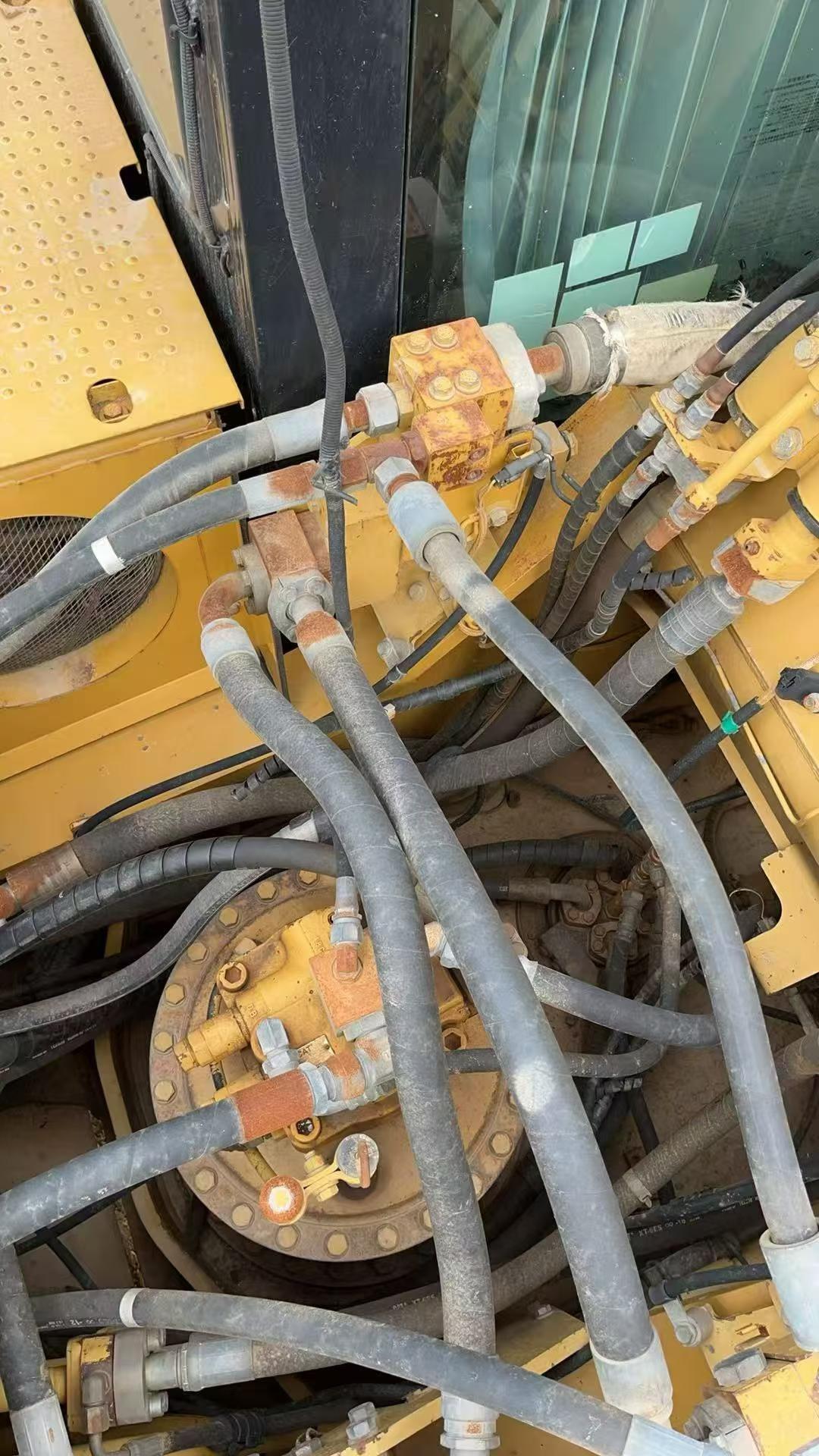

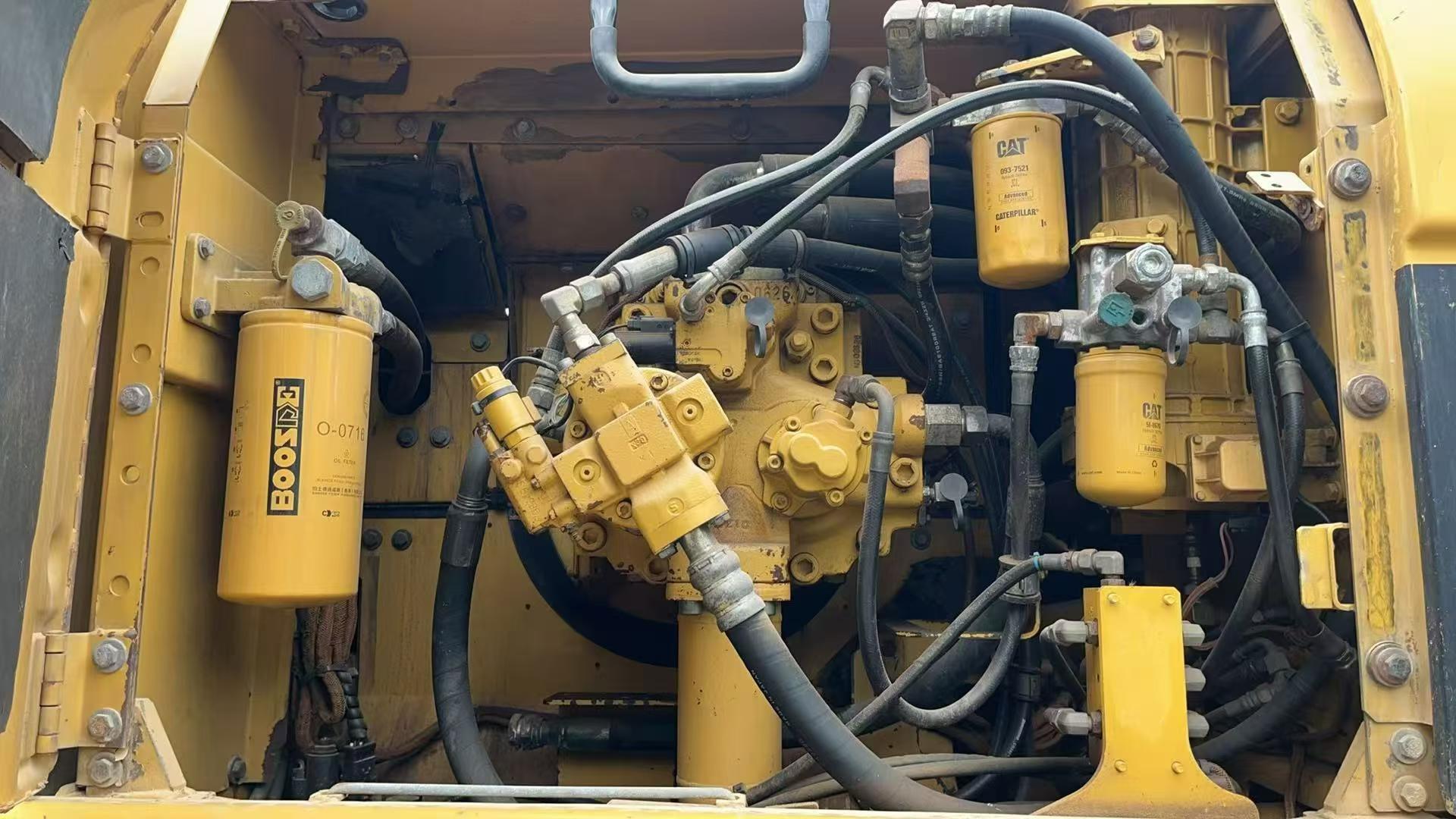

<li>Hydraulic system with 280 l/min main pump flow and 3.5 MPa working circuit pressure</li>
<li>222 kN bucket digging force and 146 kN rod digging force for tough material handling</li>
<li>620L fuel tank capacity minimizes refueling downtime on remote sites</li>
<li>3,500 mm rear turning radius enables operation in confined areas</li>
<li>70% gradeability (35°) for challenging terrain navigation</li>
</ul>

Built for contractors managing multiple contracts simultaneously, this 336DL integrates seamlessly into existing Caterpillar fleets with familiar controls and

Expand your heavy excavation capacity with this 2020 XCMG XE900D, a 90-ton workhorse engineered for contractors managing multiple jobsites simultaneously. Powered by a robust 399kW engine delivering 480kN of bucket digging force, this Chinese-manufactured excavator integrates seamlessly into existing fleets requiring backup equipment or additional reach during peak demand cycles.

Currently located in Wenzhou, Zhejiang, this backhoe-configured machine offers operational versatility across demolition, mining, and large-scale earthmoving projects. With a maximum digging radius of 12,330mm and depth capacity reaching 7,250mm, it matches the performance envelope of comparable Western units while maintaining lower acquisition costs.

<ul>
<li>Working weight: 89,600kg with 4.1-6.0m³ bucket capacity</li>
<li>Hydraulic performance: 370kN rod digging force, 6.3rpm rotation speed</li>
<li>Mobility: 2.8-4.2km/h travel speed for efficient repositioning</li>
<li>Maximum excavation height: 12,060mm</li>
<li>Traditional diesel power system with proven reliability</li>
</ul>

Ideal for contractors seeking fleet redundancy without capital-intensive new equipment purchases. Ready for immediate deployment on infrastructure or resource ex

XCMG XE900D

Engineered for large-scale excavation projects, this 2021 Sany SY980H delivers industrial-grade performance through precision hydraulics and robust mechanical design. Powered by a 425kW engine generating 945 N·m of maximum torque at 1800 rpm, this 98-ton excavator combines raw power with operational efficiency across demanding jobsites.

Technical specifications demonstrate the model's engineering excellence:

<ul>
<li>Bucket digging force of 495 kN and rod digging force of 446 kN for penetrating compacted materials</li>
<li>Maximum digging reach extends to 12,280mm with excavation depth capability of 6,740mm</li>
<li>5.5–6.5 m³ bucket capacity optimizes loading cycles for high-volume earthmoving</li>
<li>Operating weight of 95,800 kg provides stability while maintaining 132 kPa ground pressure</li>
<li>70% gradeability and 945mm ground clearance enable operation on challenging terrain</li>
</ul>

Currently located in Wenzhou, Zhejiang, this Chinese-manufactured excavator represents Sany's heavy equipment capabilities. Transport dimensions of 13,840mm × 3,700mm × 5,300mm facilitate logistics planning for international buyers seeking proven hydraulic excavator technology.

Sany SY980H

Built for endurance, this 2022 XCMG XE370 excavator delivers proven performance across demanding job sites. Operating at 37 tons with traditional power, this Chinese-manufactured workhorse combines substantial digging capacity with field-tested reliability. Currently located in Zhejiang, this machine represents exceptional value for contractors seeking dependable heavy equipment without compromising on capability.

<ul>
<li>Year: 2022</li>
<li>Brand: XCMG</li>
<li>Model: XE370</li>
<li>Tonnage: 37 tons</li>
<li>Power Type: Traditional power</li>
<li>Bucket Configuration: Backhoe</li>
<li>Manufacturer: Made in China</li>
<li>Current Location: Zhejiang, China</li>
</ul>

Recent manufacture year confirms minimal operational wear while maintaining competitive pricing. Standard backhoe configuration handles excavation, trenching, and material handling with proven efficiency. XCMG's reputation for robust construction ensures this machine continues delivering productivity for years ahead. Ready for immediate deployment on infrastructure, mining, or construction projects requiring substantial earthmo

XCMG XE370

Built for demanding excavation work, this 2021 Sany SY205C delivers 20-ton performance with operator-centered engineering. Powered by a robust 118kW engine at 2000 rpm, this Chinese-manufactured excavator combines proven hydraulic strength with enhanced jobsite control. The spacious cab sits at 3075mm, providing commanding visibility across a 10,280mm maximum digging radius and 6,600mm depth capability.

Operators benefit from precise handling through an 11 rpm rotation speed and responsive travel speeds of 5.4/3.3 km/h. Stability remains exceptional even on challenging terrain, supported by 47.3 kPa ground pressure distribution and a 70% (35°) climbing ability. The 600mm track plates and 3,360mm ground contact length ensure solid footing during heavy digging cycles.

<ul>
<li>Bucket digging force: 138 kN</li>
<li>Arm digging force: 109 kN</li>
<li>Bucket capacity: 0.9–1.1 m³</li>
<li>Operating weight: 21,500 kg</li>
<li>Compact turning radius: 2,900mm rear swing</li>
<li>Location: Zhejiang, China</li>
</ul>

Currently available in Zhejiang, this machine offers reliable performance for contractors requiring dependable mid-size excavation capacity.

Sany SY205C

Engineered with a robust 254kW diesel engine delivering peak torque at 1900 rpm, this 2021 XCMG XE380K crawler excavator represents precision-grade heavy machinery from China's leading manufacturer. Operating at a 38-ton class with a working weight of 38,500 kg, this machine generates exceptional bucket digging force of 292 kN through advanced hydraulic systems designed for demanding excavation tasks.

<ul>
<li>Year: 2021</li>
<li>Model: XCMG XE380K</li>
<li>Rated Power: 254 kW @ 1900 rpm</li>
<li>Operating Weight: 38,500 kg</li>
<li>Bucket Capacity: 1.9–2.1 m³</li>
<li>Bucket Digging Force: 292 kN</li>
<li>Maximum Digging Radius: 10,968 mm</li>
<li>Configuration: Backhoe</li>
<li>Location: Zhejiang, China</li>
</ul>

Built for large-scale earthmoving operations, this fuel-efficient excavator combines reach, power, and reliability. Proven engineering ensures consistent performance across mining, infrastructure, and demolition applications. Available for immediate inspection in Zhejiang.

XCMG XE380K

Built for endurance and engineered to perform, this 2019 Sany SY215C excavator represents proven reliability in the 21-ton class. With a robust Mitsubishi 4M50 engine delivering 118kW at 2000rpm and 580N.m of torque, this machine has demonstrated consistent power output across demanding applications. Operating weight of 21,900kg provides exceptional stability, while the 1.1m³ bucket capacity (adjustable 0.8-1.2m³) ensures versatile material handling.

Durability credentials include:
<ul>
<li>Maximum digging reach of 10,280mm with 6,600mm depth capability</li>
<li>Powerful bucket digging force of 138kN and rod force of 103kN</li>
<li>Water-cooled 4.9L displacement engine for sustained thermal management</li>
<li>Generous 390L fuel tank and 239L hydraulic reservoir for extended operation</li>
<li>70% climbing ability handling steep gradients with confidence</li>
<li>Compact 2,900mm rear turning radius for confined job sites</li>
</ul>

Currently located in Zhejiang, China, this proven workhorse offers dependable performance backed by years of field-tested operation. A practical choice for contractors seeking reliable productivity without compromise.

Sany SY215C

Maximize your equipment budget with this 2016 XCMG LW500F wheel loader from Wenzhou, Zhejiang—delivering proven performance at a fraction of new equipment costs. Powered by a robust 162kW engine and rated for 5,000kg loads, this machine handles demanding material handling operations with professional-grade efficiency. Its 2.5-4.5m³ bucket capacity and 170kN digging force tackle high-volume work while the 16,900kg operating weight ensures stability across challenging terrain.

<ul>
<li>Rated Load: 5,000kg with 170kN digging force</li>
<li>Engine Power: 162kW for reliable productivity</li>
<li>Bucket Capacity: 2.5-4.5m³ variable options</li>
<li>Max Unloading Height: 3,150-3,560mm</li>
<li>Maximum Tractive Force: 156kN</li>
<li>Speed Performance: Up to 38km/h (2nd gear)</li>
<li>Compact Maneuverability: 6,920mm turning radius</li>
</ul>

Investing in quality pre-owned machinery means accessing XCMG's renowned engineering without the depreciation hit of new purchases. This LW500F represents smart capital allocation for contractors, quarries, and material yards requiring dependable loader performance. Currently available for immediate deployment from our Wenzhou facility.

XCMG LW500F

Powered by reliability and engineered for performance, this 2022 Sany SY245H excavator delivers 24-ton capacity with proven Chinese manufacturing excellence. Equipped with a robust D06FRC engine producing 147kW at 2100rpm and 750N.m maximum torque, this water-cooled powerhouse handles demanding excavation tasks with a bucket digging force of 175kN and maximum digging depth of 6,705mm.

Sany's global reputation translates into tangible advantages for used equipment buyers. Parts availability remains consistently strong across international markets, minimizing downtime and maintenance costs. With a 1.3-1.5m³ bucket capacity and 10,225mm maximum digging radius, this 25,500kg machine combines operational versatility with long-term investment security. The brand's strong resale values protect your capital, while widespread service networks ensure support wherever your projects take you.

<ul>
<li>Working Weight: 25,500kg with 600mm track plates</li>
<li>Hydraulic Performance: 120kN arm digging force, 10.6rpm rotation speed</li>
<li>Fuel Efficiency: 475L tank capacity for extended operation</li>
<li>Transport Dimensions: 10,290mm × 3,190mm × 3,190mm</li>
<li>Location: Wenzhou, Zhejiang, China</li>
</ul>

Sany SY245H

Engineered for operator confidence, this 2022 Sany SY245H delivers 24-ton performance with exceptional control and visibility. Powered by a robust D06FRC engine producing 147 kW at 2100 rpm, this excavator combines 175 kN bucket digging force with a smooth 10.6 rpm rotation speed for precise material handling. Operators benefit from superior cabin positioning at 3255 mm height, providing commanding sightlines across the 10,225 mm maximum digging radius.

<ul>
<li>Operator Comfort: Spacious cabin design with water-cooled engine reducing heat and vibration</li>
<li>Stable Platform: 25,500 kg working weight with 53.2 kPa ground pressure ensures minimal settling</li>
<li>Responsive Hydraulics: 1.3–1.5 m³ bucket capacity with 120 kN arm force for controlled digging</li>
<li>All-Day Endurance: 475 L fuel tank minimizes refueling downtime on extended shifts</li>
<li>Proven Reliability: 6-cylinder, 6.373 L displacement engine with 750 N·m torque at working rpm</li>
</ul>

Currently located in Zhejiang, China, this machine offers 70% gradeability and dual travel speeds (5.4/3.4 km/h) for versatile jobsite mobility. Ready for immediate deployment in de

Built for immediate deployment on demanding worksites, this 2012 Doosan DH215-7 delivers reliable performance across excavation, grading, and demolition applications. Operating at 21 tons with a powerful 147kW Doosan DB58T1 engine, this machine handles heavy-duty tasks with consistent productivity. The 0.86m³ backhoe bucket generates 144.1kN of digging force, while the rod delivers up to 104.9kN for breaking through compacted materials and rocky terrain.

<ul>
<li>Maximum digging depth of 6,660mm reaches deep trenching requirements</li>
<li>9,970mm maximum digging radius covers extensive work areas</li>
<li>Multiple rod length options (2,400/2,900/3,500mm) adapt to varied site conditions</li>
<li>350L fuel tank supports extended operational shifts</li>
<li>2,750mm rear turning radius enables work in confined spaces</li>
<li>12.1 rpm rotation speed maintains efficient cycle times</li>
</ul>

Currently located in Jiangsu, this excavator arrives ready for foundation work, utility installation, and material handling operations. Air-cooled engine design ensures dependable operation across temperature extremes. Transport dimensions of 9,550mm × 2,800mm × 3,100mm facilitate straightforward logistics to your project site.

Doosan DH215-7

Built for precision and power, this 2021 Sumitomo SH500LHD-6 excavator delivers 270 kW of reliable performance across demanding job sites. Operating at 50 tons with a 2.8-3.0 m³ bucket capacity, this machine combines exceptional digging force—274 kN bucket force and 251 kN arm force—with operator-centered design features that maximize productivity and control.

<ul>
<li>Spacious cabin engineered for extended shifts with superior visibility across the 10,920 mm working radius</li>
<li>Stable platform supported by 85 kPa ground pressure distribution and 3,350 mm track width</li>
<li>Responsive hydraulic system featuring variable capacity piston pump technology for smooth, precise movements</li>
<li>Impressive 6,600 mm maximum digging depth with 10,560 mm reach height for versatile applications</li>
<li>Dual-speed travel capability (5.3/3.2 km/h) adapts to terrain conditions while maintaining operator comfort</li>
<li>9.0 rpm rotation speed enables efficient load cycles without sacrificing stability</li>
</ul>

Currently located in Wenzhou, Zhejiang, this joint venture-manufactured excavator represents proven Japanese engineering quality. With 650L fuel capacity supporting long operational periods, it's ready for infrastructure,

Sumitomo SH500LHD-6

Engineered for high-capacity excavation, this 2021 Sumitomo SH500LHD-6 delivers 270 kW of rated power at 2000 rpm through its robust 9.839L displacement engine. The hydraulic architecture features a variable capacity piston pump system driving 460L of total hydraulic capacity, generating exceptional bucket digging force of 274 kN and rod digging force of 251 kN. Operating at 50 tons working weight with 2.8-3.0 m³ bucket capacity, this joint venture-manufactured machine combines proven Japanese engineering with field-tested performance.

<ul>
<li>Maximum Reach: 10,920 mm digging radius, 6,600 mm depth capability</li>
<li>Power Train: 270 kW engine with 650L fuel capacity for extended operation</li>
<li>Hydraulic Performance: 274 kN bucket force, 9.0 rpm rotation speed</li>
<li>Mobility: 70% climbing ability, 5.3/3.2 km/h travel speeds</li>
<li>Dimensions: 11,680 mm transport length, 3,350 mm width</li>
<li>Ground Pressure: 85 kPa for stable operation on varied terrain</li>
</ul>

Currently located in Zhejiang, this SH500LHD-6 represents Sumitomo's commitment to heavy-duty reliability in the 50-ton excavator class.

Maximize your equipment budget with this 2021 Caterpillar 320A excavator, delivering premium performance without the premium price tag. Powered by proven traditional fuel technology, this 20-ton workhorse combines joint venture manufacturing quality with exceptional operational efficiency. Based in Hubei, this machine offers the reliability Caterpillar is known for at a fraction of new equipment costs.

Key specifications include:
<ul>
<li>Operating weight: 20 tons – ideal for mid-range construction and excavation projects</li>
<li>Traditional power system ensuring fuel availability and lower operating costs</li>
<li>Factory-equipped backhoe bucket configuration for immediate deployment</li>
<li>Joint venture/import manufacturing standards guarantee consistent quality</li>
<li>Low-hour 2021 model year providing years of productive service ahead</li>
</ul>

Investing in quality used equipment means accessing Caterpillar's engineering excellence while preserving capital for other business needs. This 320A represents smart financial planning—proven technology, minimal depreciation hit, and immediate ROI potential. Contact Fair Trade Machinery today to secure high-performance excavation capability at an intelligent price p

Caterpillar 320A

Engineered for demanding excavation work, this 2021 Sany SY305C delivers 30-ton performance with operator-centered design. Equipped with traditional power and a precision backhoe bucket, this Chinese-manufactured excavator handles heavy-duty digging, trenching, and loading applications with consistent reliability. Currently located in Wenzhou, Zhejiang, this machine represents proven mid-size excavation capability for contractors requiring dependable productivity.

<ul>
<li>Enhanced cabin visibility reduces blind spots during complex maneuvers and tight-quarter operations</li>
<li>Responsive hydraulic controls provide smooth, predictable handling across varied terrain conditions</li>
<li>Optimized weight distribution ensures stable performance on slopes and uneven ground</li>
<li>Ergonomic operator station minimizes fatigue during extended shifts</li>
<li>Backhoe configuration suited for foundation work, utility installation, and site preparation</li>
</ul>

Designed for operators who prioritize control and comfort, the SY305C combines practical engineering with field-tested durability. Ready for immediate deployment in construction, infrastructure, or land development projects worldwide.

Sany SY305C

Secure proven performance without the premium price tag. This 2021 Sany SY305C excavator delivers 30-ton lifting capacity and reliable traditional power at a fraction of new equipment costs. Currently located in Zhejiang, China, this machine represents strategic value for contractors seeking dependable productivity on demanding jobsites.

<ul>
<li>Year: 2021</li>
<li>Model: Sany SY305C</li>
<li>Operating Weight: 30 tons</li>
<li>Power System: Traditional diesel engine</li>
<li>Configuration: Backhoe bucket</li>
<li>Origin: Made in China</li>
<li>Current Location: Zhejiang, China</li>
</ul>

Built by Sany with robust engineering standards, this excavator offers substantial cost savings compared to new units while maintaining the durability required for earthmoving, trenching, and material handling operations. Invest wisely—maximize your equipment budget with late-model performance that works as hard as your crew.

Acquire proven excavation power without the premium price tag. This 2016 Sany SY465C delivers 46-ton performance with a 250kW rated engine and 2.2m³ bucket capacity—ideal for large-scale earthmoving, mining operations, and infrastructure projects. With just seven years in service, this machine offers exceptional cost-benefit compared to new equipment pricing while maintaining full operational capability.

<ul>
<li>Operating weight: 45,500 kg with robust 600mm track plates</li>
<li>Maximum digging reach: 11,545mm / depth: 7,285mm</li>
<li>Powerful digging forces: 267kN bucket / 241kN arm</li>
<li>Travel speeds: 5.2 km/h (high) / 3.2 km/h (low)</li>
<li>Climbing ability: 70% gradient (35°)</li>
<li>Compact turning radius: 4,940mm front / 3,750mm rear</li>
</ul>

Currently located in Hangzhou, Zhejiang, this China-manufactured excavator represents smart capital allocation for contractors seeking maximum productivity per dollar invested. Comprehensive transport dimensions (12,090 × 3,340 × 3,690mm) facilitate logistics planning across project sites.

Specifications	Value
No.	1049484
Tonnage (tons)	36
Working weight (kg)	35020
Bucket capacity (m³)	1.5
Boom length (mm)	6500
Rod length (mm)	3200
Country of origin	Japan/Xuzhou
power	Traditional power
manufacturer	Joint venture/Import
bucket	backhoe
Engine type	C9ACERT
Rated power (kw/rpm)	200/1900
Cooling mode	water-cooling
Cylinder diameter × stroke (mm)	110 x 127
Number of cylinders (PCS)	6
Displacement (L)	8.8
Rotation speed (rpm)	10
Climbing ability (%)	70/35 °
Bucket digging force (kN)	222
Rod digging force (kN)	146
Travel speed (km/h)	March 5th
Main overflow set pressure (Mpa)	3.5
Maximum flow of main pump (l/min)	280
Traveling Hydraulic Circuit (Mpa)	3.5
Rotary Hydraulic Circuit (Mpa)	2.8
Hydraulic crushing pipeline is standard	no
Working Hydraulic Circuit (Mpa)	3.5
Pilot Oil Circuit (MPa)	3.9
Bucket cylinders - Number × diameter × stroke (mm)	150 x 1151
Bucket rod cylinders - Number × diameter × stroke (mm)	170 x 1738
Boom cylinders - Number × diameter × stroke (mm)	150 x 1440
Fuel Tank (L)	620
Hydraulic Tank (L)	175
Engine Oil changes (L)	40
Coolant (L)	40
Hydraulic System (L)	410(including fuel tank)
Total transport length (mm)	11150
Total transport width (mm)	3190
Total transport height (mm)	3340
Full cab height (mm)	3140
Counterweight ground clearance (mm)	1220
Minimum ground clearance (mm)	450
Back end turning radius (mm)	3500
Total track length (mm)	5020
Track gauge (mm)	2590
Track plate width (mm)	700
Total track width (mm)	3290
Track ground length (mm)	4040
Maximum digging depth (mm)	7390
Maximum excavation height (mm)	10240
Maximum unloading height (mm)	7200
Maximum vertical digging depth (mm)	5830
Bulldozer lift or depth (mm)	No bulldozer
Dodging plate width × height (mm)	No bulldozer
Maximum excavation radius of stop surface (mm)	10920
Maximum effective digging depth (mm)	7230

2016 Caterpillar 336DL

Product Description

Overview

Brand Name：

Model Number：

Year：

Location：

Pub Date：

You may also like

QUICK LINKS

ABOUT US

CONTACT US
