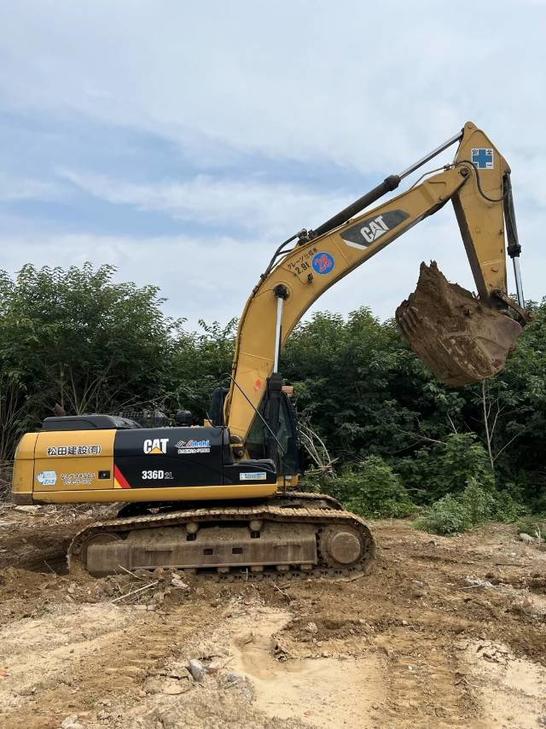

2020 Caterpillar 336DL
Product Description
Discover the 2020 Caterpillar 336DL, a premium excavator available in Peking, China. This machine is renowned for its exceptional condition and performance, featuring an impressively fast operational speed and a robust hydraulic system that has been well-maintained. The critical components of this 336DL have not been tampered with, ensuring reliability and durability. It is free from any oil leaks, and the paintwork is in excellent condition. The original chains and bucket are nearly new, maintaining about 90% of their original quality. Ideal for contractors and construction companies looking for a dependable and high-performing excavator, this Caterpillar 336DL is ready to meet your project needs.
- Year: 2020
- Brand: Caterpillar
- Model: 336DL
- Location: Peking, China
- Condition: Excellent, with minimal wear on chains and bucket
| Specifications | Value |
|---|---|
| No. | 1136022 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 35020 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3200 |
| Country of origin | Japan/Xuzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C9ACERT |
| Rated power (kw/rpm) | 200/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 110 x 127 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.8 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 222 |
| Rod digging force (kN) | 146 |
| Travel speed (km/h) | March 5th |
| Main overflow set pressure (Mpa) | 3.5 |
| Maximum flow of main pump (l/min) | 280 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.8 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.5 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 x 1151 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170 x 1738 |
| Boom cylinders - Number × diameter × stroke (mm) | 150 x 1440 |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 175 |
| Engine Oil changes (L) | 40 |
| Coolant (L) | 40 |
| Hydraulic System (L) | 410(including fuel tank) |
| Total transport length (mm) | 11150 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3340 |
| Full cab height (mm) | 3140 |
| Counterweight ground clearance (mm) | 1220 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | 5020 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 700 |
| Total track width (mm) | 3290 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 7390 |
| Maximum excavation height (mm) | 10240 |
| Maximum unloading height (mm) | 7200 |
| Maximum vertical digging depth (mm) | 5830 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10920 |
| Maximum effective digging depth (mm) | 7230 |
