2016 Caterpillar 336EL
Product Description
Proven performance meets long-term value in this 2016 Caterpillar 336EL excavator, currently located in Yichun, Jiangxi. Powered by the robust Cat C9.3 ATAAC engine delivering 224 kW, this 36-ton workhorse combines exceptional digging force with the reliability that defines the Caterpillar brand. With a maximum digging reach of 11,720mm and depth of 8,190mm, this machine handles demanding excavation tasks with consistent efficiency.
Investing in Caterpillar equipment means securing your operation's future. Key advantages include:
- Worldwide parts availability ensures minimal downtime and fast repairs
- Strong resale value protects your capital investment
- Extensive dealer network provides technical support across regions
- EPA Tier 4 compliant engine meets modern emission standards
- Proven hydraulic system with 578 L/min flow for responsive operation
Operating weight ranges from 36,570-39,370 kg with a 2.28 m³ bucket capacity, making this 336EL suitable for construction, mining, and heavy civil projects. Caterpillar's reputation for durability translates directly into lower total cost of ownership and reliable performance when you need it most.
| Specifications | Value |
|---|---|
| No. | 1005133 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36570-39370 |
| Bucket capacity (m³) | 2.28 (General) |
| Boom length (mm) | 2550/3200/3900 |
| Rod length (mm) | 6180/6500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

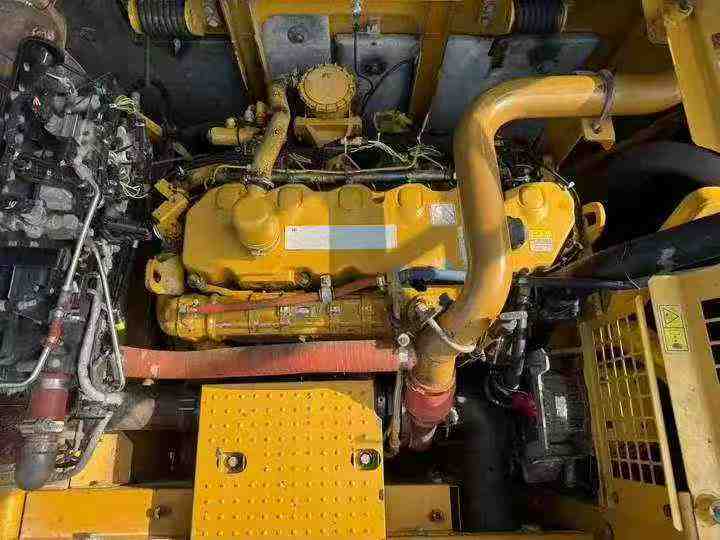

| Engine type | Caterpillar Cat C9.3(ATAAC) |
| Rated power (kw/rpm) | 224 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 149 |
| Displacement (L) | 9.3 |
| Working form | Air-to-air cooling meets EPA Tier 4 (US Environmental Protection Agency Phase 4) emission standards |
| Rotation speed (rpm) | 9.2 |
| Maximum tractive force (kN) | 295 |
| Travel speed (km/h) | 4.9 |
| Maximum flow of main pump (l/min) | 578 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Pilot Oil Circuit (MPa) | 4.1 |
| Pilot pump flow (L/min) | 26 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-160 x 1356 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-170 x 1738 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-150 x 1440 |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 175 |
| Engine Oil changes (L) | 30.5 |
| Coolant (L) | 56 |
| Hydraulic System (L) | 380 |
| Total transport length (mm) | 11170 |
| Total transport width (mm) | 3290/3390/3440 |
| Total transport height (mm) | 3660 |
| Full cab height (mm) | 3360 |
| Counterweight ground clearance (mm) | 3360 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | 5020 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 700/800/850 |
| Maximum digging radius (mm) | 11720 |
| Maximum digging depth (mm) | 8190 |
| Maximum excavation height (mm) | 10740 |
| Maximum unloading height (mm) | 7500 |
| Maximum vertical digging depth (mm) | 6310 |
| Maximum effective digging depth (mm) | 7610 |
Overview
No.1005133
Brand Name：
CaterpillarModel Number：
336ELYear：
2016
Location：
Jiangxi China
Pub Date：
