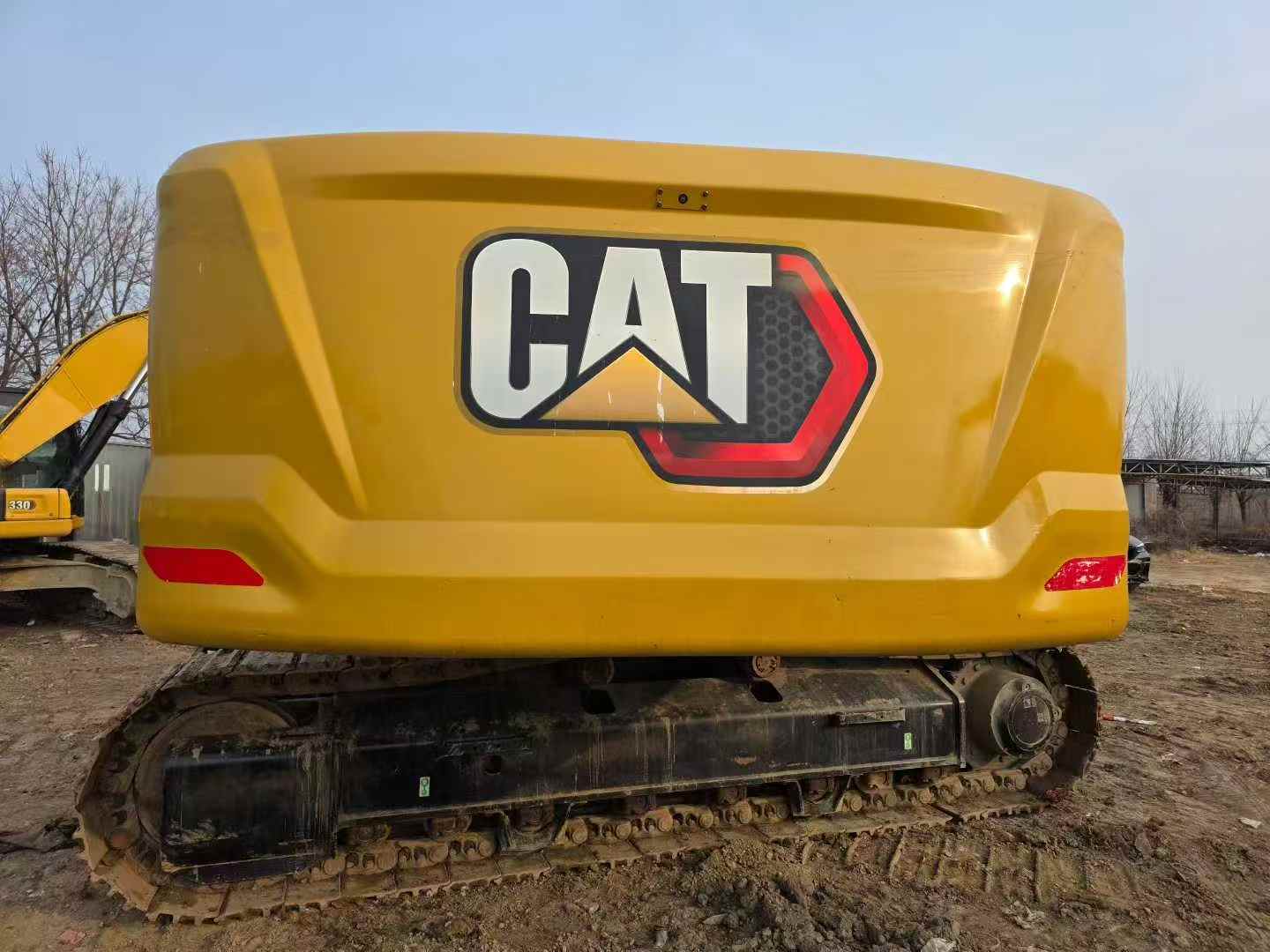

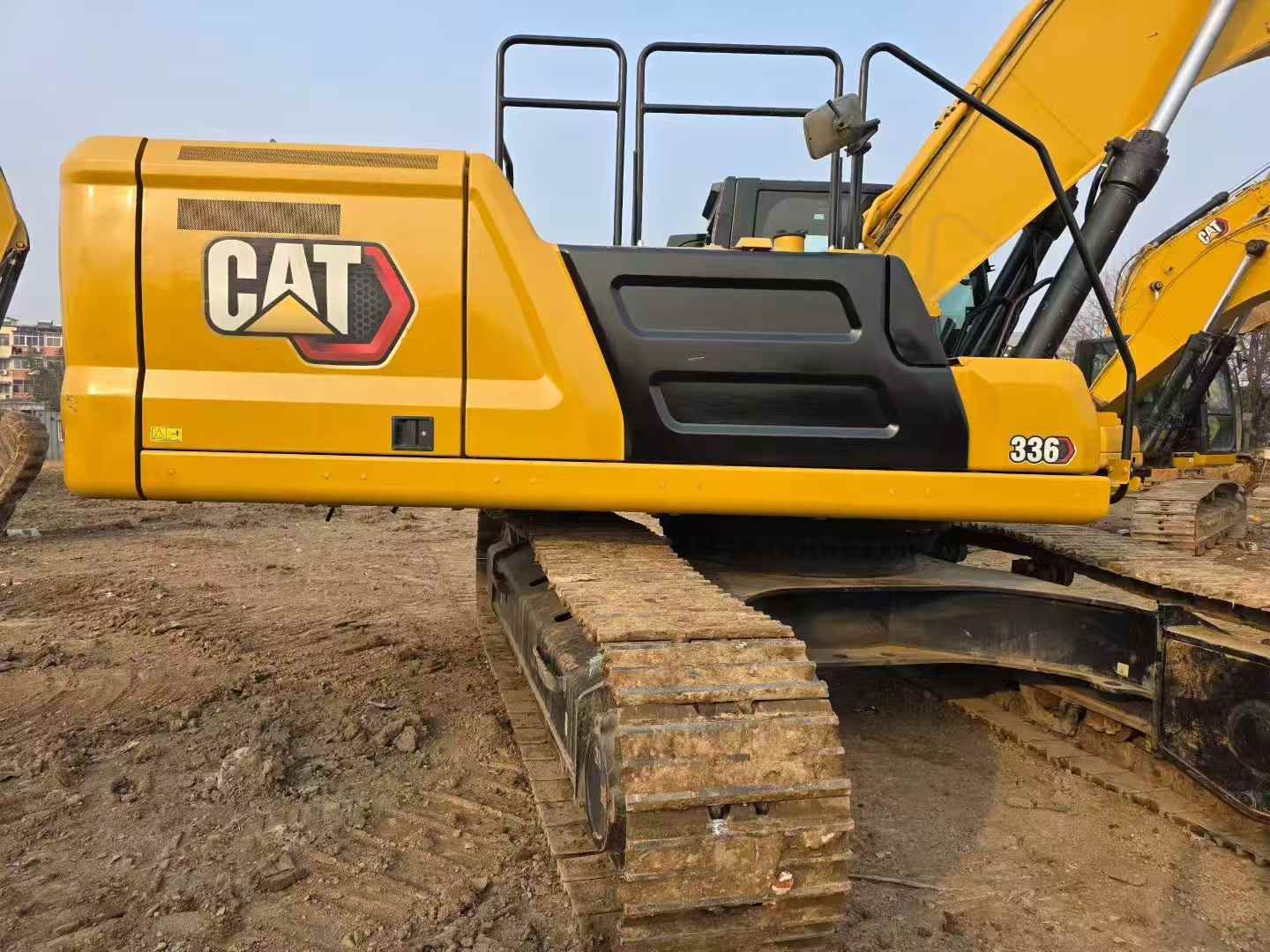

2016 Caterpillar 336FLH
Product Description
Built for demanding excavation work, this 2016 Caterpillar 336FLH delivers immediate productivity on any jobsite. Operating at 36 tons with a powerful Cat C9.3 engine producing 224 kW, this machine tackles heavy digging, grading, and demolition tasks without hesitation. The 2.28 m³ bucket capacity moves substantial material volumes, while the 10,740 mm maximum digging depth reaches deep trenching requirements with precision.
Currently located in Xuzhou, Jiangsu, this excavator comes equipped with versatile boom options (2550/3200/3900 mm) and rod configurations (6180/6500 mm) to match your specific application needs. The 578 L/min hydraulic flow ensures responsive control and efficient cycle times. Water-cooled operation and EPA Tier 4 compliant emissions meet modern environmental standards while maintaining reliable performance.
- Maximum excavation height: 7500 mm for loading operations
- 295 kN maximum tractive force for challenging terrain
- 620 L fuel capacity supports extended work shifts
- 3500 mm rear turning radius enables confined space maneuverability
Ready to deploy on construction, mining, or demolition projects requiring proven Caterpillar reliability and performa
| Specifications | Value |
|---|---|
| No. | 1008715 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36570-39370 |
| Bucket capacity (m³) | 2.28 |
| Boom length (mm) | 2550/3200/3900 |
| Rod length (mm) | 6180/6500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar Cat C9.3(ATAAC) |
| Rated power (kw/rpm) | 224 |

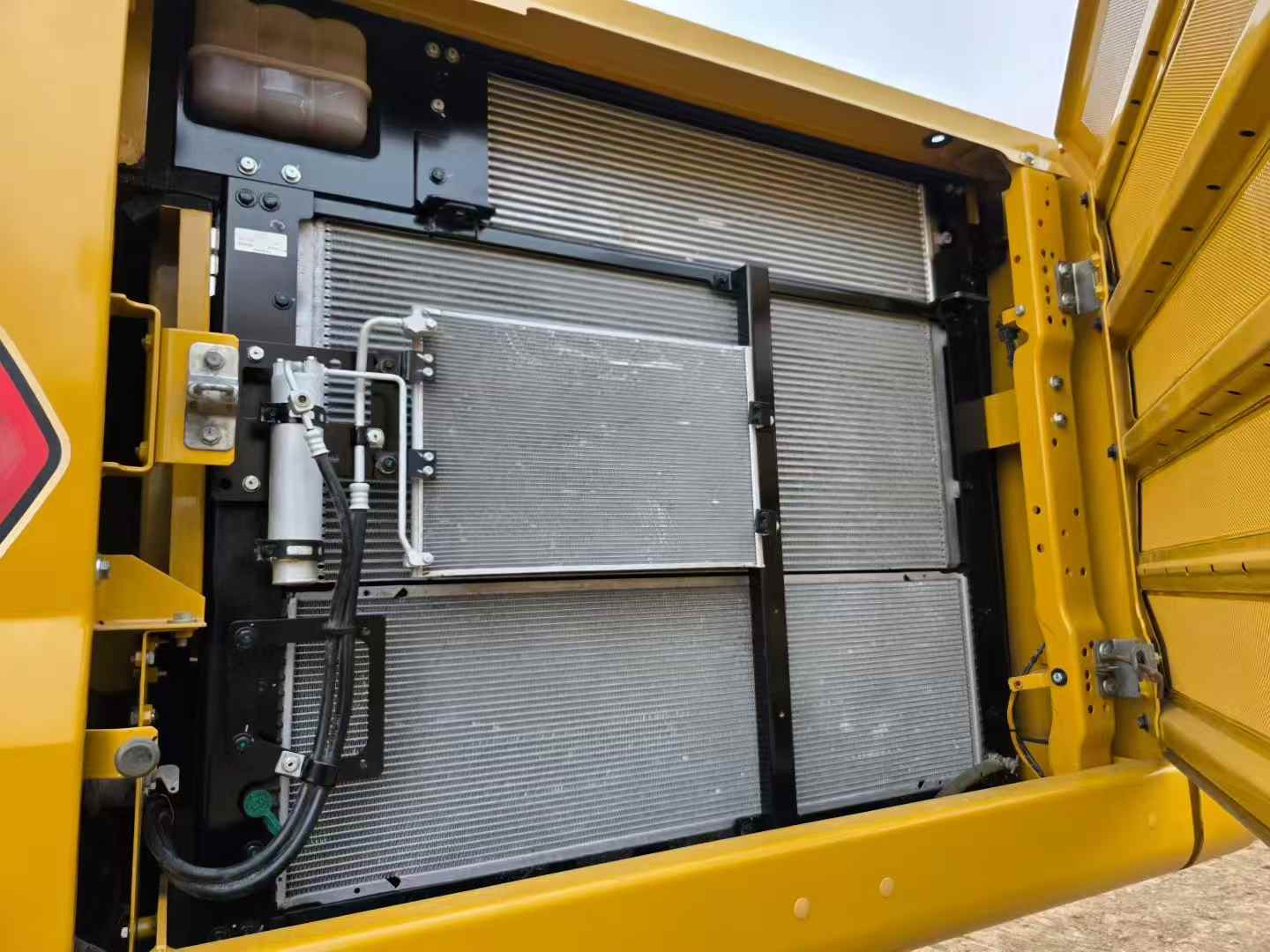

| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 149 |
| Displacement (L) | 9.3 |
| Working form | Air-to-air cooling meets EPA Tier 4 (US Environmental Protection Agency Phase 4) emission standards |
| Rotation speed (rpm) | 9.2 |
| Maximum tractive force (kN) | 295 |
| Travel speed (km/h) | 4.9 |

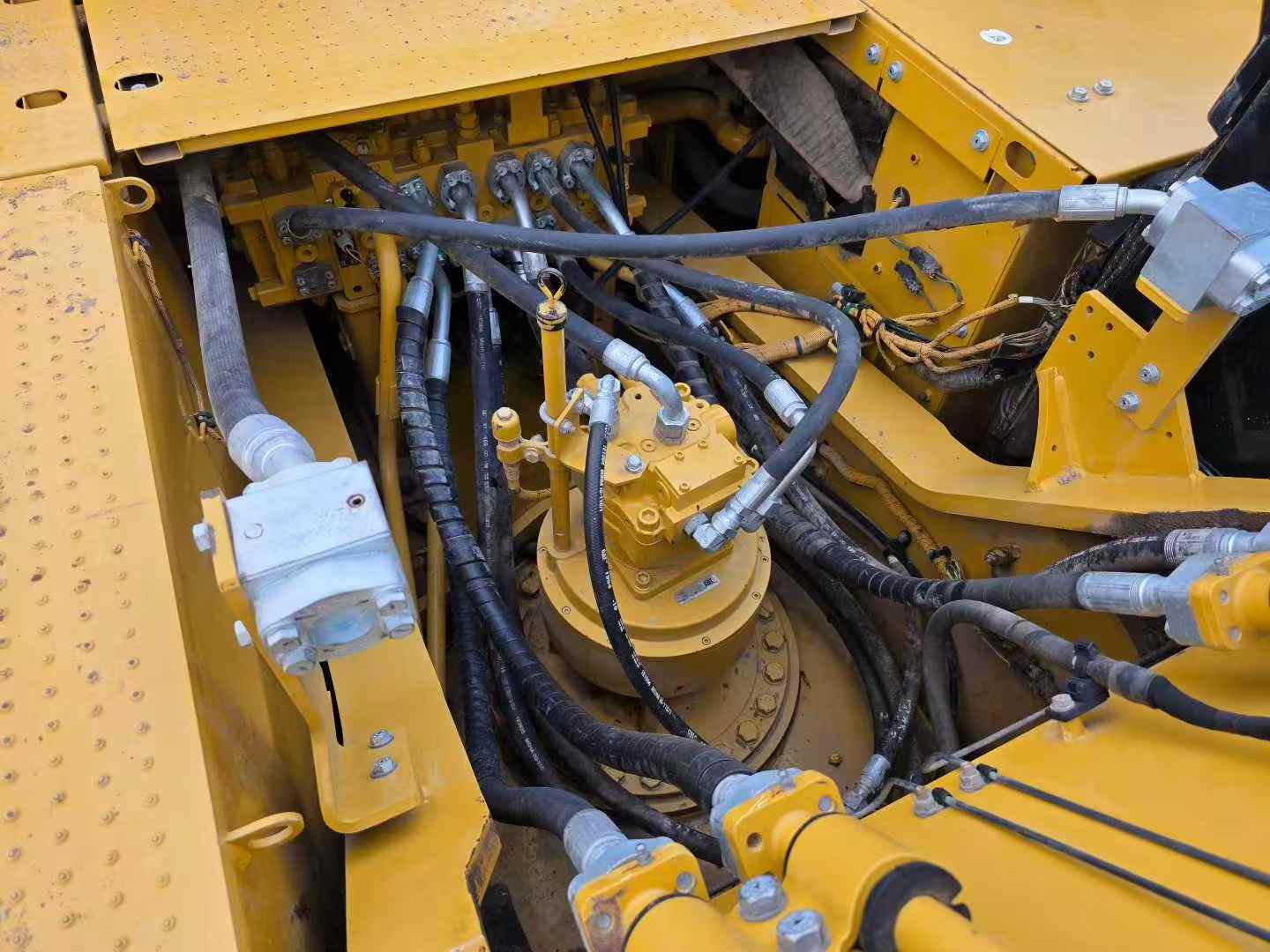

| Maximum flow of main pump (l/min) | 578 |
| Traveling Hydraulic Circuit (Mpa) | |35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Pilot pump flow (L/min) | 4.1 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-160 x 1356 |
| Fuel Tank (L) | 620 |
| Coolant (L) | 56 |
| Total transport length (mm) | 11170 |
| Total transport width (mm) | 3290/3390/3440 |
| Counterweight ground clearance (mm) | 5020 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | |700/800/850 |
| Maximum digging depth (mm) | 10740 |
| Maximum excavation height (mm) | 7500 |
| Maximum unloading height (mm) | 7610 |
Overview
No.1008715
Brand Name：
CaterpillarModel Number：
336FLHYear：
2016
Location：
Jiangsu China
Pub Date：
