2016 Caterpillar 336FLH
Product Description
Maximize your ROI with this 2016 Caterpillar 336FLH hydraulic excavator, delivering flagship performance at a fraction of new equipment costs. Powered by the robust Cat C9.3 ATAAC engine producing 224 kW, this 36-ton workhorse meets EPA Tier 4 emission standards while maintaining exceptional productivity. Currently located in Shenzhen, Guangdong, this joint venture/import machine offers proven reliability backed by Caterpillar's engineering excellence.
Key specifications include:
- Operating weight: 36,570-39,370 kg with 2.28 m³ bucket capacity
- Maximum digging depth of 10,740 mm and reach height of 7,500 mm
- Hydraulic system: 578 L/min main pump flow for responsive operation
- Multiple boom configurations (2,550/3,200/3,900 mm) for versatile applications
- 620L fuel capacity for extended operation cycles
Acquire proven heavy-duty capability without the premium price tag of new equipment. This 336FLH combines advanced hydraulics, efficient water-cooled power, and Caterpillar durability—making it a strategic choice for contractors seeking maximum value in demanding excavation, demolition, and material handling operations.
| Specifications | Value |
|---|---|
| No. | 1010277 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36570-39370 |
| Bucket capacity (m³) | 2.28 |
| Boom length (mm) | 2550/3200/3900 |
| Rod length (mm) | 6180/6500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

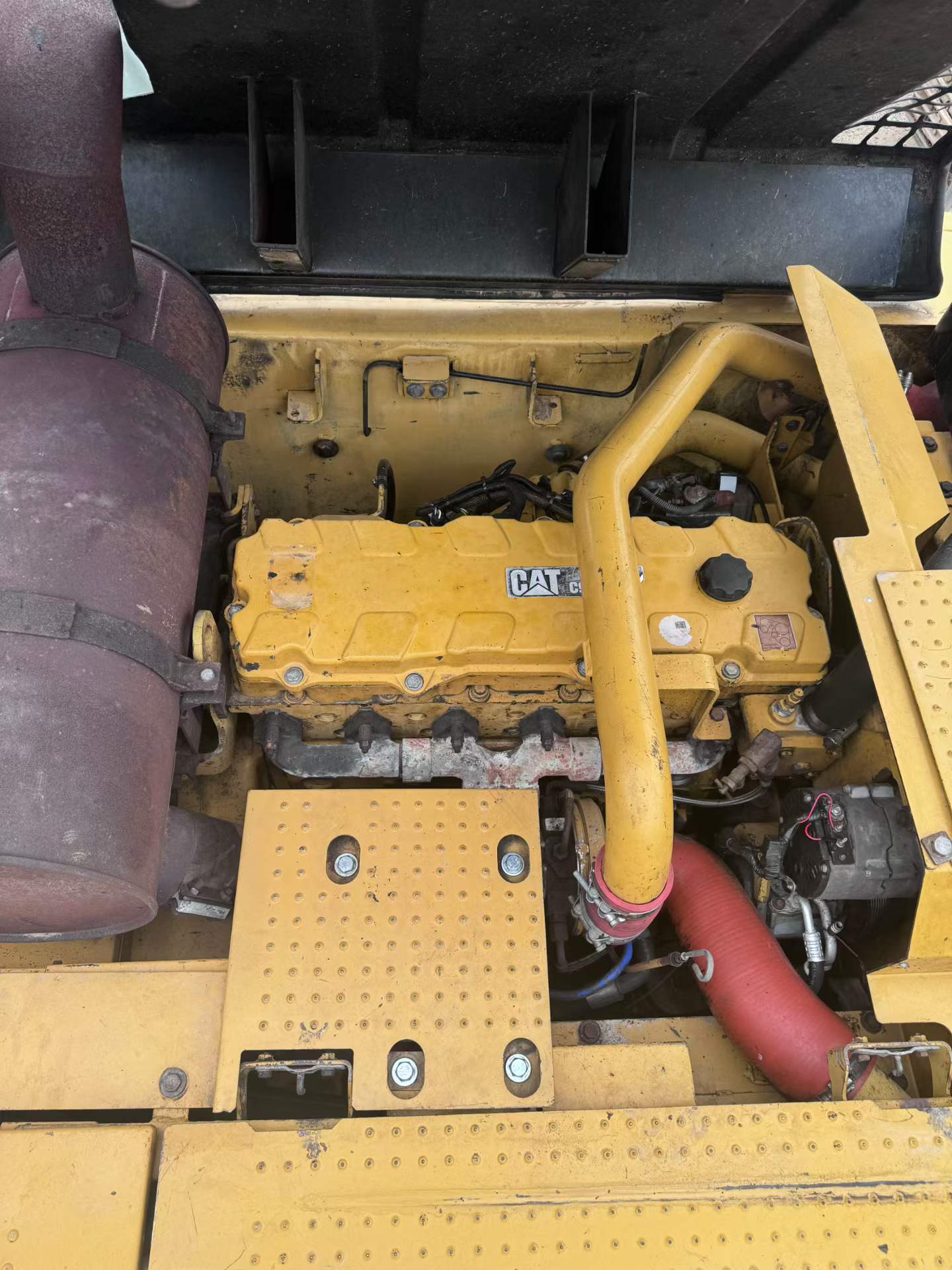

| Engine type | Caterpillar Cat C9.3(ATAAC) |
| Rated power (kw/rpm) | 224 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 149 |
| Displacement (L) | 9.3 |
| Working form | Air-to-air cooling meets EPA Tier 4 (US Environmental Protection Agency Phase 4) emission standards |
| Rotation speed (rpm) | 9.2 |
| Maximum tractive force (kN) | 295 |
| Travel speed (km/h) | 4.9 |

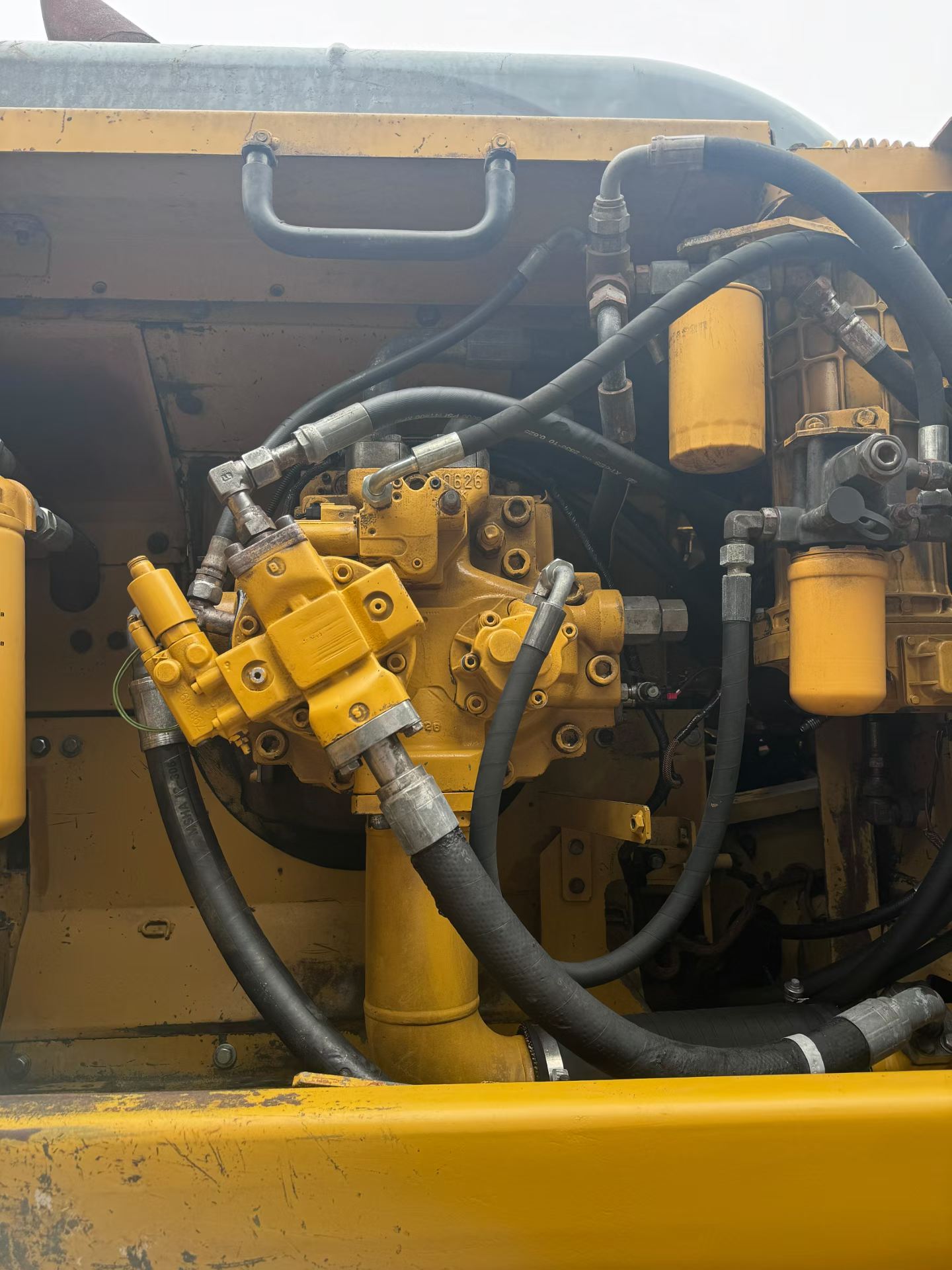

| Maximum flow of main pump (l/min) | 578 |
| Traveling Hydraulic Circuit (Mpa) | |35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Pilot pump flow (L/min) | 4.1 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-160 x 1356 |
| Fuel Tank (L) | 620 |
| Coolant (L) | 56 |
| Total transport length (mm) | 11170 |
| Total transport width (mm) | 3290/3390/3440 |
| Counterweight ground clearance (mm) | 5020 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | |700/800/850 |
| Maximum digging depth (mm) | 10740 |
| Maximum excavation height (mm) | 7500 |
| Maximum unloading height (mm) | 7610 |
Overview
No.1010277
Brand Name：
CaterpillarModel Number：
336FLHYear：
2016
Location：
Guangdong China
Pub Date：
