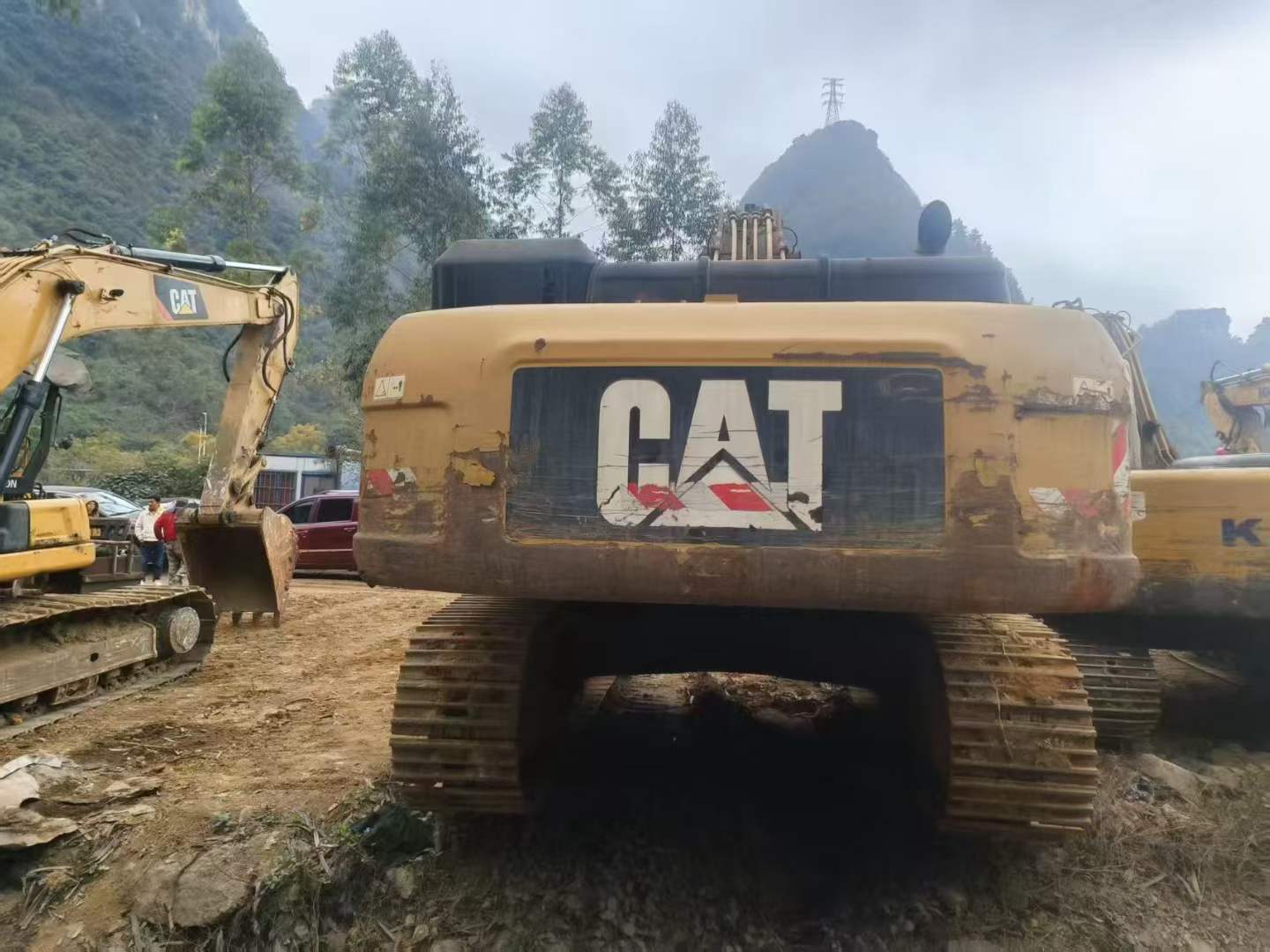

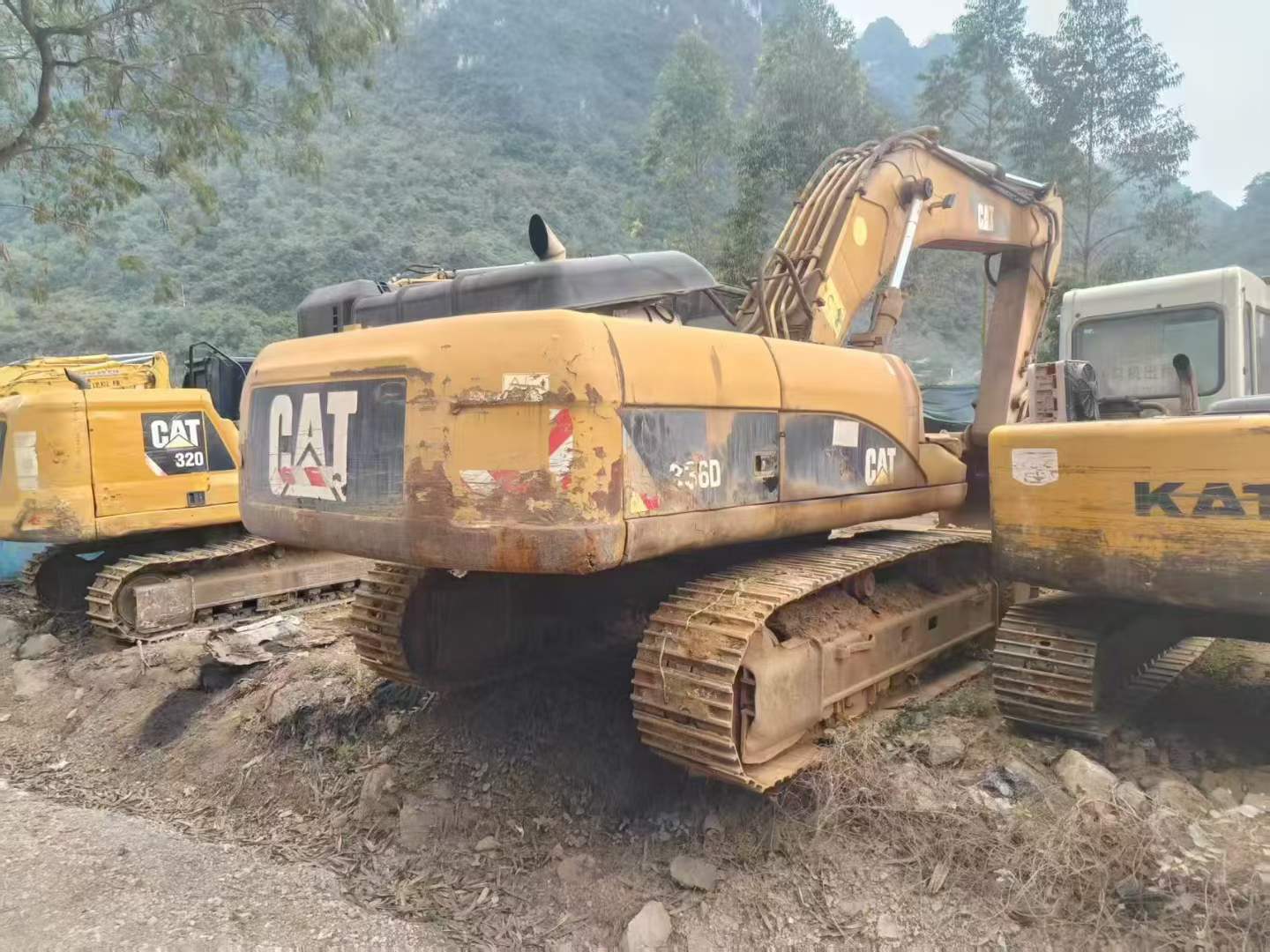

2016 Caterpillar 336FLH
Product Description
Proven performance meets exceptional durability in this 2016 Caterpillar 336FLH forestry excavator, engineered for demanding heavy-duty applications. With seven years of field-tested reliability, this 36-ton workhorse demonstrates Caterpillar's legendary build quality and longevity. Powered by the robust Cat C9.3 ATAAC engine delivering 224 kW, this machine combines formidable power with EPA Tier 4 compliance for environmentally conscious operations.
Built to endure the toughest conditions, key specifications include:
- Operating weight: 36,570-39,370 kg with proven structural integrity
- Maximum digging depth: 10,740 mm for versatile reach capabilities
- Bucket capacity: 2.28 m³ for optimal productivity
- Hydraulic flow: 578 L/min ensuring responsive performance
- Fuel capacity: 620 L for extended operation cycles
- Maximum tractive force: 295 kN for superior ground engagement
Currently located in Maoming, Guangdong, this forestry-configured excavator represents dependable investment-grade equipment with documented operational history. Water-cooled engine technology and air-to-air intercooling maintain consistent performance across extended work shifts.
| Specifications | Value |
|---|---|
| No. | 1012597 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36570-39370 |
| Bucket capacity (m³) | 2.28 |
| Boom length (mm) | 2550/3200/3900 |
| Rod length (mm) | 6180/6500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar Cat C9.3(ATAAC) |
| Rated power (kw/rpm) | 224 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 149 |
| Displacement (L) | 9.3 |
| Working form | Air-to-air cooling meets EPA Tier 4 (US Environmental Protection Agency Phase 4) emission standards |
| Rotation speed (rpm) | 9.2 |
| Maximum tractive force (kN) | 295 |
| Travel speed (km/h) | 4.9 |
| Maximum flow of main pump (l/min) | 578 |
| Traveling Hydraulic Circuit (Mpa) | |35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Pilot pump flow (L/min) | 4.1 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-160 x 1356 |
| Fuel Tank (L) | 620 |
| Coolant (L) | 56 |
| Total transport length (mm) | 11170 |
| Total transport width (mm) | 3290/3390/3440 |
| Counterweight ground clearance (mm) | 5020 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | |700/800/850 |
| Maximum digging depth (mm) | 10740 |
| Maximum excavation height (mm) | 7500 |
| Maximum unloading height (mm) | 7610 |
Overview
No.1012597
Brand Name：
CaterpillarModel Number：
336FLHYear：
2016
Location：
Guangdong China
Pub Date：
