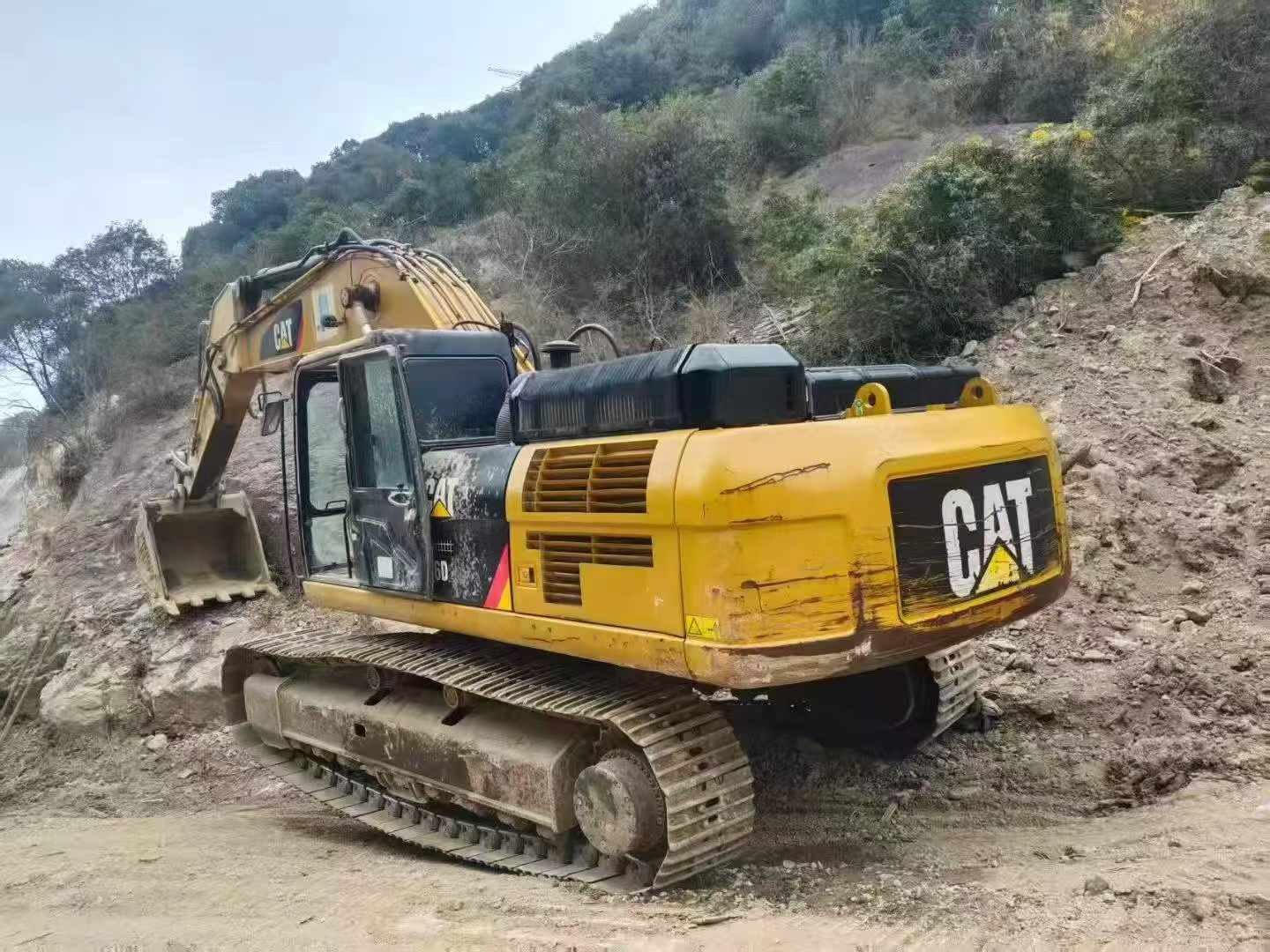

2016 Caterpillar 336FLH
Product Description
Expand your operational capacity with this 2016 Caterpillar 336FLH hydraulic excavator, currently available in Hangzhou, Zhejiang. Built for contractors managing multiple jobsites, this 36-ton machine delivers consistent performance as a fleet addition or reliable backup unit. Powered by the Cat C9.3 ATAAC engine producing 224 kW, it meets EPA Tier 4 emission standards while maintaining robust productivity across demanding applications.
Key specifications include:
- Operating weight: 36,570-39,370 kg with 2.28 m³ bucket capacity
- Configurable boom options (2550/3200/3900 mm) and rod lengths (6180/6500 mm) for versatile reach requirements
- Maximum digging depth of 10,740 mm and unloading height of 7,610 mm
- Hydraulic flow rate of 578 L/min supporting efficient cycle times
- 620L fuel capacity minimizing refueling downtime during extended shifts
Designed for integration into existing Caterpillar fleets, this joint venture/import model provides parts compatibility and service continuity. Whether covering maintenance schedules or scaling operations for peak demand periods, this 336FLH offers the proven durability contractors require for uninterrupted project execution.
| Specifications | Value |
|---|---|
| No. | 995904 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36570-39370 |
| Bucket capacity (m³) | 2.28 |
| Boom length (mm) | 2550/3200/3900 |
| Rod length (mm) | 6180/6500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar Cat C9.3(ATAAC) |
| Rated power (kw/rpm) | 224 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 149 |
| Displacement (L) | 9.3 |
| Working form | Air-to-air cooling meets EPA Tier 4 (US Environmental Protection Agency Phase 4) emission standards |
| Rotation speed (rpm) | 9.2 |
| Maximum tractive force (kN) | 295 |
| Travel speed (km/h) | 4.9 |
| Maximum flow of main pump (l/min) | 578 |
| Traveling Hydraulic Circuit (Mpa) | |35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Pilot pump flow (L/min) | 4.1 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-160 x 1356 |
| Fuel Tank (L) | 620 |
| Coolant (L) | 56 |
| Total transport length (mm) | 11170 |
| Total transport width (mm) | 3290/3390/3440 |
| Counterweight ground clearance (mm) | 5020 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | |700/800/850 |
| Maximum digging depth (mm) | 10740 |
| Maximum excavation height (mm) | 7500 |
| Maximum unloading height (mm) | 7610 |
