2017 Caterpillar 336FLH
Product Description
Engineered for heavy-duty forestry and demolition applications, this 2017 Caterpillar 336FLH delivers exceptional performance through advanced hydraulic architecture and proven powertrain technology. Operating at 36 tons with a working weight range of 36,570-39,370 kg, this machine combines raw power with precision control for demanding jobsite conditions.

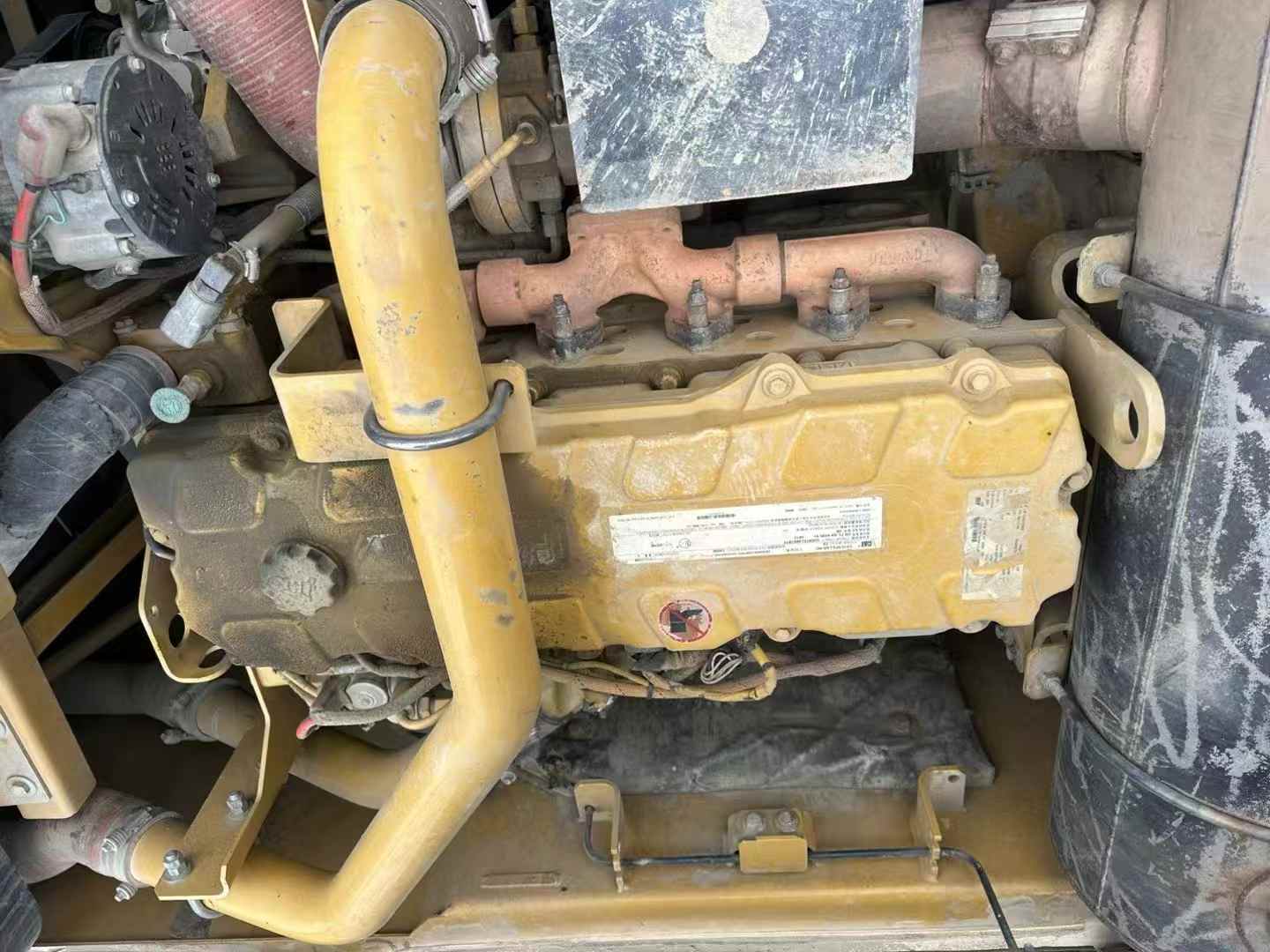

At its core sits the Caterpillar Cat C9.3 (ATAAC) engine producing 224 kW of rated power through a 9.3L displacement, meeting EPA Tier 4 emission standards via air-to-air cooling technology. Hydraulic capacity reaches 578 L/min through the main pump system, supporting a maximum tractive force of 295 kN and enabling a 2.28 m³ bucket capacity. The machine achieves a maximum digging depth of 10,740 mm with an impressive reach height of 7,610 mm.
Key Technical Specifications:
- Water-cooled Cat C9.3 engine with 115 × 149 mm cylinder configuration
- Triple boom length options: 2,550/3,200/3,900 mm for operational versatility
- 620L fuel tank capacity for extended operational periods
- Currently located in Guilin, Guangxi, ready for international shipping
| Specifications | Value |
|---|---|
| No. | 1010988 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36570-39370 |
| Bucket capacity (m³) | 2.28 |
| Boom length (mm) | 2550/3200/3900 |
| Rod length (mm) | 6180/6500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar Cat C9.3(ATAAC) |
| Rated power (kw/rpm) | 224 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 149 |
| Displacement (L) | 9.3 |
| Working form | Air-to-air cooling meets EPA Tier 4 (US Environmental Protection Agency Phase 4) emission standards |
| Rotation speed (rpm) | 9.2 |
| Maximum tractive force (kN) | 295 |
| Travel speed (km/h) | 4.9 |
| Maximum flow of main pump (l/min) | 578 |
| Traveling Hydraulic Circuit (Mpa) | |35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Pilot pump flow (L/min) | 4.1 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-160 x 1356 |
| Fuel Tank (L) | 620 |
| Coolant (L) | 56 |
| Total transport length (mm) | 11170 |
| Total transport width (mm) | 3290/3390/3440 |
| Counterweight ground clearance (mm) | 5020 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | |700/800/850 |
| Maximum digging depth (mm) | 10740 |
| Maximum excavation height (mm) | 7500 |
| Maximum unloading height (mm) | 7610 |
Overview
No.1010988
Brand Name：
CaterpillarModel Number：
336FLHYear：
2017
Location：
Guangxi China
Pub Date：
