2017 Caterpillar 336FLH
Product Description

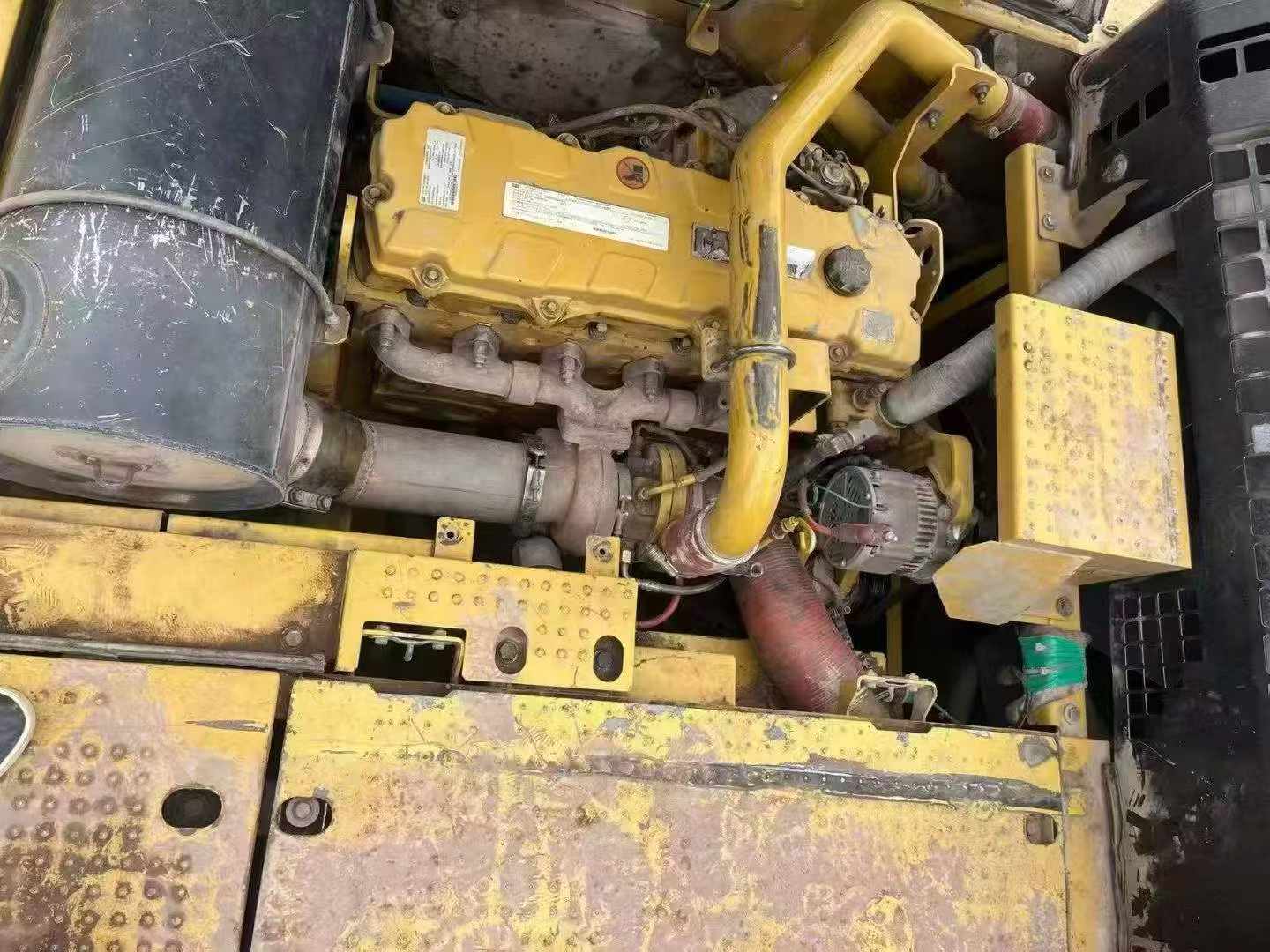

Acquiring proven performance doesn't require a premium price tag. This 2017 Caterpillar 336FLH hydraulic excavator delivers 36-ton capacity and joint venture/import quality at a fraction of new equipment costs. Powered by the Cat C9.3 ATAAC engine producing 224kW, it meets EPA Tier 4 emission standards while maintaining exceptional fuel efficiency from its 620L tank.
Engineered for demanding applications, this machine features a 2.28m³ backhoe bucket, 10,740mm maximum dig depth, and configurable boom options (2550/3200/3900mm). The water-cooled 9.3L displacement engine pairs with a 578 L/min main pump flow to generate 295kN tractive force. Advanced air-to-air cooling technology ensures consistent performance across extended operating cycles.
- Working weight: 36,570-39,370kg for superior stability
- 9.2 rpm rotation speed with 28 Mpa hydraulic circuit
- 4.9 km/h travel speed maximizes productivity
- Currently located in Fuzhou, Fujian
- Multiple boom and rod configurations available
Invest strategically in equipment that combines Caterpillar reliability with immediate ROI benefits. Contact Fair Trade Machinery today for complete specifications and competitive pricing.
| Specifications | Value |
|---|---|
| No. | 1015920 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36570-39370 |
| Bucket capacity (m³) | 2.28 |
| Boom length (mm) | 2550/3200/3900 |
| Rod length (mm) | 6180/6500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar Cat C9.3(ATAAC) |
| Rated power (kw/rpm) | 224 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 149 |
| Displacement (L) | 9.3 |
| Working form | Air-to-air cooling meets EPA Tier 4 (US Environmental Protection Agency Phase 4) emission standards |
| Rotation speed (rpm) | 9.2 |
| Maximum tractive force (kN) | 295 |
| Travel speed (km/h) | 4.9 |
| Maximum flow of main pump (l/min) | 578 |
| Traveling Hydraulic Circuit (Mpa) | |35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Pilot pump flow (L/min) | 4.1 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-160 x 1356 |
| Fuel Tank (L) | 620 |
| Coolant (L) | 56 |
| Total transport length (mm) | 11170 |
| Total transport width (mm) | 3290/3390/3440 |
| Counterweight ground clearance (mm) | 5020 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | |700/800/850 |
| Maximum digging depth (mm) | 10740 |
| Maximum excavation height (mm) | 7500 |
| Maximum unloading height (mm) | 7610 |
Overview
No.1015920
Brand Name：
CaterpillarModel Number：
336FLHYear：
2017
Location：
Fujian China
Pub Date：
