2020 Caterpillar 336FLH
Product Description

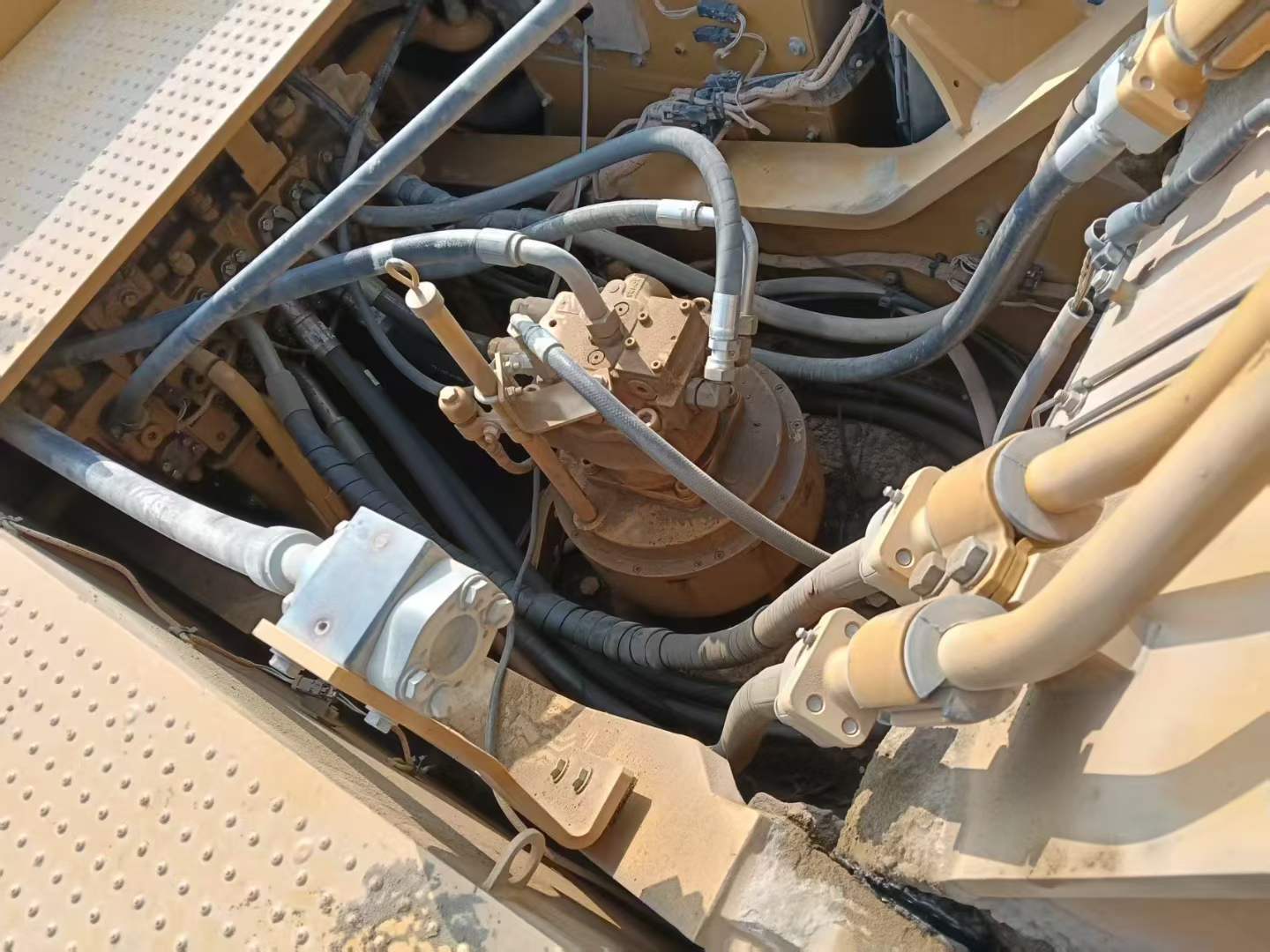

Built for demanding excavation projects, this 36-ton Caterpillar 336FLH delivers exceptional operator control and jobsite performance. Advanced hydraulic systems provide precise bucket positioning with 578 L/min main pump flow, while the spacious cabin offers superior visibility for safe, efficient operation around obstacles and tight spaces.

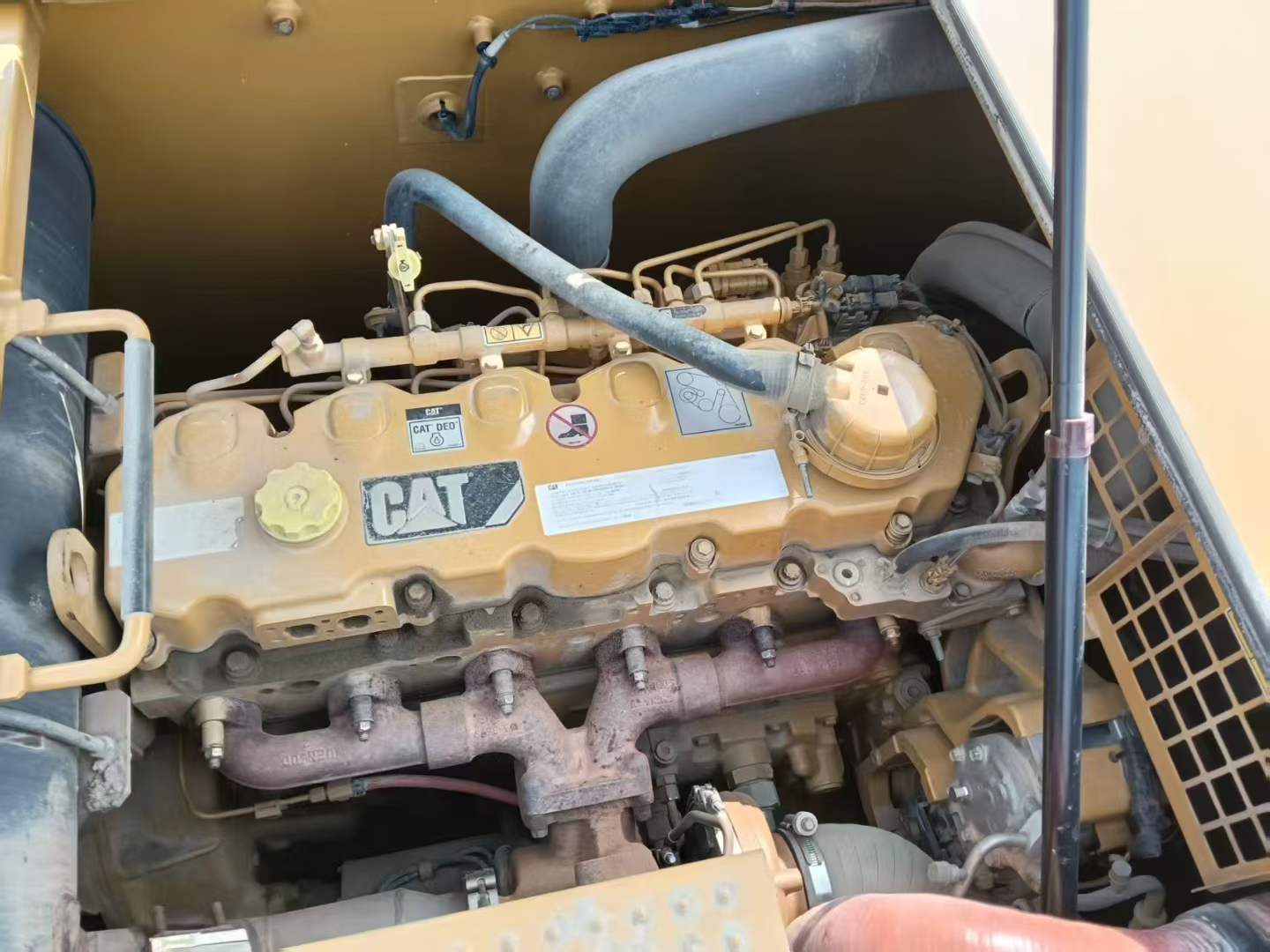

Powered by the reliable Cat C9.3 ATAAC engine producing 224 kW, this machine combines robust digging force with smooth travel capabilities. Key operator benefits include:
- Maximum digging depth of 10,740mm for versatile excavation reach
- Enhanced stability through optimized 36,570kg working weight distribution
- Responsive joystick controls with 35 MPa traveling hydraulic pressure
- Clear sightlines to work area with 510mm minimum ground clearance

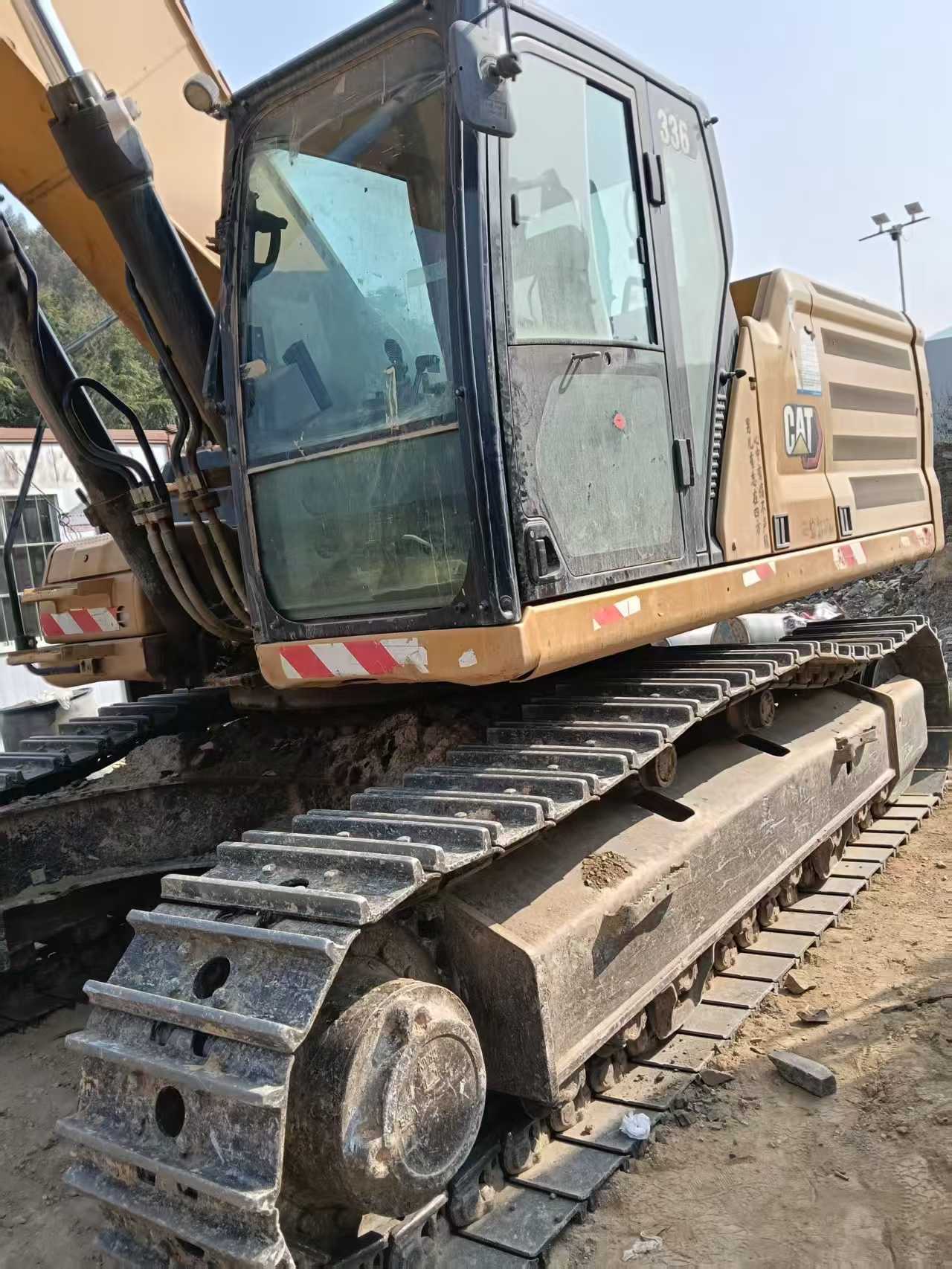

- Comfortable operation during extended shifts with ergonomic cabin design
Located in Guangxi, this 2020 model represents proven Caterpillar engineering focused on productivity and operator confidence across construction, demolition, and earthmoving applications.
| Specifications | Value |
|---|---|
| No. | 992980 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36570-39370 |
| Bucket capacity (m³) | 2.28 |
| Boom length (mm) | 2550/3200/3900 |
| Rod length (mm) | 6180/6500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar Cat C9.3(ATAAC) |
| Rated power (kw/rpm) | 224 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 149 |
| Displacement (L) | 9.3 |
| Working form | Air-to-air cooling meets EPA Tier 4 (US Environmental Protection Agency Phase 4) emission standards |
| Rotation speed (rpm) | 9.2 |
| Maximum tractive force (kN) | 295 |
| Travel speed (km/h) | 4.9 |
| Maximum flow of main pump (l/min) | 578 |
| Traveling Hydraulic Circuit (Mpa) | |35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Pilot pump flow (L/min) | 4.1 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-160 x 1356 |
| Fuel Tank (L) | 620 |
| Coolant (L) | 56 |
| Total transport length (mm) | 11170 |
| Total transport width (mm) | 3290/3390/3440 |
| Counterweight ground clearance (mm) | 5020 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | |700/800/850 |
| Maximum digging depth (mm) | 10740 |
| Maximum excavation height (mm) | 7500 |
| Maximum unloading height (mm) | 7610 |
Overview
No.992980
Brand Name：
CaterpillarModel Number：
336FLHYear：
2020
Location：
Guangxi China
Pub Date：
