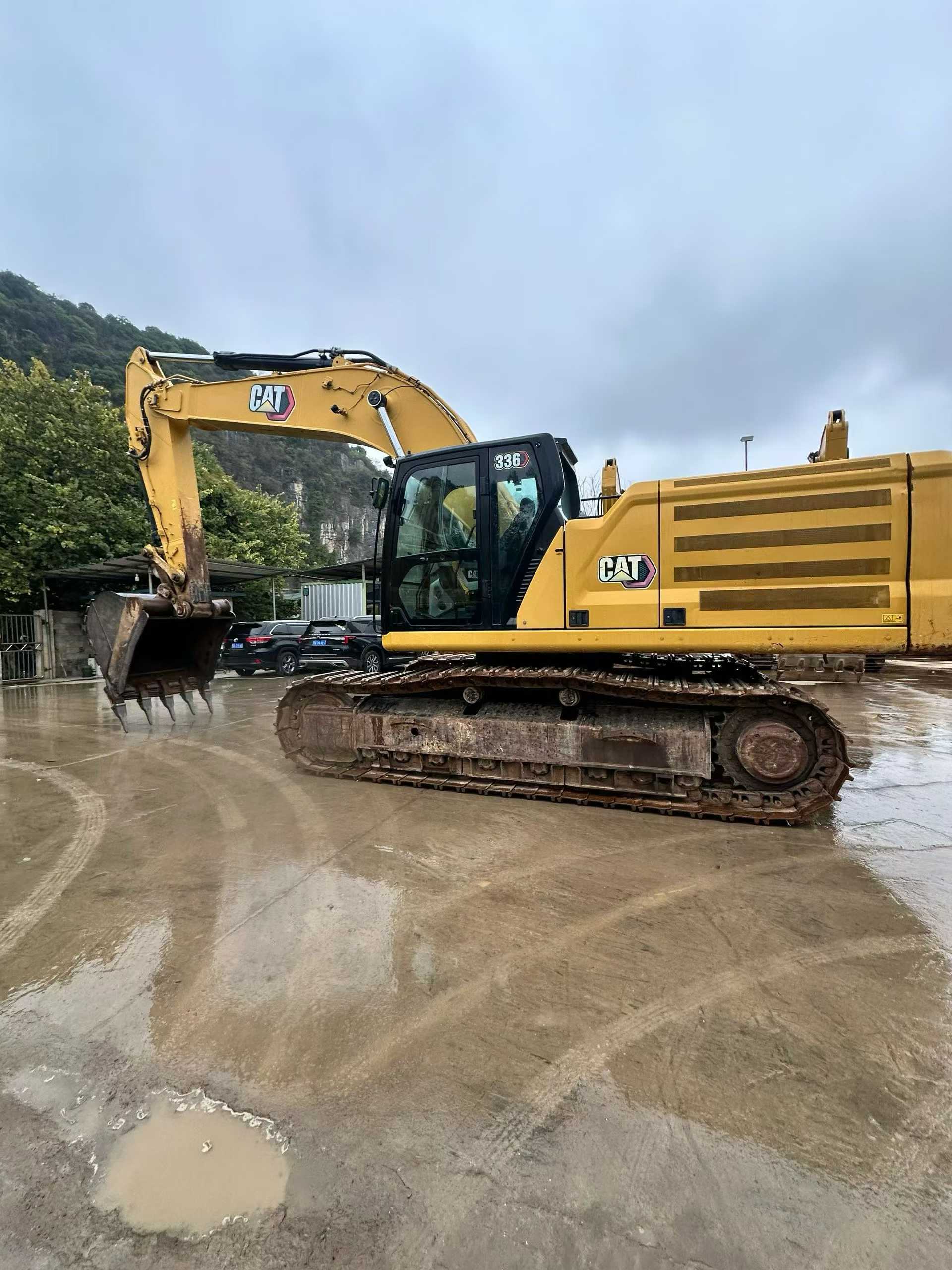

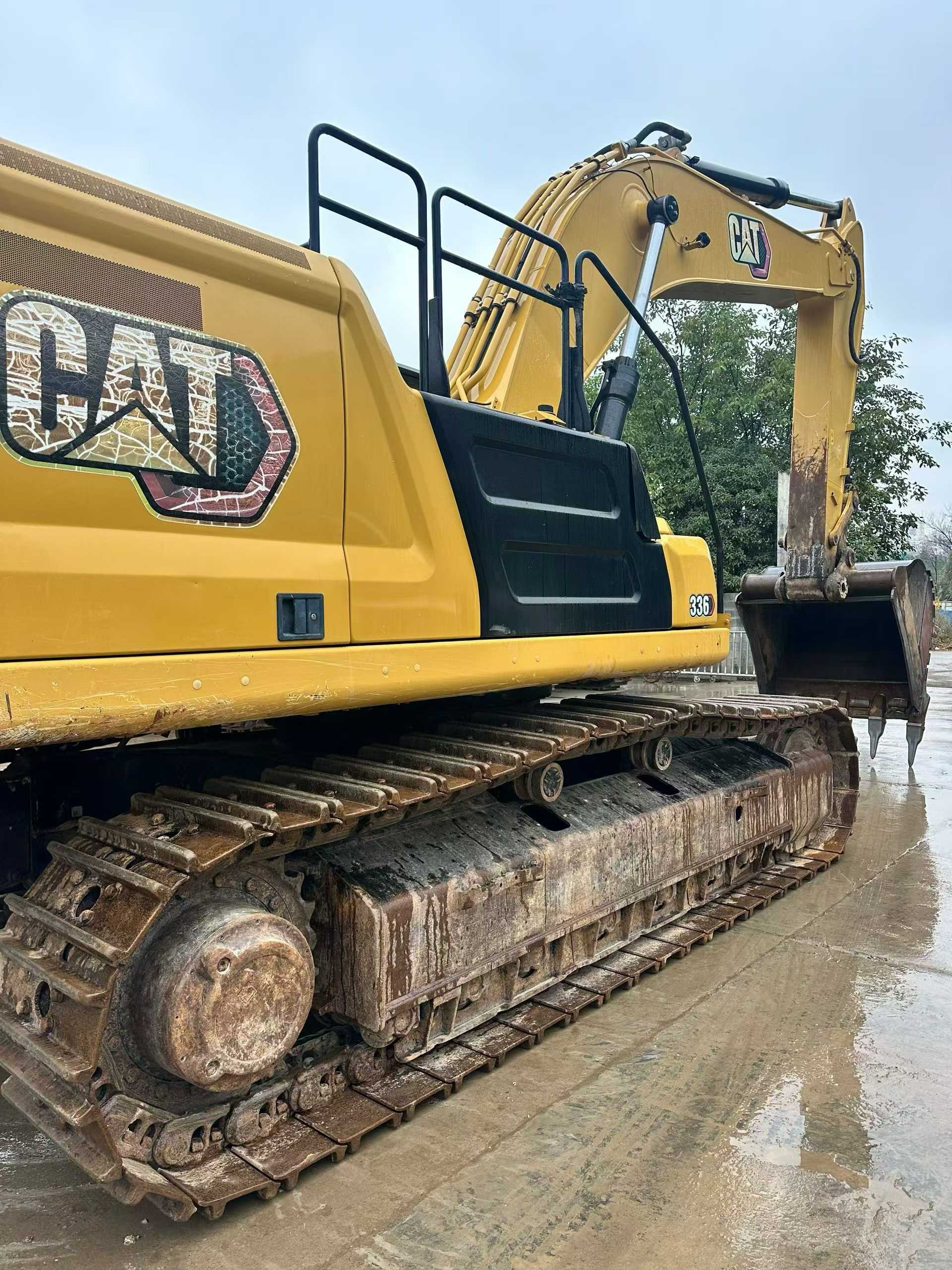

2020 Caterpillar 336FLH
Product Description

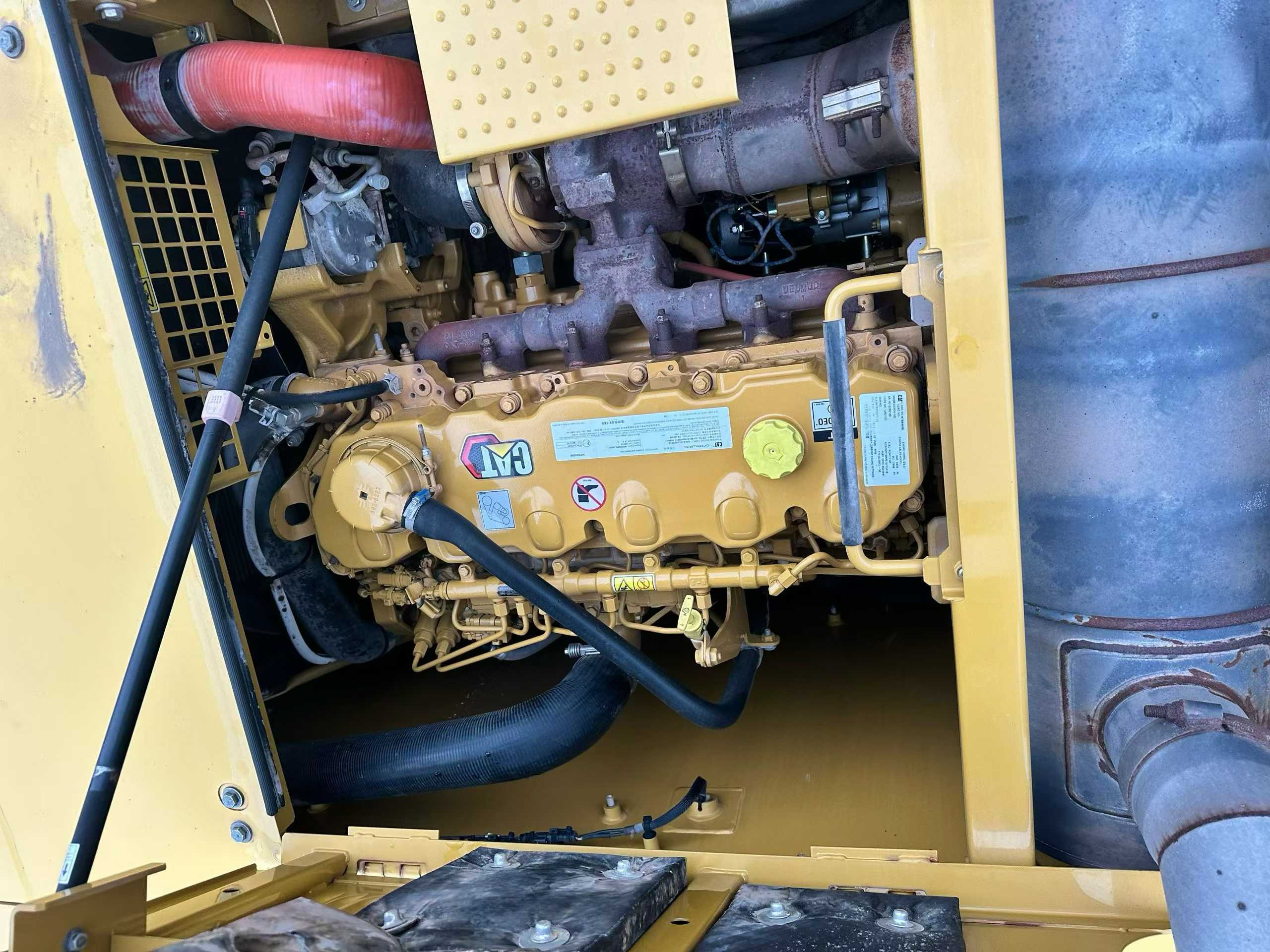

Engineered for demanding forestry and material handling applications, this 36-ton hydraulic excavator delivers exceptional performance through advanced technical specifications. Powered by the Caterpillar Cat C9.3 ATAAC engine generating 224 kW of rated power, the 336FLH combines a robust 9.3L displacement with water-cooling technology and air-to-air cooling systems that meet EPA Tier 4 emission standards. Hydraulic efficiency reaches peak levels with a maximum main pump flow of 578 L/min, supported by a 35 MPa traveling circuit and 28 MPa rotary circuit for precise control under heavy loads.
Technical advantages include:
- Maximum digging depth of 10,740 mm with configurable boom options (2,550/3,200/3,900 mm)
- Superior reach capabilities: 7,610 mm maximum unloading height
- Substantial 2.28 m³ bucket capacity for high-volume operations
- 295 kN maximum tractive force ensuring stability on challenging terrain
- Extended 620L fuel tank capacity for prolonged operational periods
Located in Liuzhou, Guangxi, this joint venture/import manufactured unit represents Caterpillar's commitment to precision engineering and operational reliability in the heavy equipment sector.
| Specifications | Value |
|---|---|
| No. | 995025 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36570-39370 |
| Bucket capacity (m³) | 2.28 |
| Boom length (mm) | 2550/3200/3900 |
| Rod length (mm) | 6180/6500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar Cat C9.3(ATAAC) |
| Rated power (kw/rpm) | 224 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 149 |
| Displacement (L) | 9.3 |
| Working form | Air-to-air cooling meets EPA Tier 4 (US Environmental Protection Agency Phase 4) emission standards |
| Rotation speed (rpm) | 9.2 |
| Maximum tractive force (kN) | 295 |
| Travel speed (km/h) | 4.9 |
| Maximum flow of main pump (l/min) | 578 |
| Traveling Hydraulic Circuit (Mpa) | |35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Pilot pump flow (L/min) | 4.1 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-160 x 1356 |
| Fuel Tank (L) | 620 |
| Coolant (L) | 56 |
| Total transport length (mm) | 11170 |
| Total transport width (mm) | 3290/3390/3440 |
| Counterweight ground clearance (mm) | 5020 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | |700/800/850 |
| Maximum digging depth (mm) | 10740 |
| Maximum excavation height (mm) | 7500 |
| Maximum unloading height (mm) | 7610 |
Overview
No.995025
Brand Name：
CaterpillarModel Number：
336FLHYear：
2020
Location：
Guangxi China
Pub Date：
