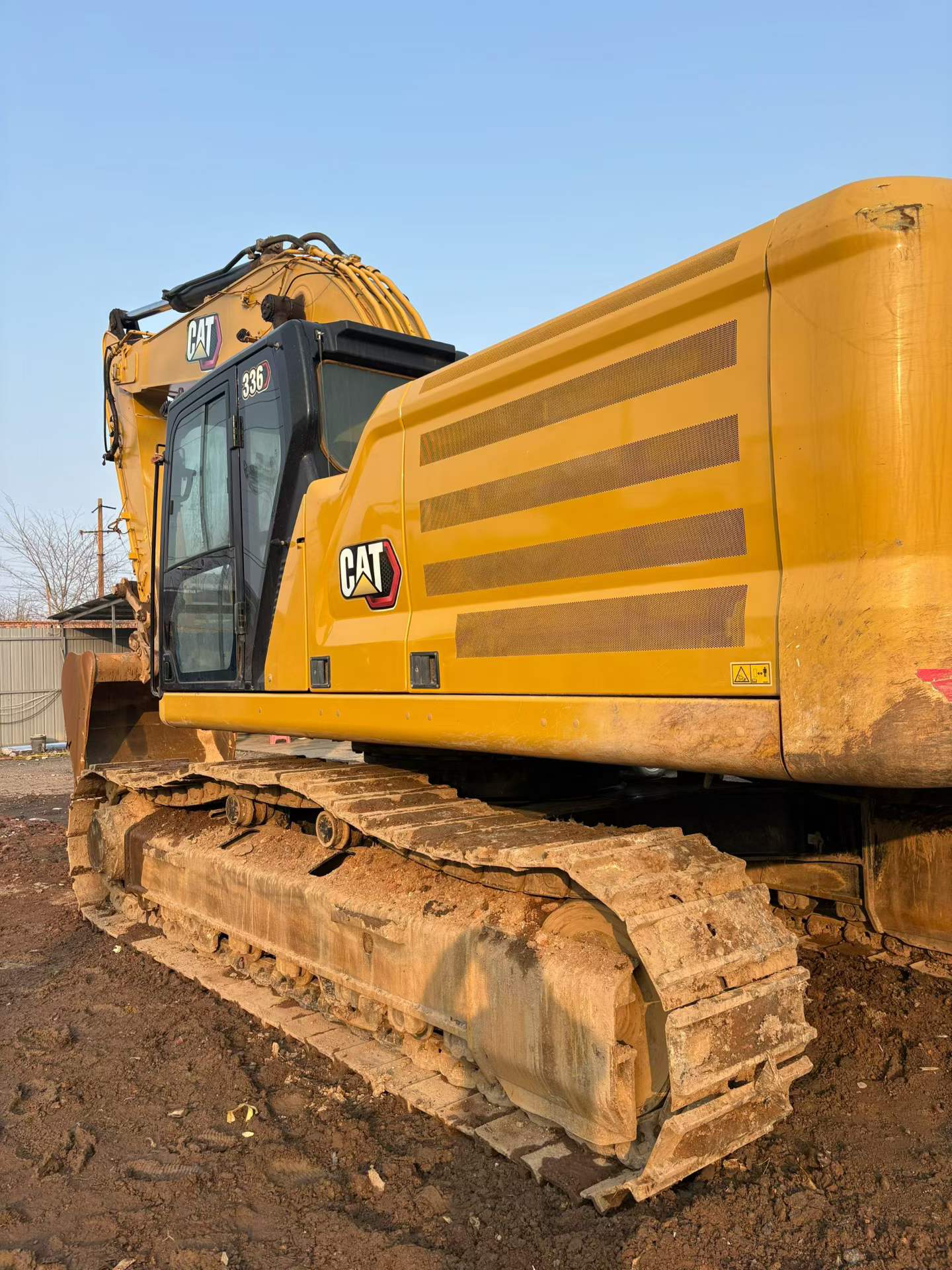

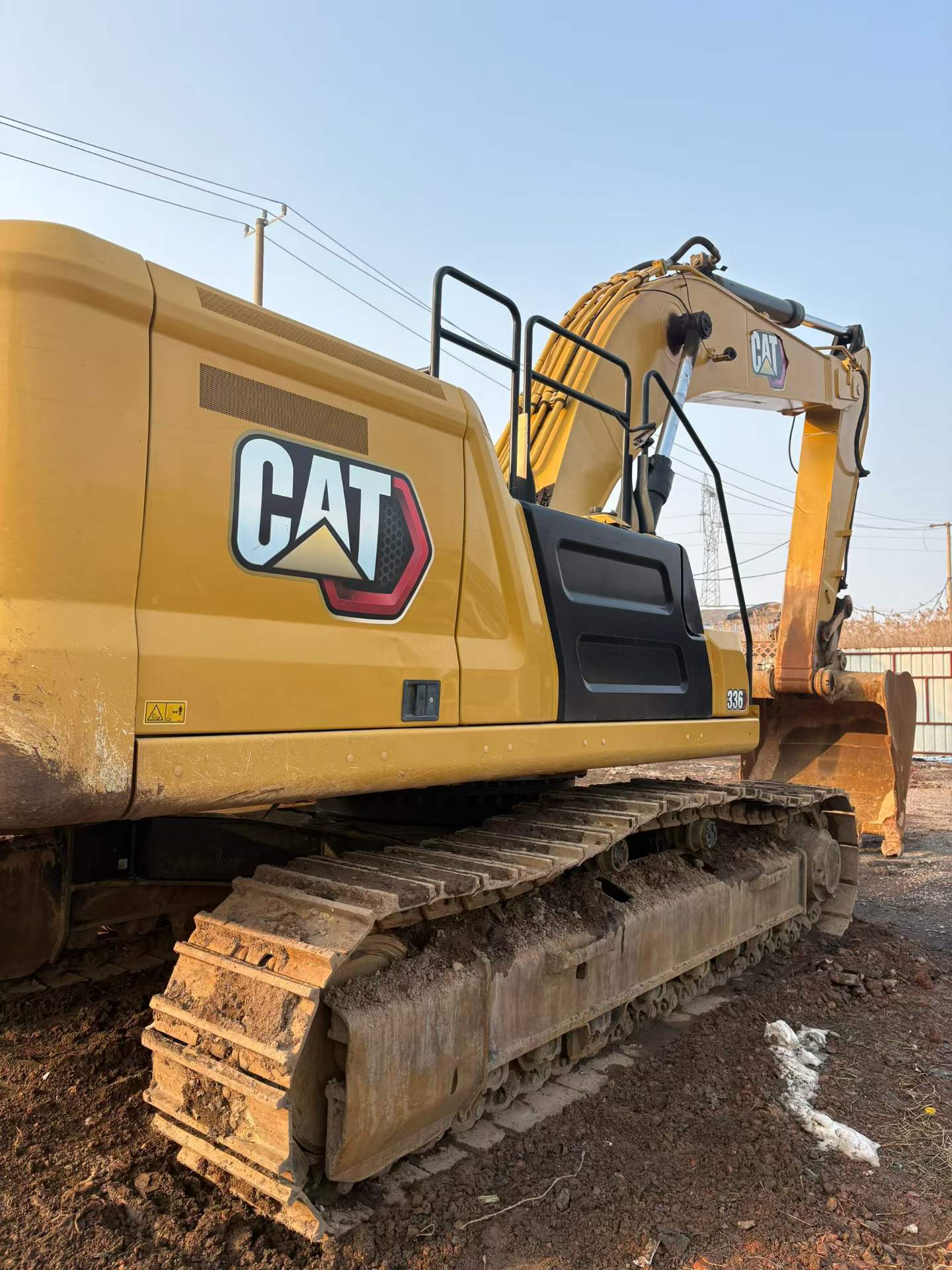

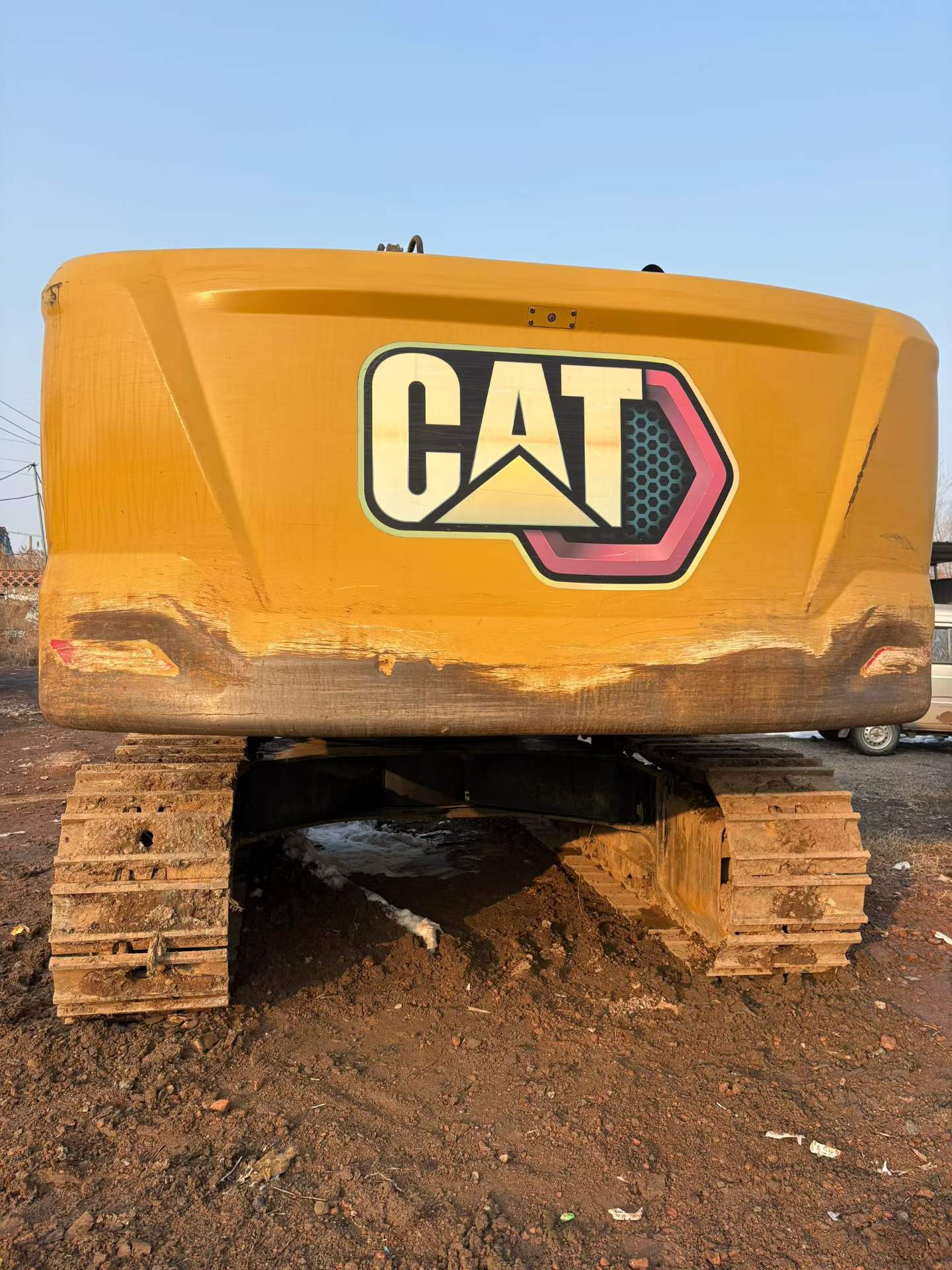

2020 Caterpillar 336FLH
Product Description
Engineered for demanding excavation operations, this 36-ton hydraulic excavator delivers exceptional performance through advanced technical specifications. Powered by the Caterpillar Cat C9.3 ATAAC engine generating 224 kW of rated power, the 336FLH combines a robust 9.3L displacement with water-cooled efficiency and EPA Tier 4 compliant air-to-air cooling technology. Its hydraulic system operates at peak capacity with a maximum main pump flow of 578 L/min, supported by traveling and rotary circuits rated at 35 MPa and 28 MPa respectively.
Technical capabilities include:
- Maximum digging depth of 10,740 mm with 2.28 m³ bucket capacity
- Operating weight range: 36,570-39,370 kg for optimal stability
- Multiple boom configurations (2,550/3,200/3,900 mm) and rod lengths (6,180/6,500 mm)
- Maximum tractive force of 295 kN with 4.9 km/h travel speed
- 620L fuel capacity for extended operational periods
Located in Xuzhou, Jiangsu, this joint venture/import manufactured unit represents Caterpillar's commitment to precision engineering and reliable heavy-duty construction equipment. Built for professionals who demand measurable performance and proven durability.
| Specifications | Value |
|---|---|
| No. | 996423 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36570-39370 |
| Bucket capacity (m³) | 2.28 |
| Boom length (mm) | 2550/3200/3900 |
| Rod length (mm) | 6180/6500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

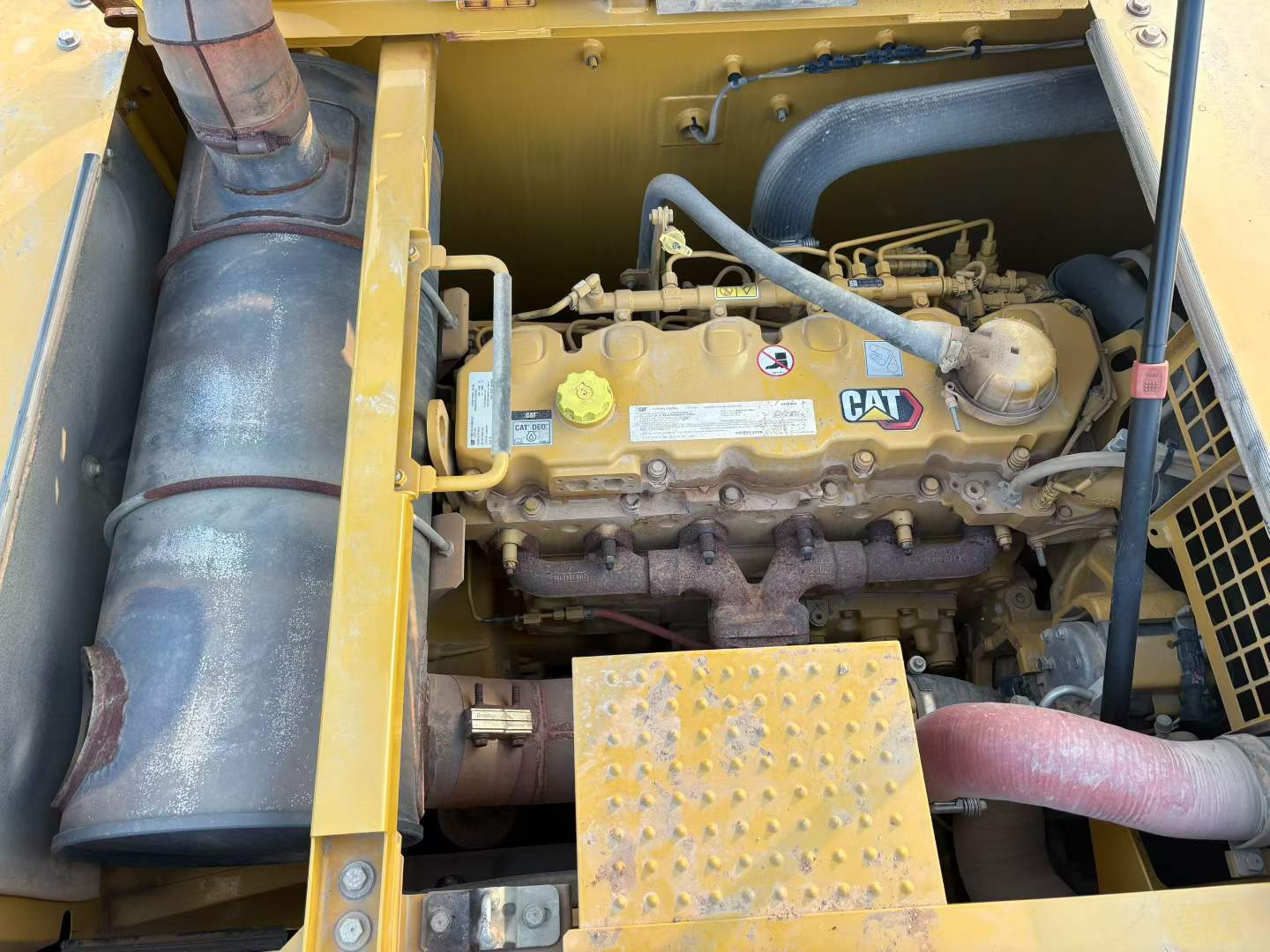

| Engine type | Caterpillar Cat C9.3(ATAAC) |
| Rated power (kw/rpm) | 224 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 149 |
| Displacement (L) | 9.3 |
| Working form | Air-to-air cooling meets EPA Tier 4 (US Environmental Protection Agency Phase 4) emission standards |
| Rotation speed (rpm) | 9.2 |
| Maximum tractive force (kN) | 295 |
| Travel speed (km/h) | 4.9 |
| Maximum flow of main pump (l/min) | 578 |
| Traveling Hydraulic Circuit (Mpa) | |35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Pilot pump flow (L/min) | 4.1 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-160 x 1356 |
| Fuel Tank (L) | 620 |
| Coolant (L) | 56 |
| Total transport length (mm) | 11170 |
| Total transport width (mm) | 3290/3390/3440 |
| Counterweight ground clearance (mm) | 5020 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | |700/800/850 |
| Maximum digging depth (mm) | 10740 |
| Maximum excavation height (mm) | 7500 |
| Maximum unloading height (mm) | 7610 |
Overview
No.996423
Brand Name：
CaterpillarModel Number：
336FLHYear：
2020
Location：
Jiangsu China
Pub Date：
