2020 Caterpillar 336FLH
Product Description
Available now in 江苏徐州, this 2020 Caterpillar 336FLH forestry excavator delivers immediate deployment without factory wait times. Powered by the Cat C9.3 ATAAC engine producing 224 kW, this 36-ton machine meets EPA Tier 4 emission standards while maintaining robust performance for demanding forestry operations. Skip the lead times and put this proven workhorse on your site fast.
- Operating weight: 36,570-39,370 kg with 2.28 m³ bucket capacity
- Maximum digging depth of 10,740 mm and reach height of 7,500 mm

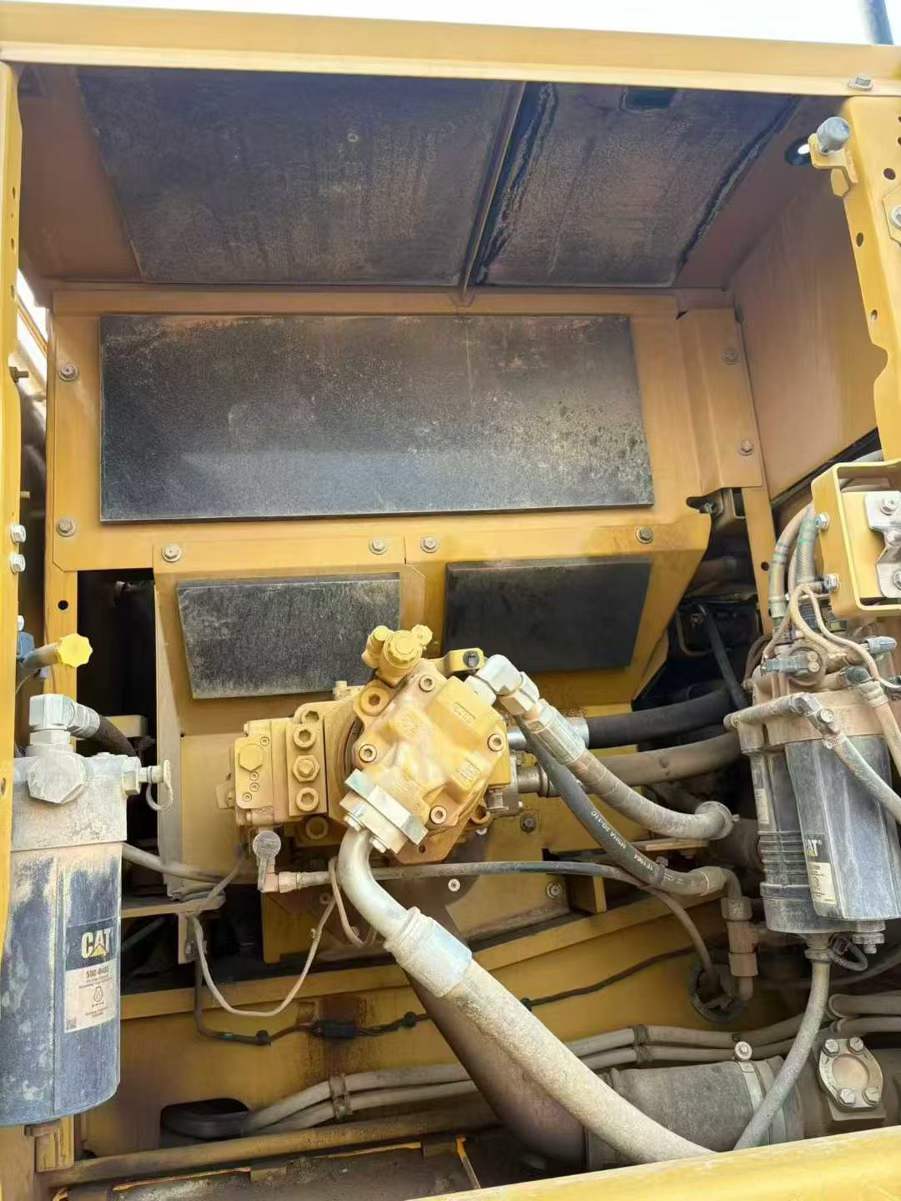

- Hydraulic system: 578 L/min main pump flow for efficient cycle times
- Multiple boom configurations: 2,550/3,200/3,900 mm options
- 9.2 rpm rotation speed with 295 kN maximum tractive force
- 620L fuel capacity for extended operation between refills

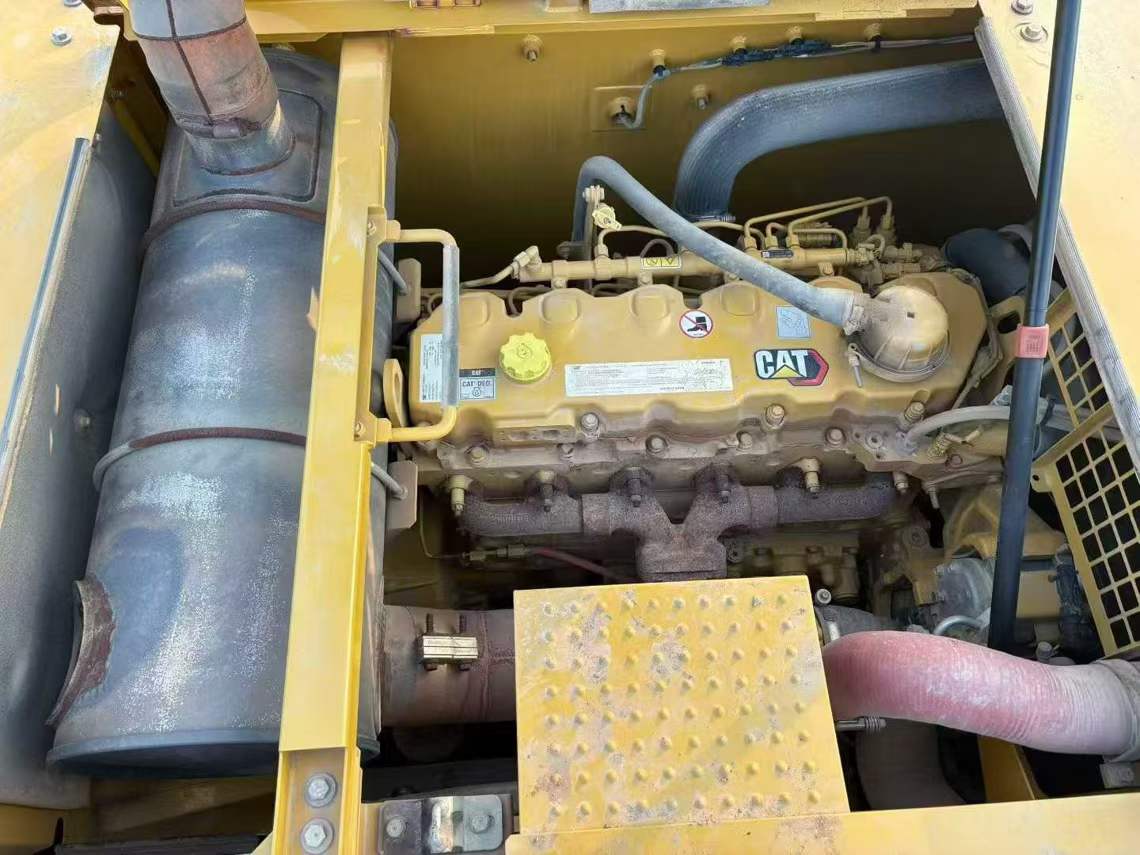

- Water-cooled 9.3L displacement engine for reliable performance
Located in 江苏徐州 for rapid logistics coordination. Fast deployment means your crew starts working sooner, maximizing productivity and return on investment. Contact us today for immediate availability.
| Specifications | Value |
|---|---|
| No. | 998231 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36570-39370 |
| Bucket capacity (m³) | 2.28 |
| Boom length (mm) | 2550/3200/3900 |
| Rod length (mm) | 6180/6500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar Cat C9.3(ATAAC) |
| Rated power (kw/rpm) | 224 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 149 |
| Displacement (L) | 9.3 |
| Working form | Air-to-air cooling meets EPA Tier 4 (US Environmental Protection Agency Phase 4) emission standards |
| Rotation speed (rpm) | 9.2 |
| Maximum tractive force (kN) | 295 |
| Travel speed (km/h) | 4.9 |
| Maximum flow of main pump (l/min) | 578 |
| Traveling Hydraulic Circuit (Mpa) | |35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Pilot pump flow (L/min) | 4.1 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-160 x 1356 |
| Fuel Tank (L) | 620 |
| Coolant (L) | 56 |
| Total transport length (mm) | 11170 |
| Total transport width (mm) | 3290/3390/3440 |
| Counterweight ground clearance (mm) | 5020 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | |700/800/850 |
| Maximum digging depth (mm) | 10740 |
| Maximum excavation height (mm) | 7500 |
| Maximum unloading height (mm) | 7610 |
see more
Overview
No.998231
Brand Name：
CaterpillarModel Number：
336FLHYear：
2020
Location：
Jiangsu China
Pub Date：
