2015 Caterpillar 340D2L

1/9
Buy Caterpillar 340D2L Used Excavator / 1

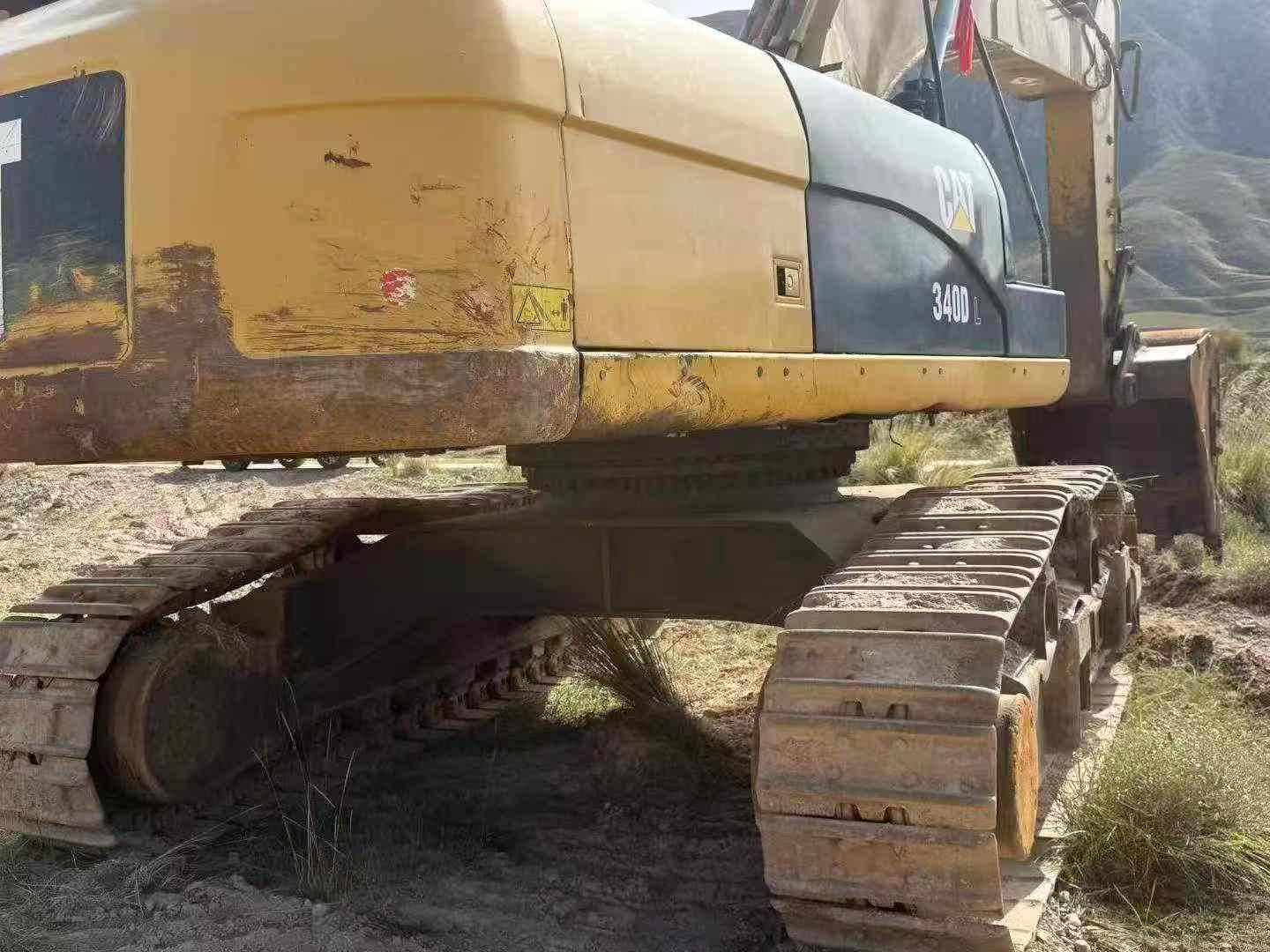

Buy Caterpillar 340D2L Used Excavator / 2

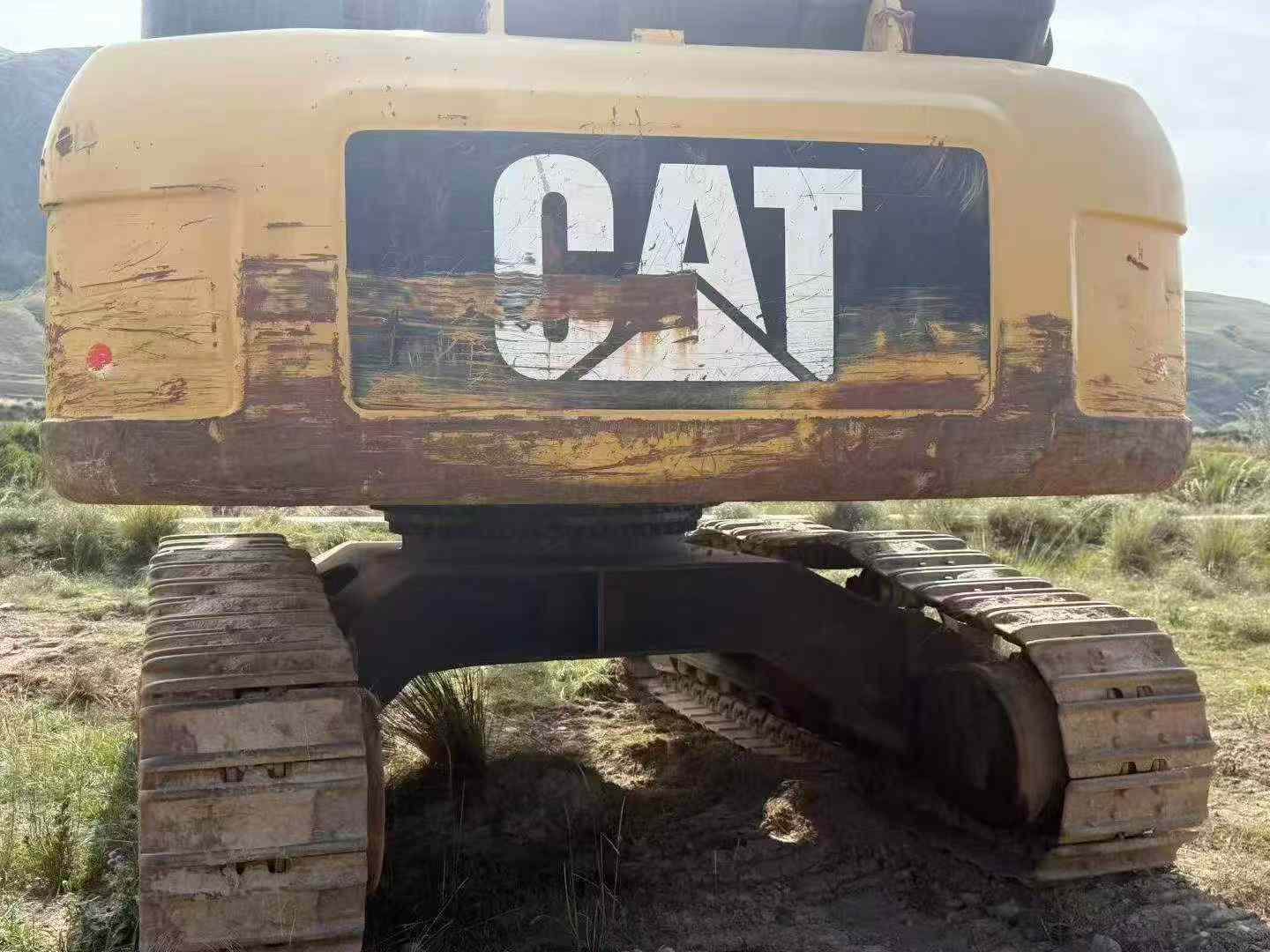

Buy Caterpillar 340D2L Used Excavator / 3

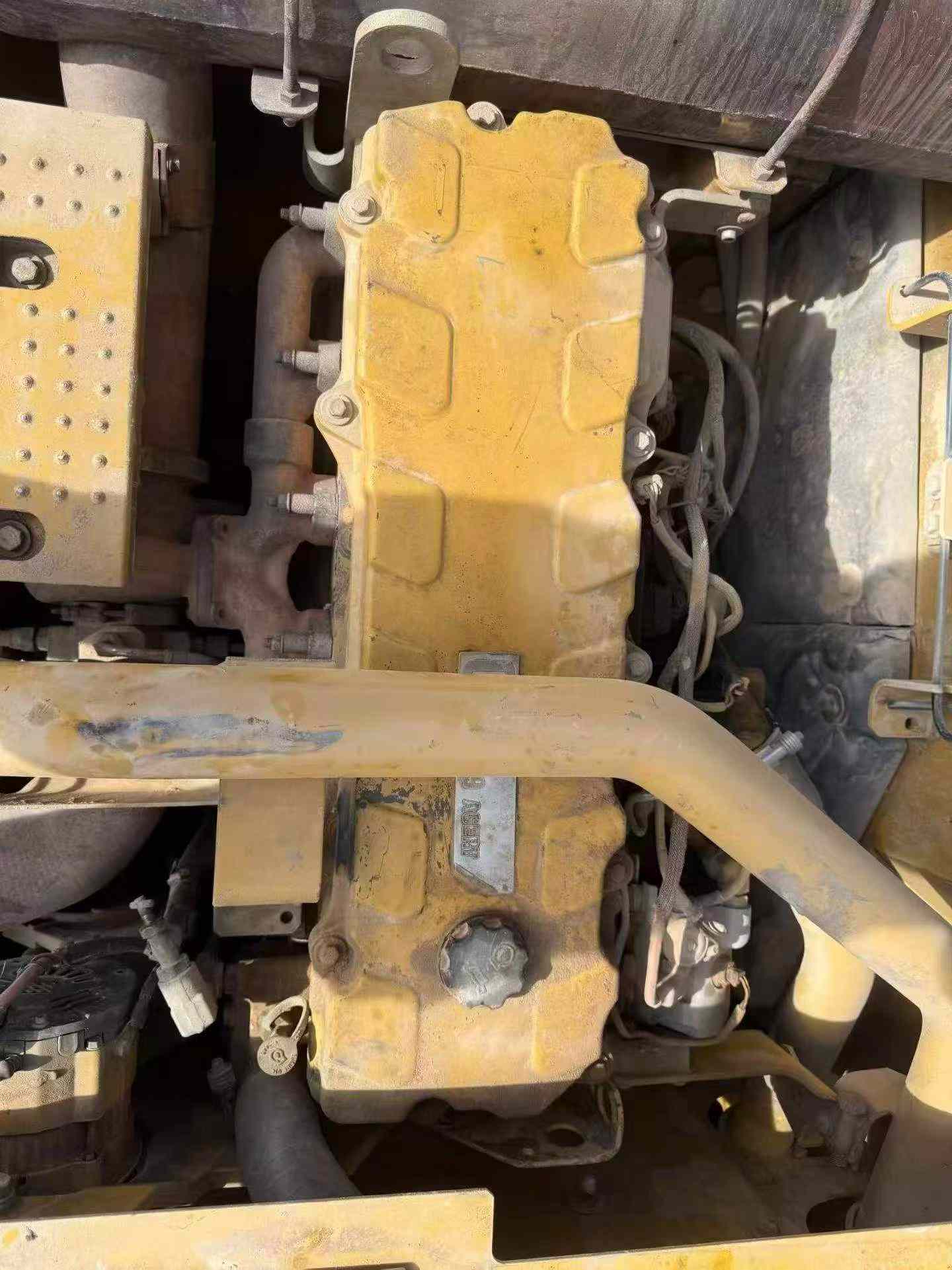

Buy Caterpillar 340D2L Used Excavator / 4

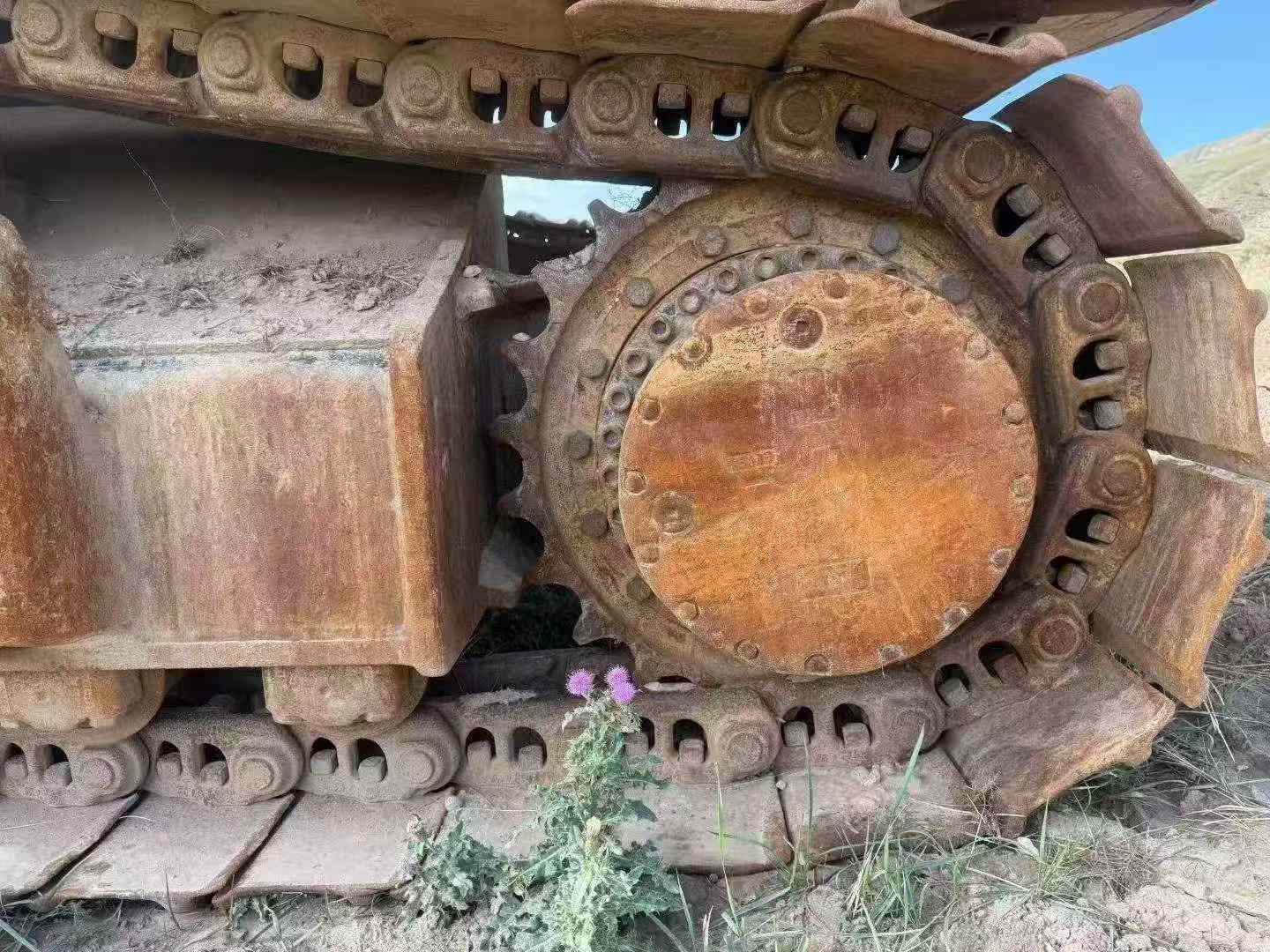

Buy Caterpillar 340D2L Used Excavator / 5

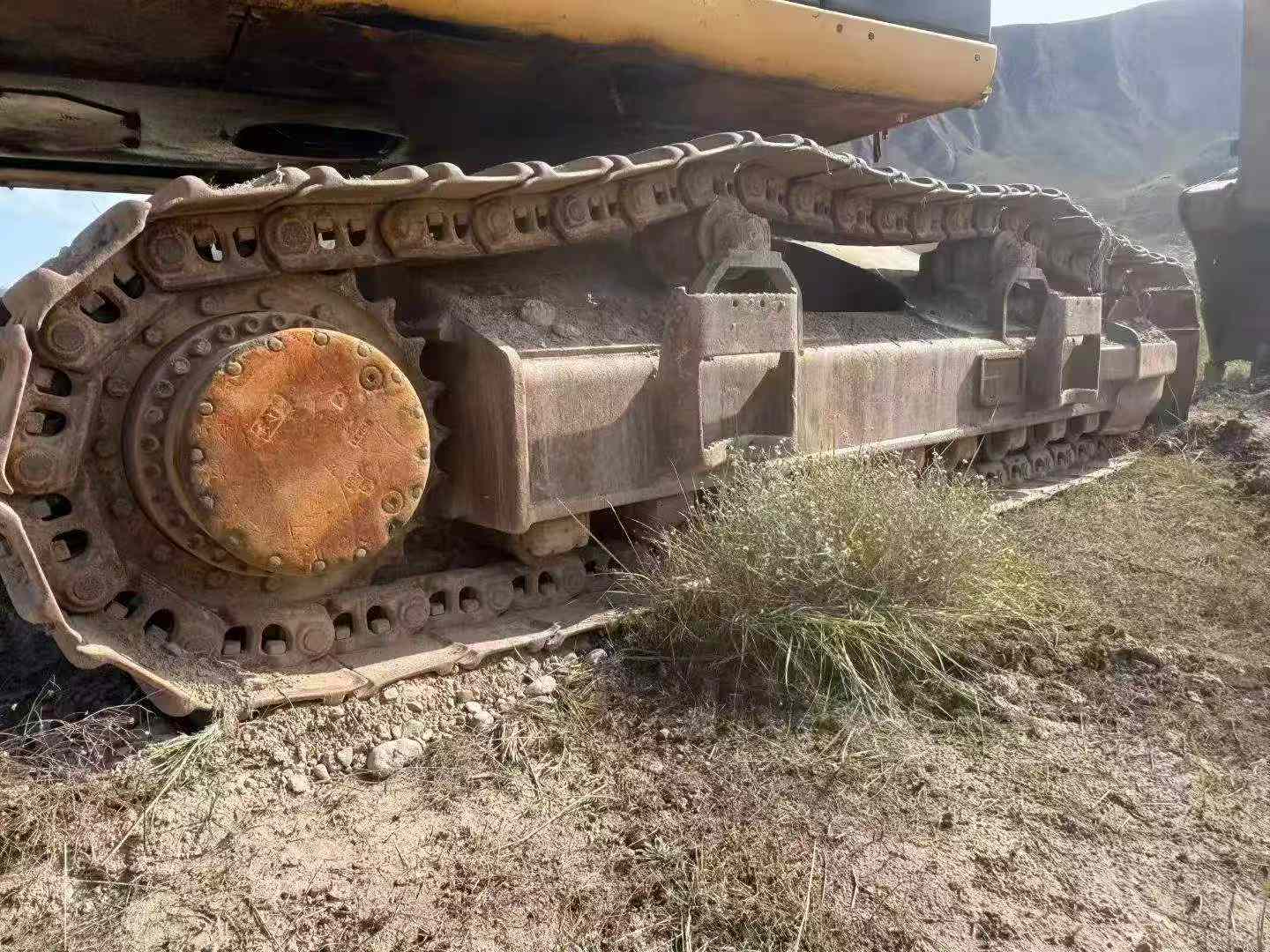

Buy Caterpillar 340D2L Used Excavator / 6

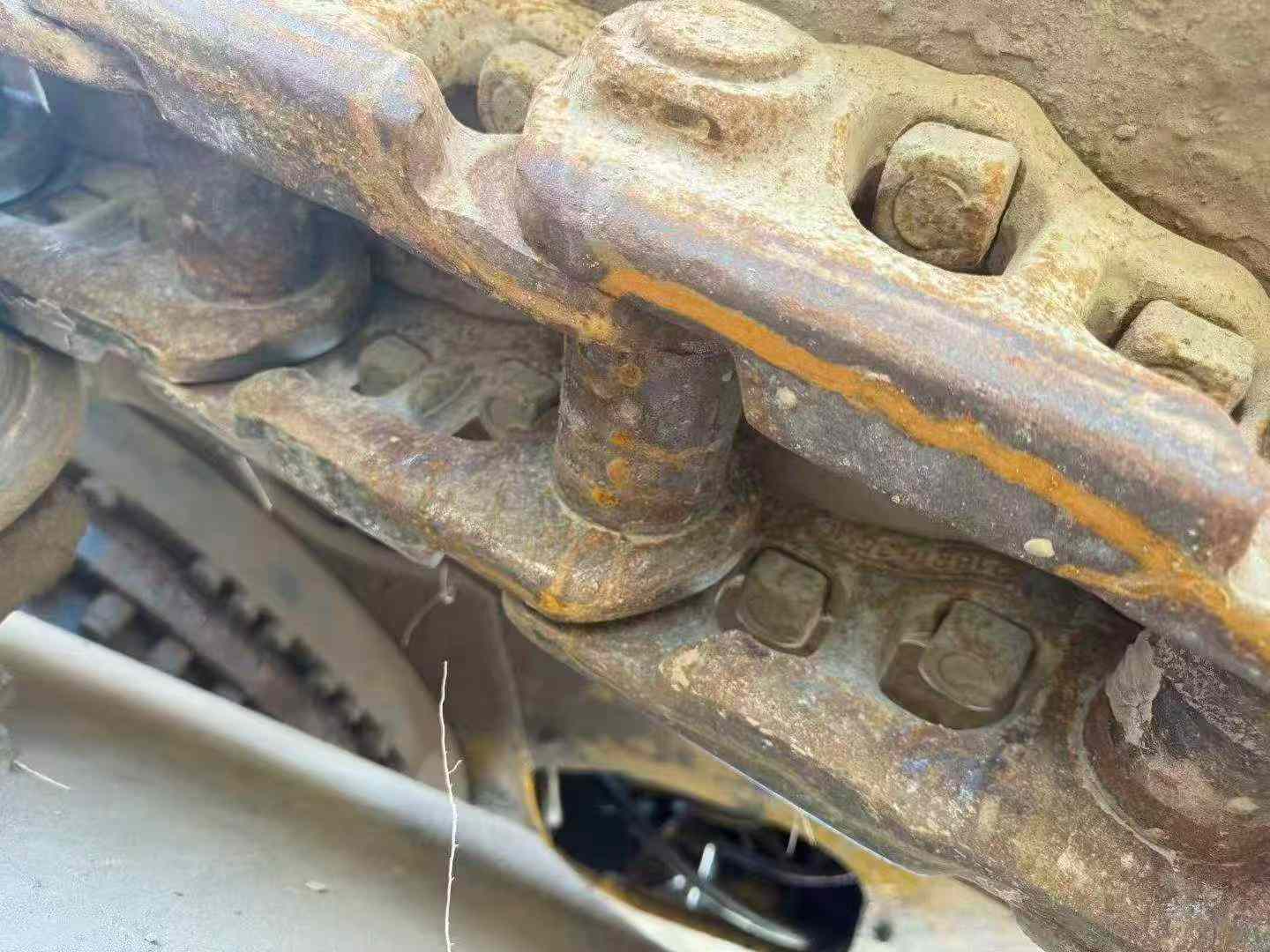

Buy Caterpillar 340D2L Used Excavator / 7

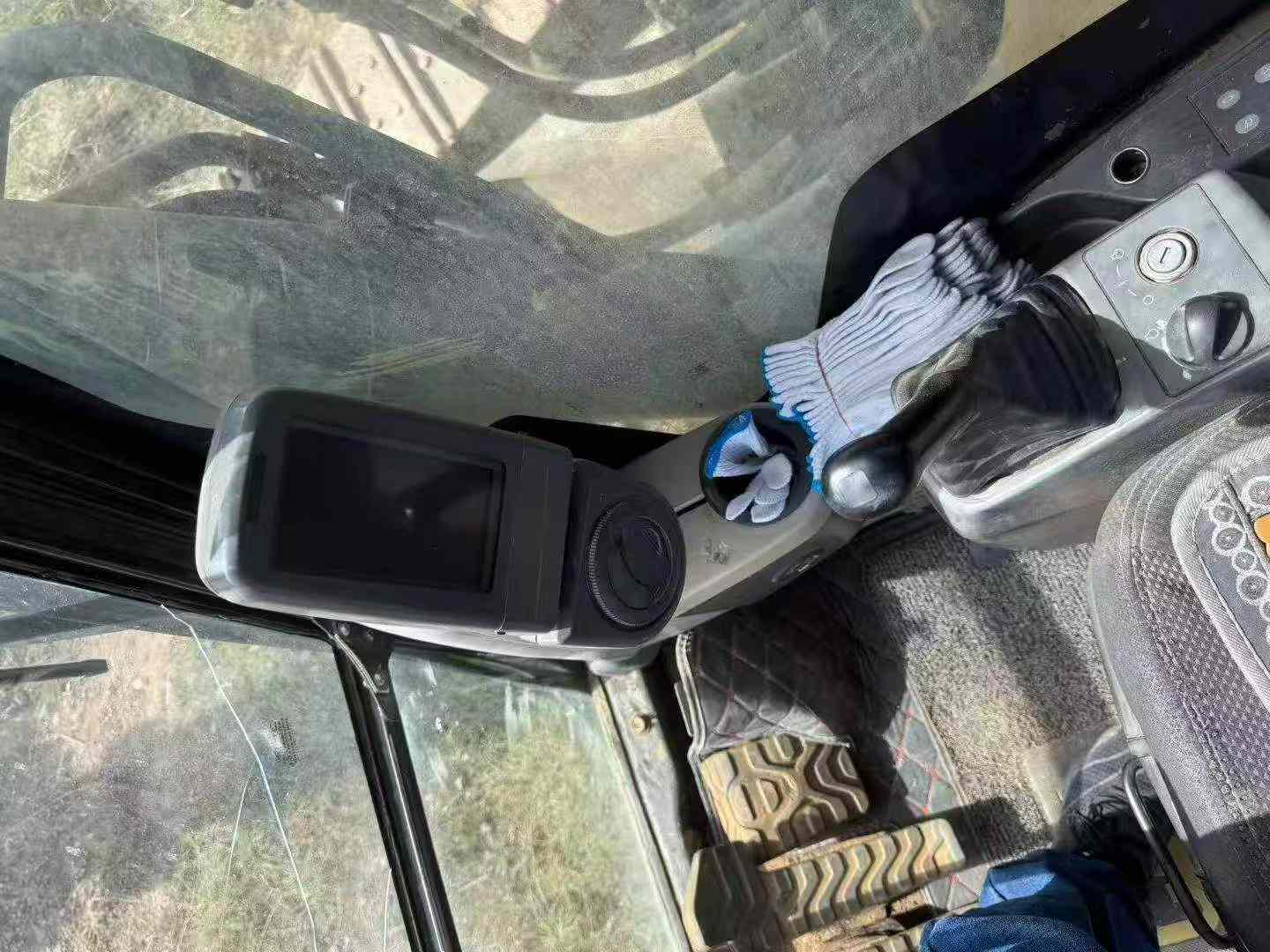

Buy Caterpillar 340D2L Used Excavator / 8

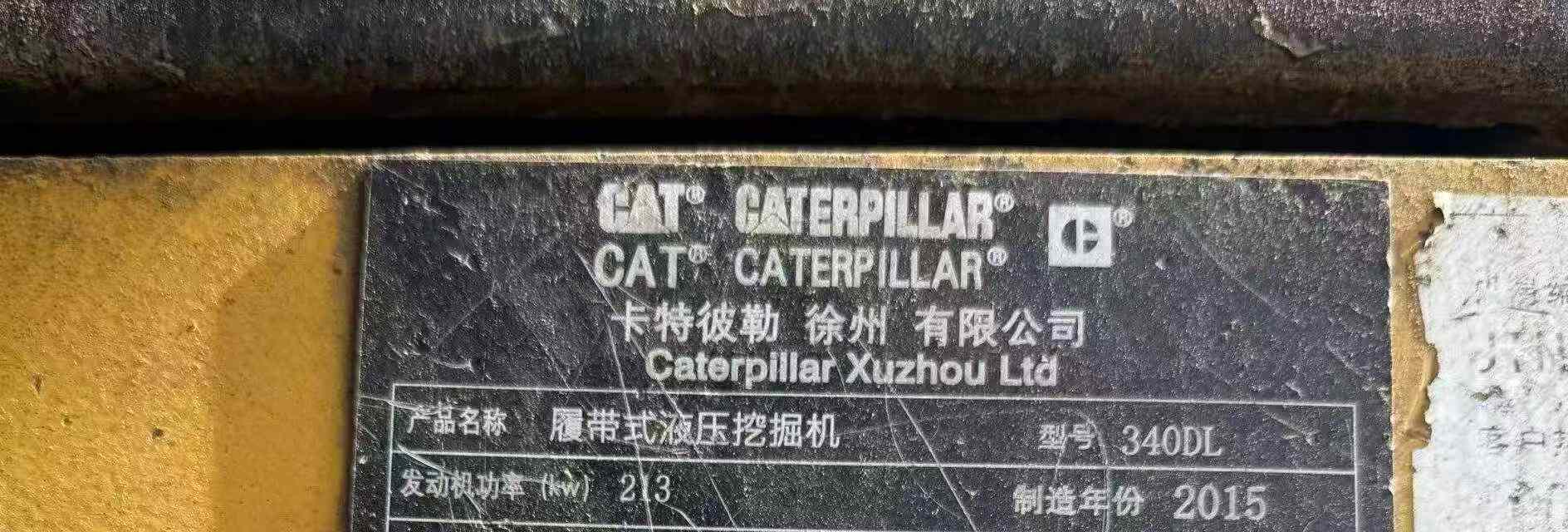

Buy Caterpillar 340D2L Used Excavator / 9

Product Description

FairTradeMachinery presents a 2015 Caterpillar 340D2L hydraulic excavator, currently located in Zhejiang, China. This heavy-duty machine has accumulated over 150,000 operating hours, demonstrating its durability in demanding work environments. The Cat 340D2L is renowned for its robust performance in large-scale earthmoving, mining, and demolition applications.

Key features of this excavator include:

  • Caterpillar C9 ACERT engine delivering reliable power output
  • Advanced hydraulic system for efficient digging and lifting operations
  • Spacious operator cab with ergonomic controls
  • Proven track record in heavy construction projects
  • Suitable for quarrying, infrastructure development, and material handling

This used excavator represents a cost-effective solution for contractors seeking dependable equipment with established performance credentials. Inspection and shipping arrangements can be coordinated from our Zhejiang facility. Contact our sales team for detailed technical specifications and current availability.

SpecificationsValue
No.1088485
Tonnage (tons)40
Working weight (kg)38900~41500
Bucket capacity (m³)1.9
Boom length (mm)6500
Rod length (mm)2800
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCatC9
Rated power (kw/rpm)208
Cylinder diameter × stroke (mm)112 x 149
Displacement (L)8.8
Working formDirect injection fuel system with turbocharger aftercooler
Rotation speed (rpm)8.3
Climbing ability (%)70
Bucket digging force (kN)210
Rod digging force (kN)185
Maximum tractive force (kN)300
Travel speed (km/h)4.6
Turning torque (Nm)109
Main overflow set pressure (Mpa)35
Maximum flow of main pump (l/min)281
Traveling Hydraulic Circuit (Mpa)35
Rotary Hydraulic Circuit (Mpa)28
Pilot Oil Circuit (MPa)4
Pilot pump flow (L/min)40
Bucket cylinders - Number × diameter × stroke (mm)150 x 1151
Bucket rod cylinders - Number × diameter × stroke (mm)170 x 1738
Boom cylinders - Number × diameter × stroke (mm)150 x 1440
Fuel Tank (L)175
Hydraulic Tank (L)620
Engine Oil changes (L)41
Coolant (L)40
Hydraulic System (L)410
Total transport length (mm)11170
Total transport width (mm)3620
Total transport height (mm)3630
Full cab height (mm)3360
Counterweight ground clearance (mm)1450
Minimum ground clearance (mm)742
Back end turning radius (mm)3490
Total track length (mm)5060
Track gauge (mm)2920
Track plate width (mm)600
Maximum digging depth (mm)7190
Maximum excavation height (mm)10330
Maximum unloading height (mm)7000
Maximum vertical digging depth (mm)5460
Maximum excavation radius of stop surface (mm)10830
Maximum effective digging depth (mm)6370
see more

Overview

No.1088485

Brand Name:

Caterpillar

Model Number:

340D2L

Year:

2015

Location:

Zhejiang China
