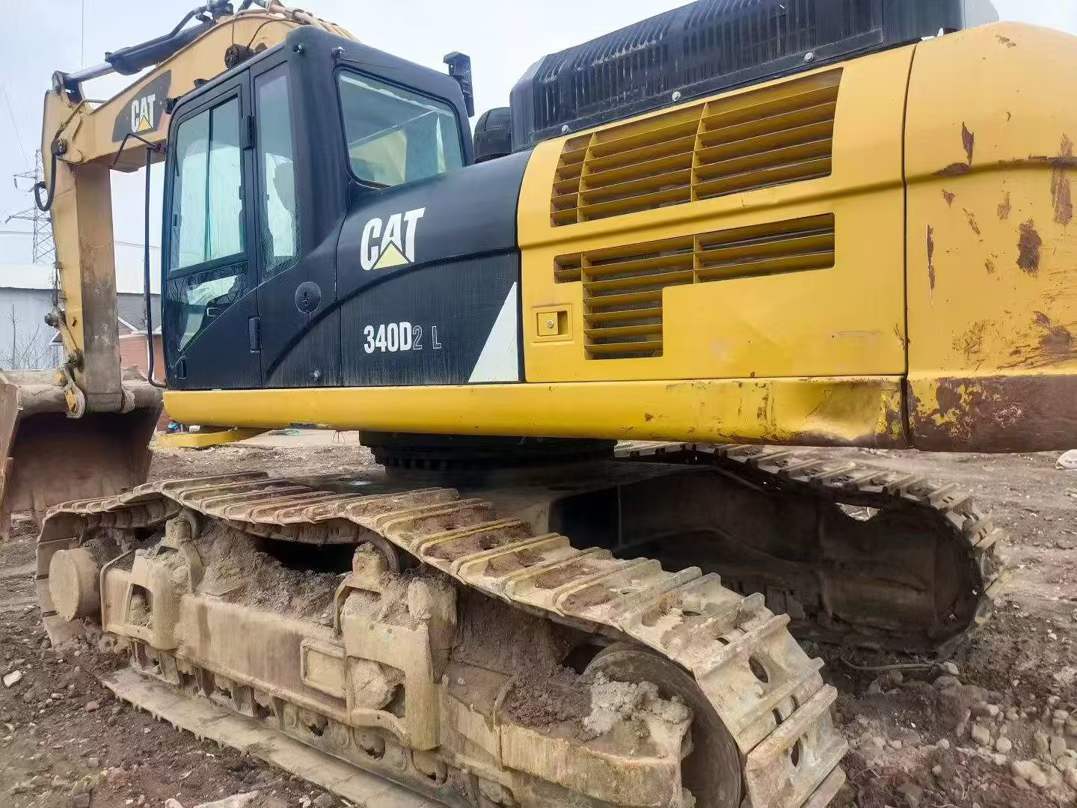

2016 Caterpillar 340D2L
Product Description
Available now in Jiangsu Xuzhou, this 2016 Caterpillar 340D2L hydraulic excavator delivers 40-ton performance without factory wait times. Powered by a Cat C9 engine producing 208 kW, this machine features a 1.9 m³ bucket capacity and 7,190 mm maximum digging depth for demanding earthmoving operations. Fast deployment to your site means productivity starts immediately—skip the lead times and get equipment working on your timeline.
- Operating Weight: 38,900–41,500 kg
- Engine: Cat C9, 208 kW rated power, 8.8L displacement
- Digging Performance: 210 kN bucket force, 185 kN stick force
- Reach Specs: 10,830 mm max excavation radius, 10,330 mm max dig height
- Hydraulics: 281 L/min main pump flow, 35 MPa system pressure
- Dimensions: 11,170 mm transport length, 3,620 mm width
- Location: Jiangsu Xuzhou—ready for immediate inspection and shipping
Secure proven Caterpillar reliability with direct-injection fuel technology and robust hydraulic systems. This 340D2L is inspection-ready and positioned for rapid logistics coordination across domestic and inte
| Specifications | Value |
|---|---|
| No. | 1024828 |
| Tonnage (tons) | 40 |
| Working weight (kg) | 38900~41500 |
| Bucket capacity (m³) | 1.9 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 2800 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | CatC9 |
| Rated power (kw/rpm) | 208 |
| Cylinder diameter × stroke (mm) | 112 x 149 |
| Displacement (L) | 8.8 |
| Working form | Direct injection fuel system with turbocharger aftercooler |
| Rotation speed (rpm) | 8.3 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 210 |
| Rod digging force (kN) | 185 |
| Maximum tractive force (kN) | 300 |
| Travel speed (km/h) | 4.6 |
| Turning torque (Nm) | 109 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 281 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Pilot Oil Circuit (MPa) | 4 |
| Pilot pump flow (L/min) | 40 |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 x 1151 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170 x 1738 |
| Boom cylinders - Number × diameter × stroke (mm) | 150 x 1440 |
| Fuel Tank (L) | 175 |
| Hydraulic Tank (L) | 620 |
| Engine Oil changes (L) | 41 |
| Coolant (L) | 40 |
| Hydraulic System (L) | 410 |
| Total transport length (mm) | 11170 |
| Total transport width (mm) | 3620 |
| Total transport height (mm) | 3630 |
| Full cab height (mm) | 3360 |
| Counterweight ground clearance (mm) | 1450 |
| Minimum ground clearance (mm) | 742 |
| Back end turning radius (mm) | 3490 |
| Total track length (mm) | 5060 |
| Track gauge (mm) | 2920 |
| Track plate width (mm) | 600 |
| Maximum digging depth (mm) | 7190 |
| Maximum excavation height (mm) | 10330 |
| Maximum unloading height (mm) | 7000 |
| Maximum vertical digging depth (mm) | 5460 |
| Maximum excavation radius of stop surface (mm) | 10830 |
| Maximum effective digging depth (mm) | 6370 |
