2017 Caterpillar 340D2L
Product Description
Engineered for demanding excavation projects, this 2017 Caterpillar 340D2L delivers 40-ton performance with operator-centric design. Powered by the Cat C9 engine producing 208 kW, this hydraulic excavator combines robust digging force with exceptional machine control. Operators benefit from enhanced visibility across the 10,830 mm maximum excavation radius, while the spacious cab reduces fatigue during extended shifts.
Hydraulic precision defines every movement. The 281 L/min main pump flow ensures responsive bucket and boom operation, while 35 MPa system pressure maintains consistent performance under heavy loads. With 210 kN bucket digging force and 185 kN stick digging force, this machine tackles tough materials efficiently.
- Working weight: 38,900–41,500 kg with superior stability
- Maximum digging depth: 7,190 mm for deep excavation work
- 1.9 m³ bucket capacity optimized for productivity
- 8.3 rpm swing speed for smooth, controlled rotation
- 620 L hydraulic tank supporting extended operation
- Currently located in Nanning, Guangxi
Built to Caterpillar's joint venture/import standards, this 340D2L represents proven reliability for contractors requiring cons
| Specifications | Value |
|---|---|
| No. | 1027966 |
| Tonnage (tons) | 40 |
| Working weight (kg) | 38900~41500 |
| Bucket capacity (m³) | 1.9 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 2800 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

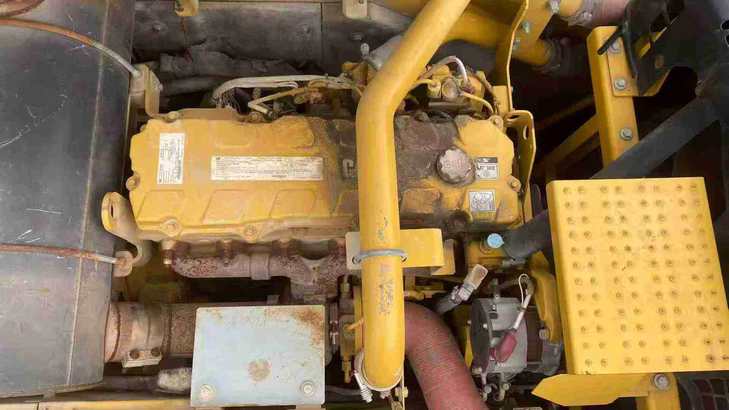

| Engine type | CatC9 |
| Rated power (kw/rpm) | 208 |
| Cylinder diameter × stroke (mm) | 112 x 149 |
| Displacement (L) | 8.8 |
| Working form | Direct injection fuel system with turbocharger aftercooler |
| Rotation speed (rpm) | 8.3 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 210 |
| Rod digging force (kN) | 185 |
| Maximum tractive force (kN) | 300 |
| Travel speed (km/h) | 4.6 |
| Turning torque (Nm) | 109 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 281 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Pilot Oil Circuit (MPa) | 4 |
| Pilot pump flow (L/min) | 40 |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 x 1151 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170 x 1738 |
| Boom cylinders - Number × diameter × stroke (mm) | 150 x 1440 |
| Fuel Tank (L) | 175 |
| Hydraulic Tank (L) | 620 |
| Engine Oil changes (L) | 41 |
| Coolant (L) | 40 |
| Hydraulic System (L) | 410 |
| Total transport length (mm) | 11170 |
| Total transport width (mm) | 3620 |
| Total transport height (mm) | 3630 |
| Full cab height (mm) | 3360 |
| Counterweight ground clearance (mm) | 1450 |
| Minimum ground clearance (mm) | 742 |
| Back end turning radius (mm) | 3490 |
| Total track length (mm) | 5060 |
| Track gauge (mm) | 2920 |
| Track plate width (mm) | 600 |
| Maximum digging depth (mm) | 7190 |
| Maximum excavation height (mm) | 10330 |
| Maximum unloading height (mm) | 7000 |
| Maximum vertical digging depth (mm) | 5460 |
| Maximum excavation radius of stop surface (mm) | 10830 |
| Maximum effective digging depth (mm) | 6370 |
