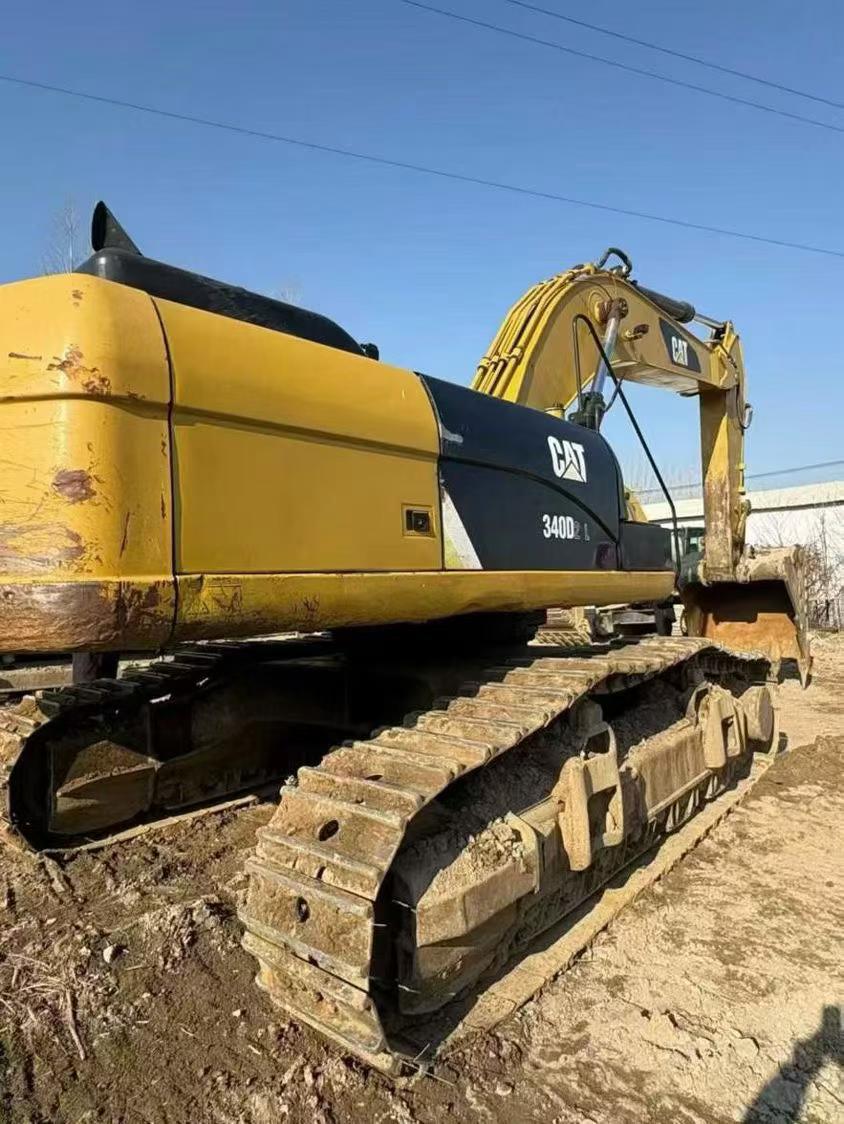

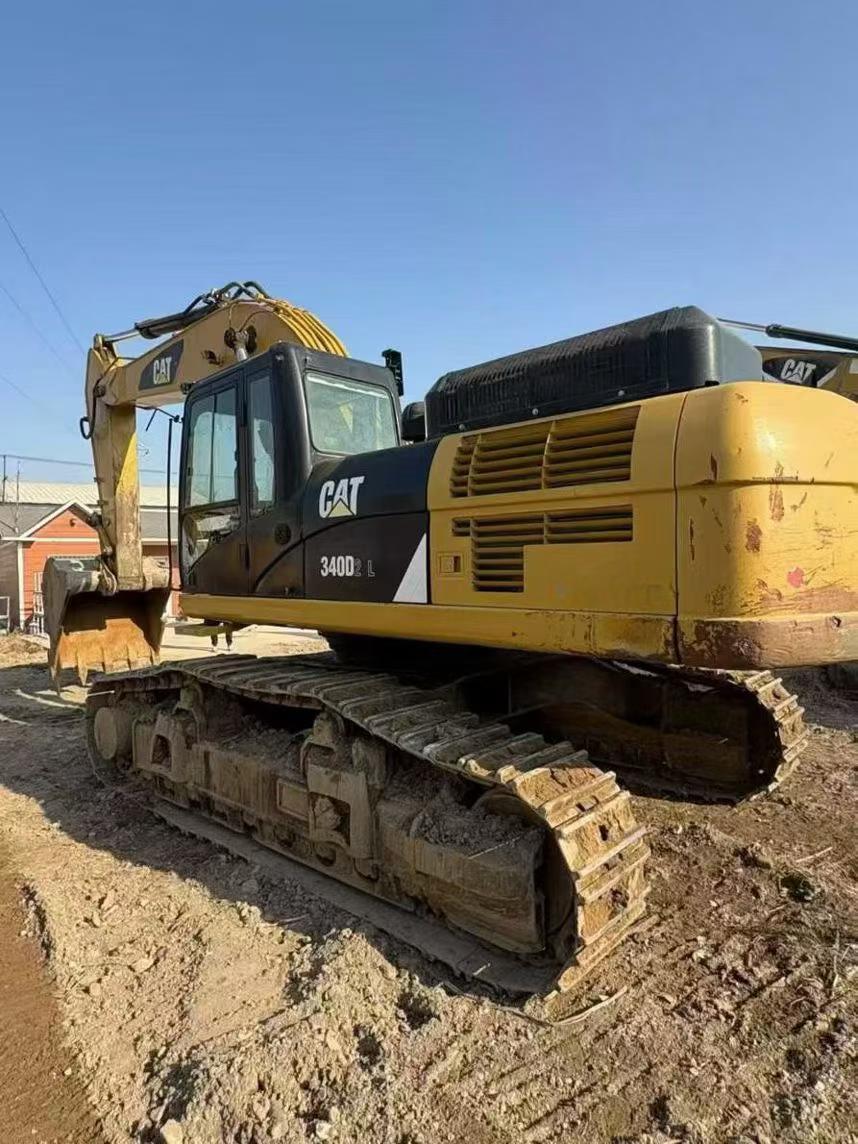

2017 Caterpillar 340D2L
Product Description

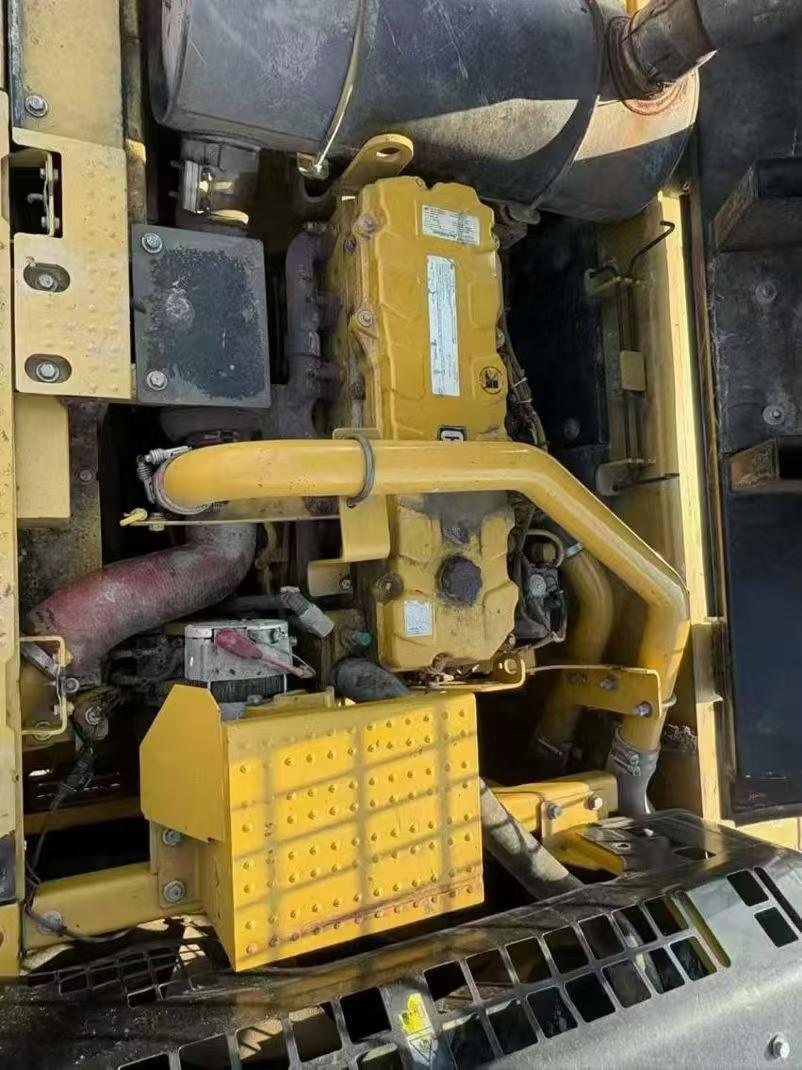

Built around the Cat C9 engine producing 208 kW with a turbocharged aftercooled direct injection fuel system, the 340D2L delivers consistent hydraulic output across demanding excavation cycles. Main pump flow reaches 281 L/min at 35 MPa system pressure, feeding a hydraulic circuit engineered for precision and durability under continuous load.

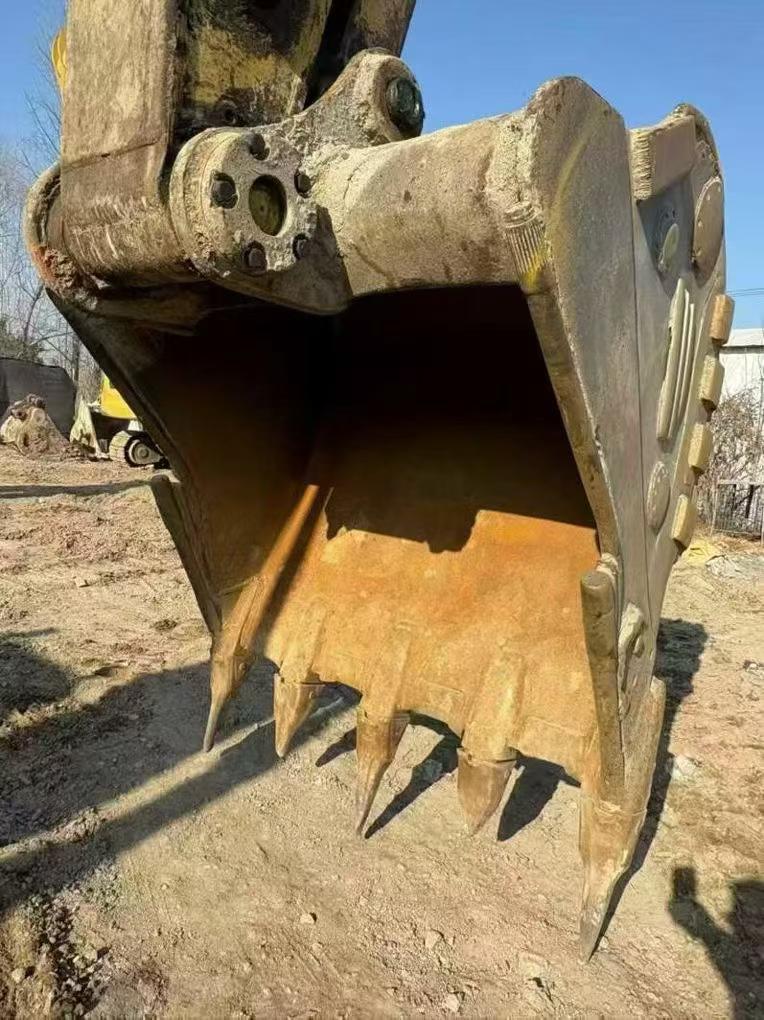

At 40 tons operating class with a working weight up to 41,500 kg, this 2017 Caterpillar 340D2L — sourced from Jiangsu, China — is configured for large-scale earthmoving, deep foundation work, and heavy material handling. The 1.9 m³ backhoe bucket operates with 210 kN digging force, backed by a bucket rod force of 185 kN and maximum tractive force of 300 kN.
- Engine: Cat C9, 8.8L displacement, 112 × 149 mm bore/stroke, 208 kW rated output
- Bucket digging force: 210 kN | Rod digging force: 185 kN
- Maximum digging depth: 7,190 mm | Maximum excavation radius: 10,830 mm
- Maximum excavation height: 10,330 mm | Maximum unloading height: 7,000 mm

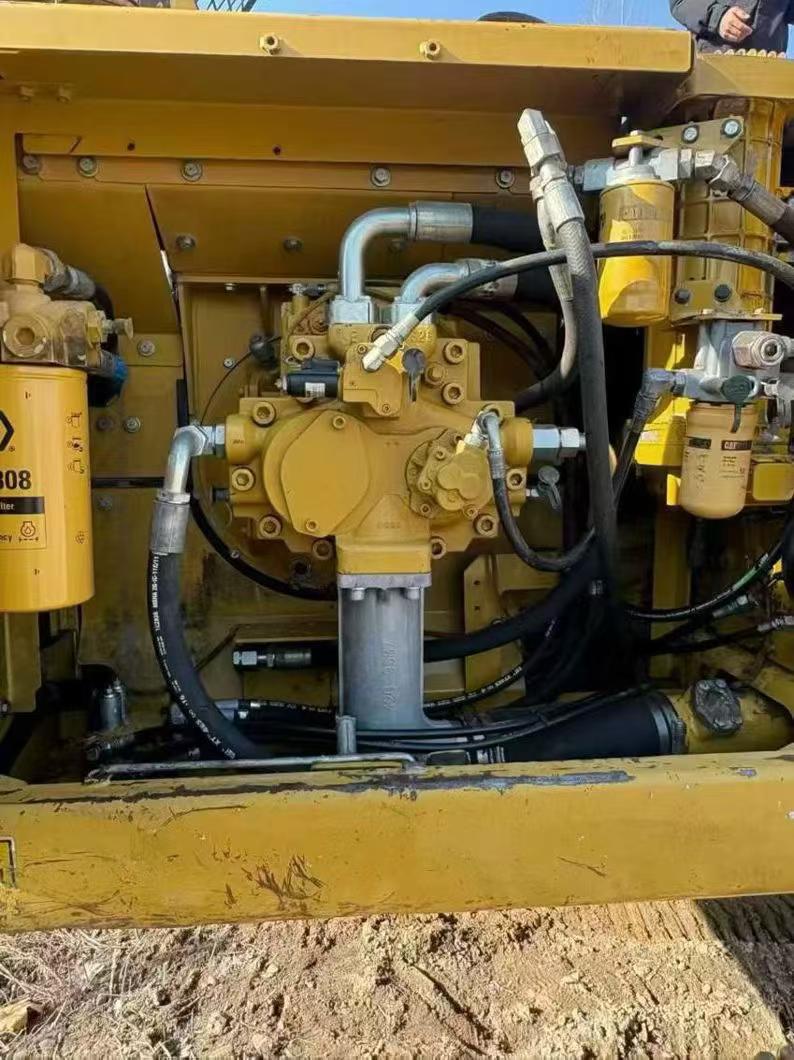

- Main hydraulic pressure: 35 MPa | Main pump flow: 281 L/min
- Fuel tank: 175 L | Hydraulic system capacity: 410 L
- Climbing ability: 70% | Travel speed: 4.6 km/h

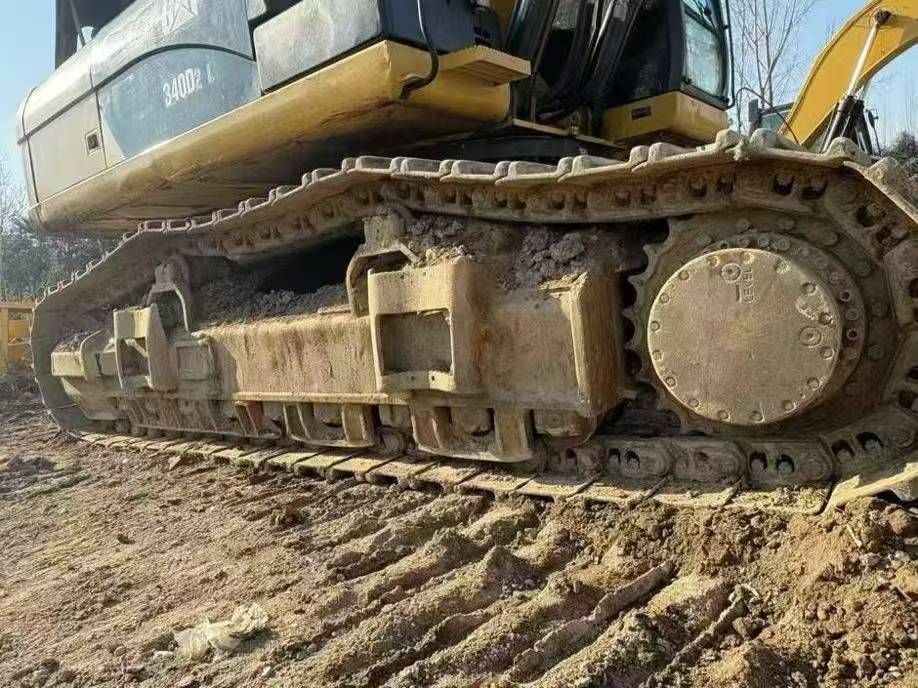

- Track plate width: 600 mm | Track gauge: 2,920 mm
| Specifications | Value |
|---|---|
| No. | 1060647 |
| Tonnage (tons) | 40 |
| Working weight (kg) | 38900~41500 |
| Bucket capacity (m³) | 1.9 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 2800 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | CatC9 |
| Rated power (kw/rpm) | 208 |
| Cylinder diameter × stroke (mm) | 112 x 149 |
| Displacement (L) | 8.8 |
| Working form | Direct injection fuel system with turbocharger aftercooler |
| Rotation speed (rpm) | 8.3 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 210 |
| Rod digging force (kN) | 185 |
| Maximum tractive force (kN) | 300 |
| Travel speed (km/h) | 4.6 |
| Turning torque (Nm) | 109 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 281 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Pilot Oil Circuit (MPa) | 4 |
| Pilot pump flow (L/min) | 40 |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 x 1151 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170 x 1738 |
| Boom cylinders - Number × diameter × stroke (mm) | 150 x 1440 |
| Fuel Tank (L) | 175 |
| Hydraulic Tank (L) | 620 |
| Engine Oil changes (L) | 41 |
| Coolant (L) | 40 |
| Hydraulic System (L) | 410 |
| Total transport length (mm) | 11170 |
| Total transport width (mm) | 3620 |
| Total transport height (mm) | 3630 |
| Full cab height (mm) | 3360 |
| Counterweight ground clearance (mm) | 1450 |
| Minimum ground clearance (mm) | 742 |
| Back end turning radius (mm) | 3490 |
| Total track length (mm) | 5060 |
| Track gauge (mm) | 2920 |
| Track plate width (mm) | 600 |
| Maximum digging depth (mm) | 7190 |
| Maximum excavation height (mm) | 10330 |
| Maximum unloading height (mm) | 7000 |
| Maximum vertical digging depth (mm) | 5460 |
| Maximum excavation radius of stop surface (mm) | 10830 |
| Maximum effective digging depth (mm) | 6370 |
Overview
No.1060647
Brand Name：
CaterpillarModel Number：
340D2LYear：
2017
Location：
Jiangsu China
Pub Date：
