2017 Caterpillar 340D2L
Product Description

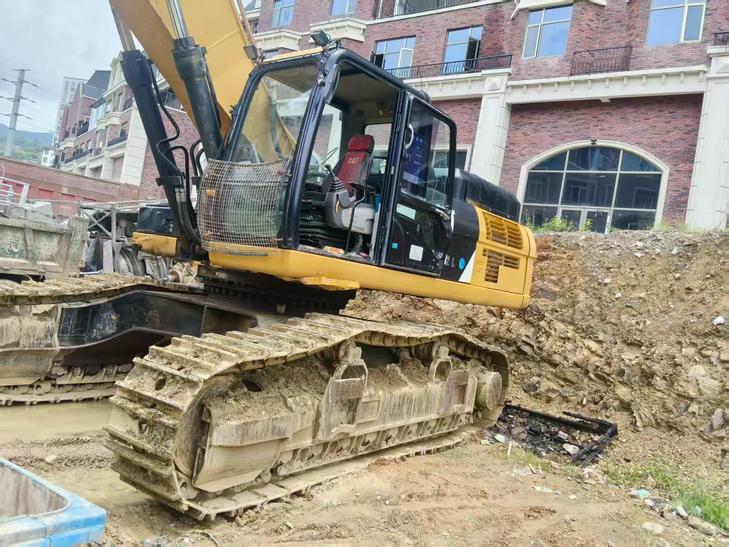

This 2017 Caterpillar 340D2L hydraulic excavator offers reliable performance for demanding earthmoving applications. With approximately 300,000 RMB hours of operation, this machine has been maintained for continued productivity in construction, mining, and infrastructure projects.
Key features include:
- Caterpillar C9 ACERT engine delivering robust power and fuel efficiency
- Advanced hydraulic system for precise control and reduced cycle times
- Spacious operator cab with ergonomic controls
- Durable undercarriage designed for extended service life
- Currently located in Guangdong Province, China
The 340D2L is known for its versatility across heavy-duty applications. This unit is ready for inspection and immediate deployment. Suitable for contractors and operators seeking proven mid-sized excavator capacity with Caterpillar's engineering standards.
| Specifications | Value |
|---|---|
| No. | 1082726 |
| Tonnage (tons) | 40 |
| Working weight (kg) | 38900~41500 |
| Bucket capacity (m³) | 1.9 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 2800 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | CatC9 |
| Rated power (kw/rpm) | 208 |
| Cylinder diameter × stroke (mm) | 112 x 149 |
| Displacement (L) | 8.8 |
| Working form | Direct injection fuel system with turbocharger aftercooler |
| Rotation speed (rpm) | 8.3 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 210 |
| Rod digging force (kN) | 185 |
| Maximum tractive force (kN) | 300 |
| Travel speed (km/h) | 4.6 |
| Turning torque (Nm) | 109 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 281 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Pilot Oil Circuit (MPa) | 4 |
| Pilot pump flow (L/min) | 40 |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 x 1151 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170 x 1738 |
| Boom cylinders - Number × diameter × stroke (mm) | 150 x 1440 |
| Fuel Tank (L) | 175 |
| Hydraulic Tank (L) | 620 |
| Engine Oil changes (L) | 41 |
| Coolant (L) | 40 |
| Hydraulic System (L) | 410 |
| Total transport length (mm) | 11170 |
| Total transport width (mm) | 3620 |
| Total transport height (mm) | 3630 |
| Full cab height (mm) | 3360 |
| Counterweight ground clearance (mm) | 1450 |
| Minimum ground clearance (mm) | 742 |
| Back end turning radius (mm) | 3490 |
| Total track length (mm) | 5060 |
| Track gauge (mm) | 2920 |
| Track plate width (mm) | 600 |
| Maximum digging depth (mm) | 7190 |
| Maximum excavation height (mm) | 10330 |
| Maximum unloading height (mm) | 7000 |
| Maximum vertical digging depth (mm) | 5460 |
| Maximum excavation radius of stop surface (mm) | 10830 |
| Maximum effective digging depth (mm) | 6370 |
see more
Overview
No.1082726
Brand Name：
CaterpillarModel Number：
340D2LYear：
2017
Location：
Guangdong China
