2020 Caterpillar 340D2L

1/9
Buy Caterpillar 340D2L Used Excavator / 1

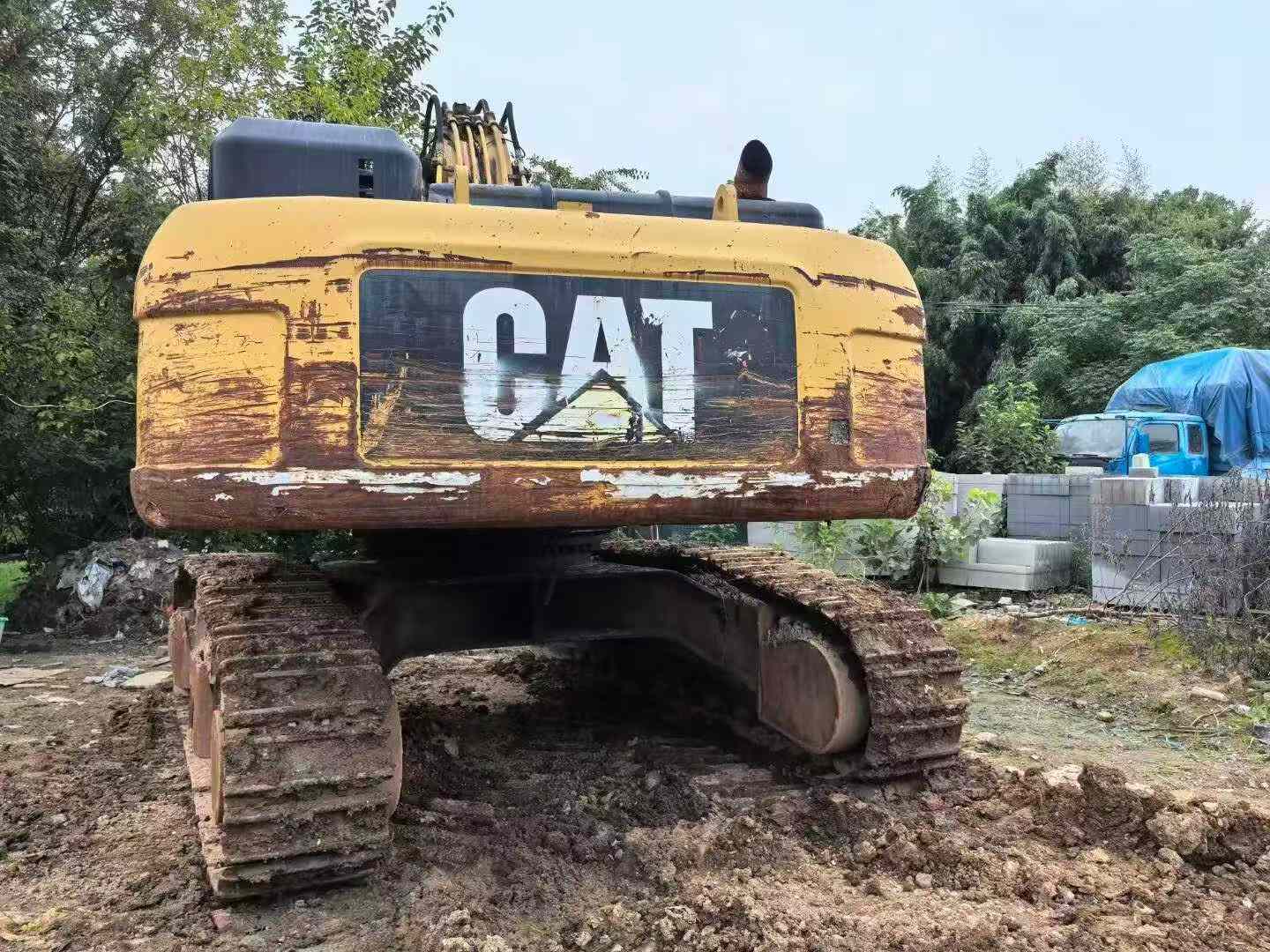

Buy Caterpillar 340D2L Used Excavator / 2
Buy Caterpillar 340D2L Used Excavator / 3
Buy Caterpillar 340D2L Used Excavator / 4
Buy Caterpillar 340D2L Used Excavator / 5
Buy Caterpillar 340D2L Used Excavator / 6
Buy Caterpillar 340D2L Used Excavator / 7
Buy Caterpillar 340D2L Used Excavator / 8
Buy Caterpillar 340D2L Used Excavator / 9

Product Description

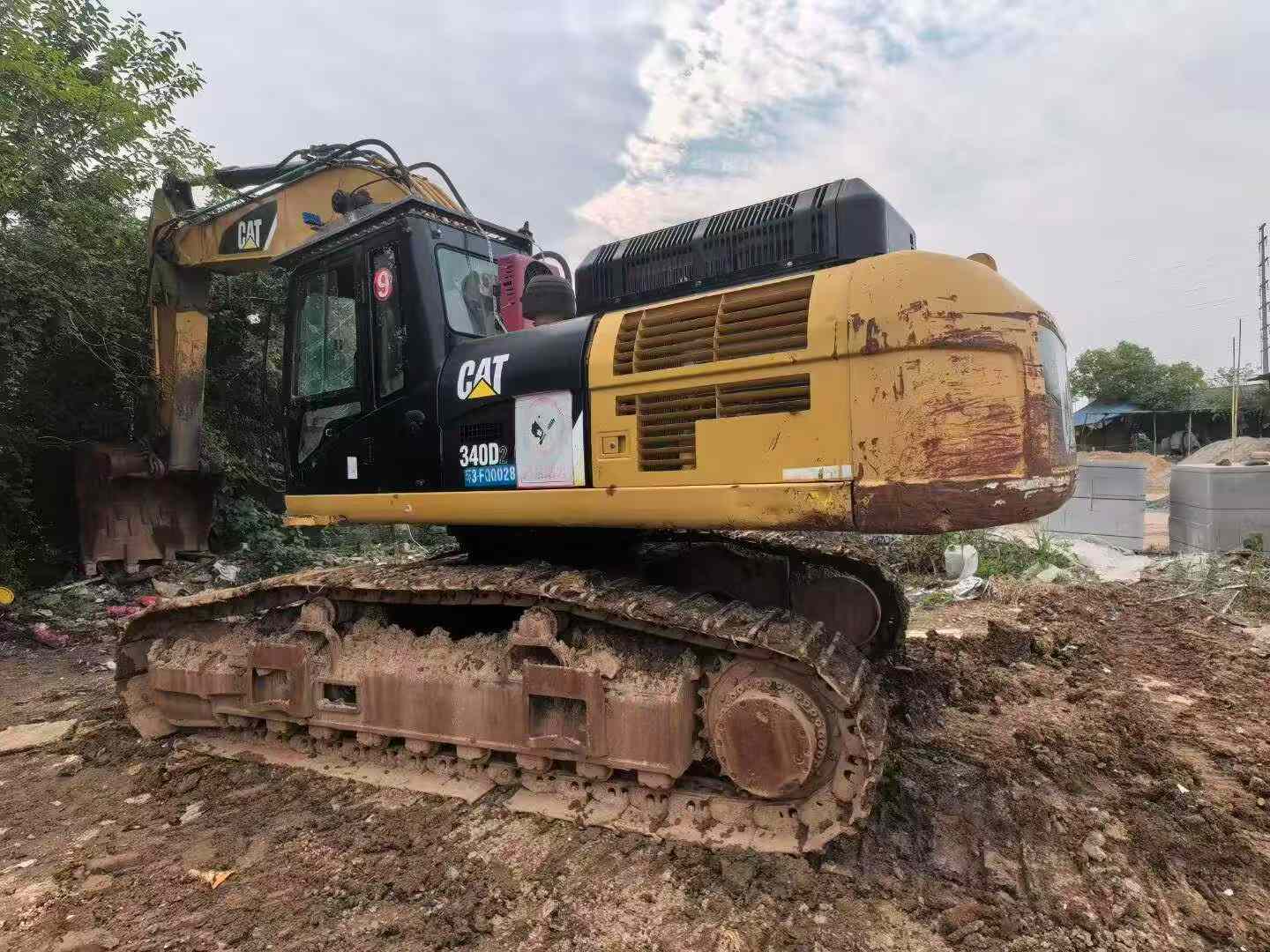

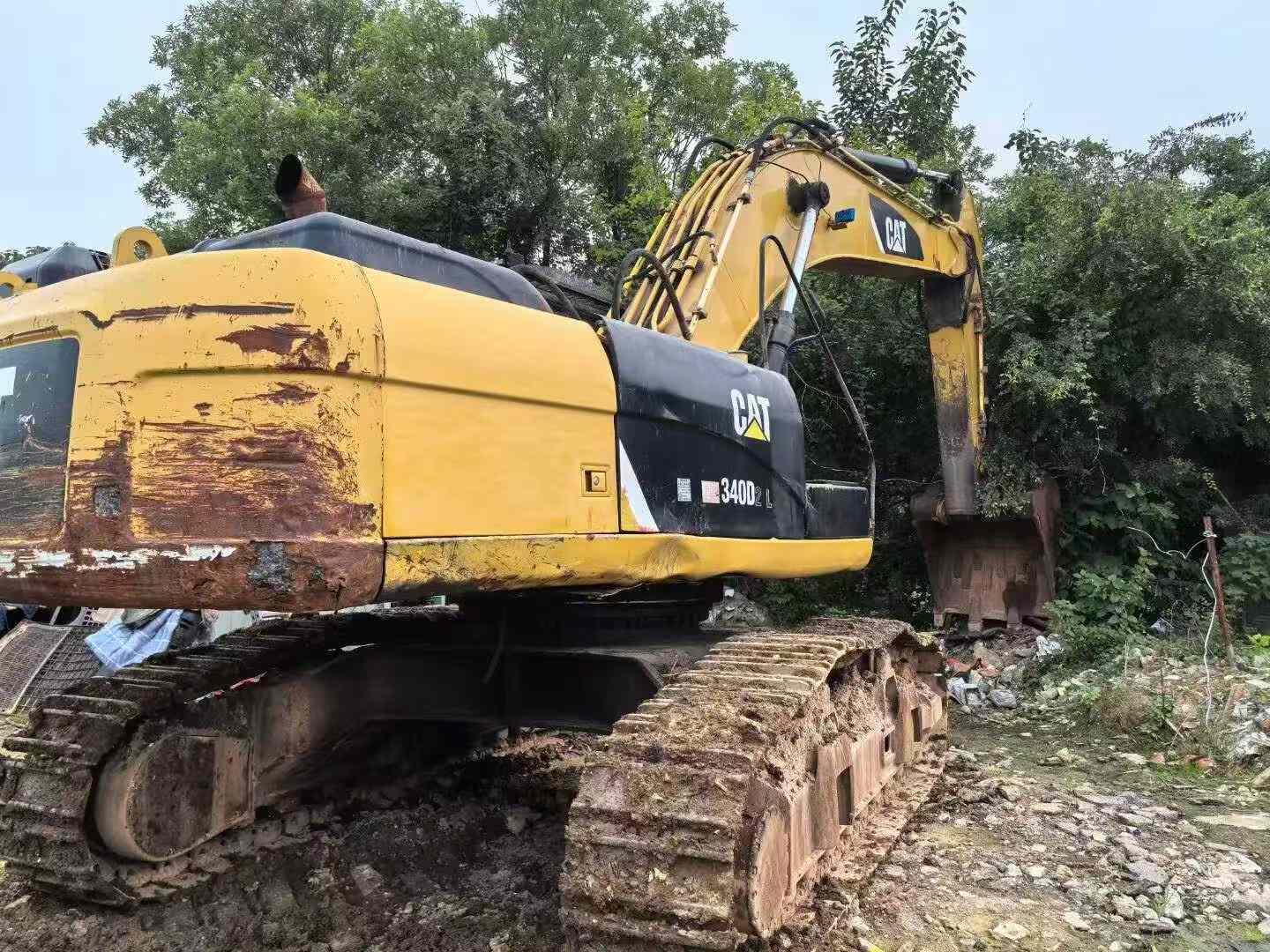

This 2020 Caterpillar 340D2L hydraulic excavator represents a proven workhorse from one of the industry's most trusted manufacturers. Currently located in Zhejiang, China, this machine has been actively utilized in field operations and demonstrates Caterpillar's renowned durability and performance standards.

The 340D2L is engineered for demanding excavation, material handling, and general construction applications. Key features include:

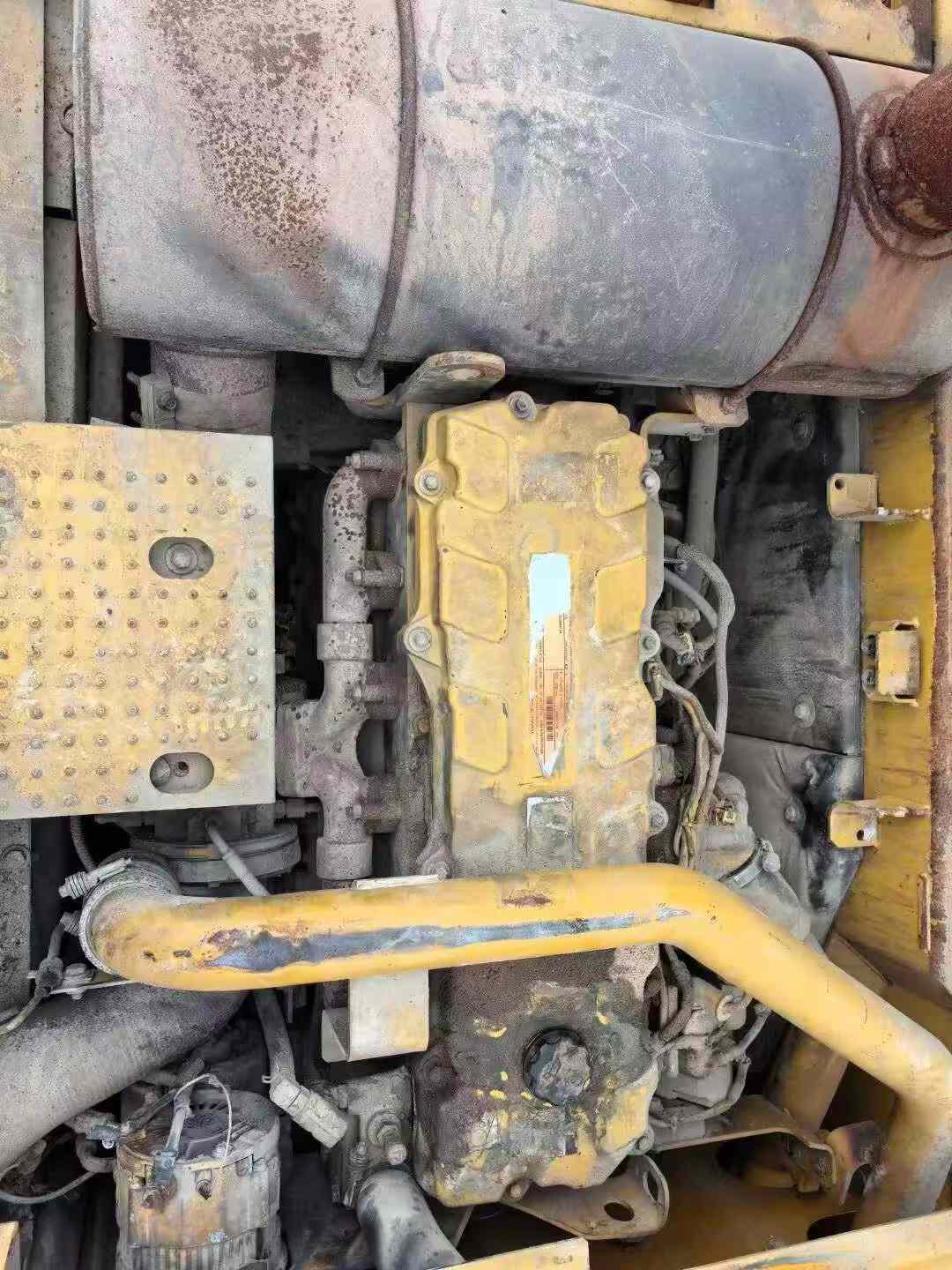

  • Reliable Cat C9 ACERT engine technology

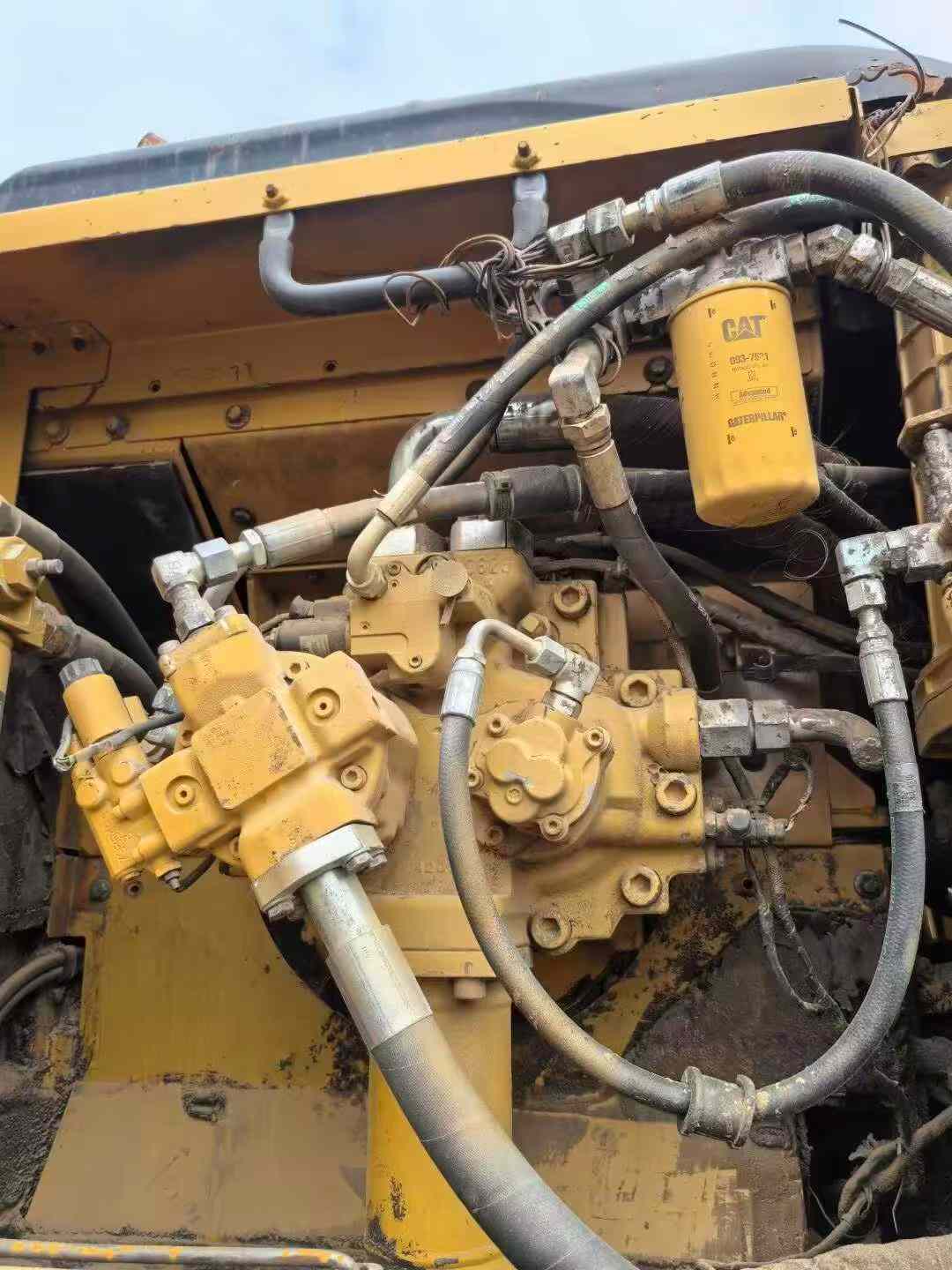

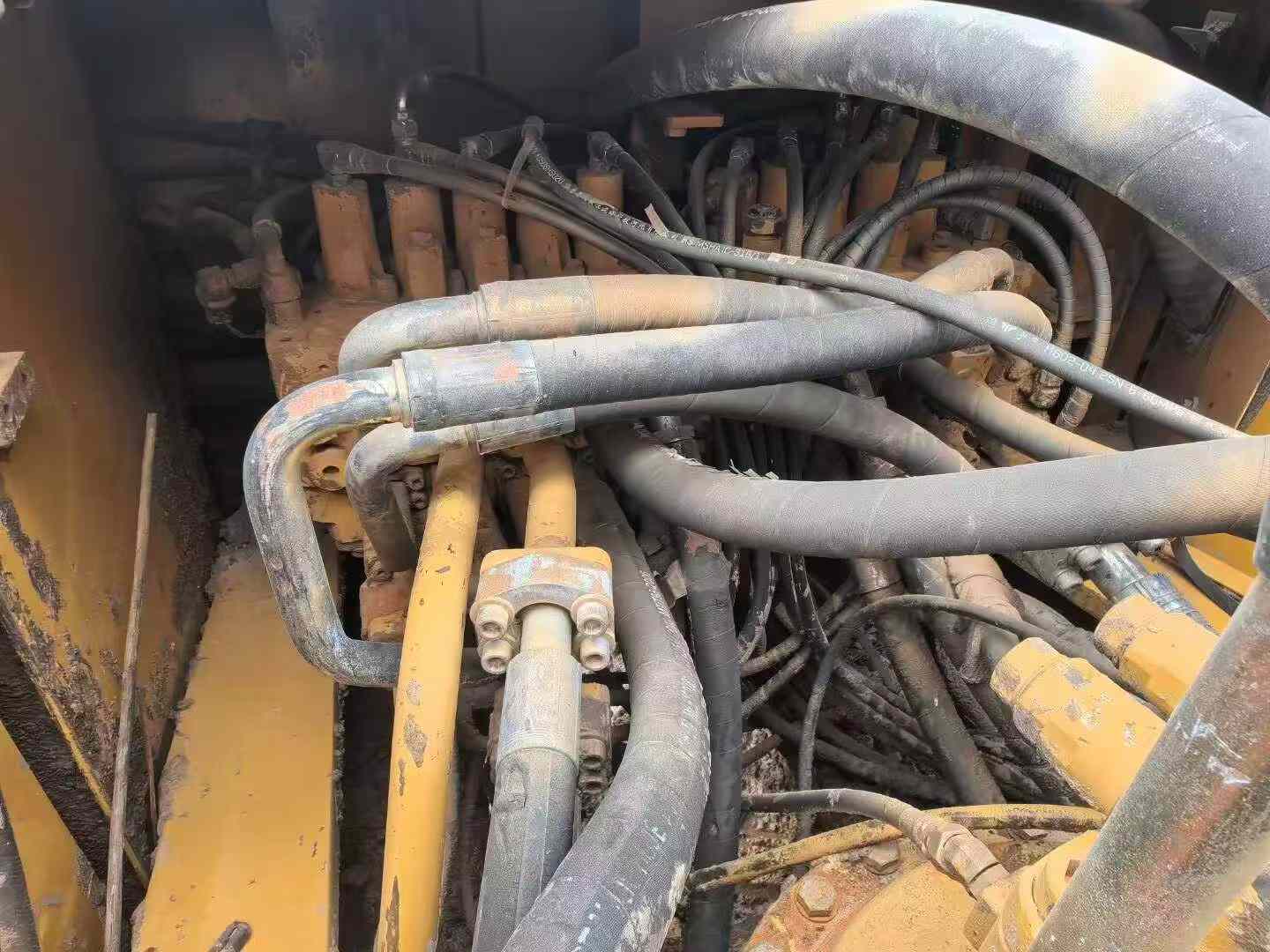

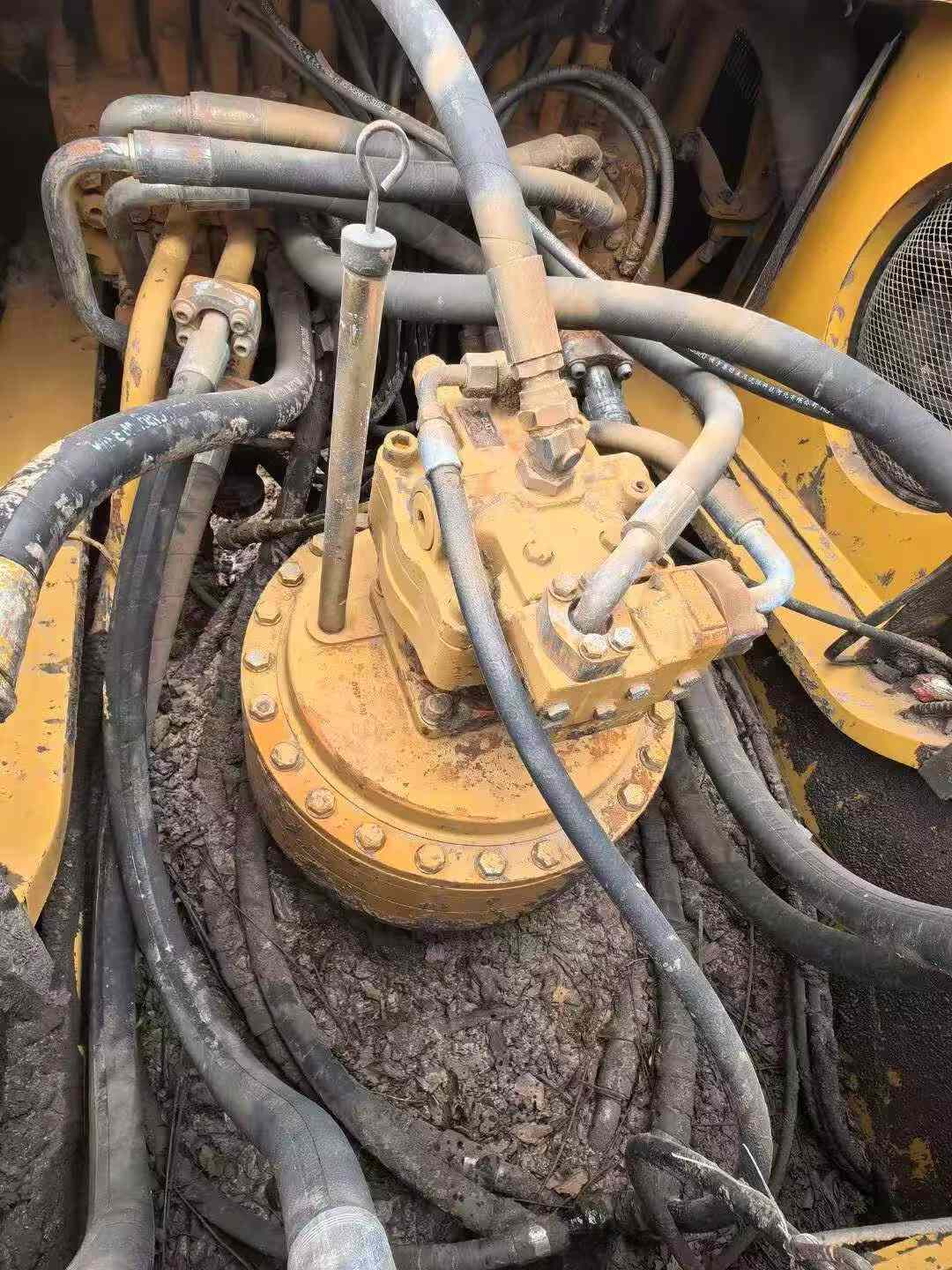

  • Advanced hydraulic systems for efficient operation

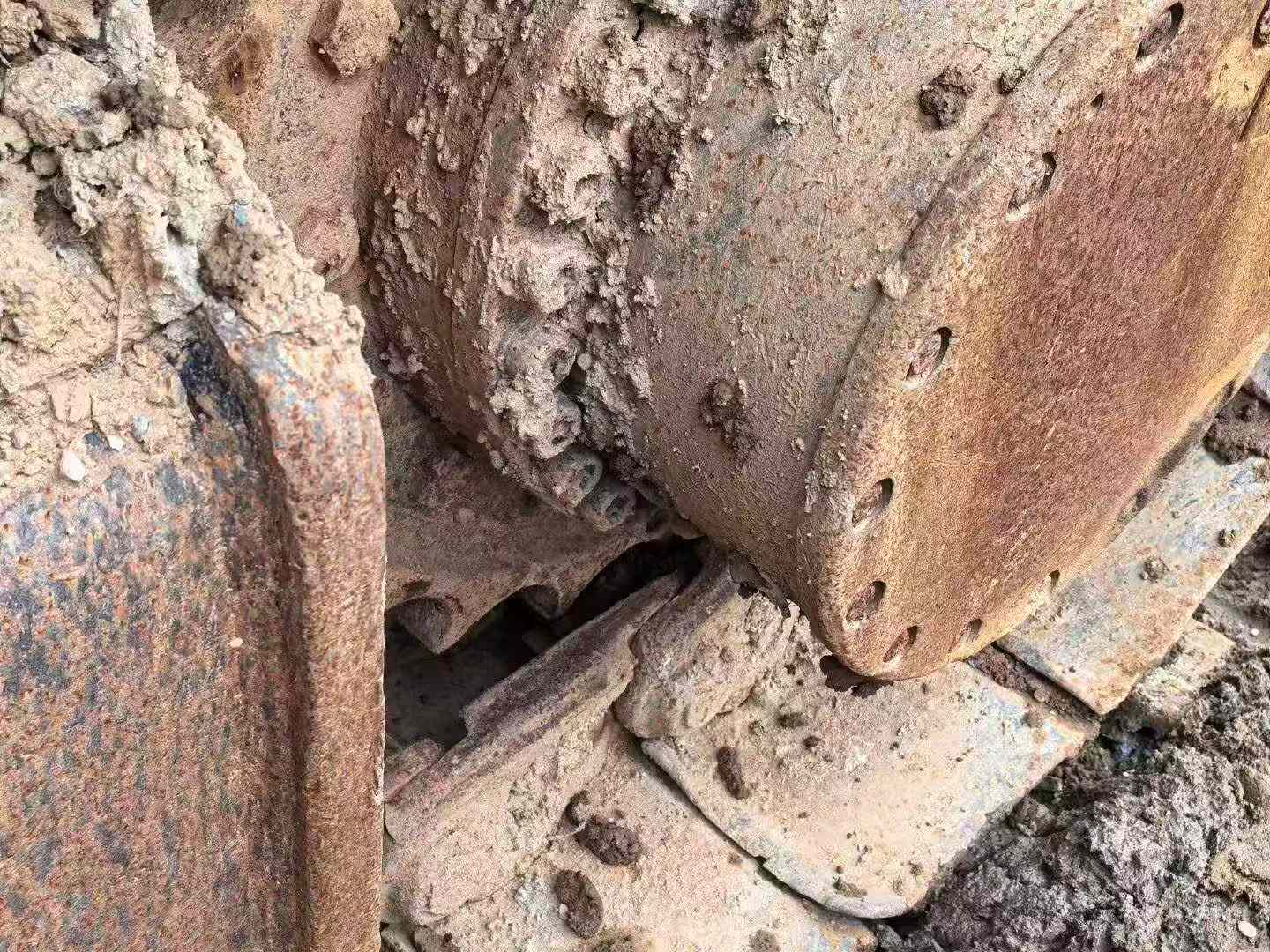

  • Robust undercarriage designed for extended service life
  • Operator-focused cab with ergonomic controls
  • Proven track record in diverse working conditions

This excavator offers an opportunity to acquire a relatively recent model from Caterpillar's trusted D2L series at a competitive value point. Ideal for contractors and operators seeking dependable performance in medium to heavy-duty applications. Contact us for detailed specifications, operating hours, and current condition assessment.

SpecificationsValue
No.1094163
Tonnage (tons)40
Working weight (kg)38900~41500
Bucket capacity (m³)1.9
Boom length (mm)6500
Rod length (mm)2800
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCatC9
Rated power (kw/rpm)208
Cylinder diameter × stroke (mm)112 x 149
Displacement (L)8.8
Working formDirect injection fuel system with turbocharger aftercooler
Rotation speed (rpm)8.3
Climbing ability (%)70
Bucket digging force (kN)210
Rod digging force (kN)185
Maximum tractive force (kN)300
Travel speed (km/h)4.6
Turning torque (Nm)109
Main overflow set pressure (Mpa)35
Maximum flow of main pump (l/min)281
Traveling Hydraulic Circuit (Mpa)35
Rotary Hydraulic Circuit (Mpa)28
Pilot Oil Circuit (MPa)4
Pilot pump flow (L/min)40
Bucket cylinders - Number × diameter × stroke (mm)150 x 1151
Bucket rod cylinders - Number × diameter × stroke (mm)170 x 1738
Boom cylinders - Number × diameter × stroke (mm)150 x 1440
Fuel Tank (L)175
Hydraulic Tank (L)620
Engine Oil changes (L)41
Coolant (L)40
Hydraulic System (L)410
Total transport length (mm)11170
Total transport width (mm)3620
Total transport height (mm)3630
Full cab height (mm)3360
Counterweight ground clearance (mm)1450
Minimum ground clearance (mm)742
Back end turning radius (mm)3490
Total track length (mm)5060
Track gauge (mm)2920
Track plate width (mm)600
Maximum digging depth (mm)7190
Maximum excavation height (mm)10330
Maximum unloading height (mm)7000
Maximum vertical digging depth (mm)5460
Maximum excavation radius of stop surface (mm)10830
Maximum effective digging depth (mm)6370
see more

Overview

No.1094163

Brand Name:

Caterpillar

Model Number:

340D2L

Year:

2020

Location:

Zhejiang China

Pub Date
