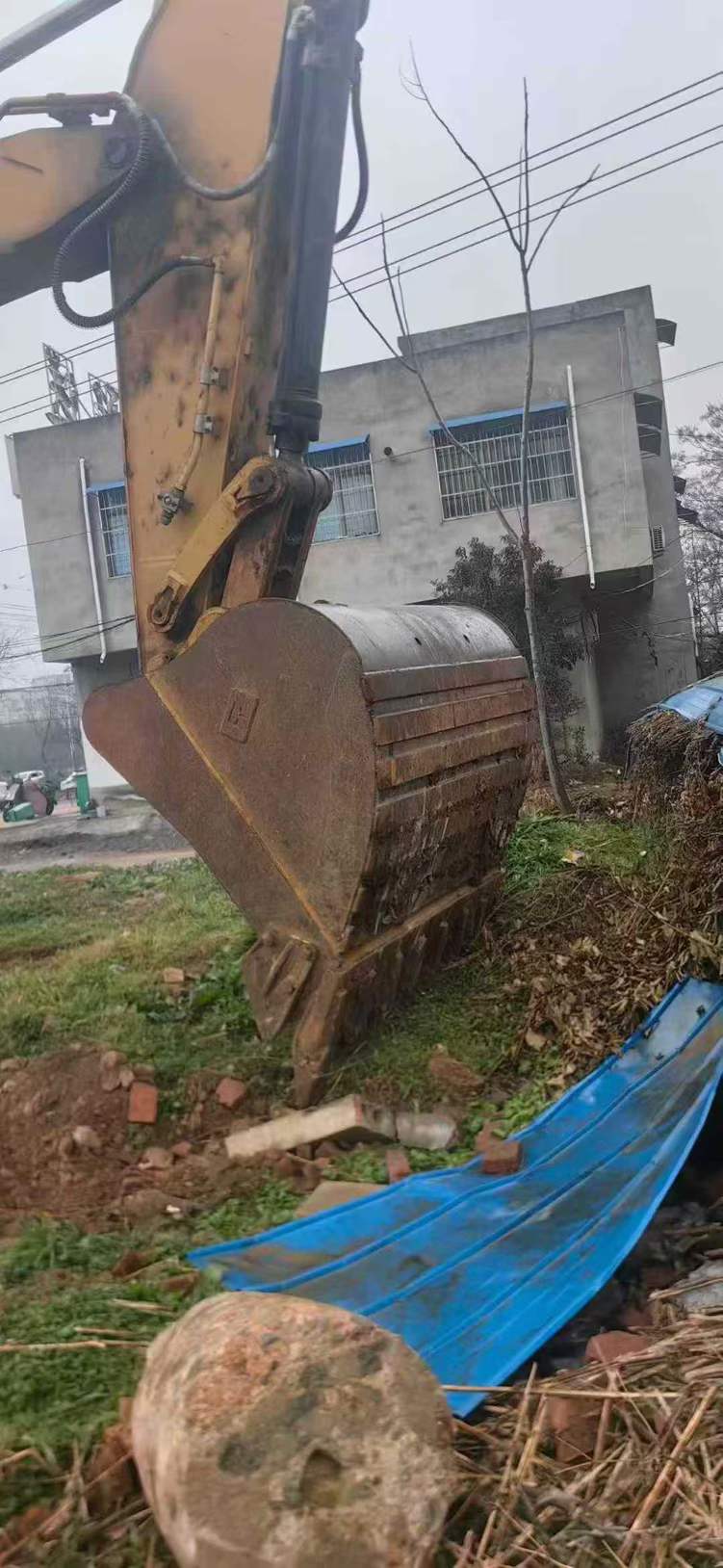

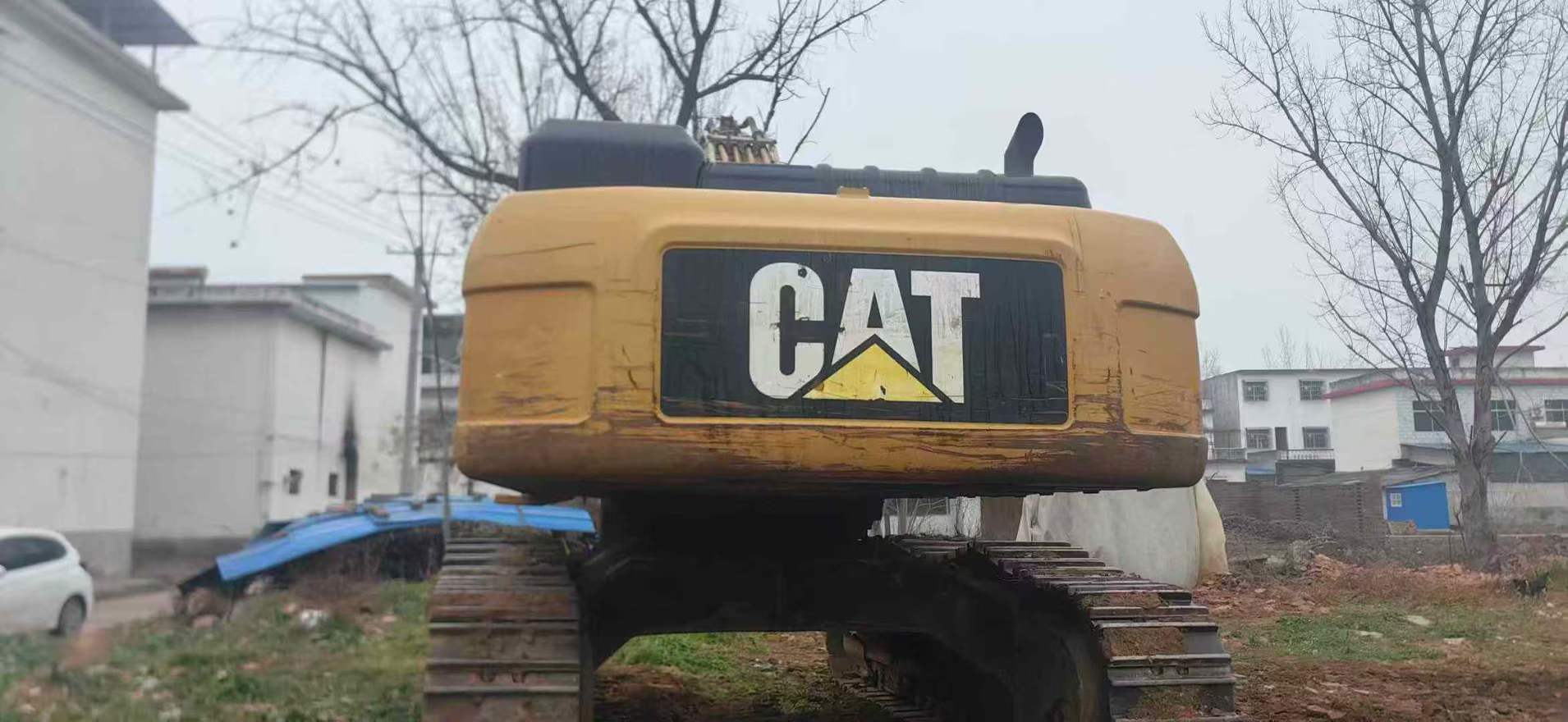

2017 Caterpillar 340DL
Product Description
Engineered for maximum productivity, this 2017 Caterpillar 340DL hydraulic excavator delivers exceptional performance through advanced hydraulic systems and proven powertrain technology. The 340DL series features a robust hydraulic circuit designed to optimize fuel efficiency while maintaining superior digging force and cycle times. Caterpillar's proprietary engine technology ensures reliable operation under demanding conditions, backed by precision-engineered components built to withstand intensive workloads.

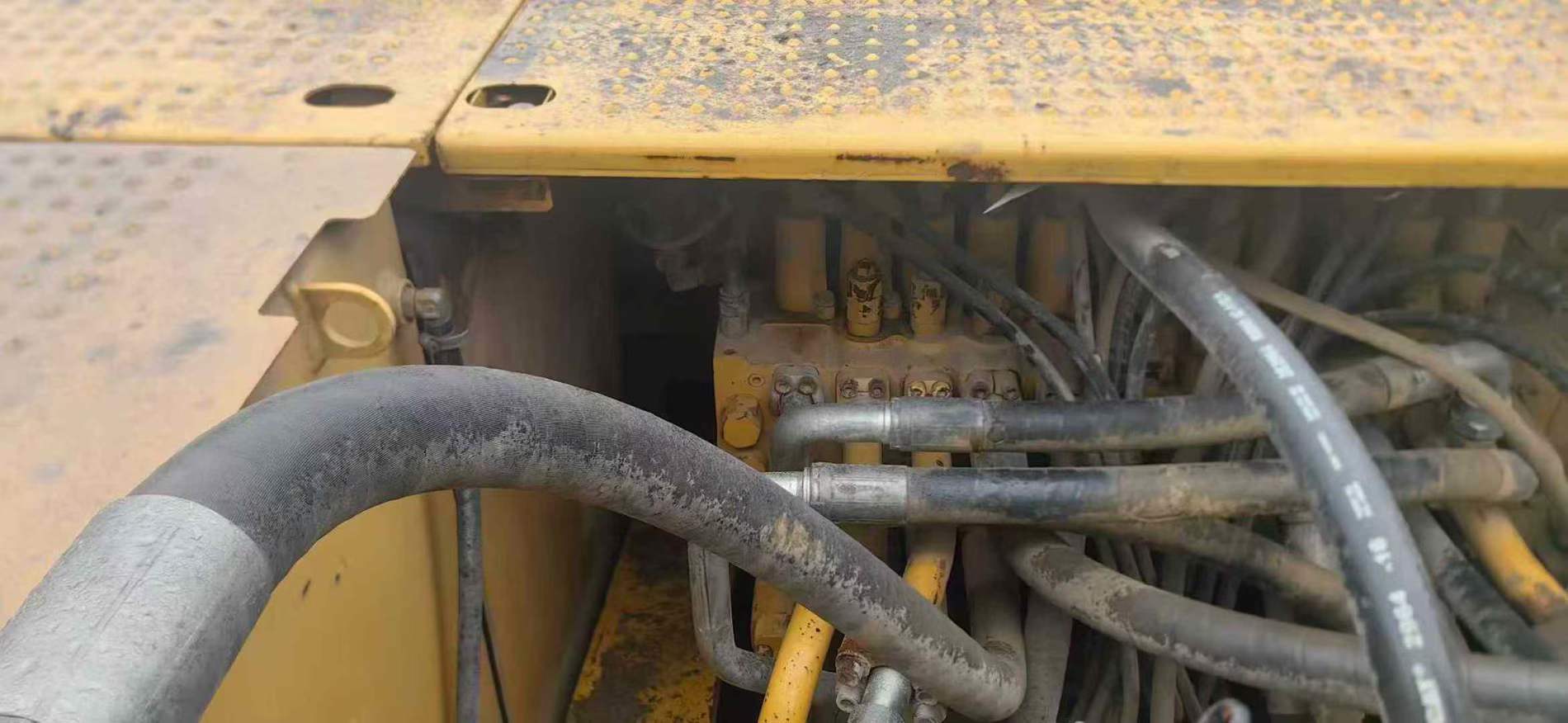

- Advanced hydraulic system with responsive control for precise operation

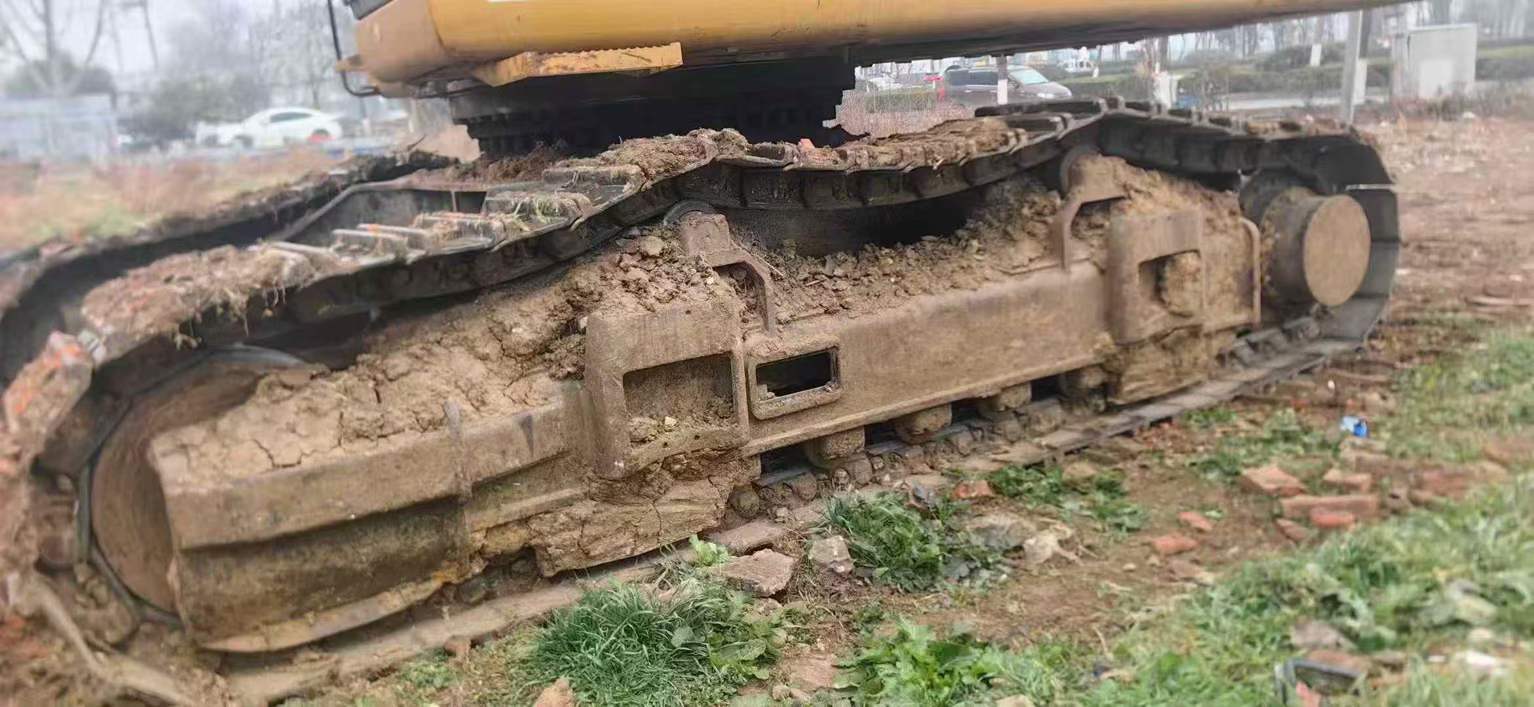

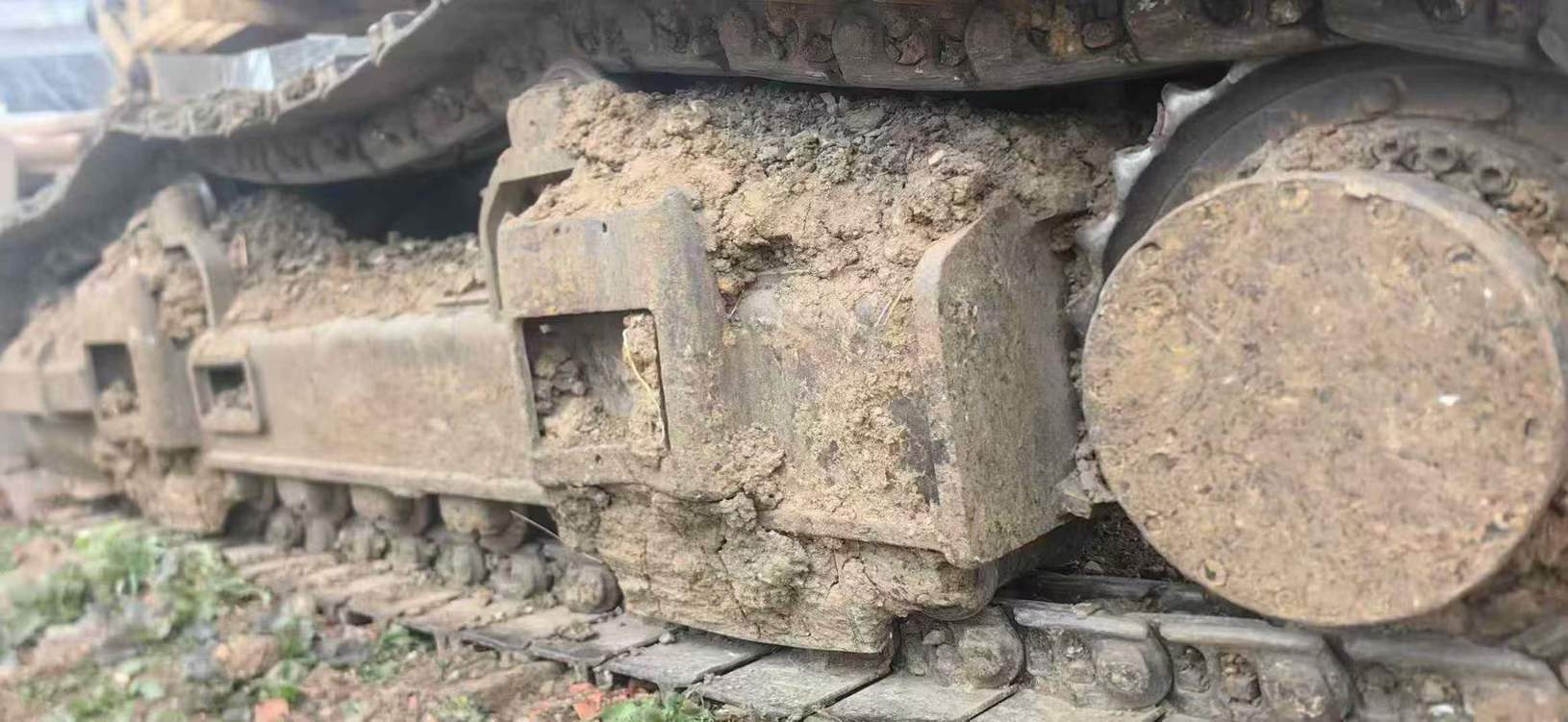

- Durable undercarriage and reinforced boom structure
- Fuel-efficient engine meeting rigorous performance standards
- Currently located in Xuzhou, Jiangsu Province
- Comprehensive service history maintained since 2017
Built on Caterpillar's decades of heavy equipment expertise, the 340DL represents a benchmark in mid-size excavator engineering. Its hydraulic architecture provides operators with smooth, controlled movements across all functions, while the machine's structural integrity ensures long-term durability. This unit combines proven mechanical reliability with operational efficiency, making i
| Specifications | Value |
|---|---|
| No. | 998250 |
| Tonnage (tons) | 40 |
| Working weight (kg) | 38100-38600 |
| Bucket capacity (m³) | 1.88/2.14 |
| Boom length (mm) | 6500/6180 |
| Rod length (mm) | 2550/2800/3200 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

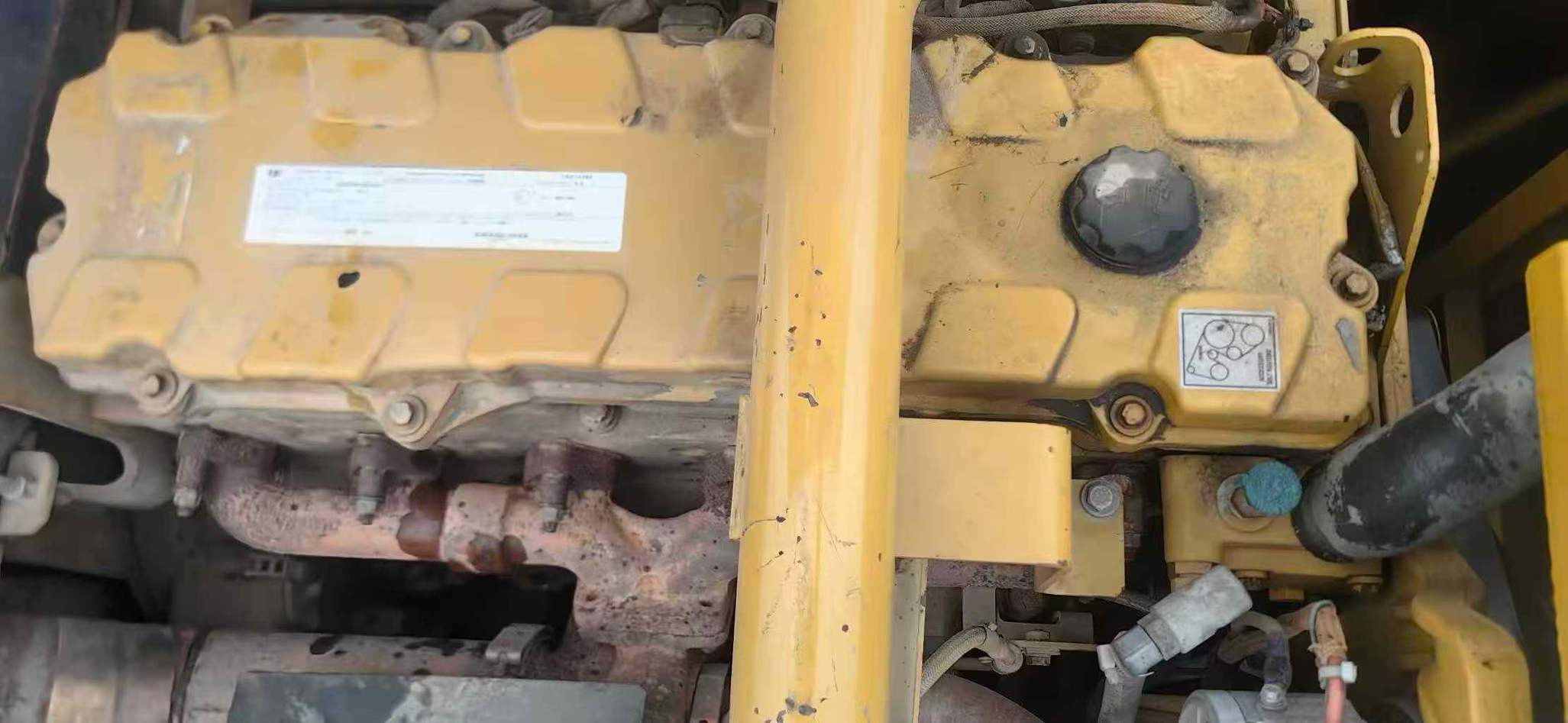

| Engine type | Caterpillar C9 ACERT |
| Rated power (kw/rpm) | 209 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 112 x 149 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.8 |
| Rotation speed (rpm) | 10 |
| Bucket digging force (kN) | 176 |
| Rod digging force (kN) | 158 |
| Travel speed (km/h) | 5 |
| Maximum flow of main pump (l/min) | 2 x 280 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 x 1151 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170 x 1738 |
| Boom cylinders - Number × diameter × stroke (mm) | 150 x 1440 |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 310 |
| Engine Oil changes (L) | 40 |
| Coolant (L) | 40 |
| Hydraulic System (L) | 410 |
| Total transport length (mm) | 11200 |
| Total transport width (mm) | 3520 |
| Total transport height (mm) | 3690 |
| Full cab height (mm) | 3420 |
| Counterweight ground clearance (mm) | 1500 |
| Minimum ground clearance (mm) | 743 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | 5066 |
| Track gauge (mm) | 2920 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3520 |
| Maximum digging depth (mm) | 7322 |
| Maximum excavation height (mm) | 10550 |
| Maximum unloading height (mm) | 7277 |
| Maximum vertical digging depth (mm) | 5712 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 11084 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 7035 |
Overview
No.998250
Brand Name：
CaterpillarModel Number：
340DLYear：
2017
Location：
Jiangsu China
Pub Date：
