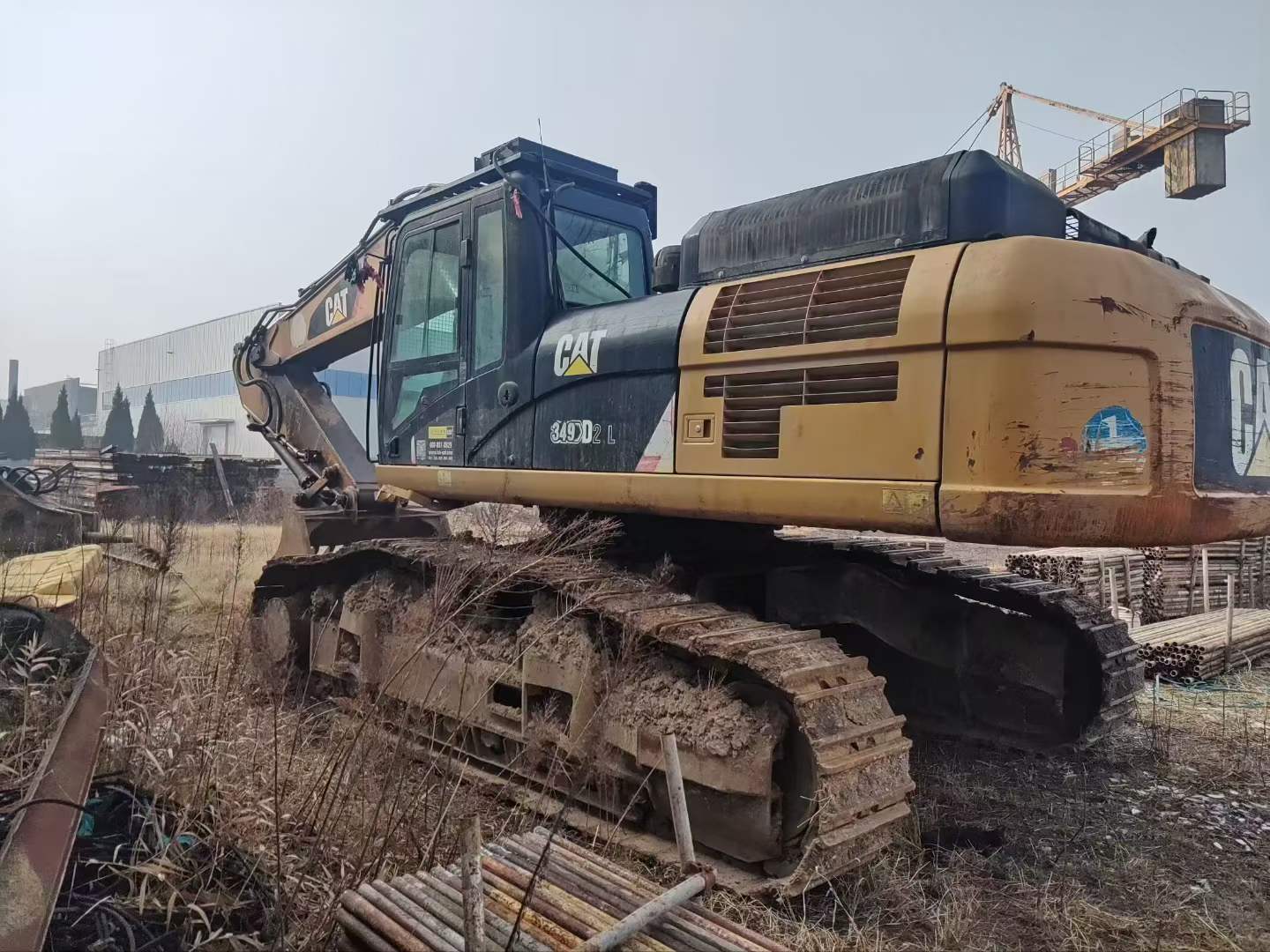

2017 Caterpillar 340DL
Product Description
Built to endure the toughest conditions, this 2017 Caterpillar 340DL hydraulic excavator stands as a proven workhorse in heavy construction. With several years of reliable operation behind it, this machine demonstrates the legendary durability that defines the Caterpillar brand. Currently located in Putian, Fujian, it represents a smart investment for contractors seeking dependable performance without compromise.
Engineered with robust hydraulic systems and reinforced structural components, the 340DL has earned its reputation through consistent field performance. Its track record speaks volumes about build quality and operational longevity.
- Year: 2017 - Proven operational history
- Brand: Caterpillar - Industry-leading reliability
- Model: 340DL Hydraulic Excavator
- Location: Putian, Fujian Province
- Built-to-last construction for demanding applications
- Established performance record in heavy-duty operations
Invest in a machine that has already demonstrated its capability to deliver results day after day. This 340DL combines Caterpillar's engineering excellence with real-world validation.
| Specifications | Value |
|---|---|
| No. | 998941 |
| Tonnage (tons) | 40 |
| Working weight (kg) | 38100-38600 |
| Bucket capacity (m³) | 1.88/2.14 |
| Boom length (mm) | 6500/6180 |
| Rod length (mm) | 2550/2800/3200 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar C9 ACERT |
| Rated power (kw/rpm) | 209 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 112 x 149 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.8 |
| Rotation speed (rpm) | 10 |
| Bucket digging force (kN) | 176 |
| Rod digging force (kN) | 158 |
| Travel speed (km/h) | 5 |
| Maximum flow of main pump (l/min) | 2 x 280 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 x 1151 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170 x 1738 |
| Boom cylinders - Number × diameter × stroke (mm) | 150 x 1440 |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 310 |
| Engine Oil changes (L) | 40 |
| Coolant (L) | 40 |
| Hydraulic System (L) | 410 |
| Total transport length (mm) | 11200 |
| Total transport width (mm) | 3520 |
| Total transport height (mm) | 3690 |
| Full cab height (mm) | 3420 |
| Counterweight ground clearance (mm) | 1500 |
| Minimum ground clearance (mm) | 743 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | 5066 |
| Track gauge (mm) | 2920 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3520 |
| Maximum digging depth (mm) | 7322 |
| Maximum excavation height (mm) | 10550 |
| Maximum unloading height (mm) | 7277 |
| Maximum vertical digging depth (mm) | 5712 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 11084 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 7035 |
Overview
No.998941
Brand Name：
CaterpillarModel Number：
340DLYear：
2017
Location：
Fujian China
Pub Date：
