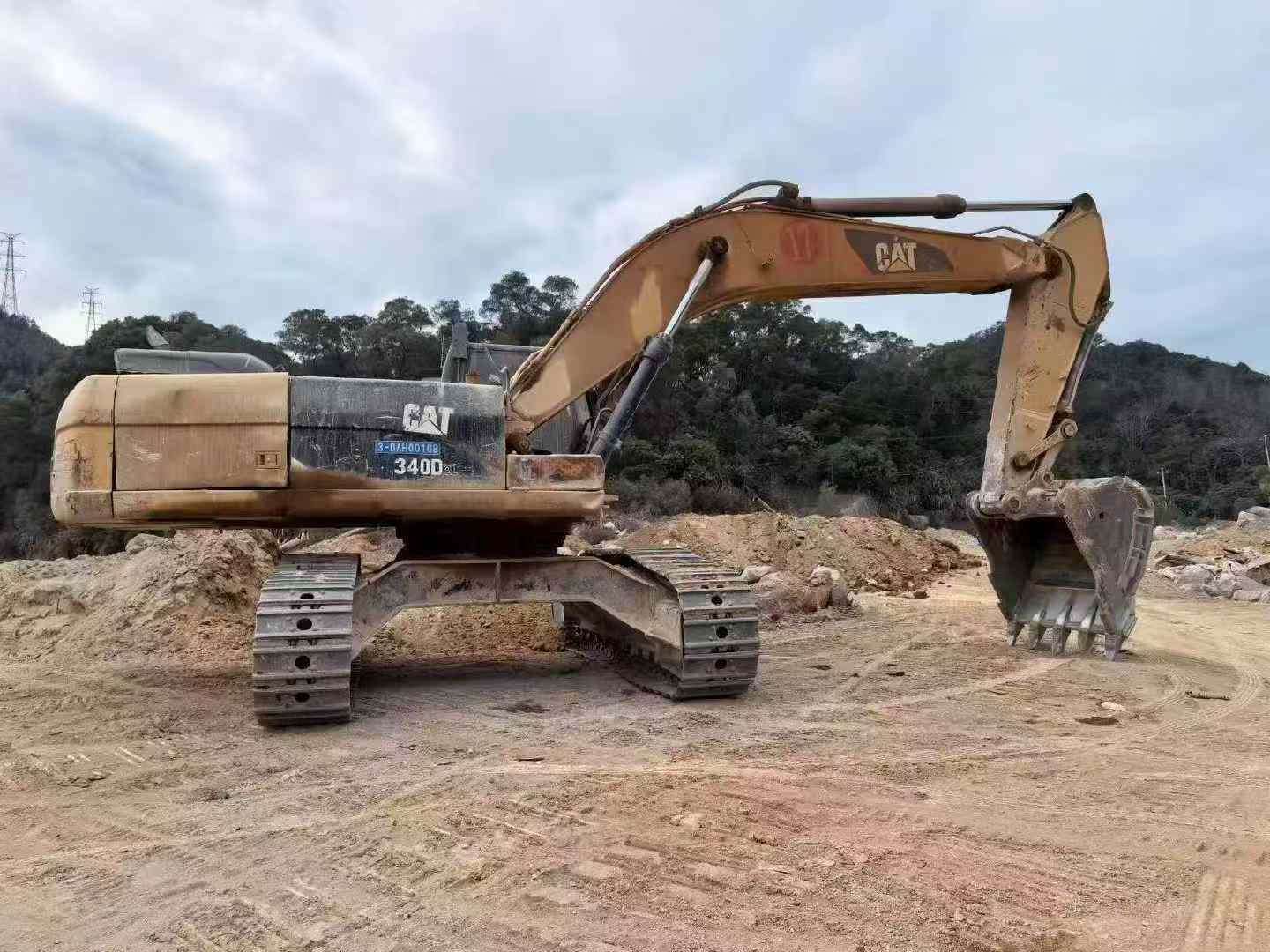

2018 Caterpillar 340DL
Product Description
Engineered with precision hydraulic systems and robust powertrain architecture, this 2018 Caterpillar 340DL hydraulic excavator delivers exceptional performance in demanding construction and earthmoving applications. The 340DL series features advanced hydraulic technology that optimizes flow rates and pressure management, ensuring responsive control and superior digging force across all operating conditions.
- Year: 2018
- Brand: Caterpillar
- Model: 340DL液压 (Hydraulic Excavator)
- Location: 浙江丽水 (Lishui, Zhejiang)
Built on Caterpillar's proven engineering platform, this machine incorporates heavy-duty components designed for extended service life and minimal downtime. Hydraulic efficiency translates directly to fuel economy and productivity gains, while the reinforced undercarriage and structural framework withstand the rigors of high-intensity operations. Currently positioned in Lishui, Zhejiang, this unit represents a strategic acquisition opportunity for contractors requiring reliable, high-capacity excavation equipment backed by Caterpillar's technical excellence and global support network.
| Specifications | Value |
|---|---|
| No. | 999095 |
| Tonnage (tons) | 40 |
| Working weight (kg) | 38100-38600 |
| Bucket capacity (m³) | 1.88/2.14 |
| Boom length (mm) | 6500/6180 |
| Rod length (mm) | 2550/2800/3200 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar C9 ACERT |
| Rated power (kw/rpm) | 209 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 112 x 149 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.8 |
| Rotation speed (rpm) | 10 |
| Bucket digging force (kN) | 176 |
| Rod digging force (kN) | 158 |
| Travel speed (km/h) | 5 |
| Maximum flow of main pump (l/min) | 2 x 280 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 x 1151 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170 x 1738 |
| Boom cylinders - Number × diameter × stroke (mm) | 150 x 1440 |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 310 |
| Engine Oil changes (L) | 40 |
| Coolant (L) | 40 |
| Hydraulic System (L) | 410 |
| Total transport length (mm) | 11200 |
| Total transport width (mm) | 3520 |
| Total transport height (mm) | 3690 |
| Full cab height (mm) | 3420 |
| Counterweight ground clearance (mm) | 1500 |
| Minimum ground clearance (mm) | 743 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | 5066 |
| Track gauge (mm) | 2920 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3520 |
| Maximum digging depth (mm) | 7322 |
| Maximum excavation height (mm) | 10550 |
| Maximum unloading height (mm) | 7277 |
| Maximum vertical digging depth (mm) | 5712 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 11084 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 7035 |
Overview
No.999095
Brand Name：
CaterpillarModel Number：
340DLYear：
2018
Location：
Zhejiang China
Pub Date：
